Door Module-Passenger C1 - Gray 14 Way

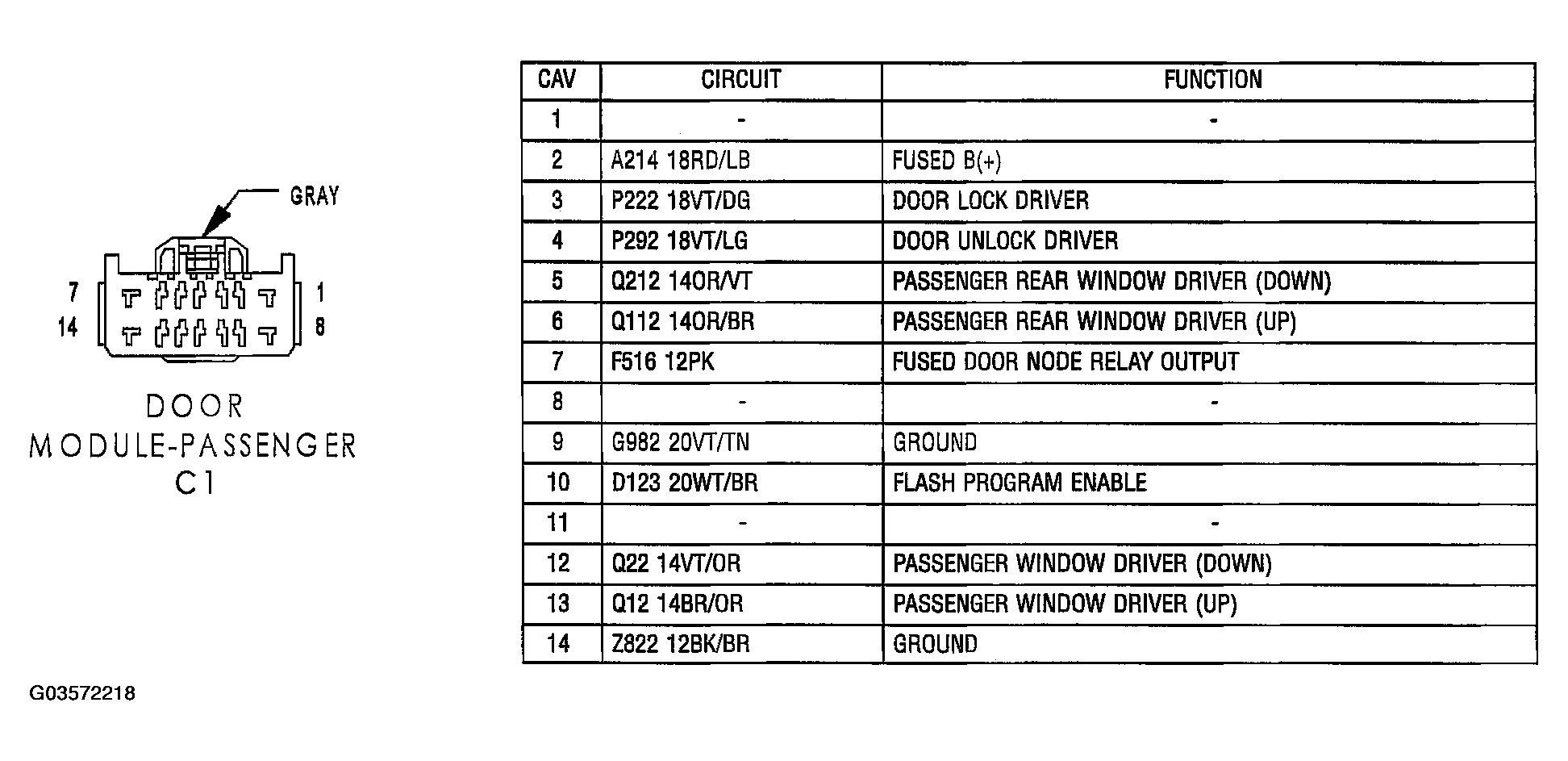

Fig 1: Identifying Door Module-Passenger C1 Connector Terminals And Specification (Gray 14 Way)
G03572218Courtesy of DAIMLERCHRYSLER CORP.
