Door Module-Driver C3 - Black 20 Way

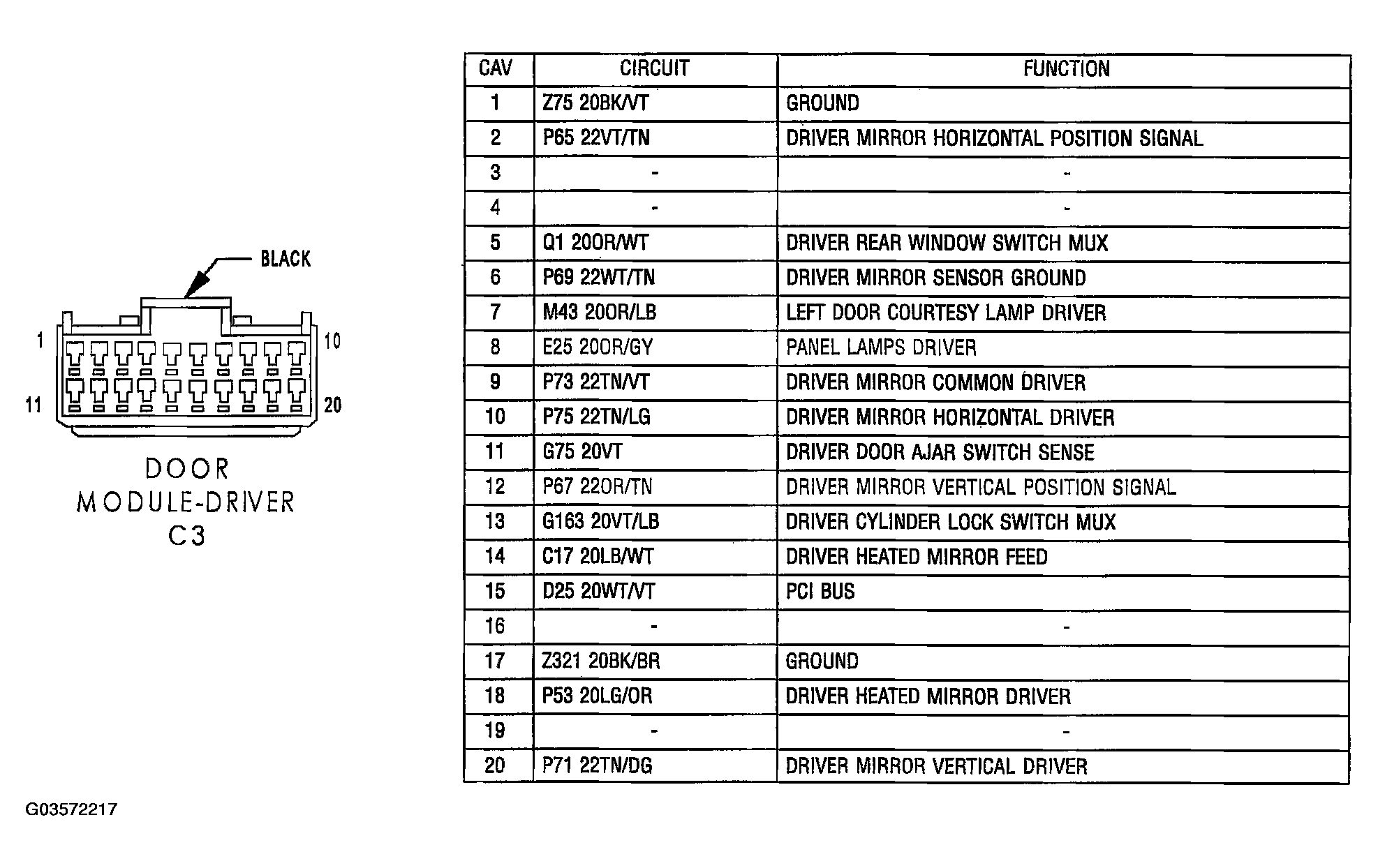

Fig 1: Identifying Door Module-Driver C3 Connector Terminals And Specification (Black 20 Way)
G03572217Courtesy of DAIMLERCHRYSLER CORP.
