Door Module-Driver C2 - Black 12 Way

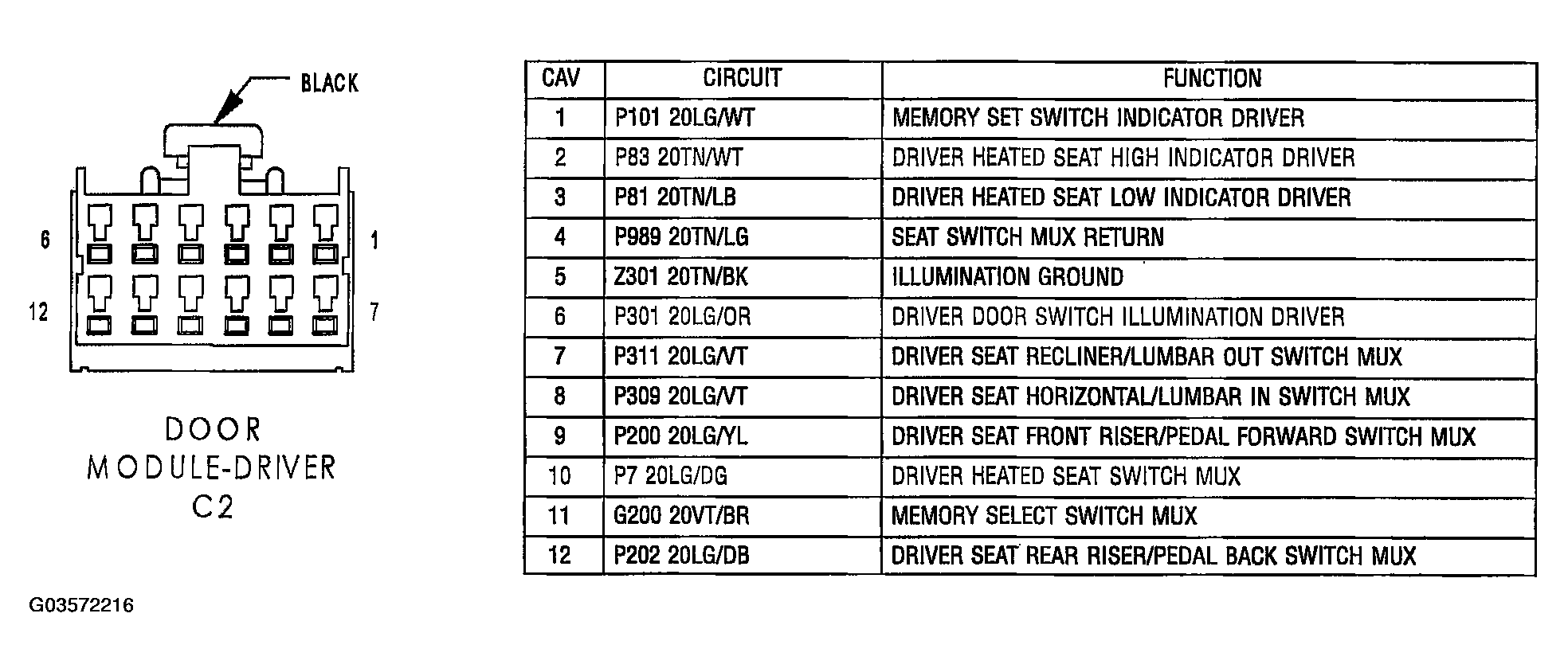

Fig 1: Identifying Door Module-Driver C2 Connector Terminals And Specification (Black 12 Way)
G03572216Courtesy of DAIMLERCHRYSLER CORP.
