Door Lock Motor/Ajar Switch-Driver Rear - Black 4 Way

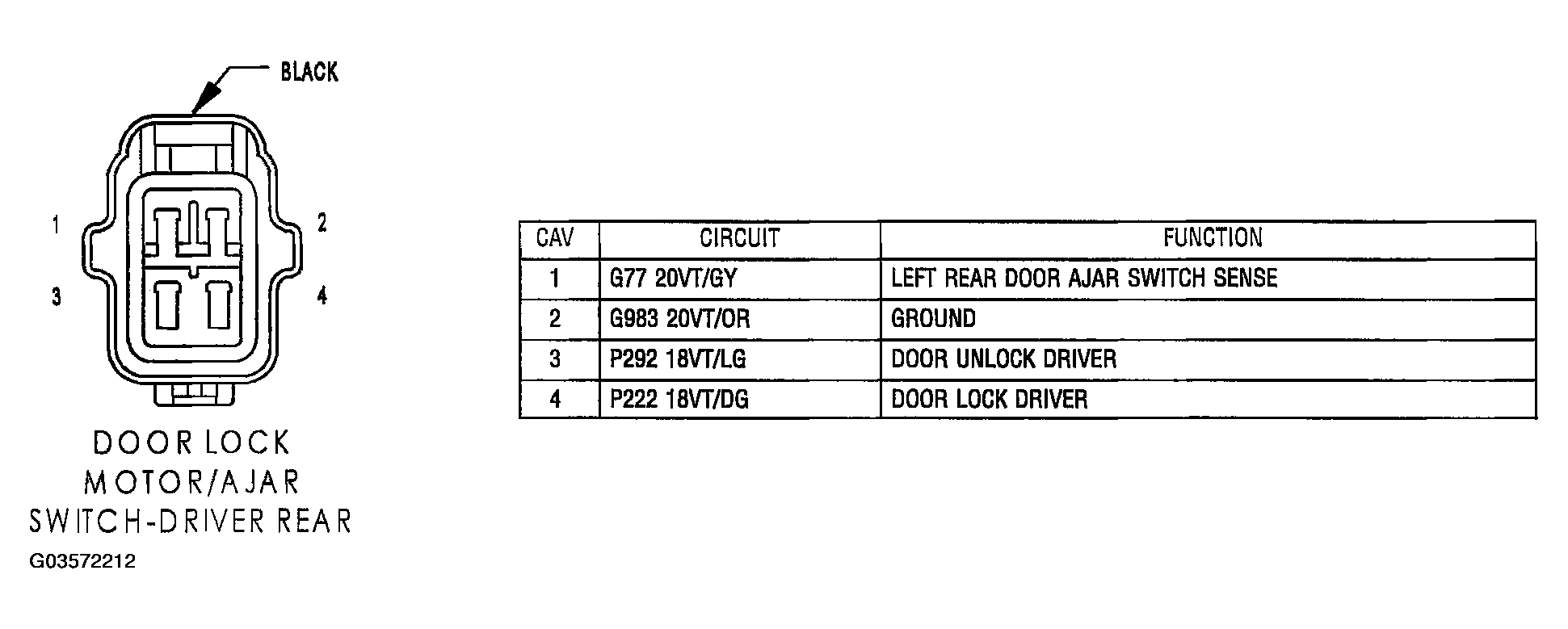

Fig 1: Identifying Door Lock Motor/Ajar Switch-Driver Rear Connector Terminals And Specification (Black 4 Way)

G03572212

Courtesy of DAIMLERCHRYSLER CORP.
