Door Lock Motor/Ajar Switch-Driver - Black 4 Way

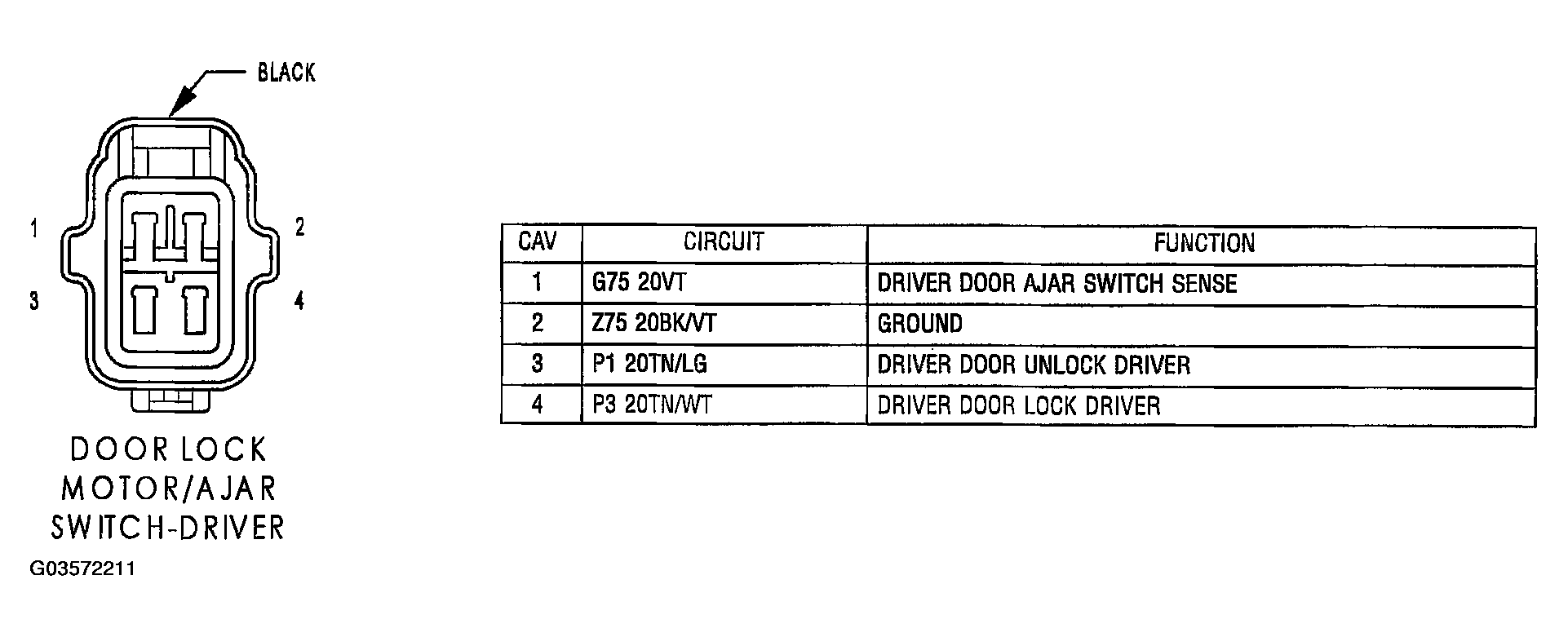

Fig 1: Identifying Door Lock Motor/Ajar Switch-Driver Connector Terminals And Specification (Black 4 Way)

G03572211

Courtesy of DAIMLERCHRYSLER CORP.
