Connector PINOUTS
>>
DVD/Cd Changer C1 - Black 16 Way
DVD/Cd Changer C1 - Black 16 Way

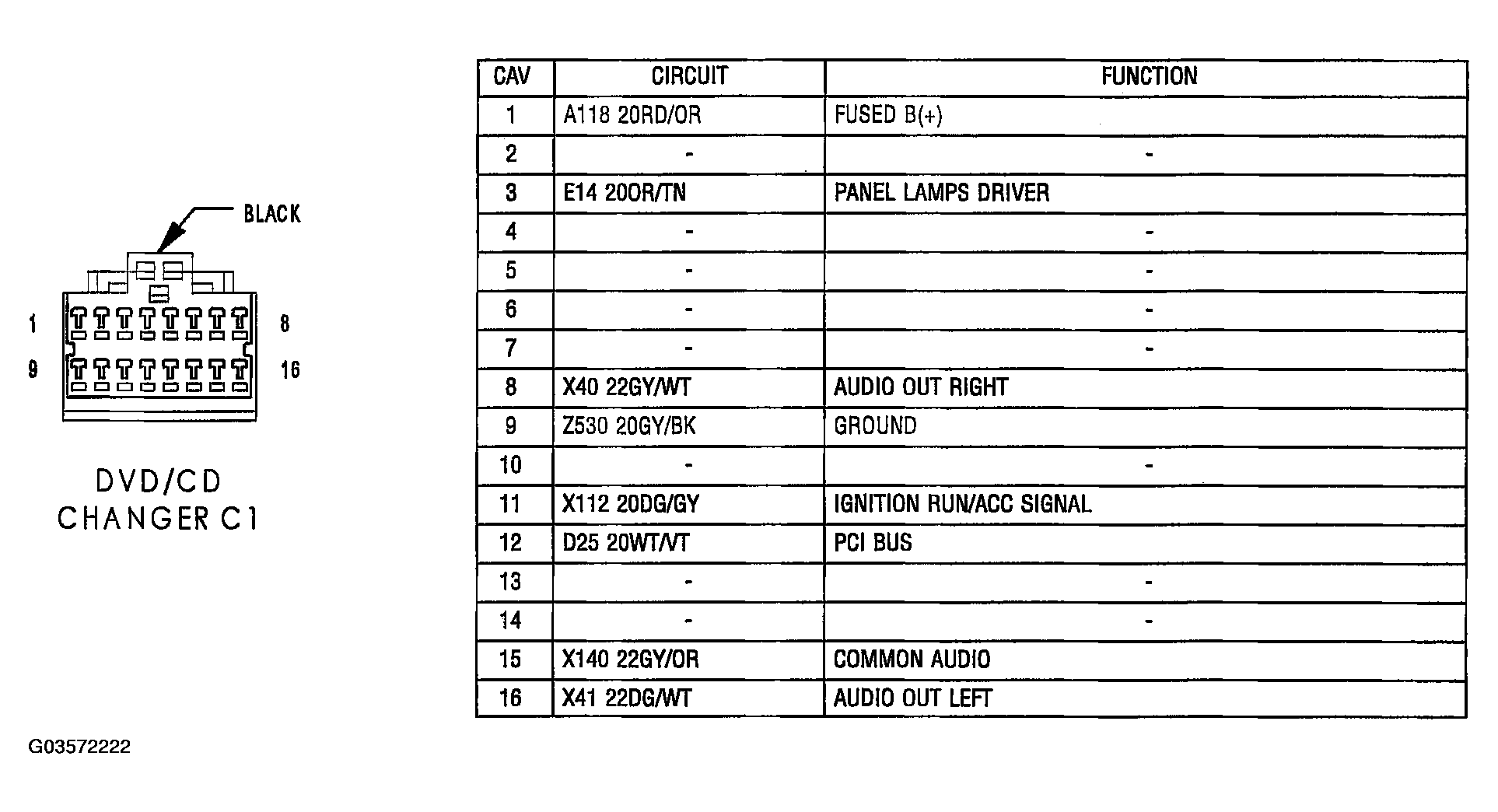

Fig 1: Identifying DVD/CD Changer C1 Connector Terminals And Specification (Black 16 Way)
Courtesy of DAIMLERCHRYSLER CORP.
