Controller Antilock Brake - Black 47 Way

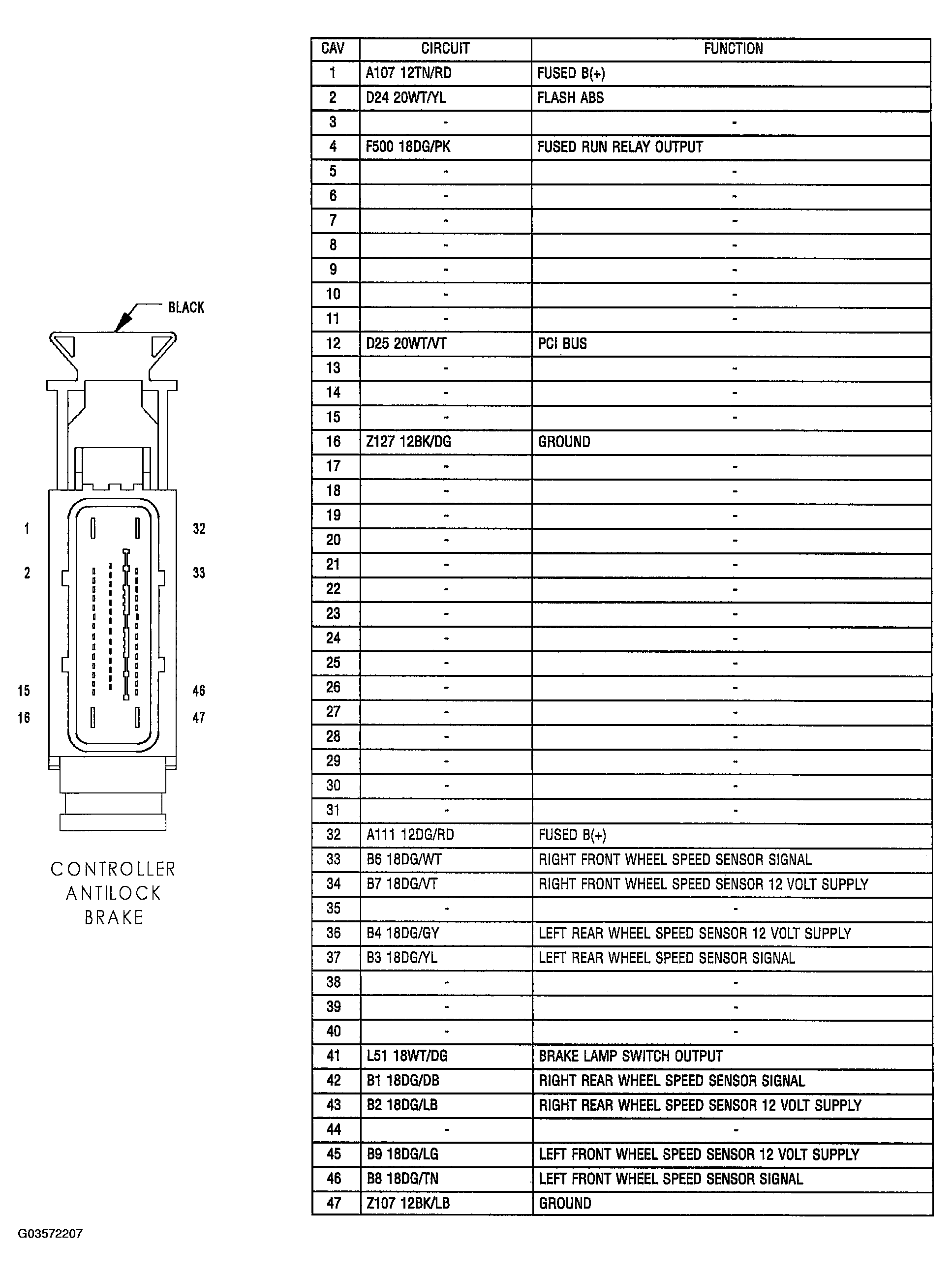

Fig 1: Identifying Controller Antilock Brake Connector Terminals And Specification (Black 47 Way)

G03572207

Courtesy of DAIMLERCHRYSLER CORP.
