CLOCKSPRING C3 - Black 4 Way

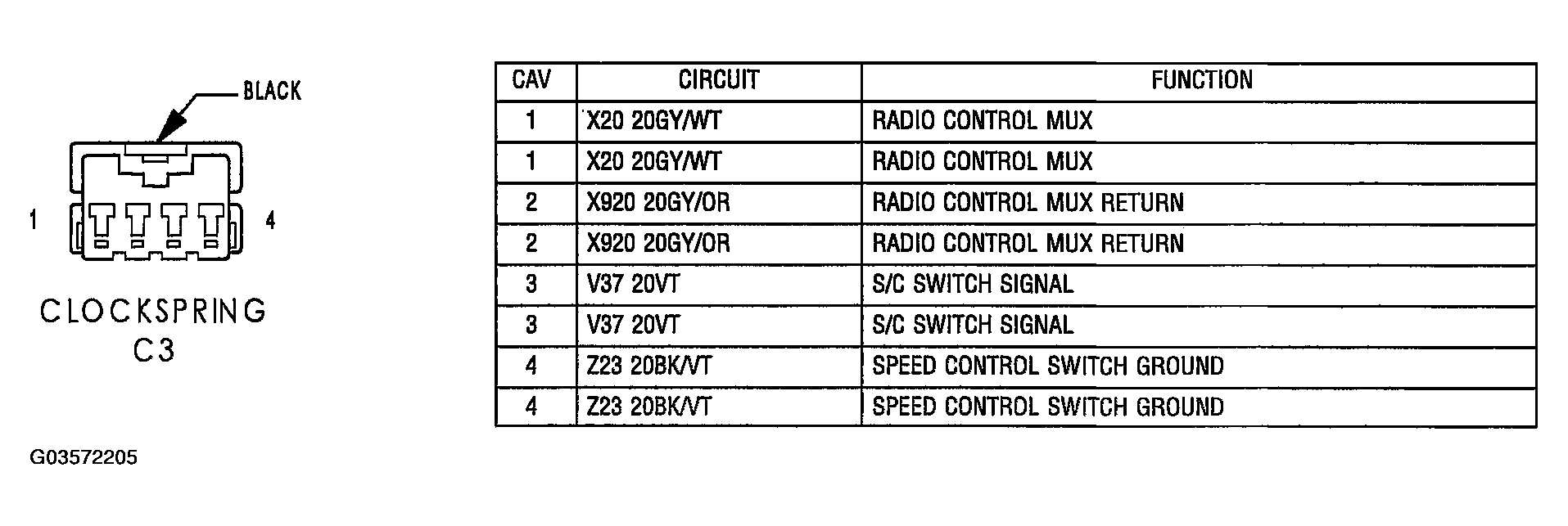

Fig 1: Identifying Clockspring C3 Connector Terminals And Specification (Black 4 Way)

G03572205

Courtesy of DAIMLERCHRYSLER CORP.
