CLOCKSPRING C2 - Yellow 4 Way

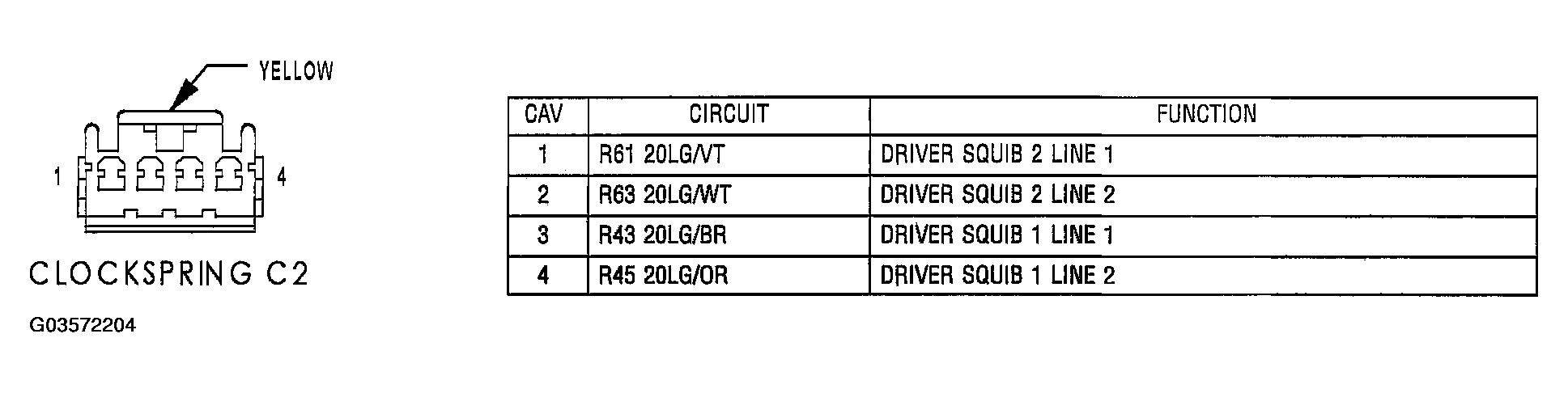

Fig 1: Identifying Clockspring C2 Connector Terminals And Specification (Yellow 4 Way)

G03572204

Courtesy of DAIMLERCHRYSLER CORP.
