CLOCKSPRING C1 - White 6 Way

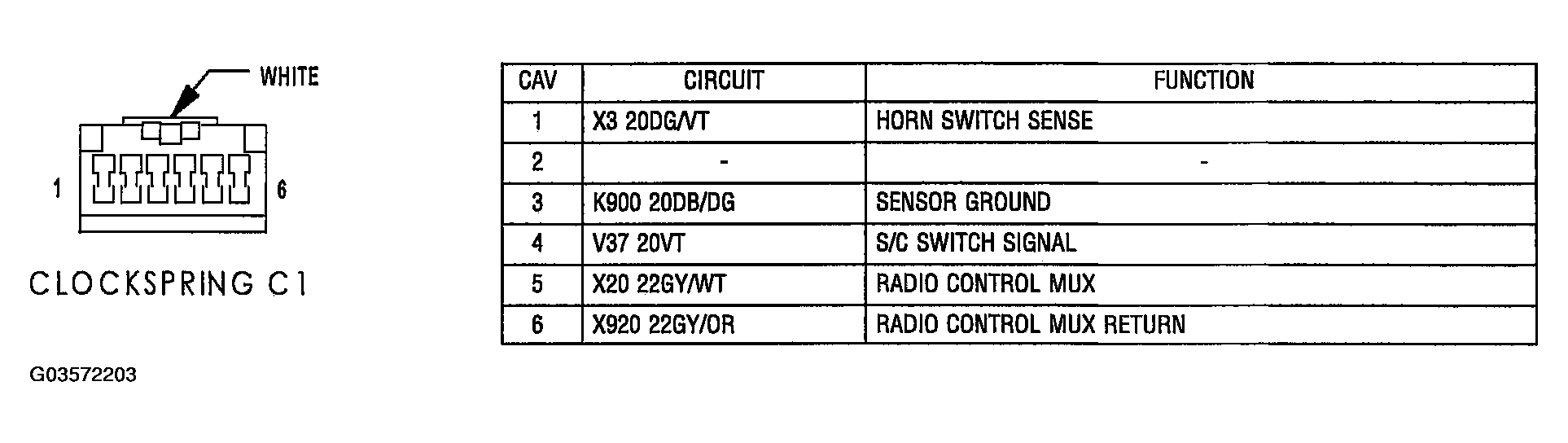

Fig 1: Identifying Clockspring C1 Connector Terminals And Specification (White 6 Way)

G03572203

Courtesy of DAIMLERCHRYSLER CORP.
