C308 (Power Liftgate) - Black (Liftgate Side)

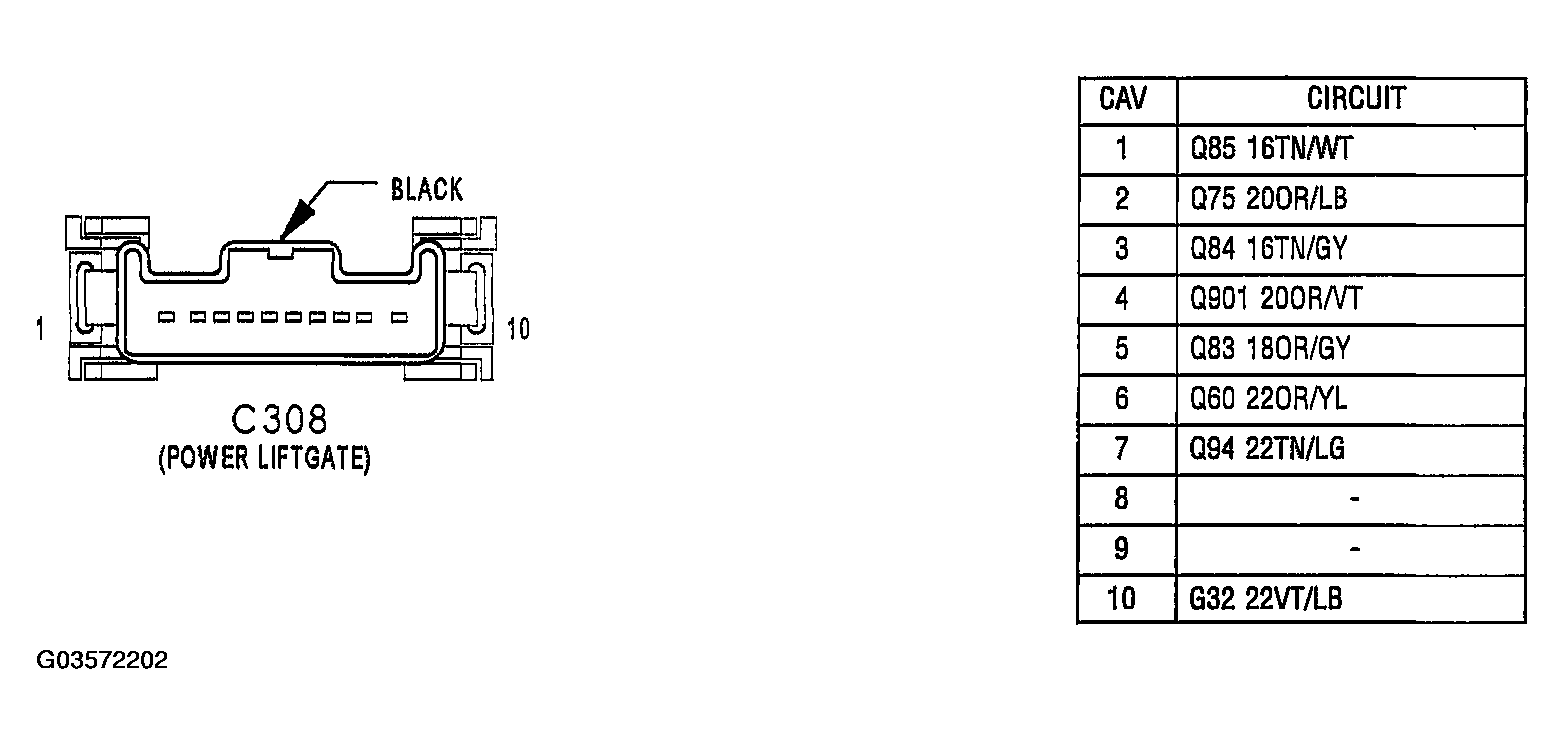

Fig 1: Identifying C308 (Power Liftgate) Connector Terminals And Specification (Black - Liftgate Side)

G03572202

Courtesy of DAIMLERCHRYSLER CORP.
