C308 (Power Liftgate) - Black (Body Side)

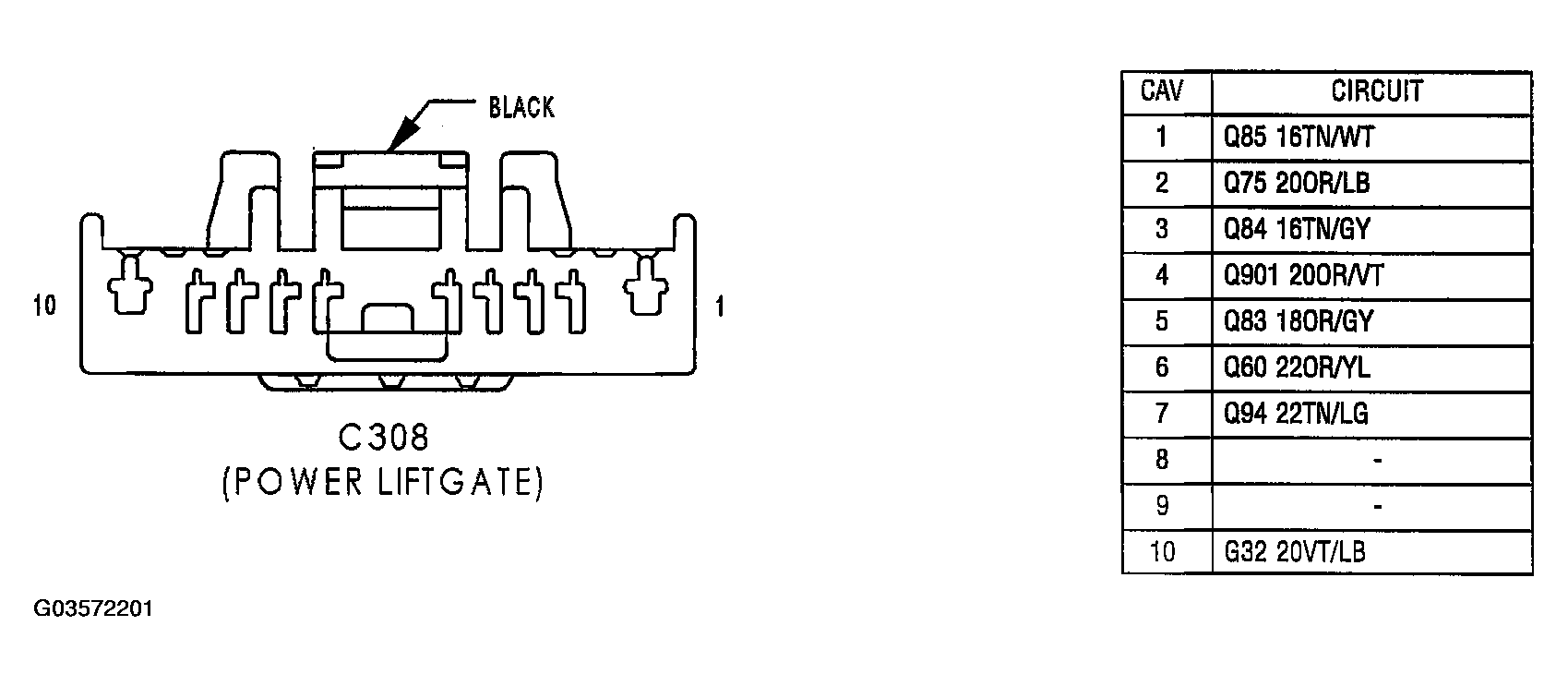

Fig 1: Identifying C308 (Power Liftgate) Connector Terminals And Specification (Black - Body Side)
G03572201Courtesy of DAIMLERCHRYSLER CORP.
