C305 - Black (Right Front Door Side)

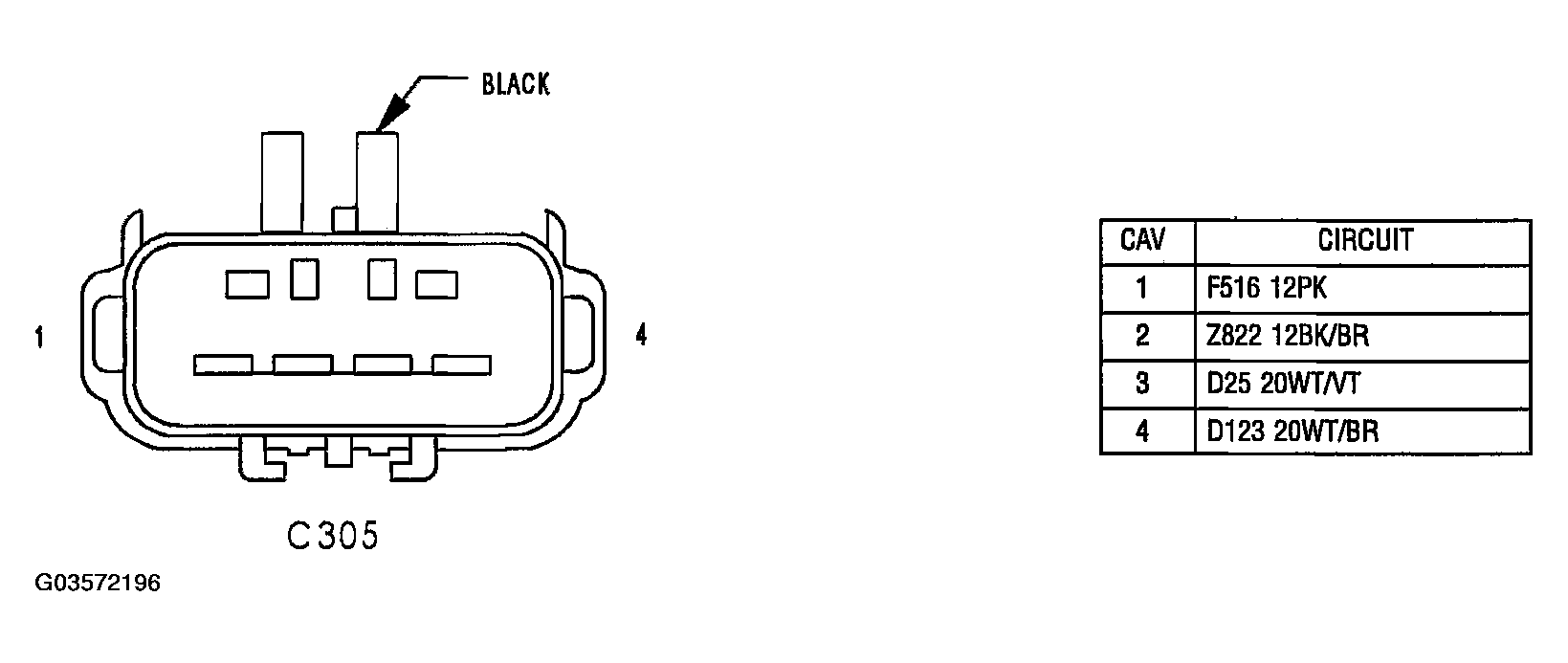

Fig 1: Identifying C305 Connector Terminals And Specification (Black - Right Front Door Side)

G03572196

Courtesy of DAIMLERCHRYSLER CORP.
