C304 - Black (Right Front Door Side)

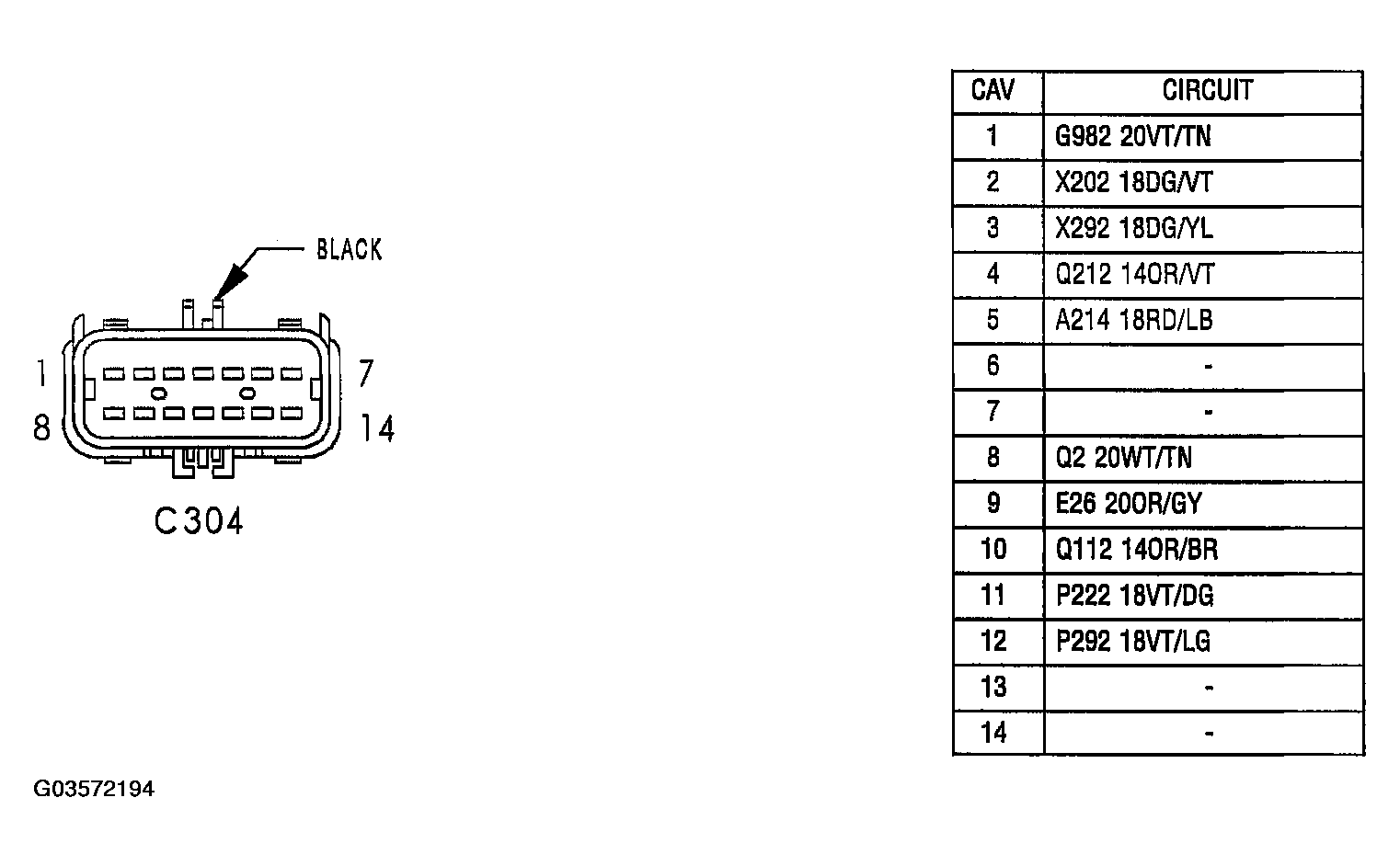

Fig 1: Identifying C304 Connector Terminals And Specification (Black - Right Front Door Side)

G03572194

Courtesy of DAIMLERCHRYSLER CORP.
