C205 - Natural (Instrument Panel Side)

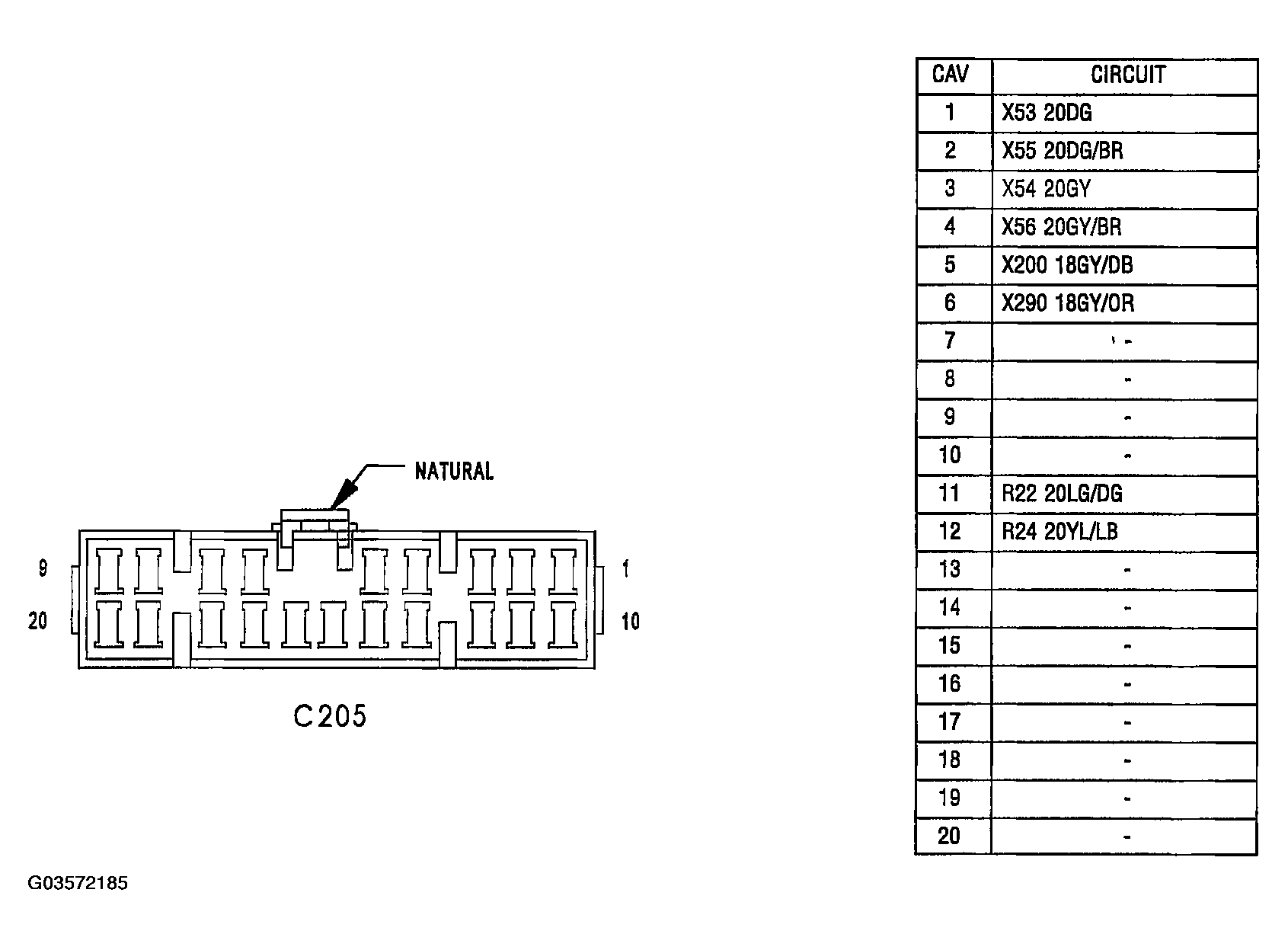

Fig 1: Identifying C205 Connector Terminals And Specification (Natural - Instrument Panel Side)

G03572185

Courtesy of DAIMLERCHRYSLER CORP.
