C202 - DK. Gray (Instrument Panel Side)

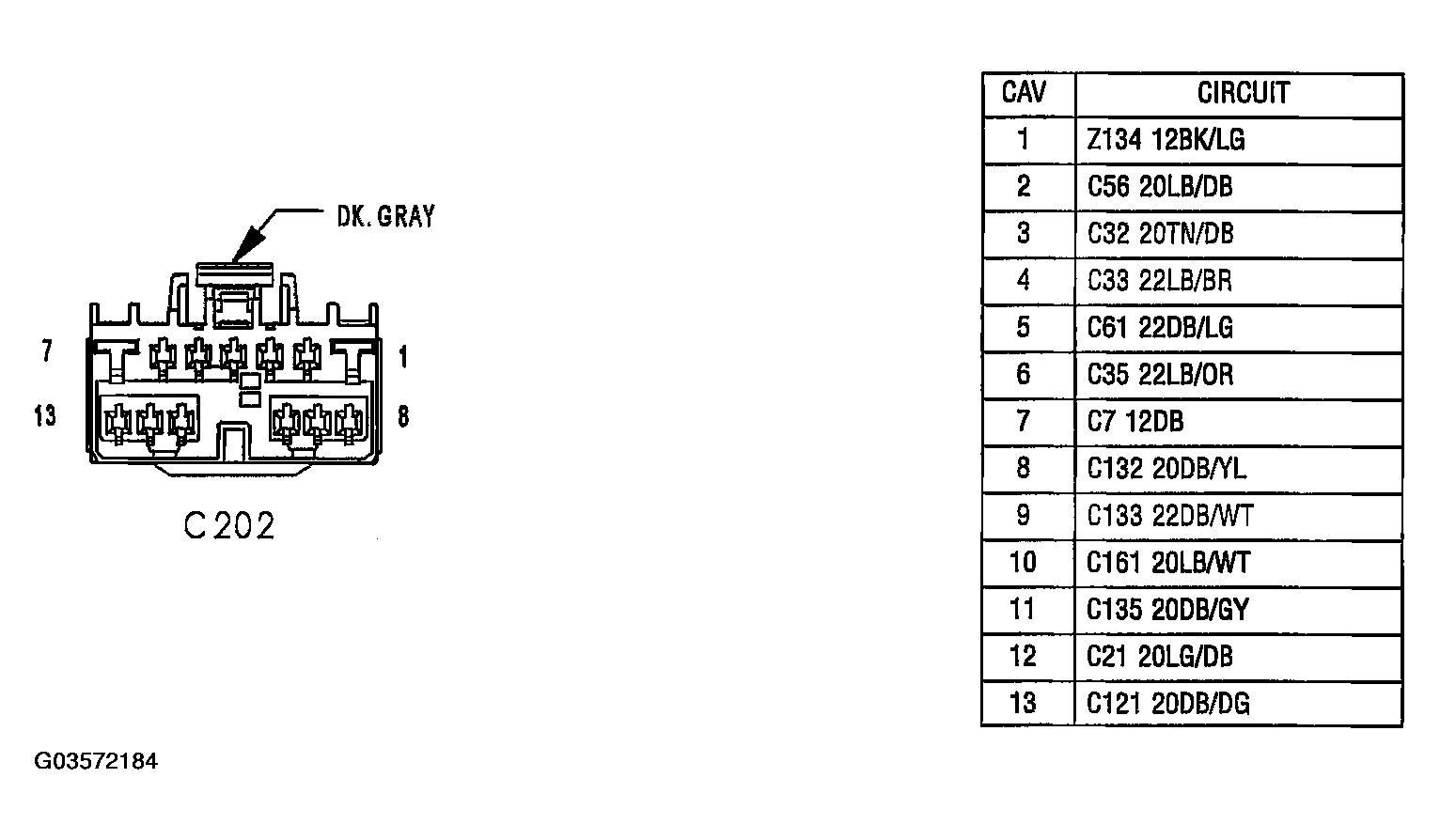

Fig 1: Identifying C202 Connector Terminals And Specification (DK. Gray - Instrument Panel Side)

G03572184

Courtesy of DAIMLERCHRYSLER CORP.
