C201 - Gray (Instrument Panel Side)

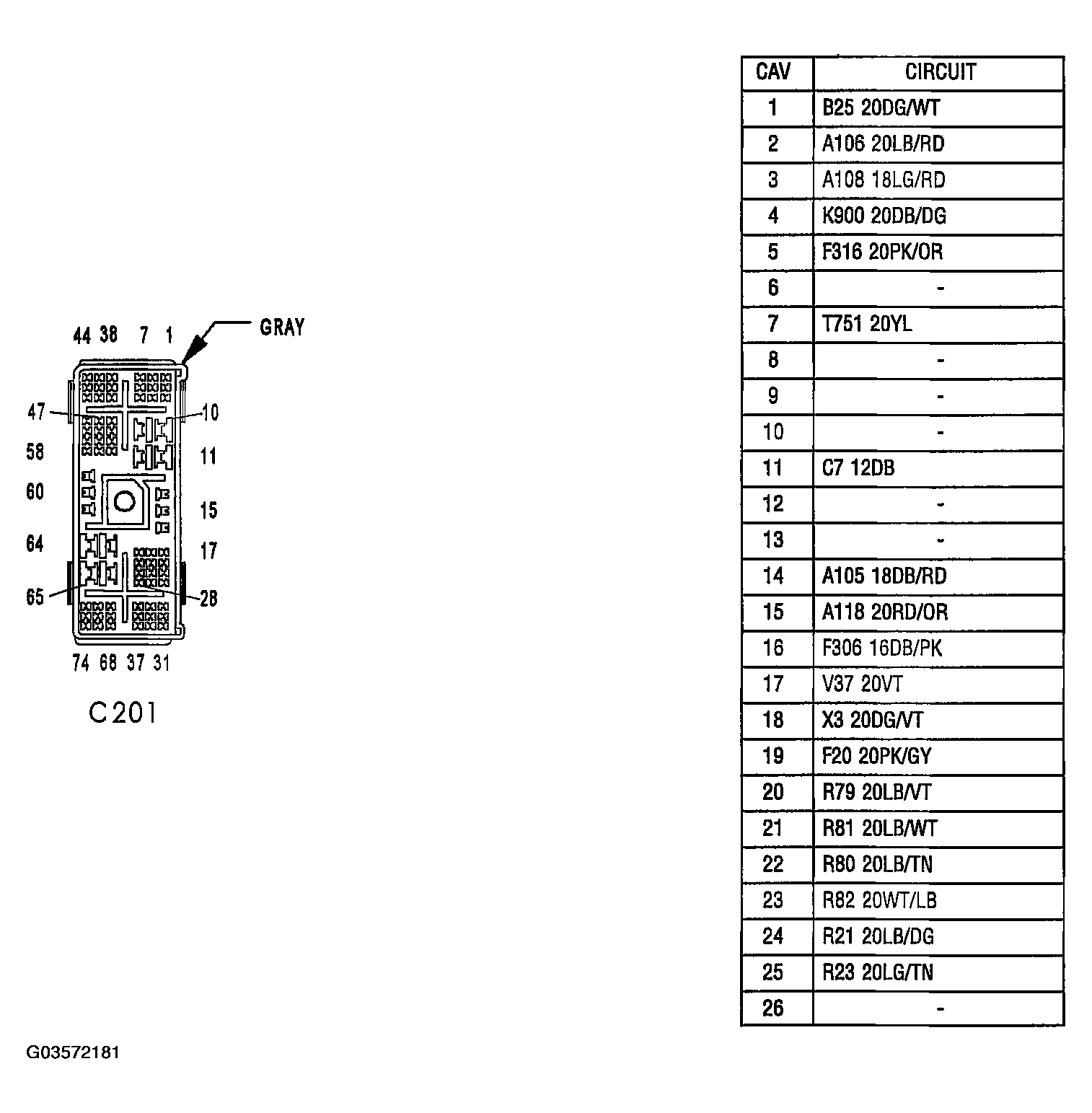

Fig 1: Identifying C201 Connector Terminals And Specification (Gray - Instrument Panel Side)
G03572181Courtesy of DAIMLERCHRYSLER CORP.

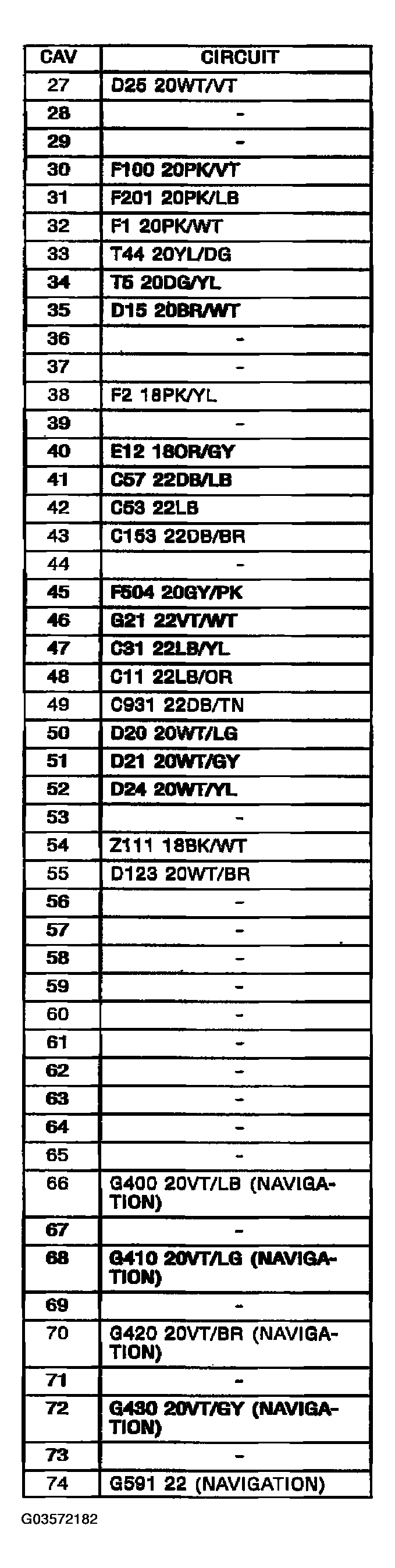

Fig 1: Identifying C201 - Gray Connector Terminals And Specification (Instrument Panel Side)
G03572182Courtesy of DAIMLERCHRYSLER CORP.
