C100 - Black (Front End Lighting Side)

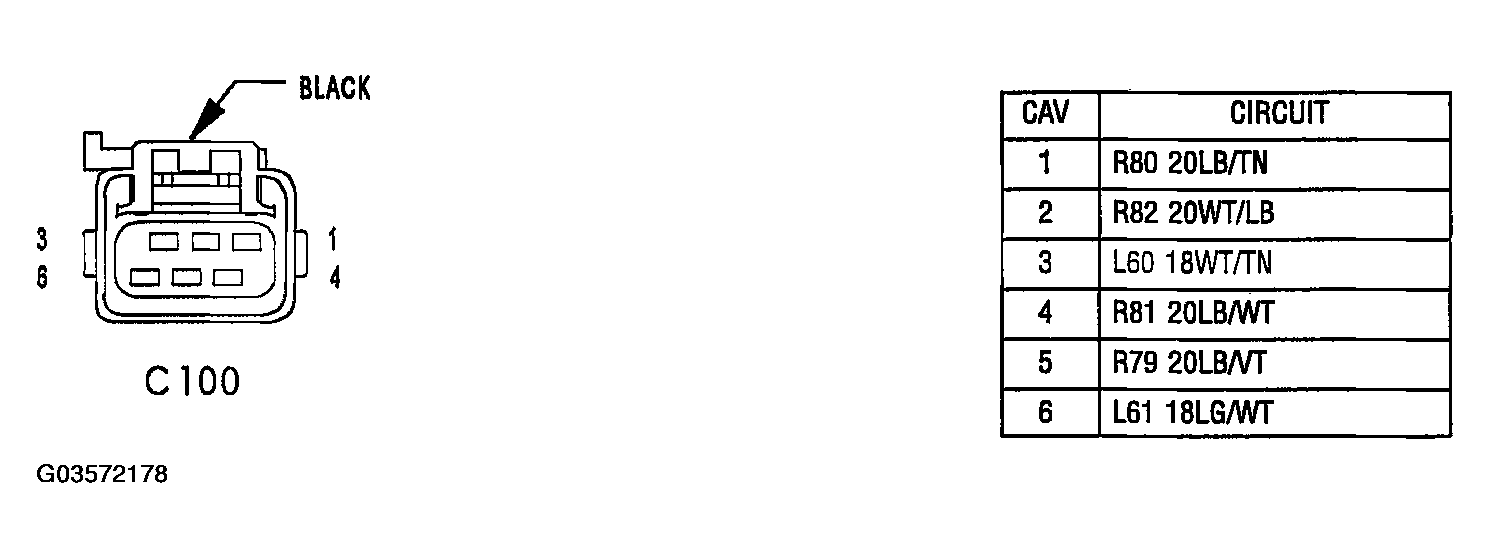

Fig 1: Identifying C100 Connector Terminals And Specification (Black - Front End Lighting Side)
G03572178Courtesy of DAIMLERCHRYSLER CORP.
