Brake Transmission Shift Interlock Solenoid - White 2 Way

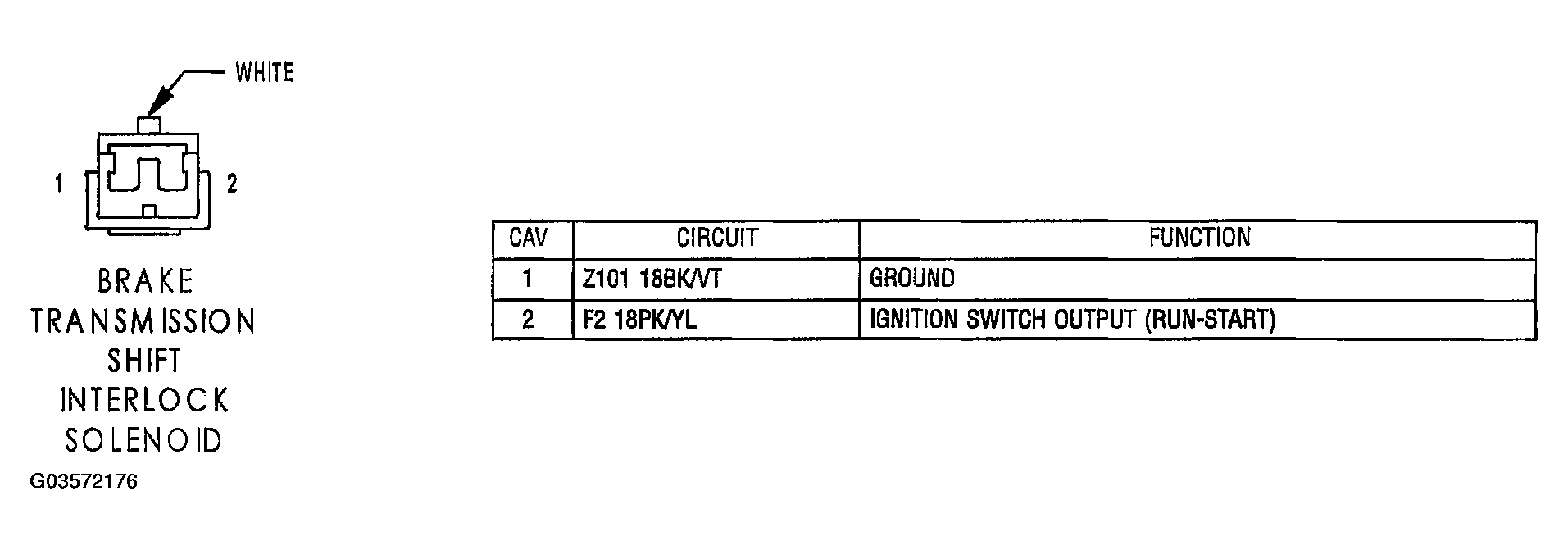

Fig 1: Identifying Brake Transmission Shift Interlock Solenoid Connector Terminals And Specification (White 2 Way)
G03572176Courtesy of DAIMLERCHRYSLER CORP.
