Connector PINOUTS
>>
Brake Lamp Switch - Black 6 Way
Brake Lamp Switch - Black 6 Way

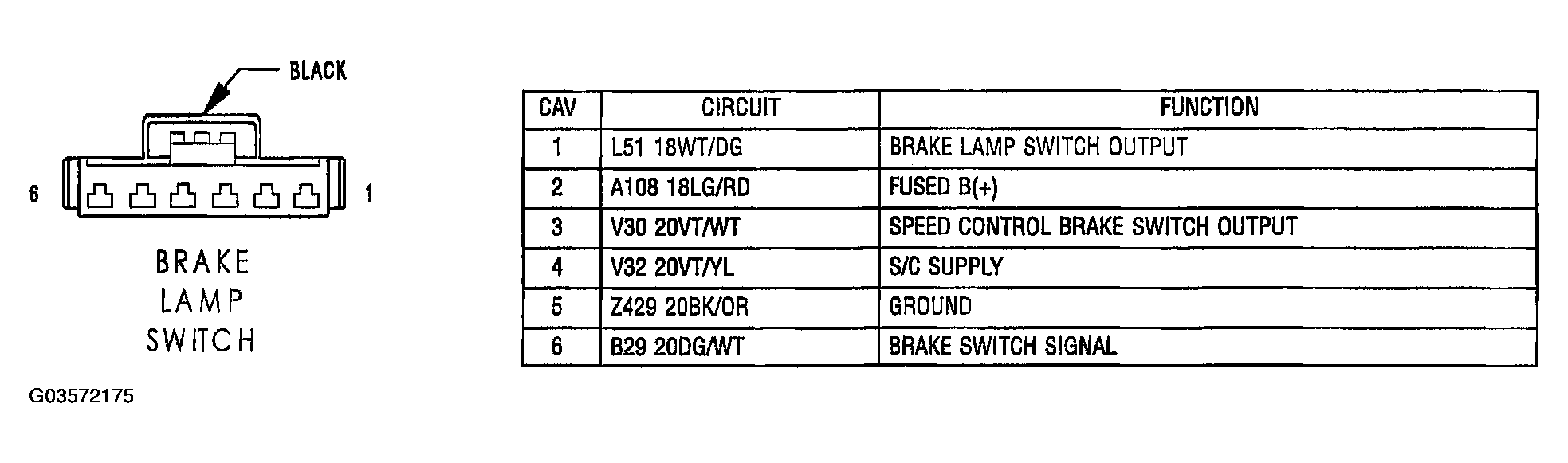

Fig 1: Identifying Brake Lamp Switch Connector Terminals And Specification (Black 6 Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
