Brake Fluid Level Switch - Black 2 Way

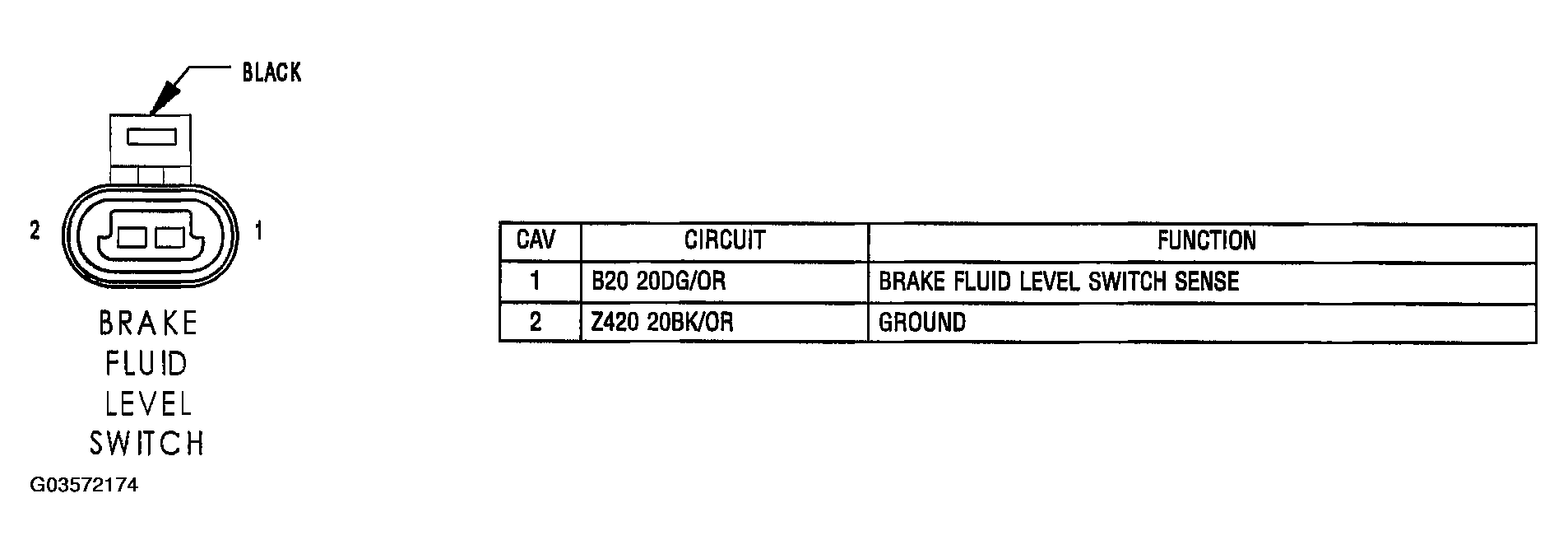

Fig 1: Identifying Brake Fluid Level Switch Connector Terminals And Specification (Black 2 Way)

G03572174

Courtesy of DAIMLERCHRYSLER CORP.
