Body Diagnostic Procedures - Component Locations
>>
Connector PINOUTS
>>
Body Control Module C5 - Black/Black 34 Way
Body Control Module C5 - Black/Black 34 Way

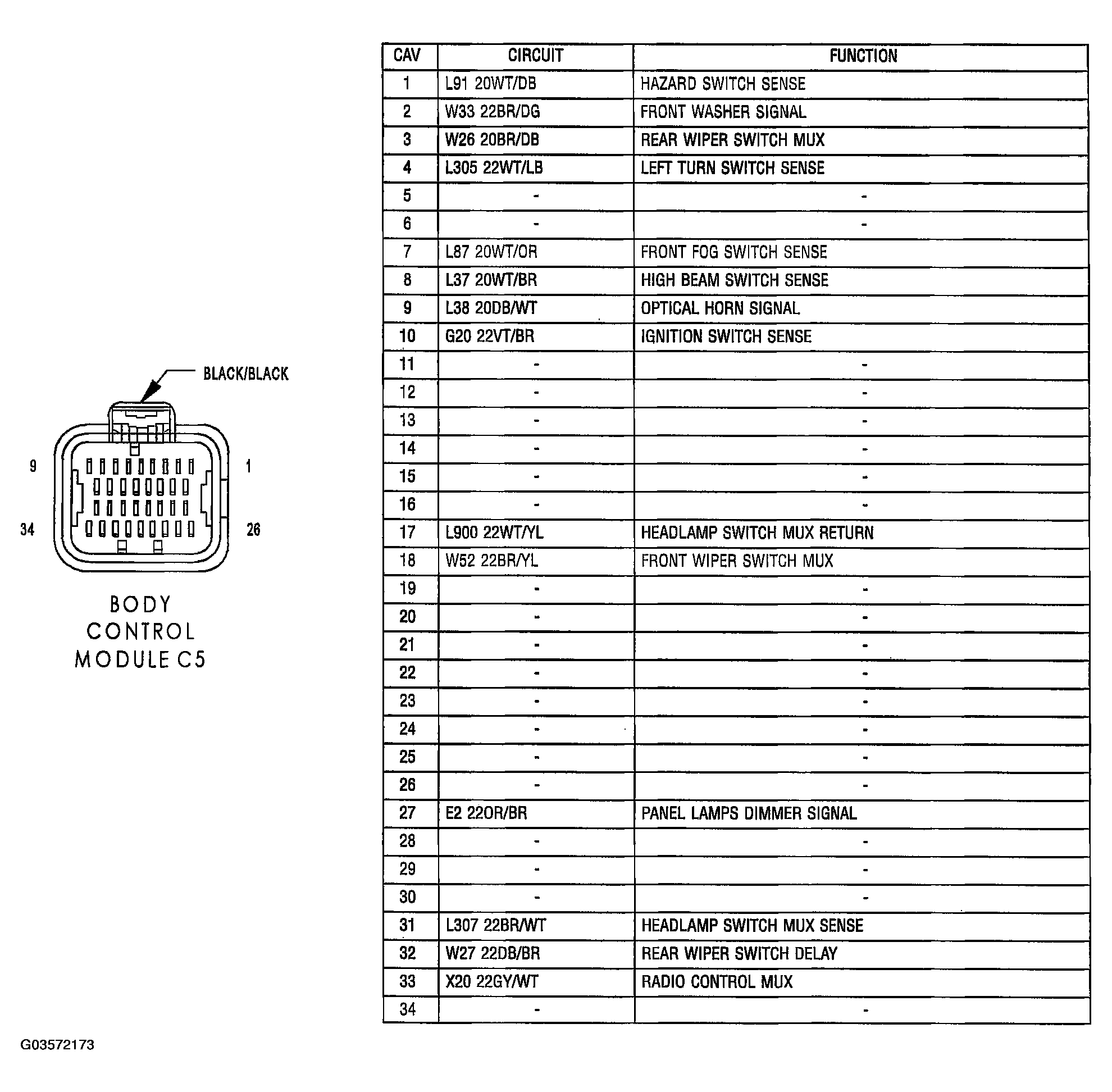

Fig 1: Identifying Body Control Module C5 Connector Terminals And Specification (Black/Black 34 Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
