Body Control Module C3 - Black/Natural 34 Way

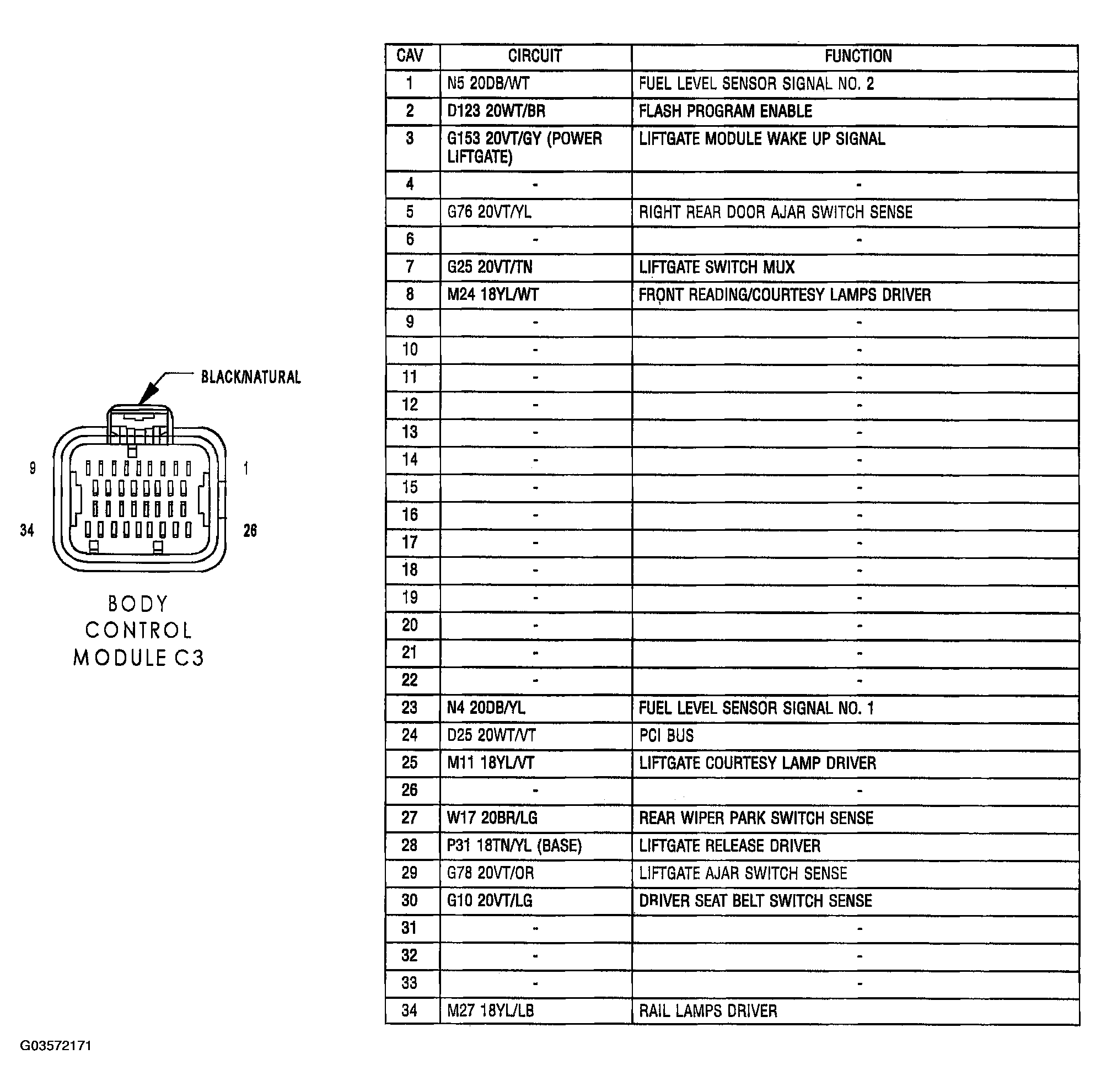

Fig 1: Identifying Body Control Module C3 Connector Terminals And Specification (Black/Natural 34 Way)
G03572171Courtesy of DAIMLERCHRYSLER CORP.
