Body Control Module C2 - Black/Green 34 Way

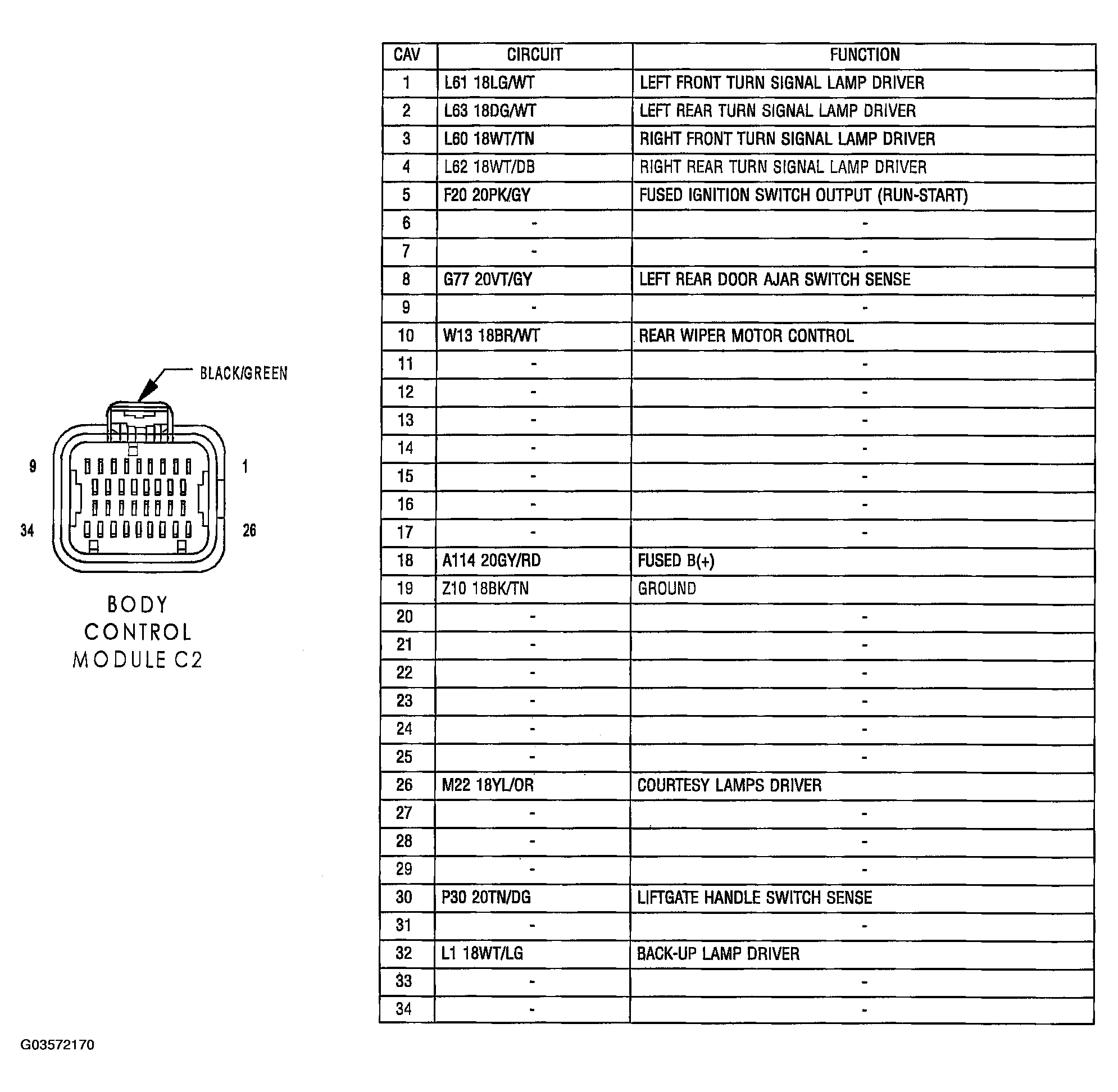

Fig 1: Identifying Body Control Module C2 Connector Terminals And Specification (Black/Green 34 Way)
G03572170Courtesy of DAIMLERCHRYSLER CORP.
