Blend Door Actuator-Passenger - Gray 2 Way

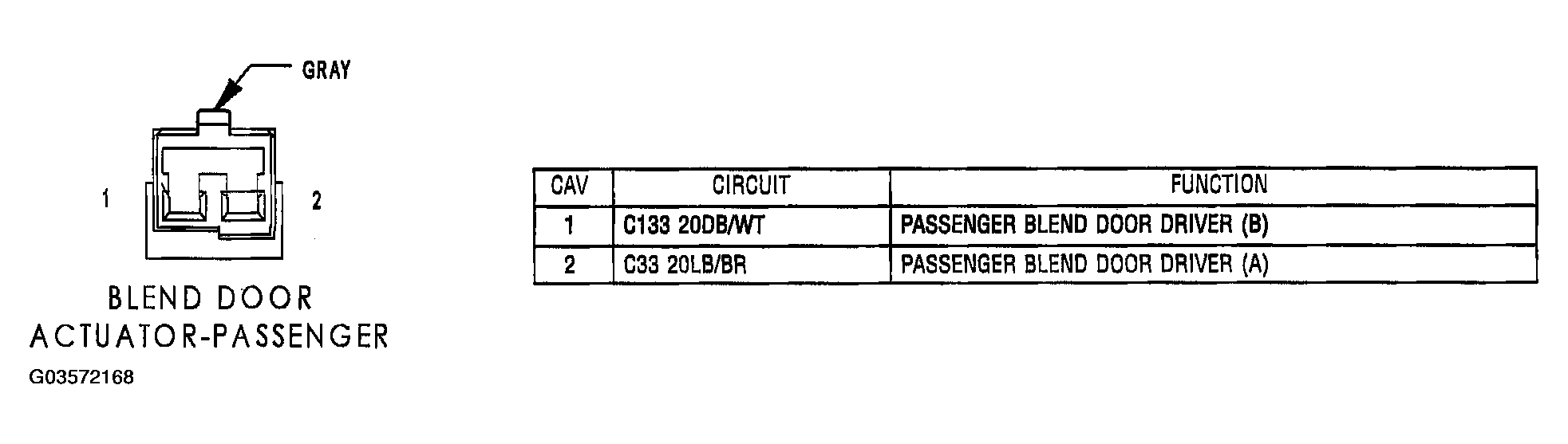

Fig 1: Identifying Blend Door Actuator-Passenger Connector Terminals And Specification (Gray 2 Way)
G03572168Courtesy of DAIMLERCHRYSLER CORP.
