Automatic Day/Night Mirror - Black 7 Way

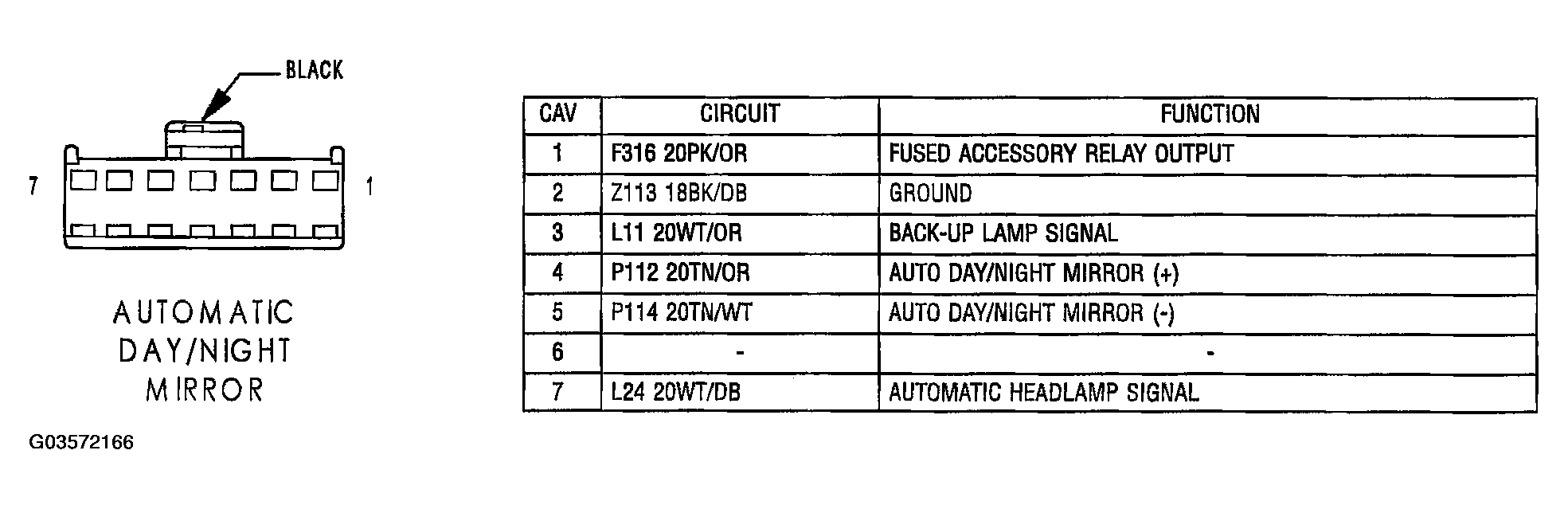

Fig 1: Identifying Automatic Day/Night Mirror Connector Terminals And Specification (Black 7 Way)
G03572166Courtesy of DAIMLERCHRYSLER CORP.
