Auto Temp Control C2 - Natural 13 Way

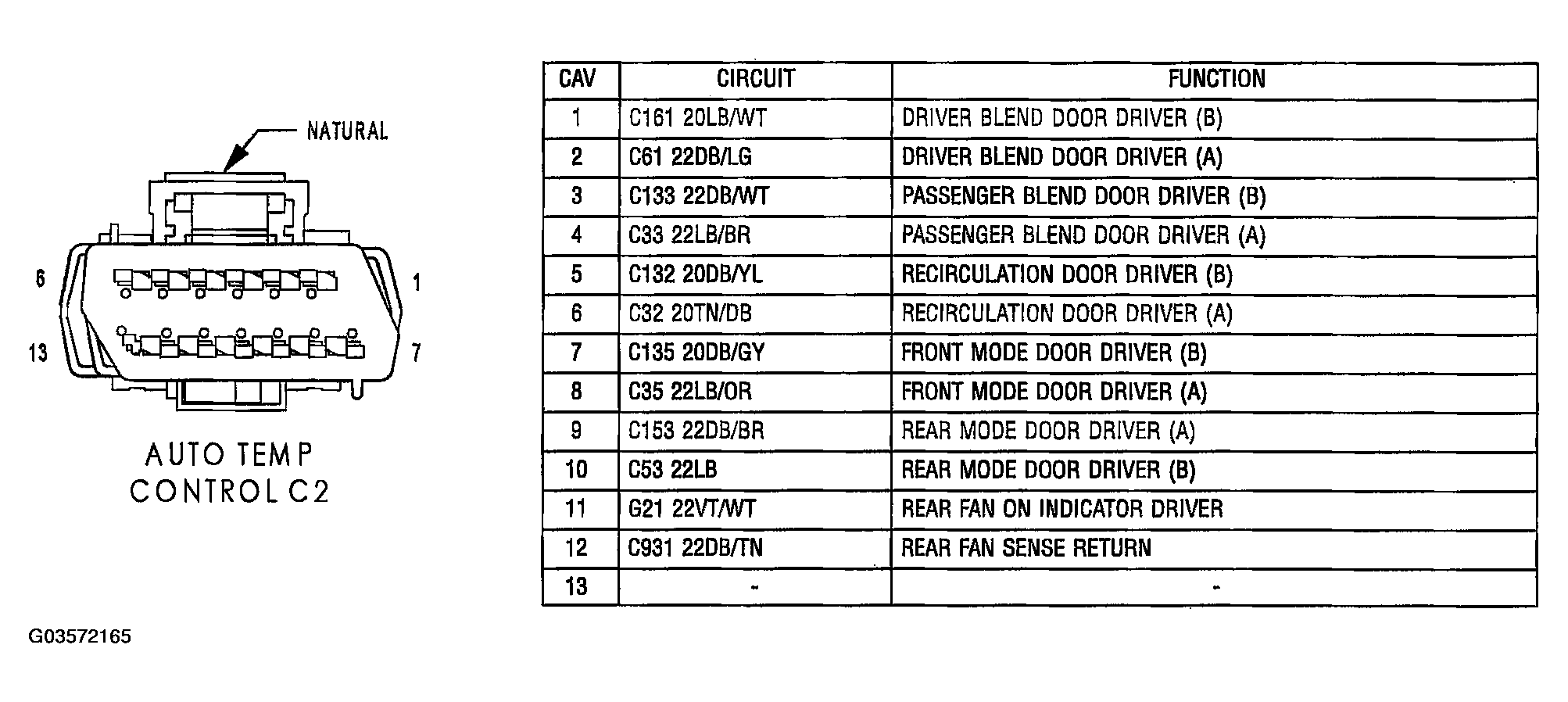

Fig 1: Identifying Auto Temp Control C2 Connector Terminals And Specification (Natural 13 Way)
G03572165Courtesy of DAIMLERCHRYSLER CORP.
