Connector PINOUTS
>>
Amplifier C1 - White 18 Way
Amplifier C1 - White 18 Way

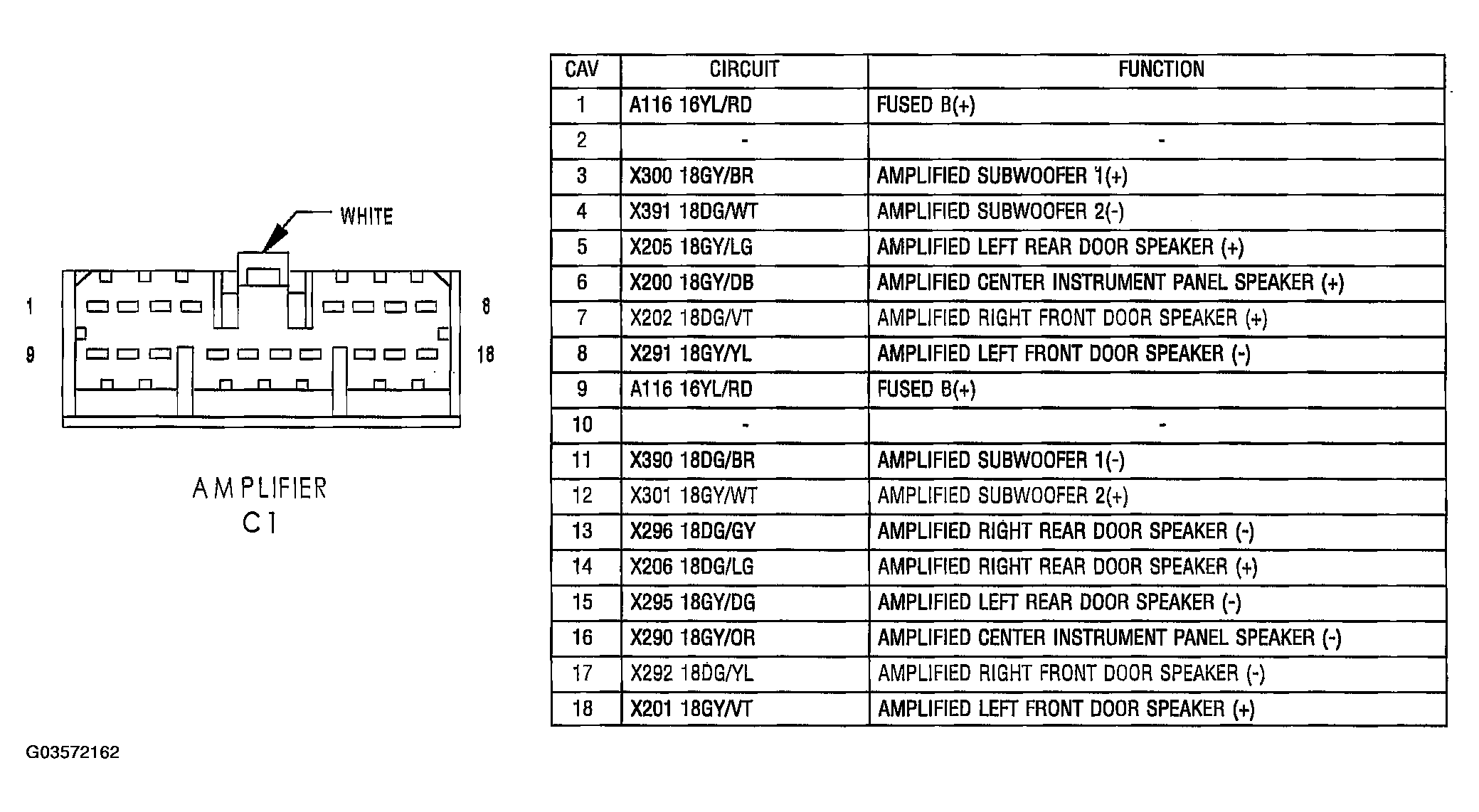

Fig 1: Identifying Amplifier C1 Connector Terminals And Specification (White 18 Way)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
