Connector PINOUTS
>>
Airbag Squib-Right Curtain - Yellow 2 Way
Airbag Squib-Right Curtain - Yellow 2 Way

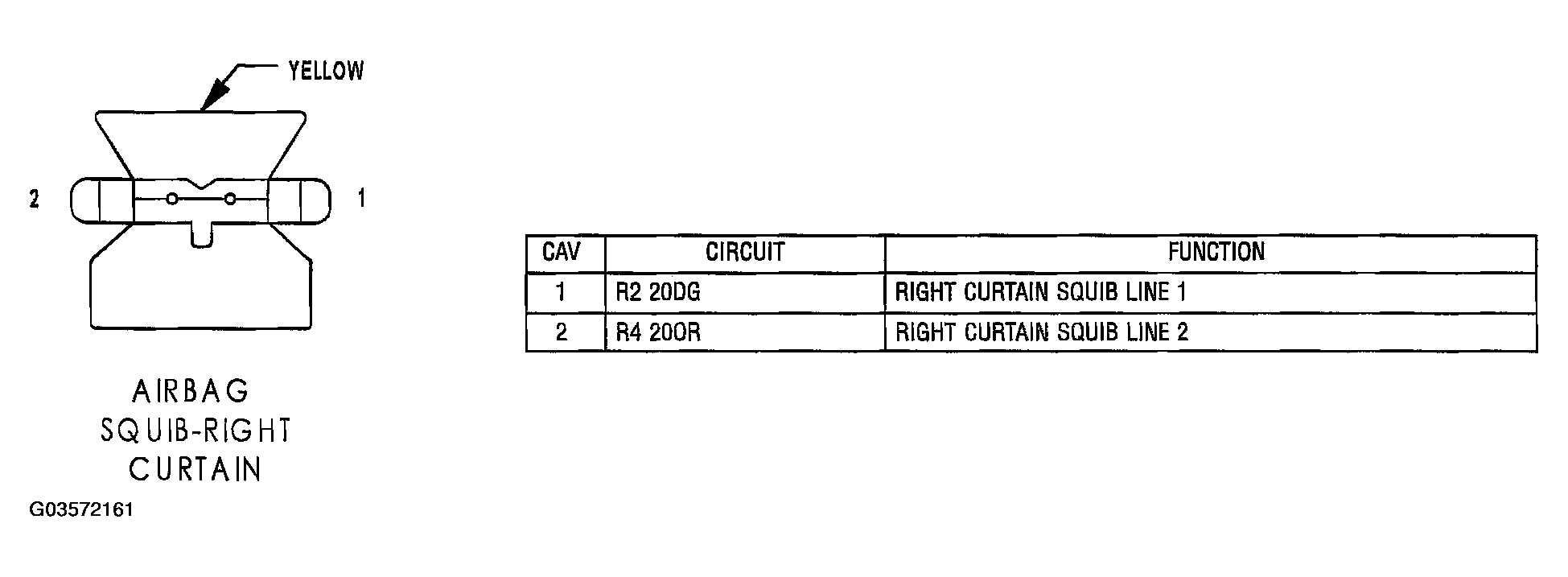

Fig 1: Identifying Airbag Squib-Right Curtain Connector Terminals And Specification (Yellow 2 Way)
Courtesy of DAIMLERCHRYSLER CORP.
