Airbag Squib-Passenger - Yellow 4 Way

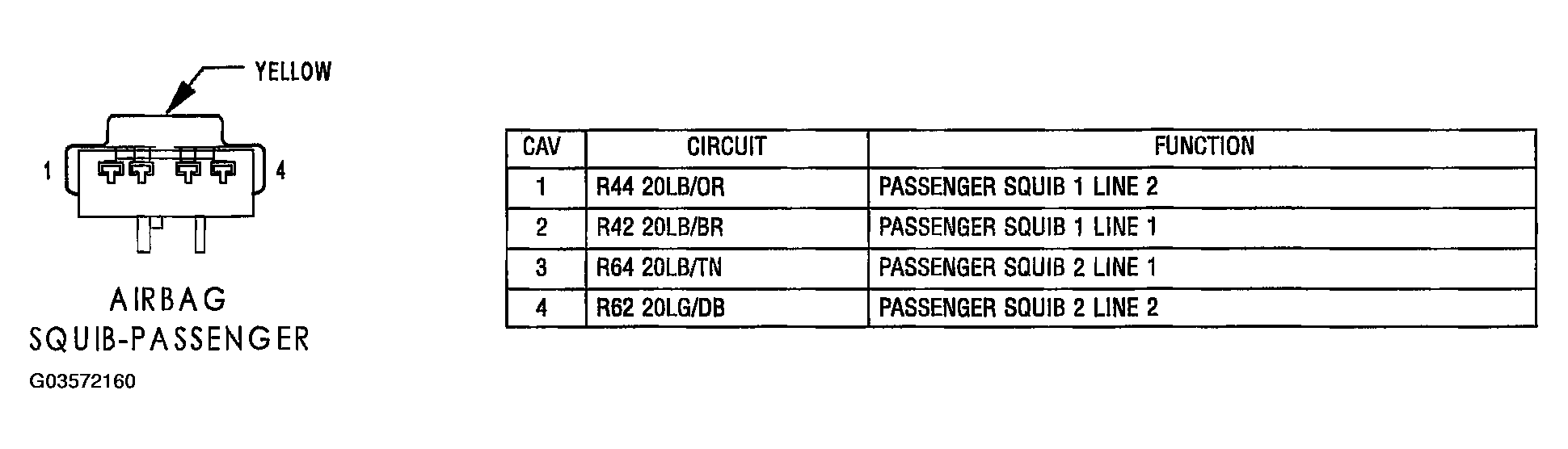

Fig 1: Identifying Airbag Squib-Passenger Connector Terminals And Specification (Yellow 4 Way)

G03572160

Courtesy of DAIMLERCHRYSLER CORP.
