Airbag Squib-Left Curtain - Yellow 2 Way

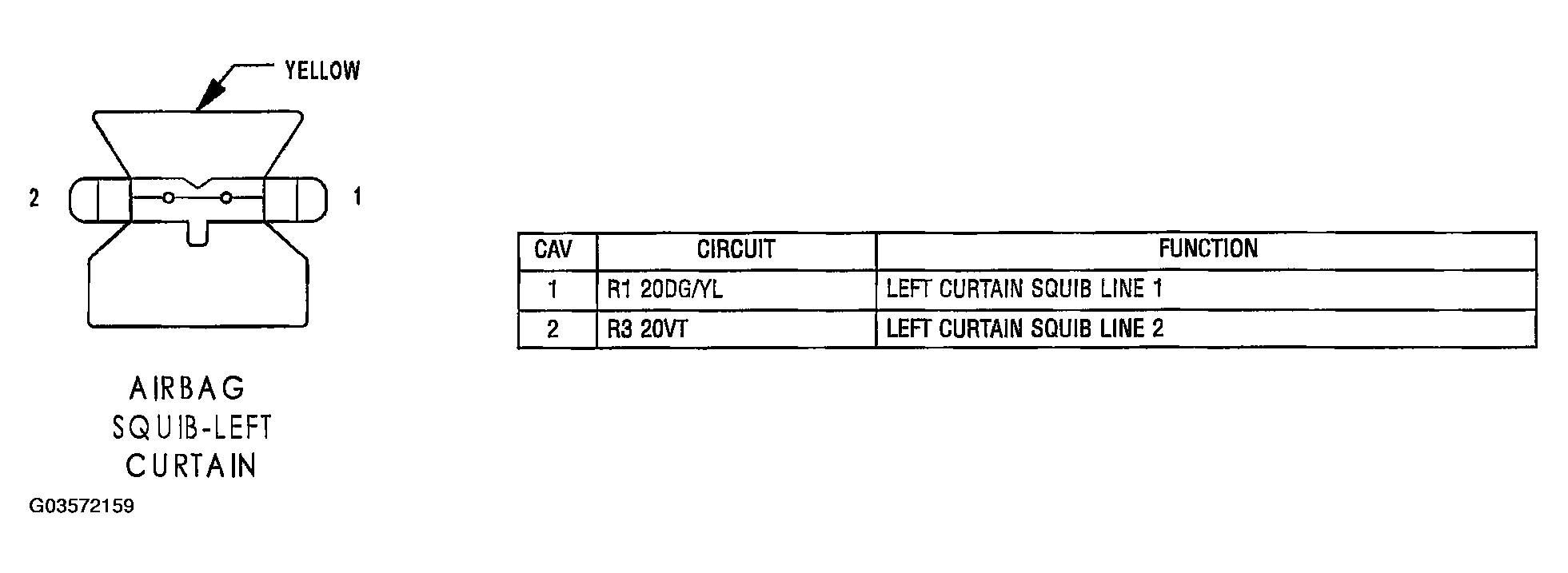

Fig 1: Identifying Airbag Squib-Left Curtain Connector Terminals And Specification (Yellow 2 Way)
G03572159Courtesy of DAIMLERCHRYSLER CORP.
