Airbag Squib-Driver Knee Blocker - Yellow 4 Way

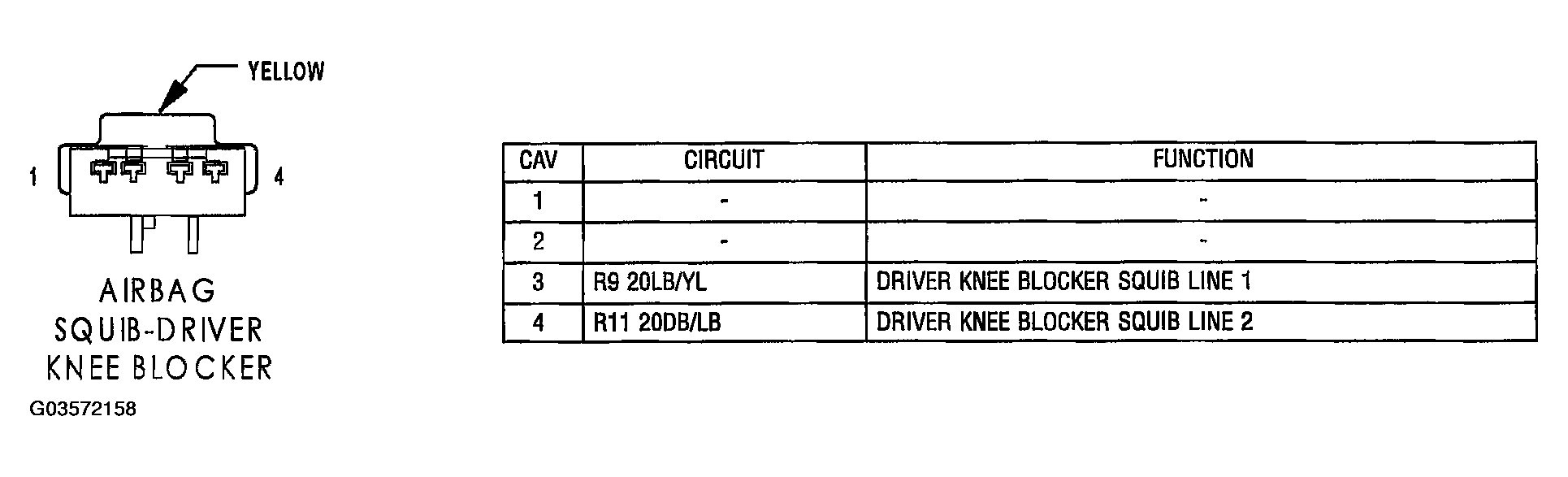

Fig 1: Identifying Airbag Squib-Driver Knee Blocker Connector Terminals And Specification (Yellow 4 Way)

G03572158

Courtesy of DAIMLERCHRYSLER CORP.
