Airbag Squib-Driver 2 - Yellow/Tan 2 Way

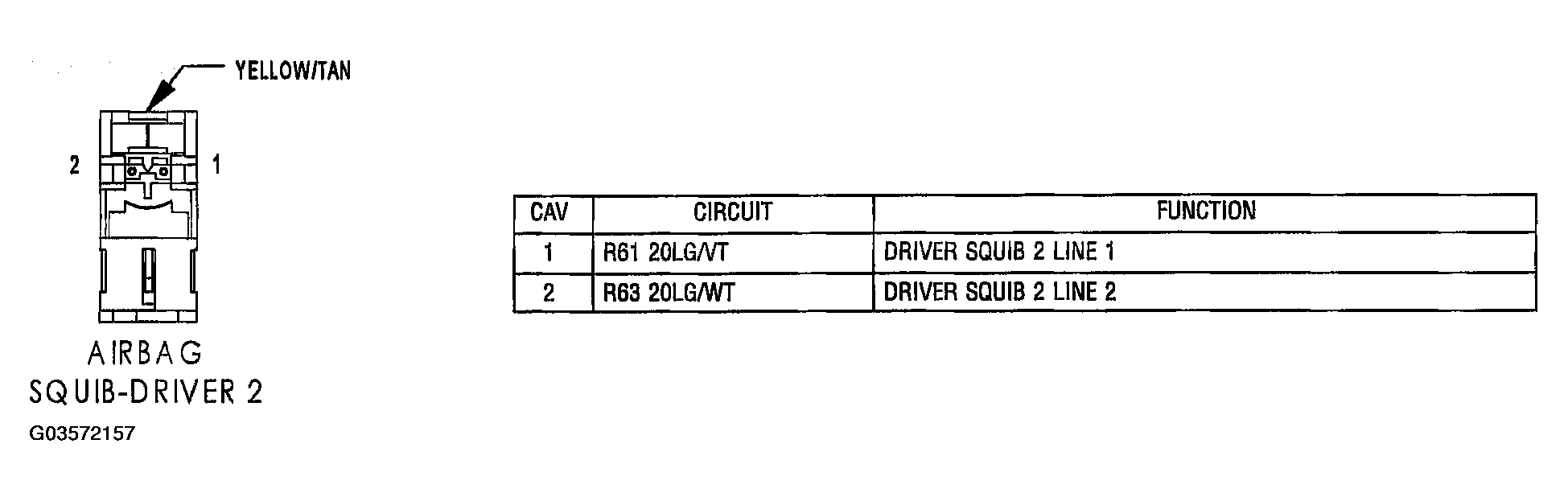

Fig 1: Identifying Airbag Squib-Driver 2 Connector Terminals And Specification (Yellow/Tan 2 Way)
G03572157Courtesy of DAIMLERCHRYSLER CORP.
