Airbag Squib-Driver 1 - Yellow/Black 2 Way

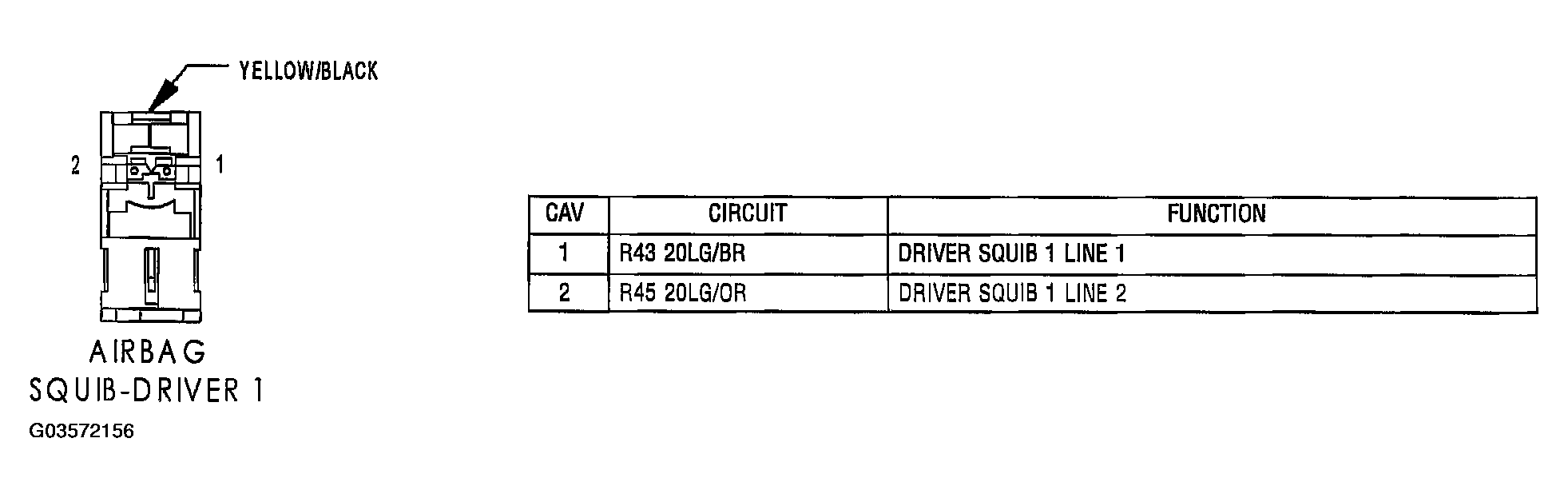

Fig 1: Identifying Airbag Squib-Driver 1 Connector Terminals And Specification (Yellow/Black 2 Way)

G03572156

Courtesy of DAIMLERCHRYSLER CORP.
