Airbag Control Module (Orc) C1 - Yellow 32 Way

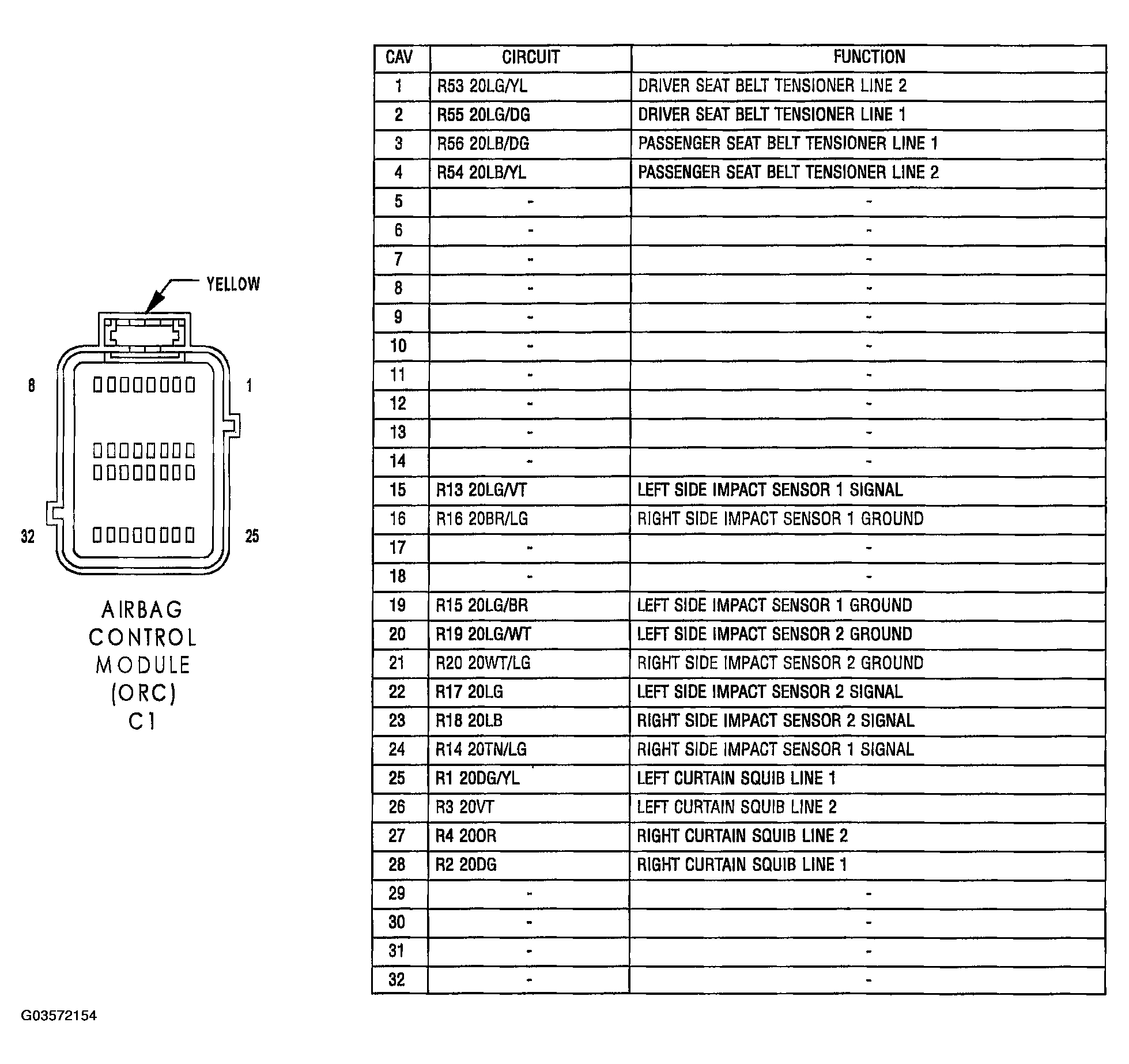

Fig 1: Identifying Airbag Control Module (ORC) C1 Connector Terminals And Specification (Yellow 32 Way)
G03572154Courtesy of DAIMLERCHRYSLER CORP.
