Adjustable Pedals Sensor - Black 3 Way

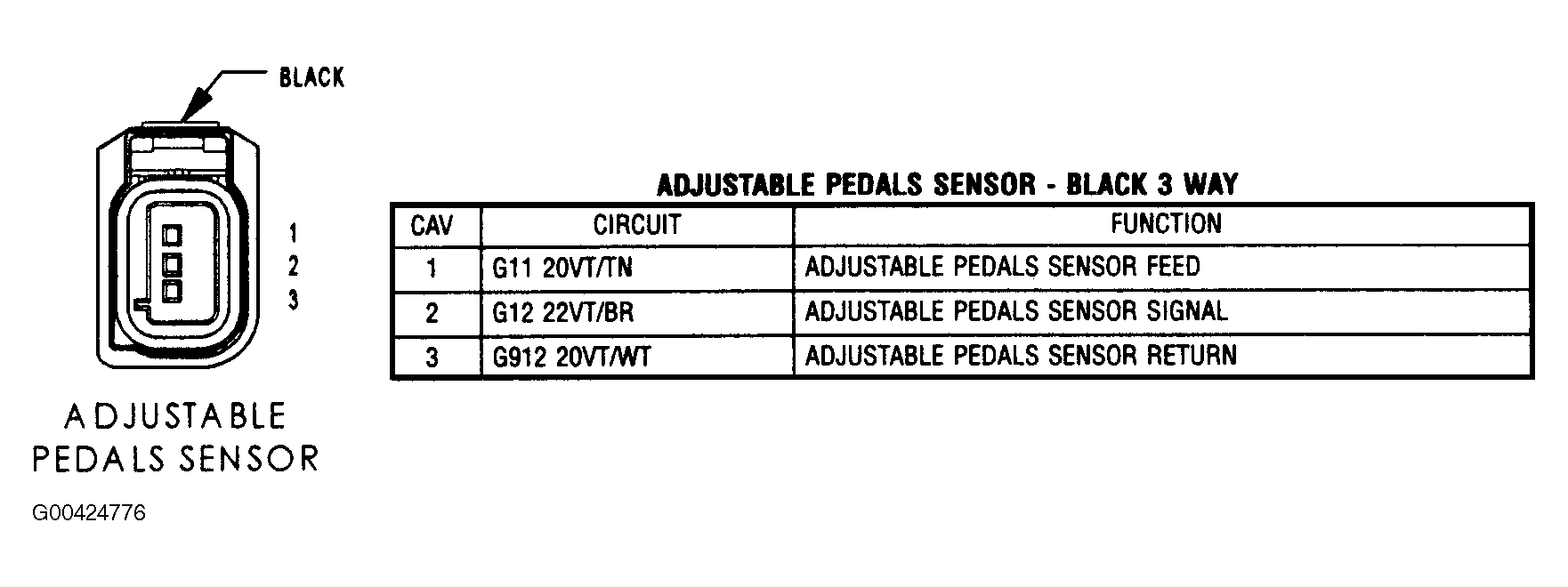

Fig 1: Identifying Adjustable Pedals Sensor Connector Terminals And Specification (Black 3 Way)

G00424776

Courtesy of DAIMLERCHRYSLER CORPORATION
