Adjustable Pedals Motor - White 6 Way

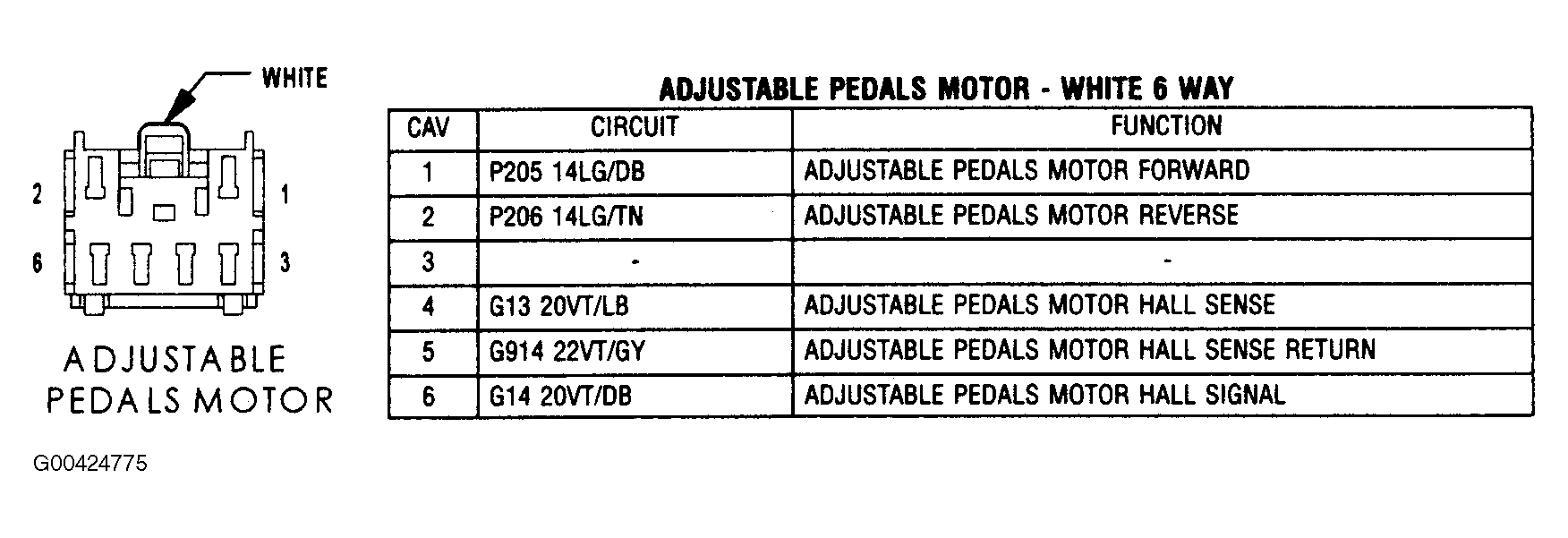

Fig 1: Identifying Adjustable Pedals Motor Connector Terminals And Specification (White 6 Way)

G00424775

Courtesy of DAIMLERCHRYSLER CORPORATION
