Body Diagnostic Procedures - Component Locations
>>
Component Locations
>>
Airbag System
Airbag System

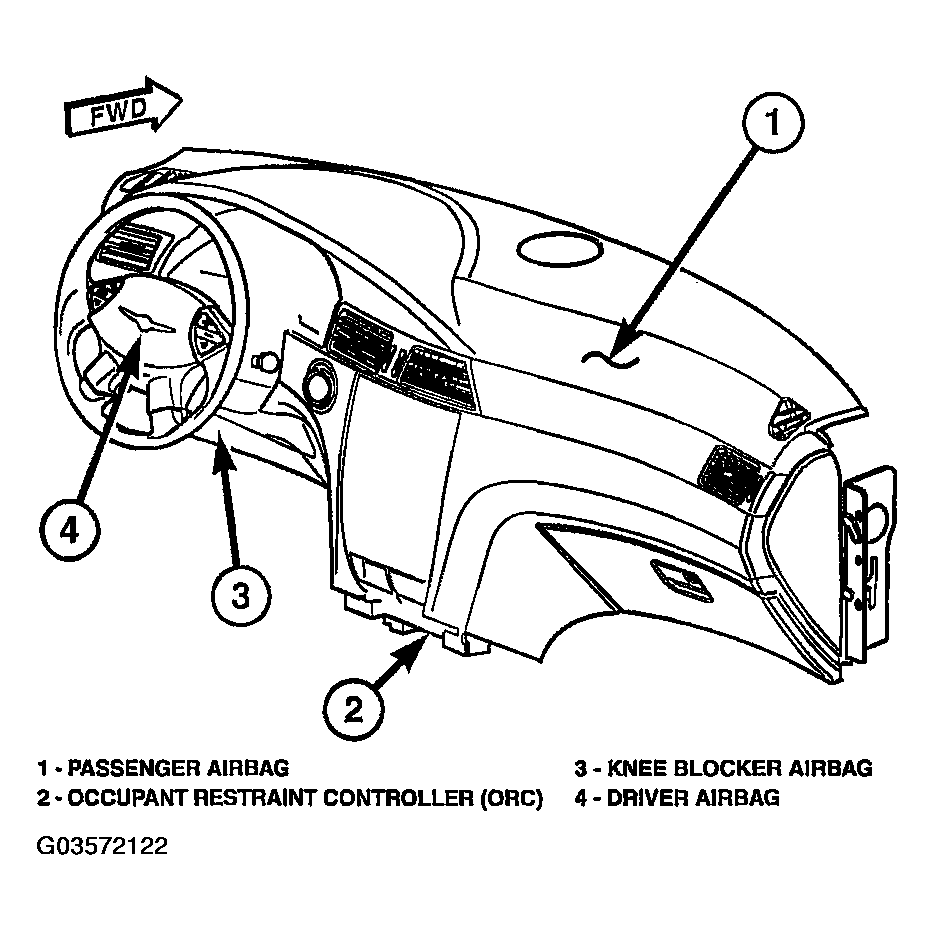

Fig 1: Identifying Driver And Passenger Airbag
Courtesy of DAIMLERCHRYSLER CORP.

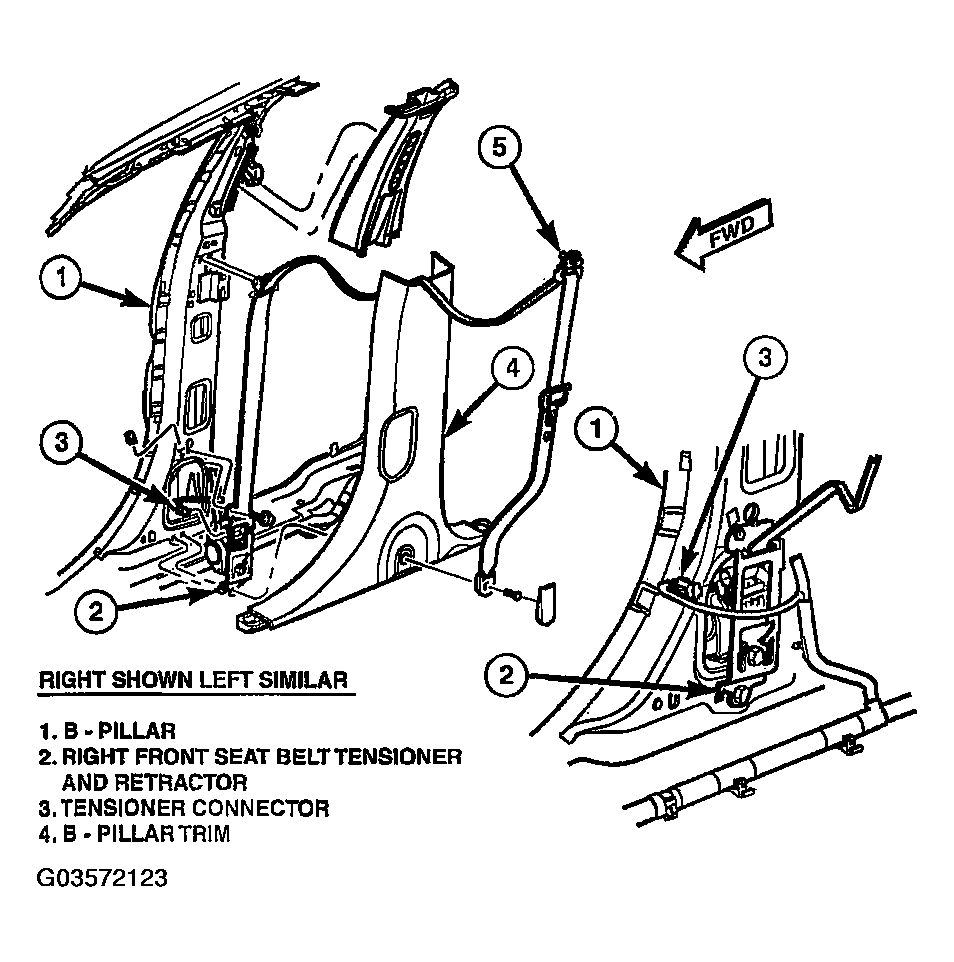

Fig 2: Identifying Right Front Seat Belt Tensioner And Retractor
Courtesy of DAIMLERCHRYSLER CORP.

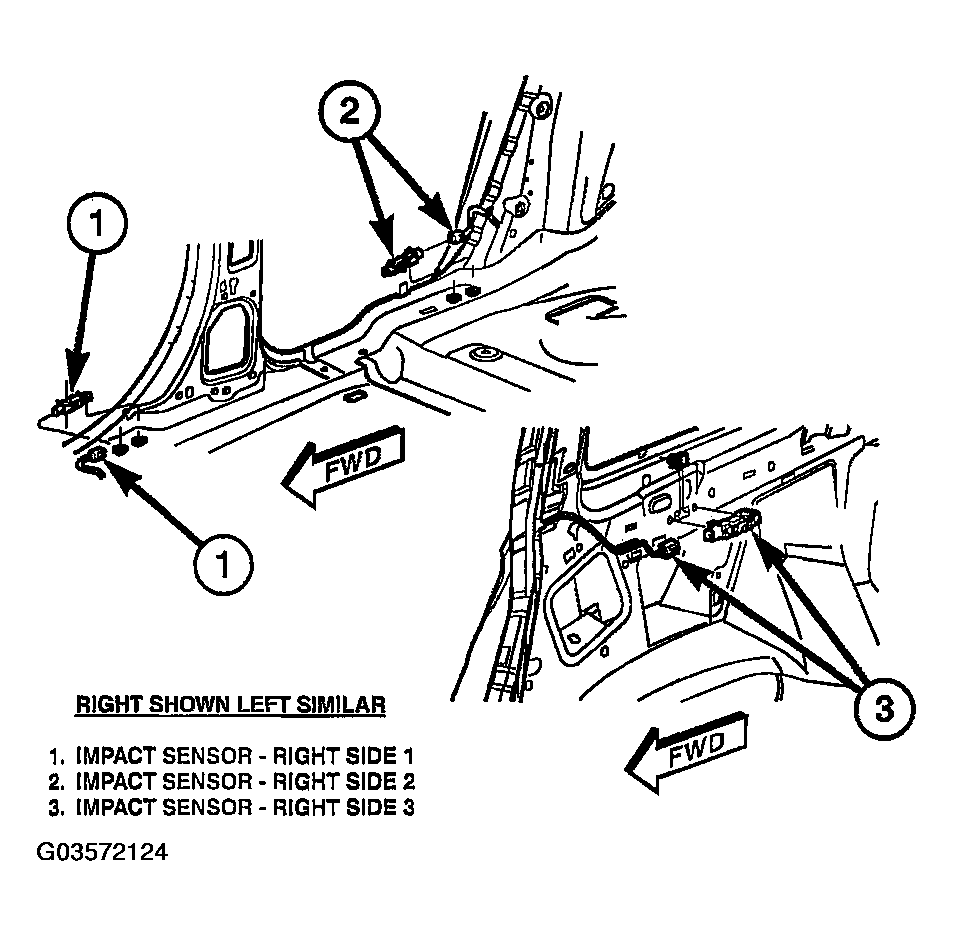

Fig 3: Identifying Impact Sensor
Courtesy of DAIMLERCHRYSLER CORP.

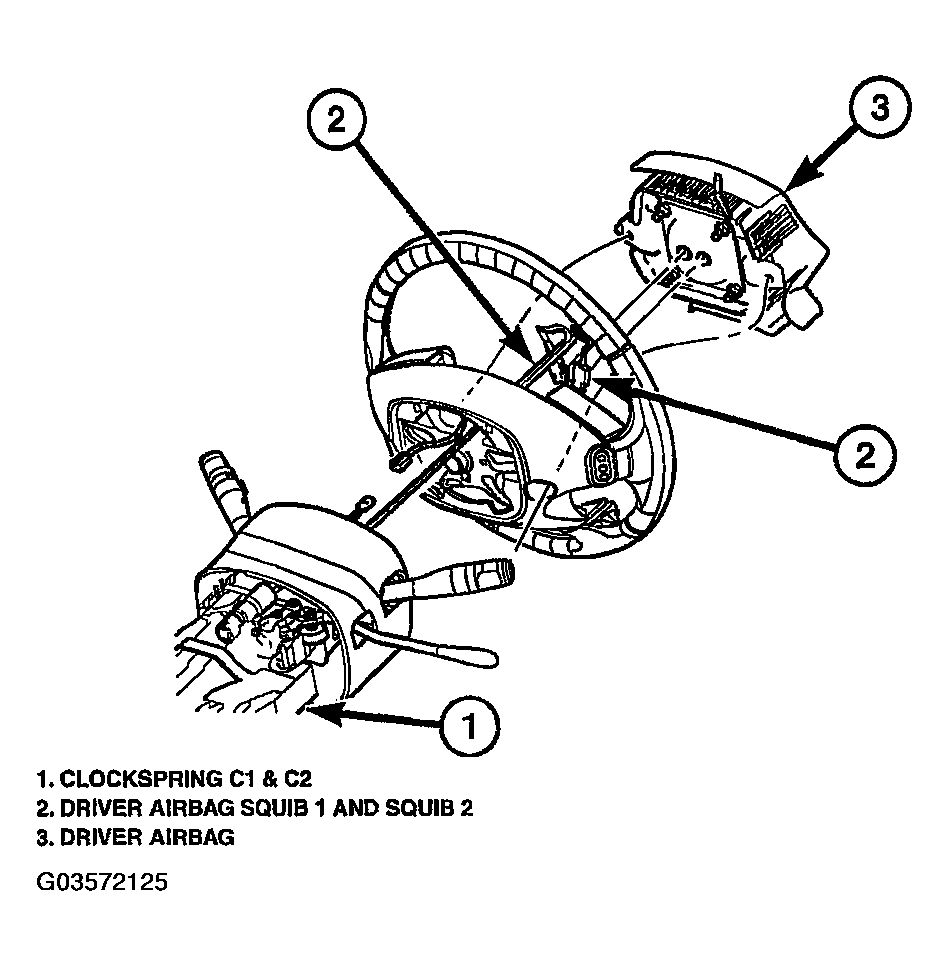

Fig 4: Identifying Driver Airbag Squib And Clockspring
Courtesy of DAIMLERCHRYSLER CORP.

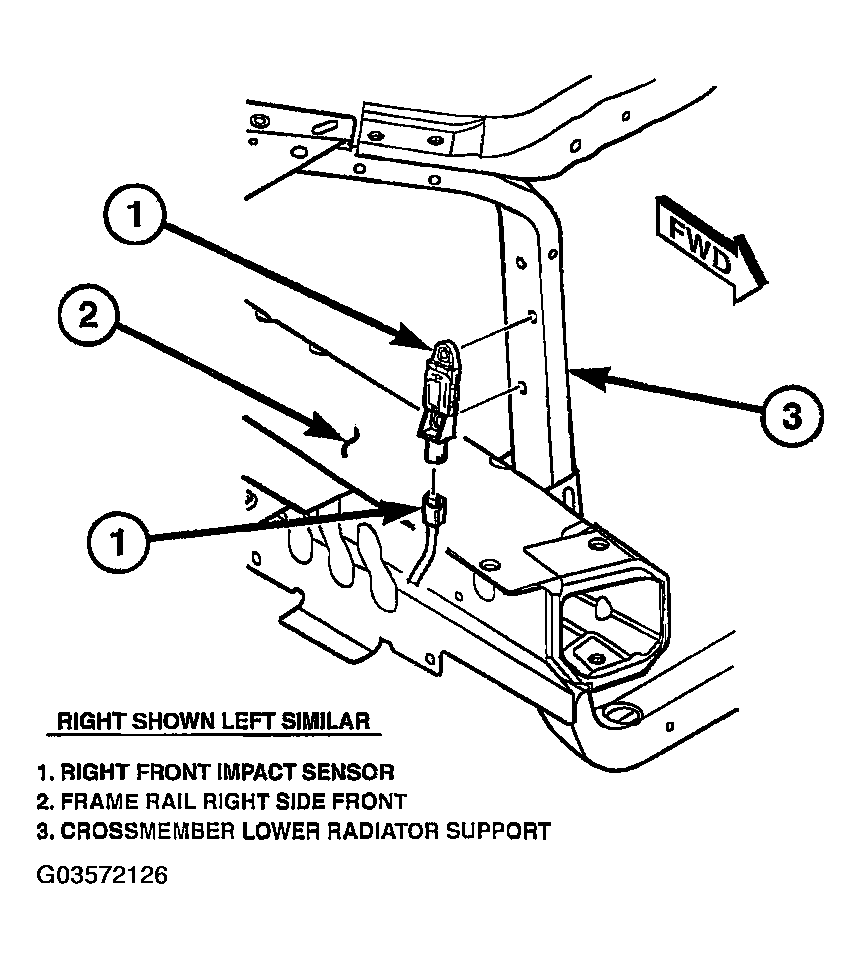

Fig 5: Identifying Right Front Impact Sensor
Courtesy of DAIMLERCHRYSLER CORP.

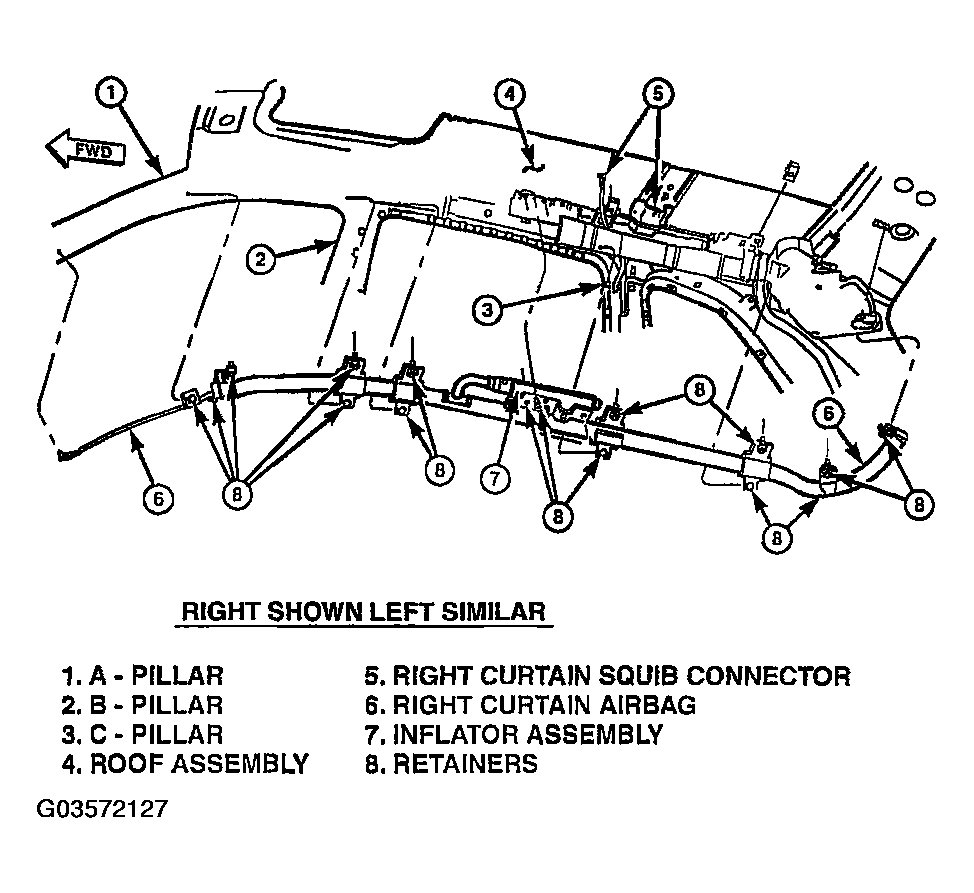

Fig 6: Identifying Pillar, Roof Assembly And Inflator Assembly
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
