Possible Causes

  1. INTERMITTENT CONDITION
  2. SPARK PLUG
  3. IGNITION COIL OPERATION
  4. IGNITION COIL CONTROL CIRCUIT OPEN
  5. IGNITION COIL CONTROL CIRCUIT SHORTED TO GROUND
  6. PCM
  7. (A142) ASD RELAY OUTPUT CIRCUIT
  8. IGNITION COIL

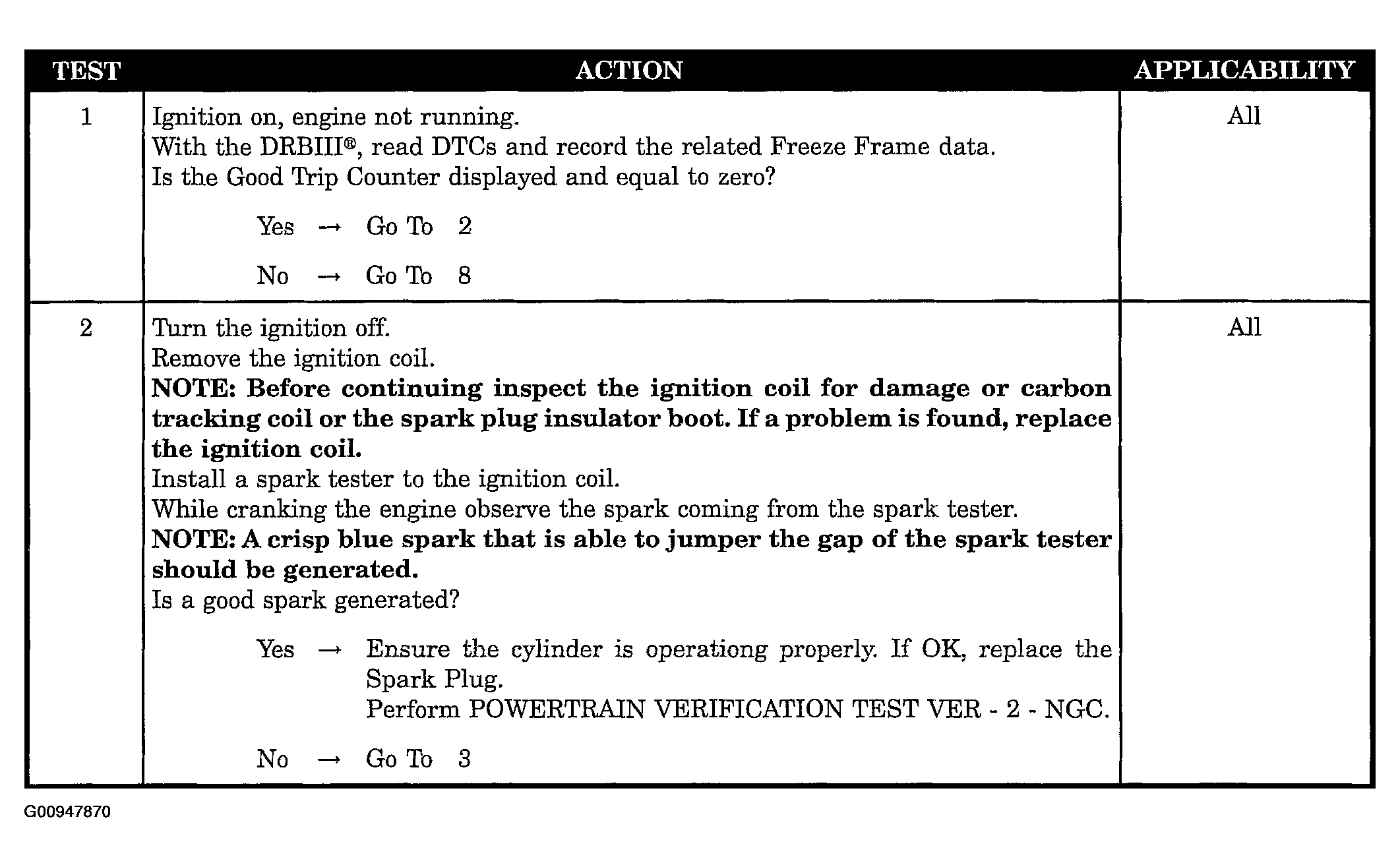

    Fig 1: Diagnostic Chart - Ignition Coils Secondary Circuit-Insufficient Ionization (1 Of 3)
    G00947870Courtesy of DAIMLERCHRYSLER CORP.

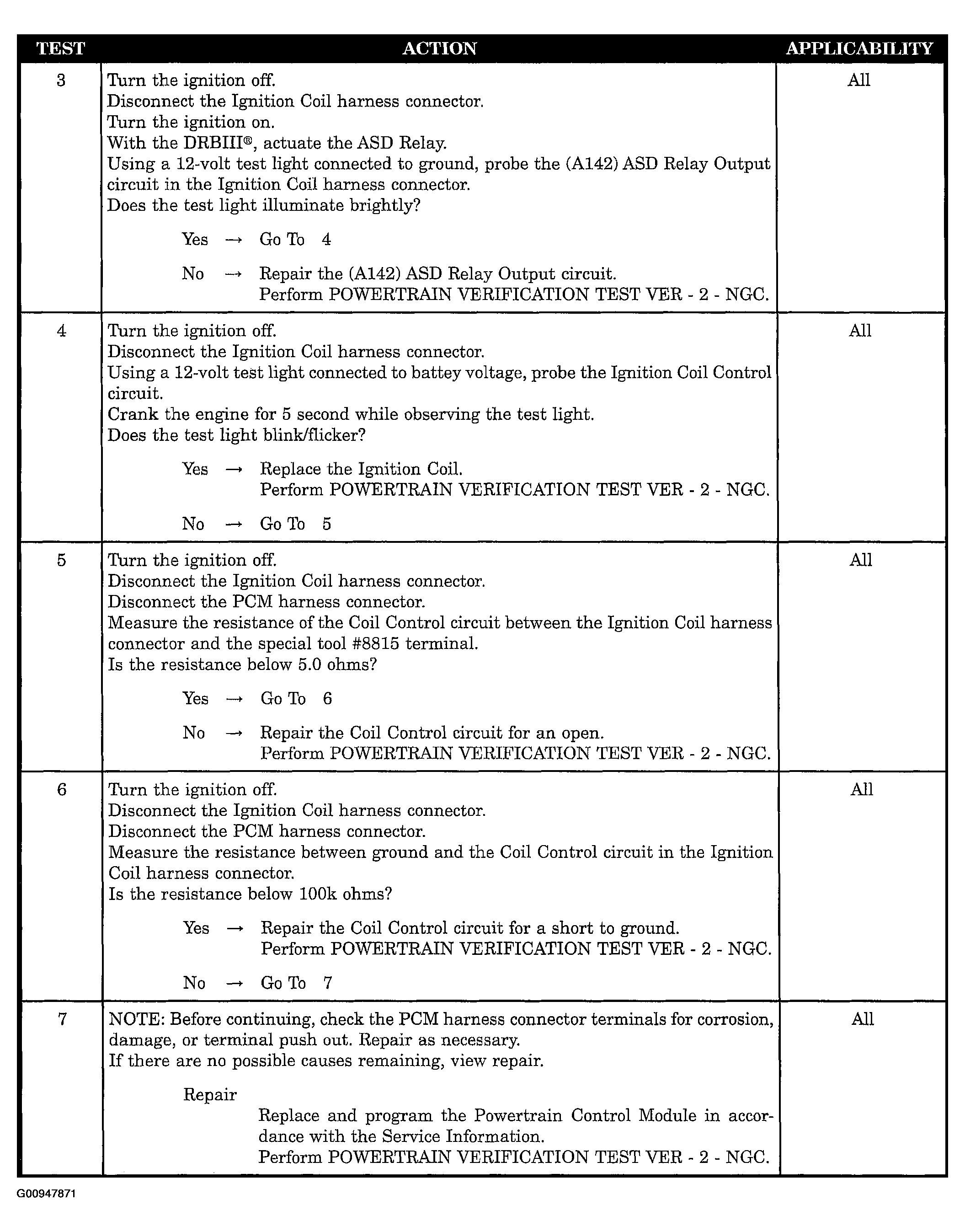

    Fig 2: Diagnostic Chart - Ignition Coils Secondary Circuit-Insufficient Ionization (2 Of 3)
    G00947871Courtesy of DAIMLERCHRYSLER CORP.

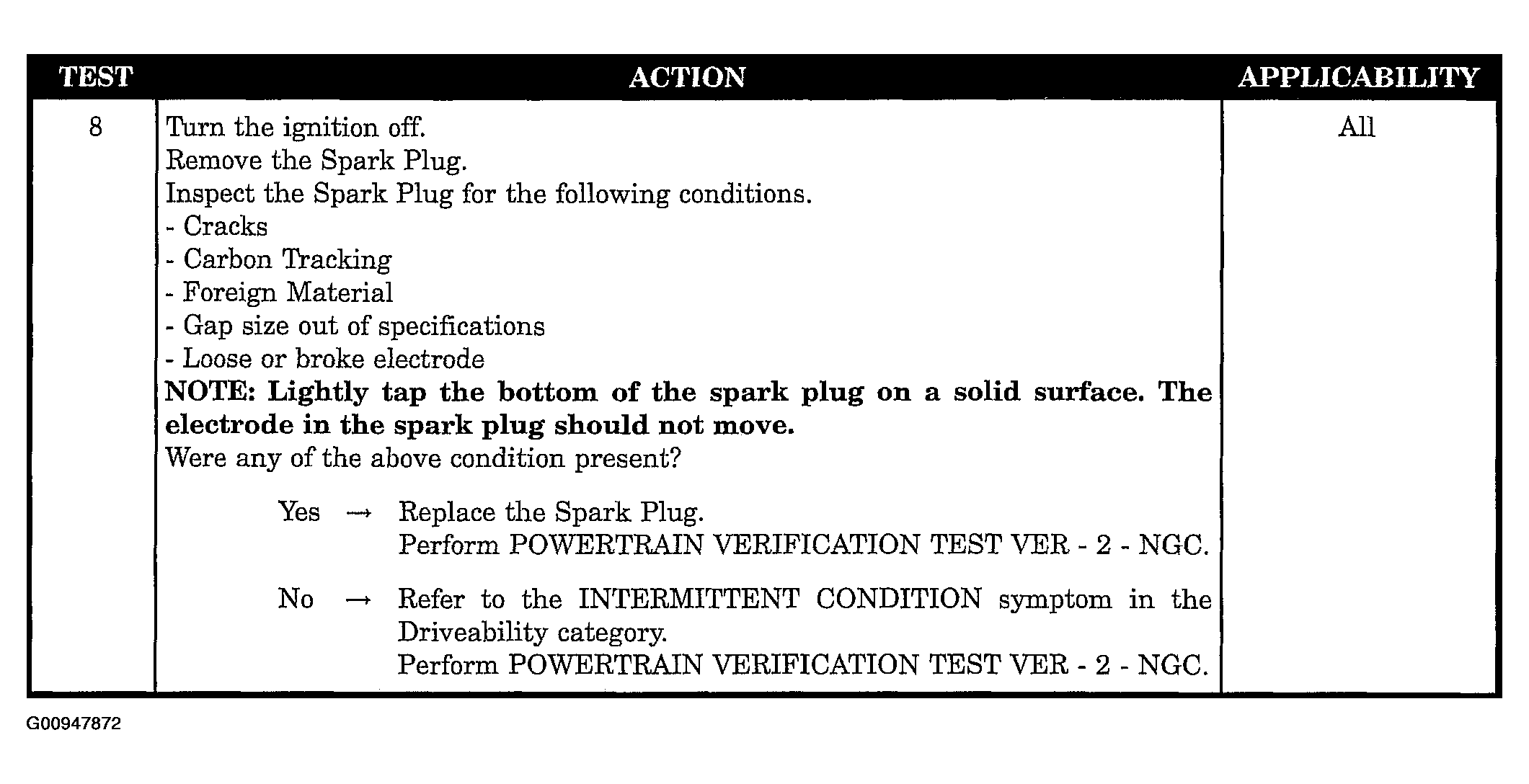

    Fig 3: Diagnostic Chart - Ignition Coils Secondary Circuit-Insufficient Ionization (3 Of 3)
    G00947872Courtesy of DAIMLERCHRYSLER CORP.
