Chrysler
>>
2004
>>
Pacifica AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Powertrain Diagnostic Procedures
>>
Diagnostic Procedures
>>
DRIVEABILITY - NGC - Diagnostic Tests
>>
P0300-Multiple Cylinder Misfire, P0301-Cylinder #1 Misfire, P0302-Cylinder #2 Misfire, P0303-Cylinder #3 Misfire, P0304-Cylinder #4 Misfire, P0305-Cylinder #5 Misfire, P0306-Cylinder #6 Misfire
>>
Diagnostic Procedure
Diagnostic Procedure

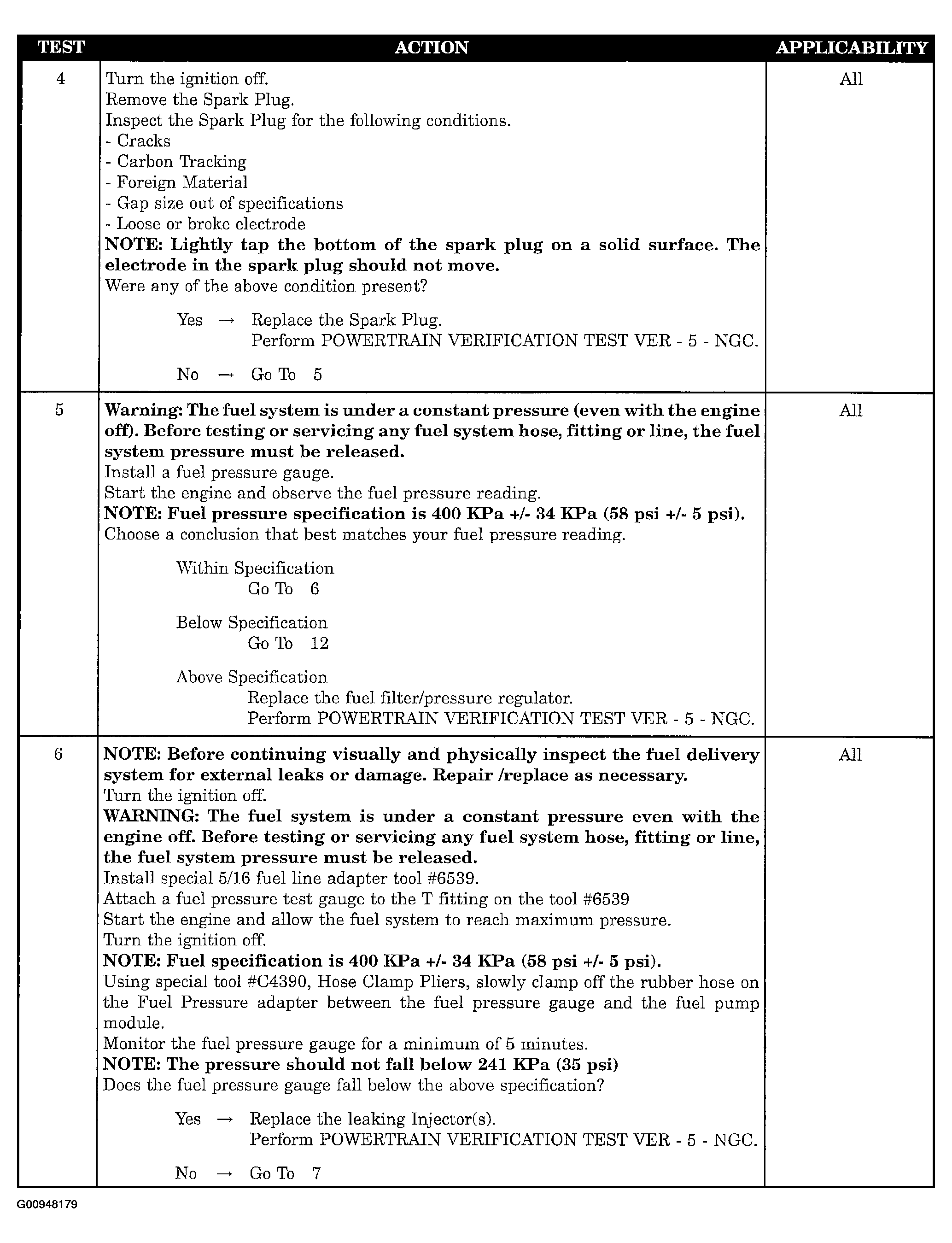

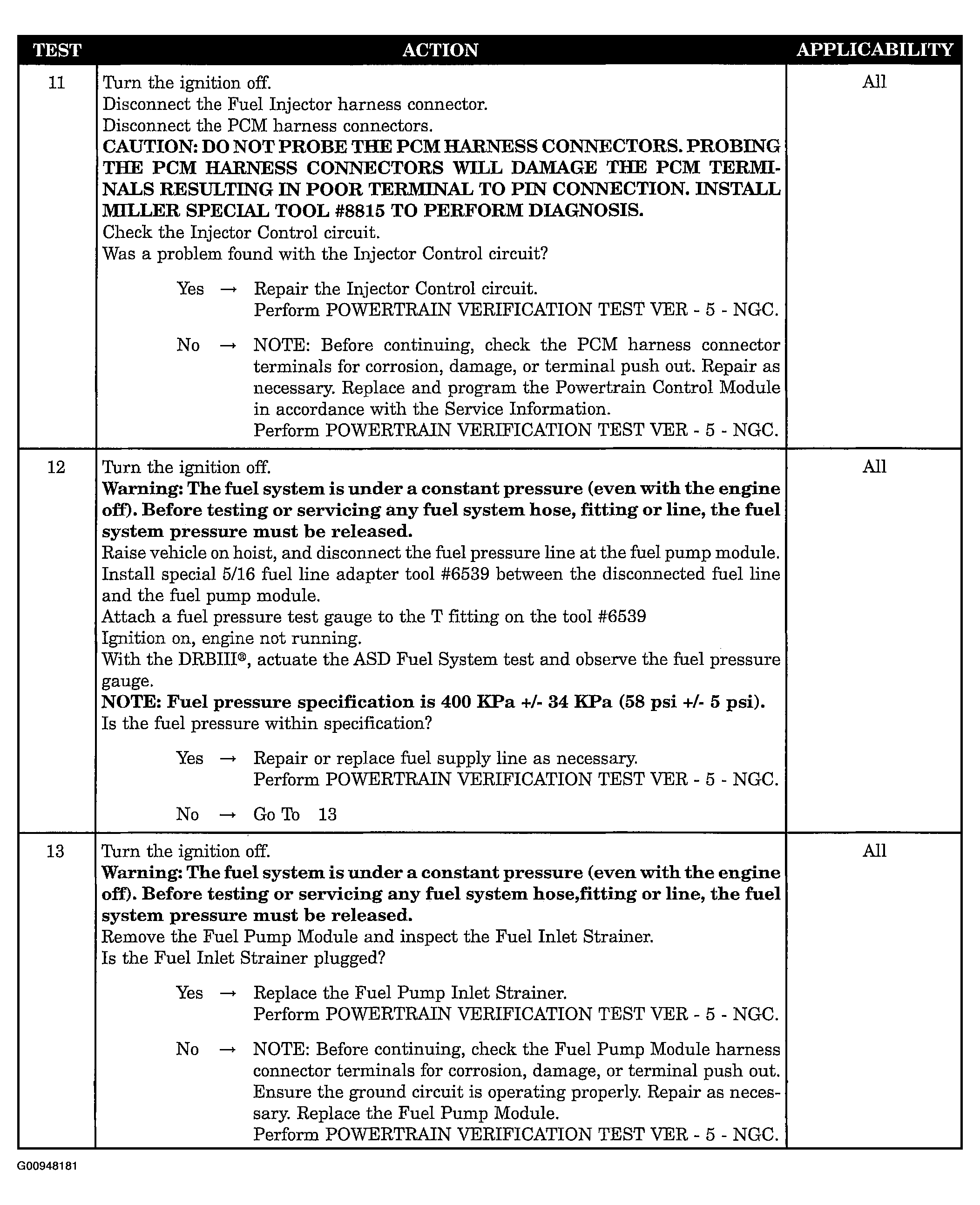

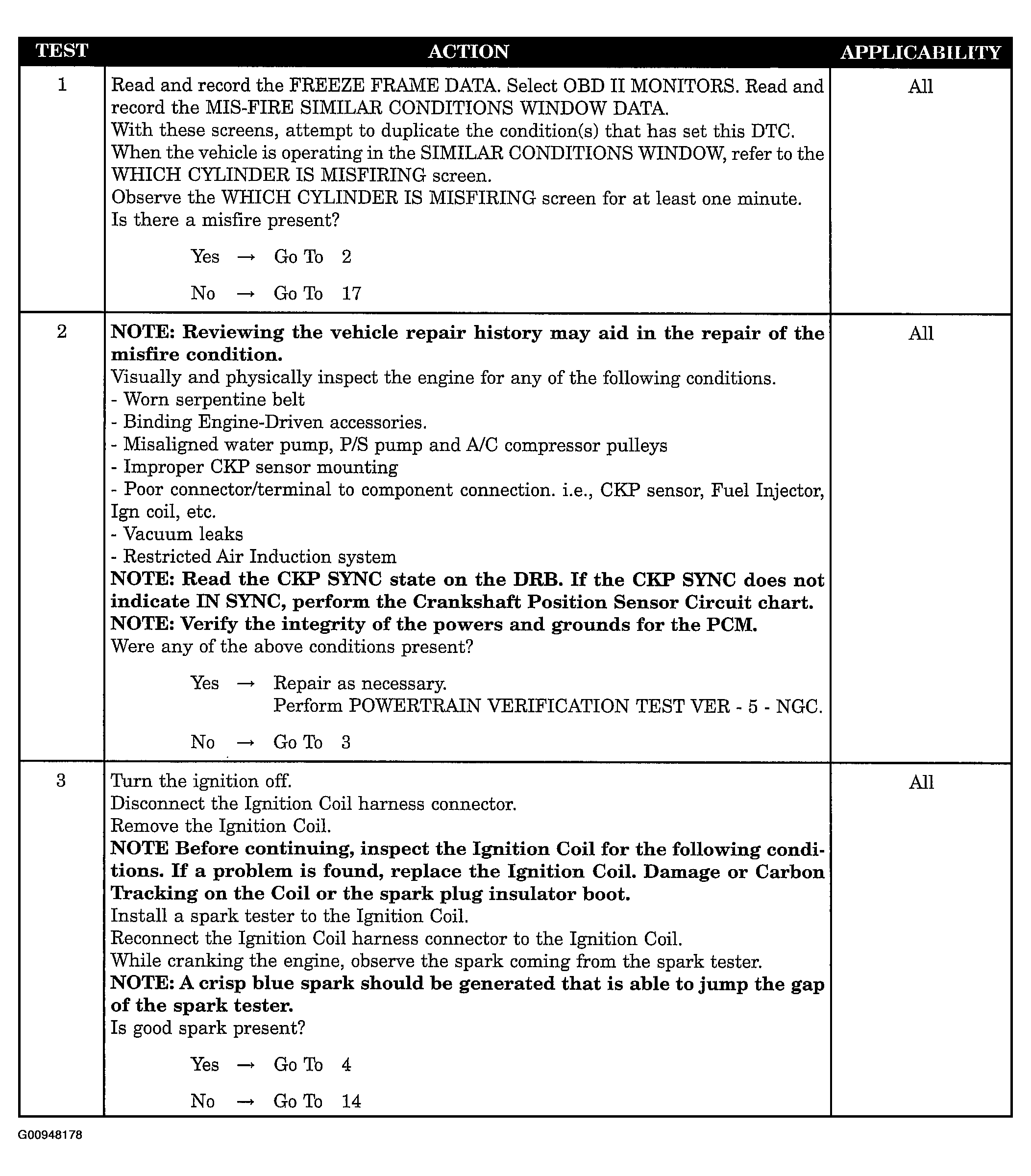

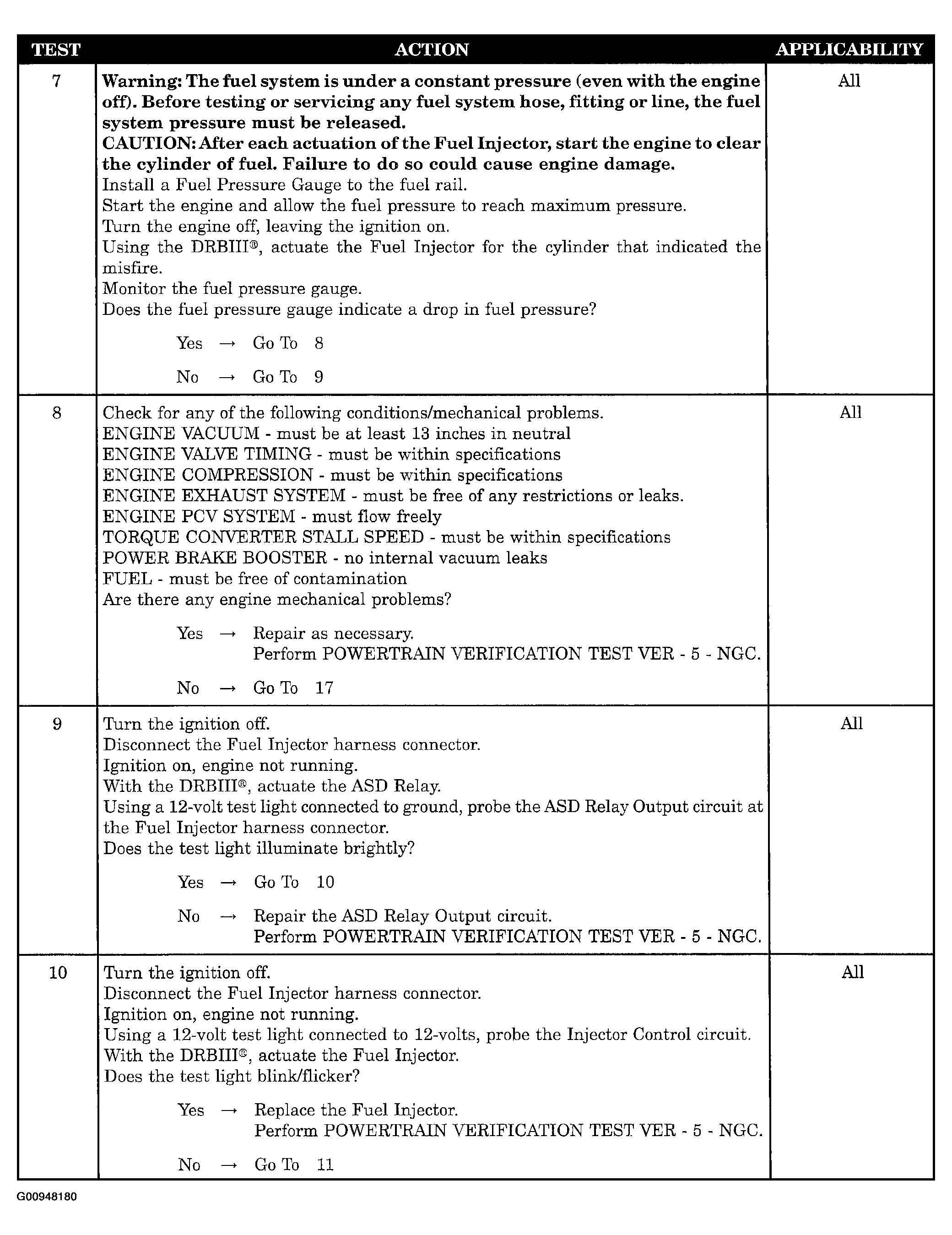

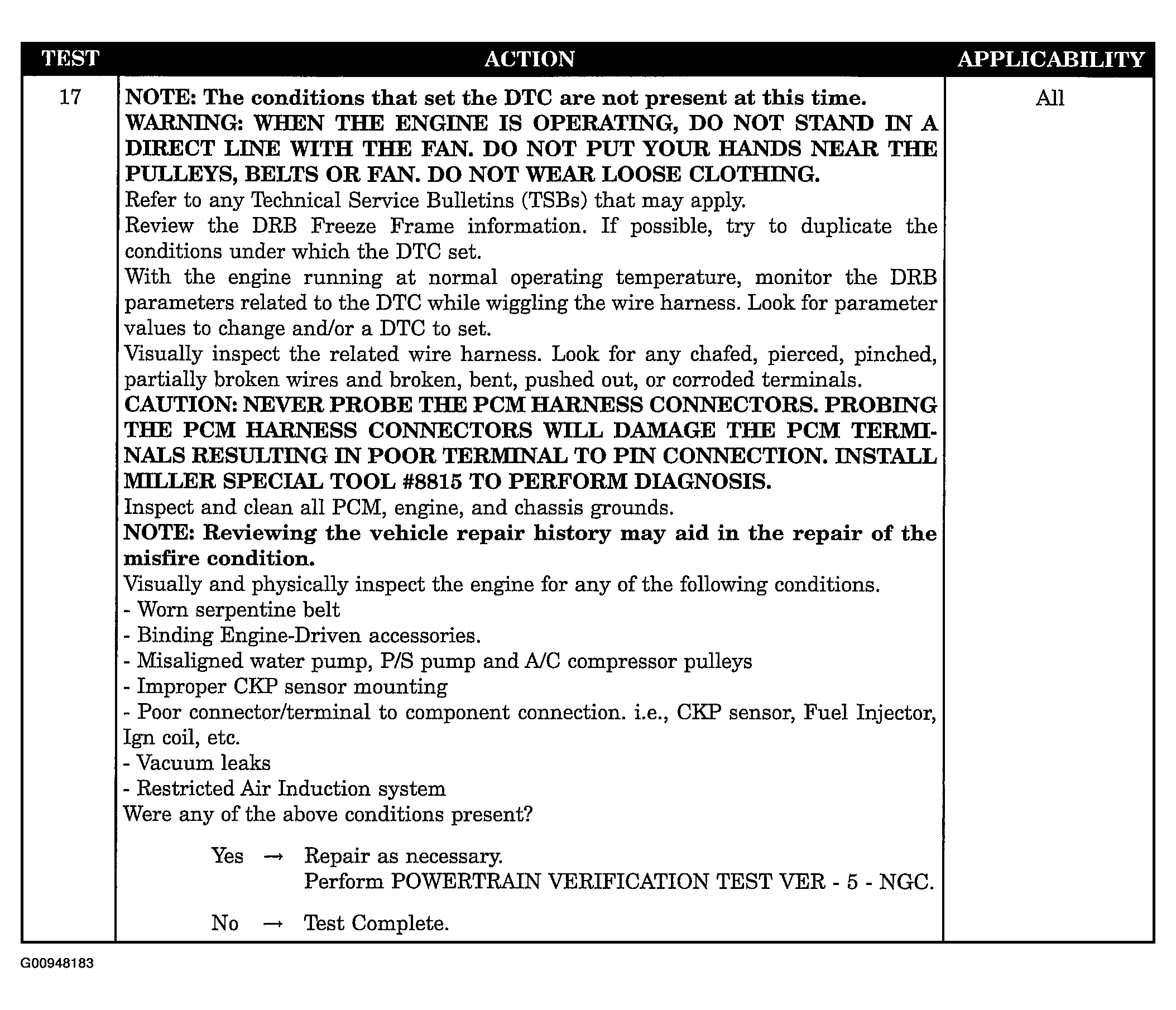

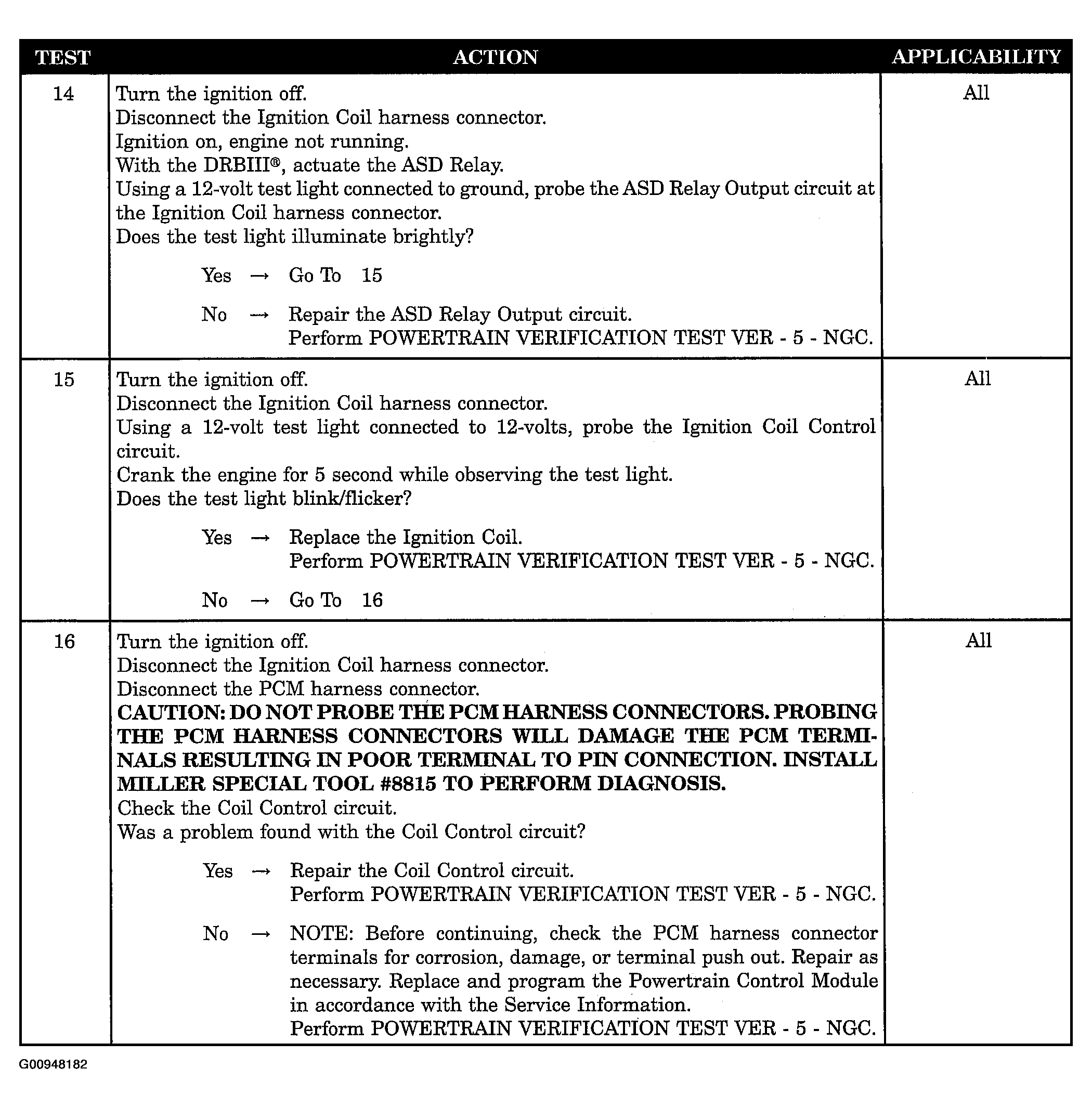

Fig 1: Diagnostic Chart - Multiple Cylinder Misfire (1 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Diagnostic Chart - Multiple Cylinder Misfire (2 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: Diagnostic Chart - Multiple Cylinder Misfire (3 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: Diagnostic Chart - Multiple Cylinder Misfire (4 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 5: Diagnostic Chart - Multiple Cylinder Misfire (5 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.
Fig 6: Diagnostic Chart - Multiple Cylinder Misfire (6 Of 6)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
