Connector PINOUTS

Fig 1: Identifying A/C Evaporator Temperature Sensor Connector Pinouts And Circuits

G02701696

Courtesy of DAIMLERCHRYSLER CORP.

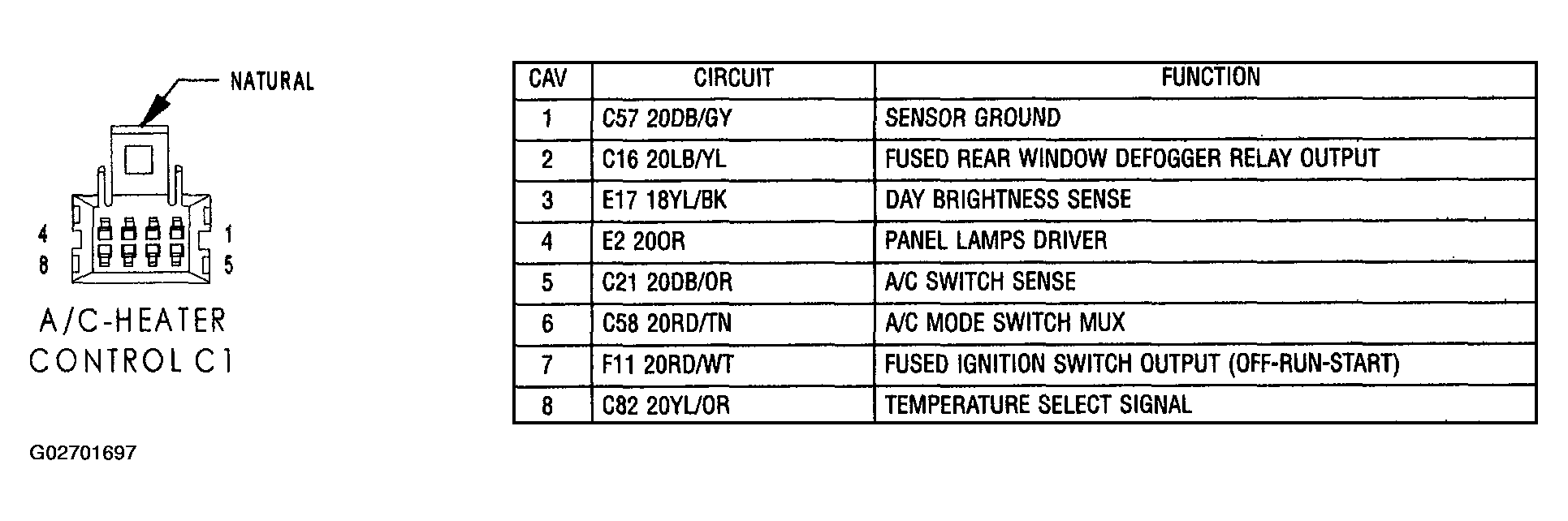

Fig 2: Identifying A/C-Heater Control C1 Connector Pinouts And Circuits

G02701697

Courtesy of DAIMLERCHRYSLER CORP.

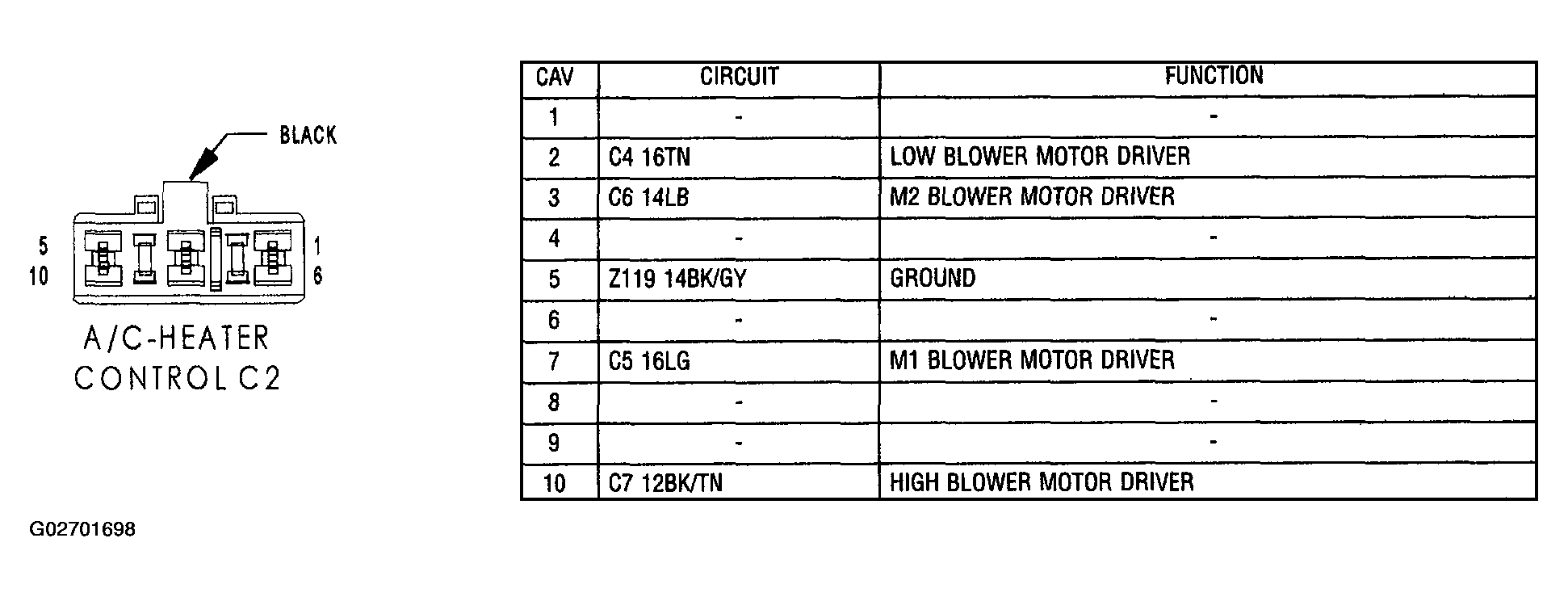

Fig 3: Identifying A/C-Heater Control C2 Connector Pinouts And Circuits

G02701698

Courtesy of DAIMLERCHRYSLER CORP.

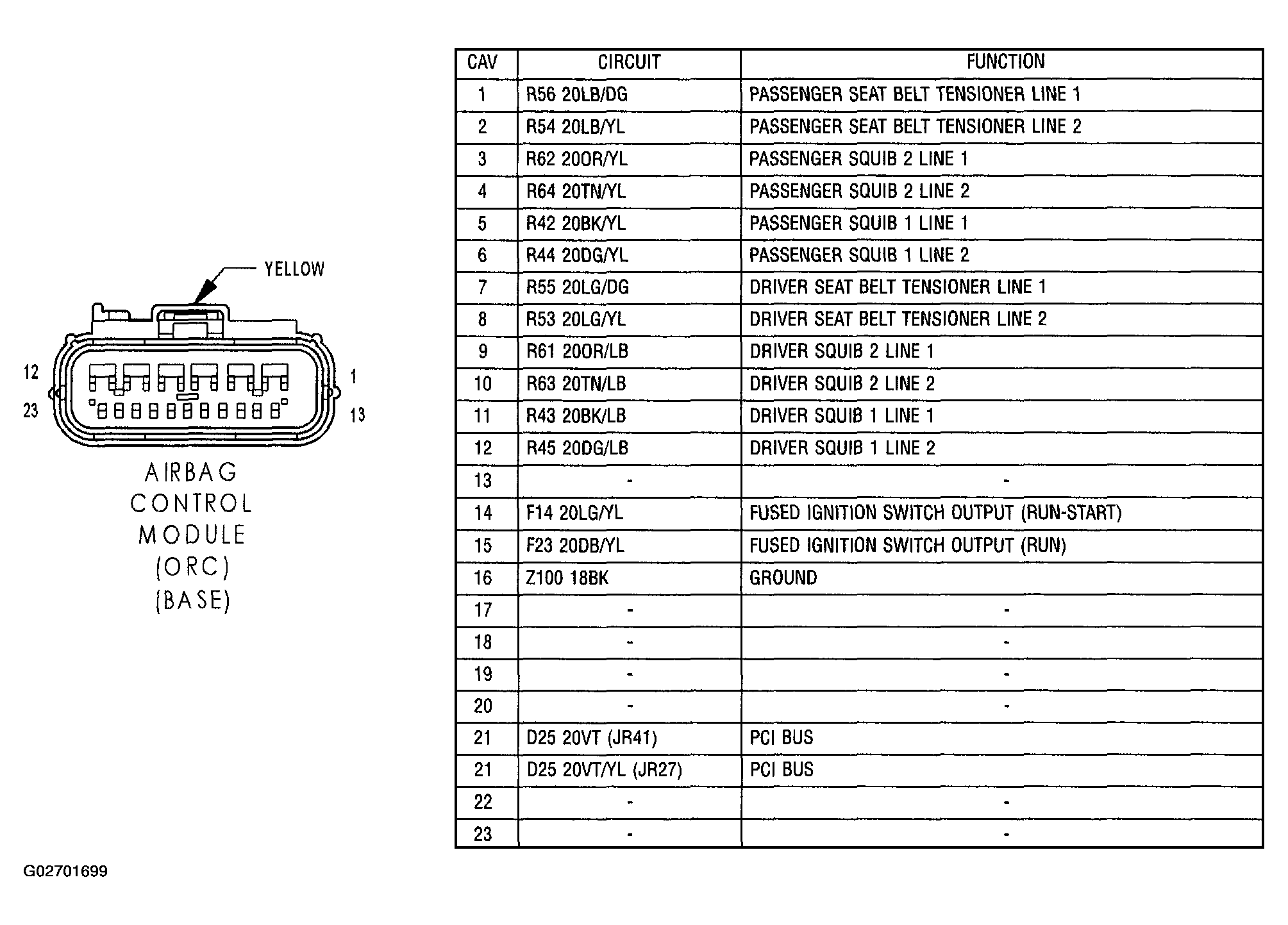

Fig 4: Identifying Airbag Control Module (ORC) (BASE) Connector Pinouts And Circuits

G02701699

Courtesy of DAIMLERCHRYSLER CORP.

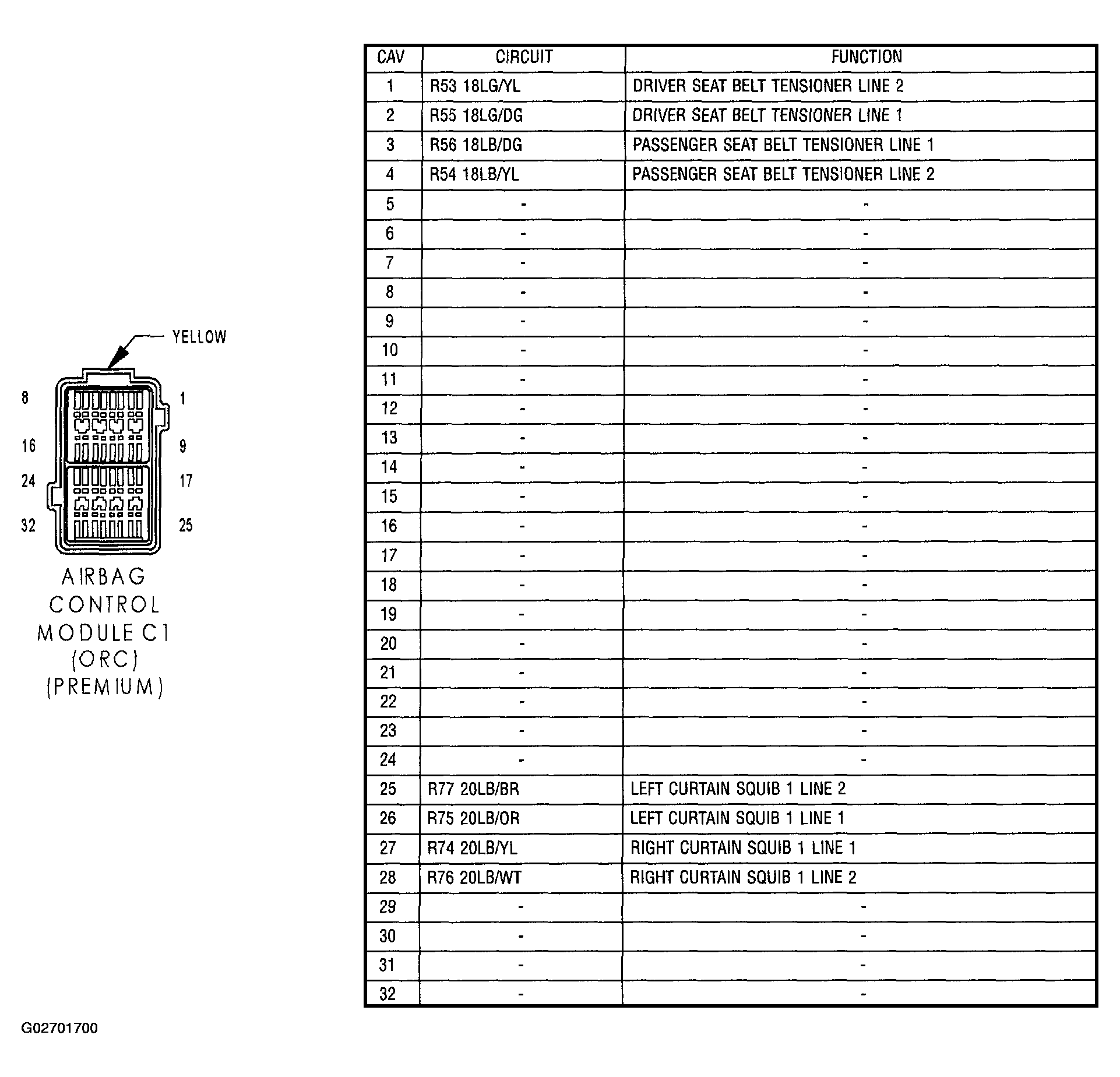

Fig 5: Identifying Airbag Control Module C1 (ORC) (Premium) Connector Pinouts And Circuits

G02701700

Courtesy of DAIMLERCHRYSLER CORP.

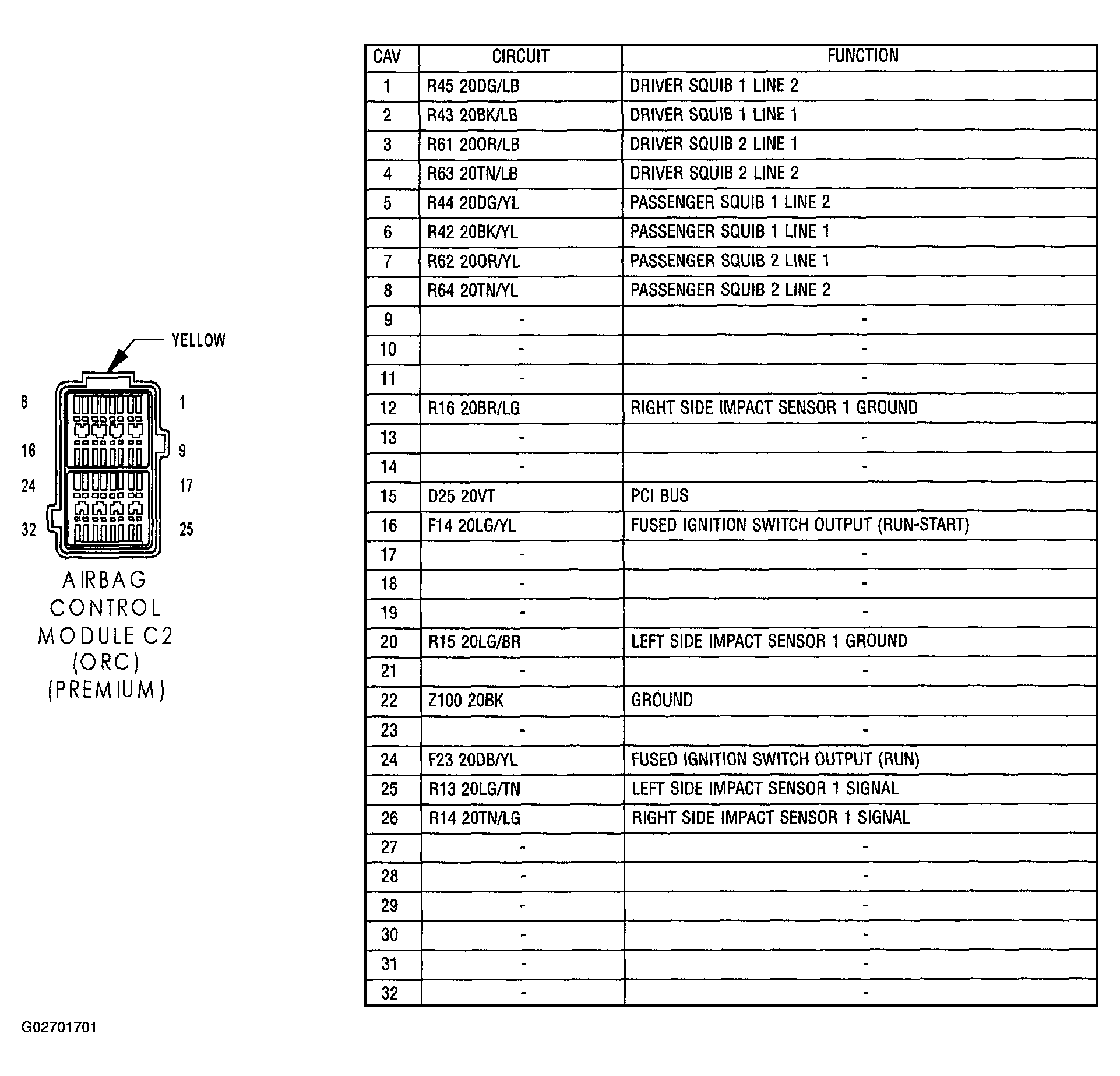

Fig 6: Identifying Airbag Control Module C2 (ORC) (PREMIUM) Connector Pinouts And Circuits

G02701701

Courtesy of DAIMLERCHRYSLER CORP.

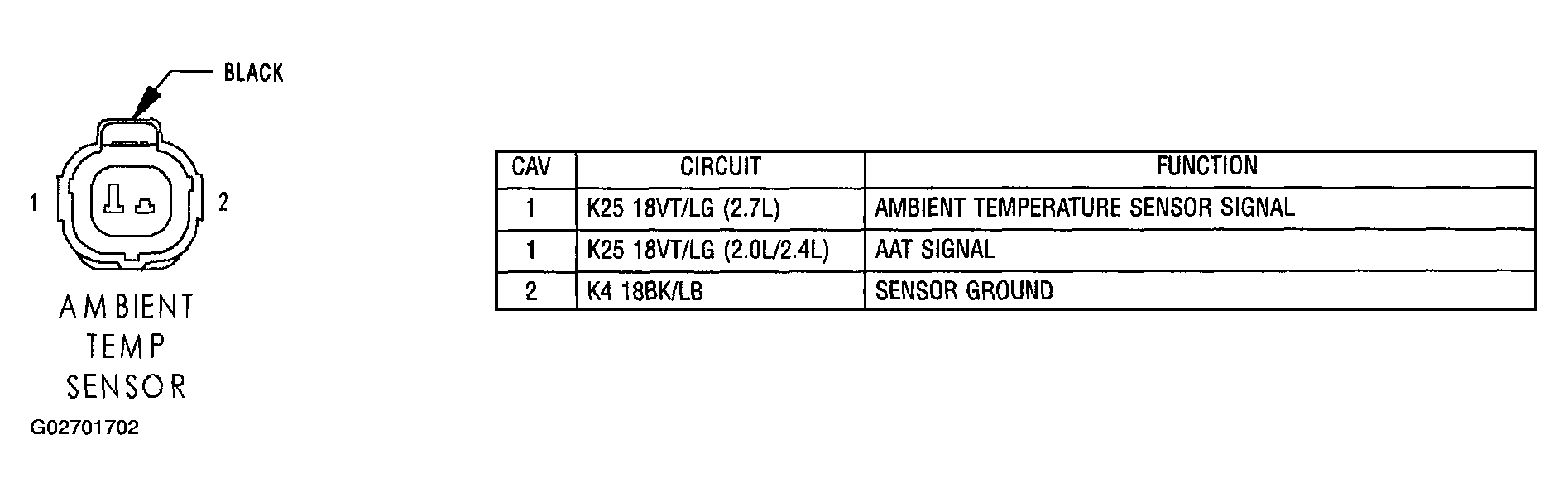

Fig 7: Identifying Ambient Temp Sensor Connector Pinouts And Circuits

G02701702

Courtesy of DAIMLERCHRYSLER CORP.

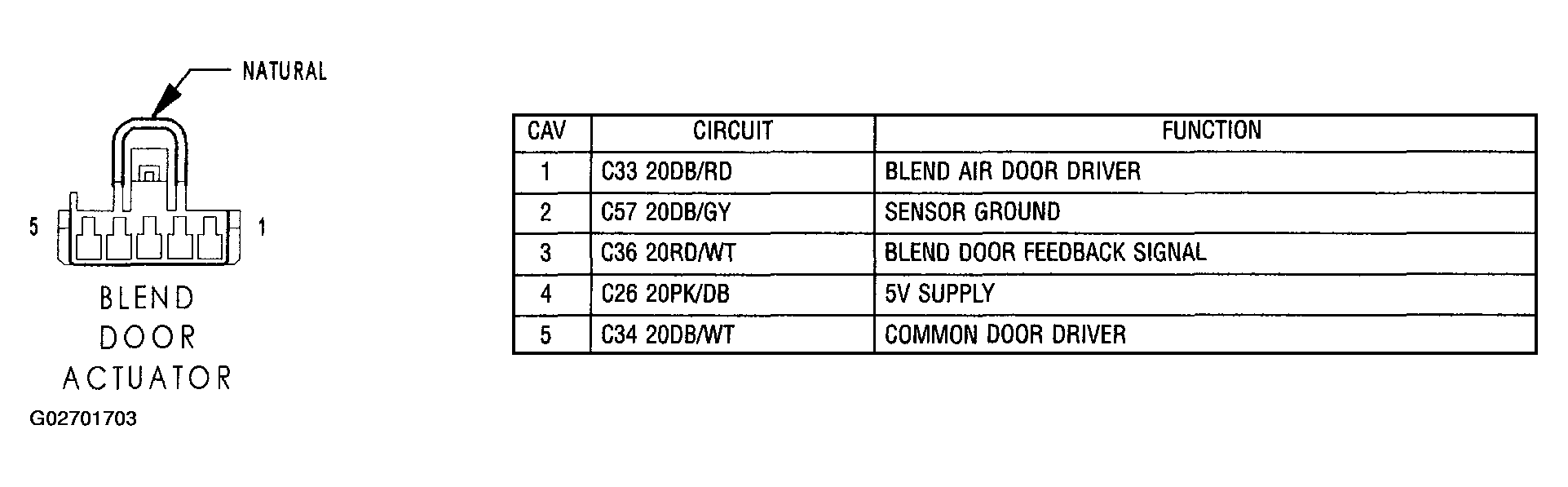

Fig 8: Identifying Blend Door Actuator Connector Pinouts And Circuits

G02701703

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: Identifying Blower Motor Connector Pinouts And Circuits

G02701704

Courtesy of DAIMLERCHRYSLER CORP.

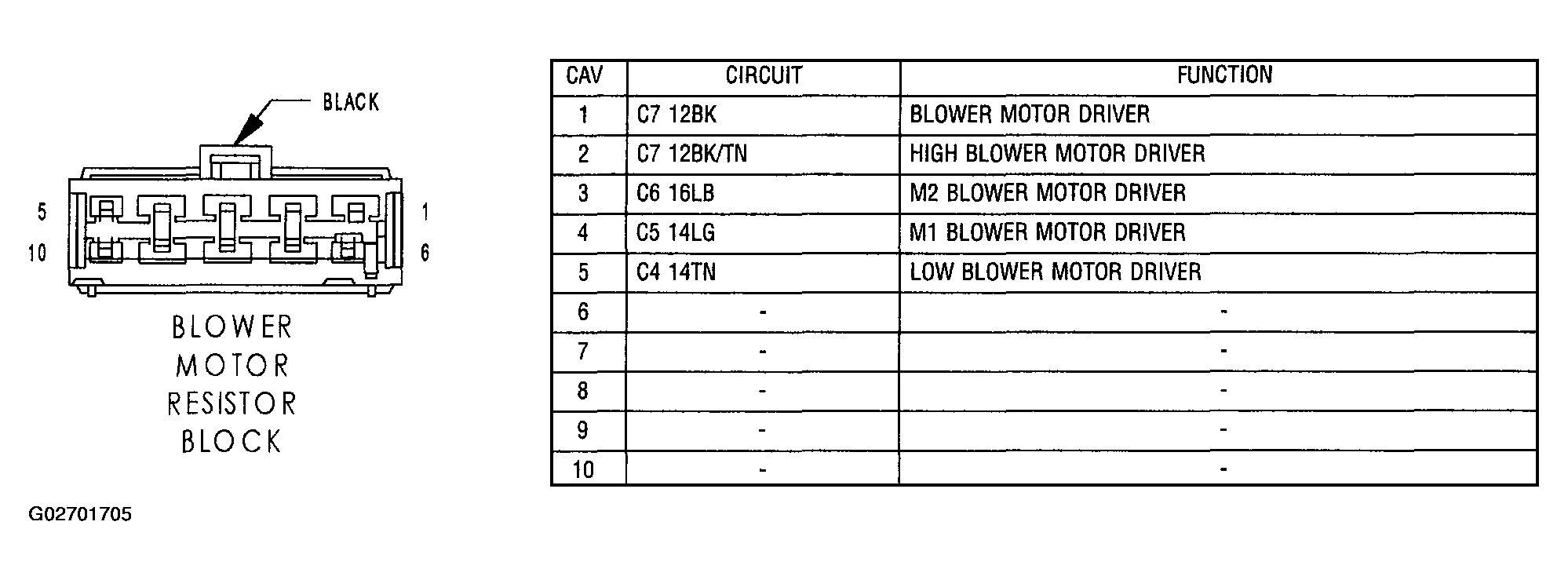

Fig 10: Identifying Blower Motor Resistor Block Connector Pinouts And Circuits

G02701705

Courtesy of DAIMLERCHRYSLER CORP.

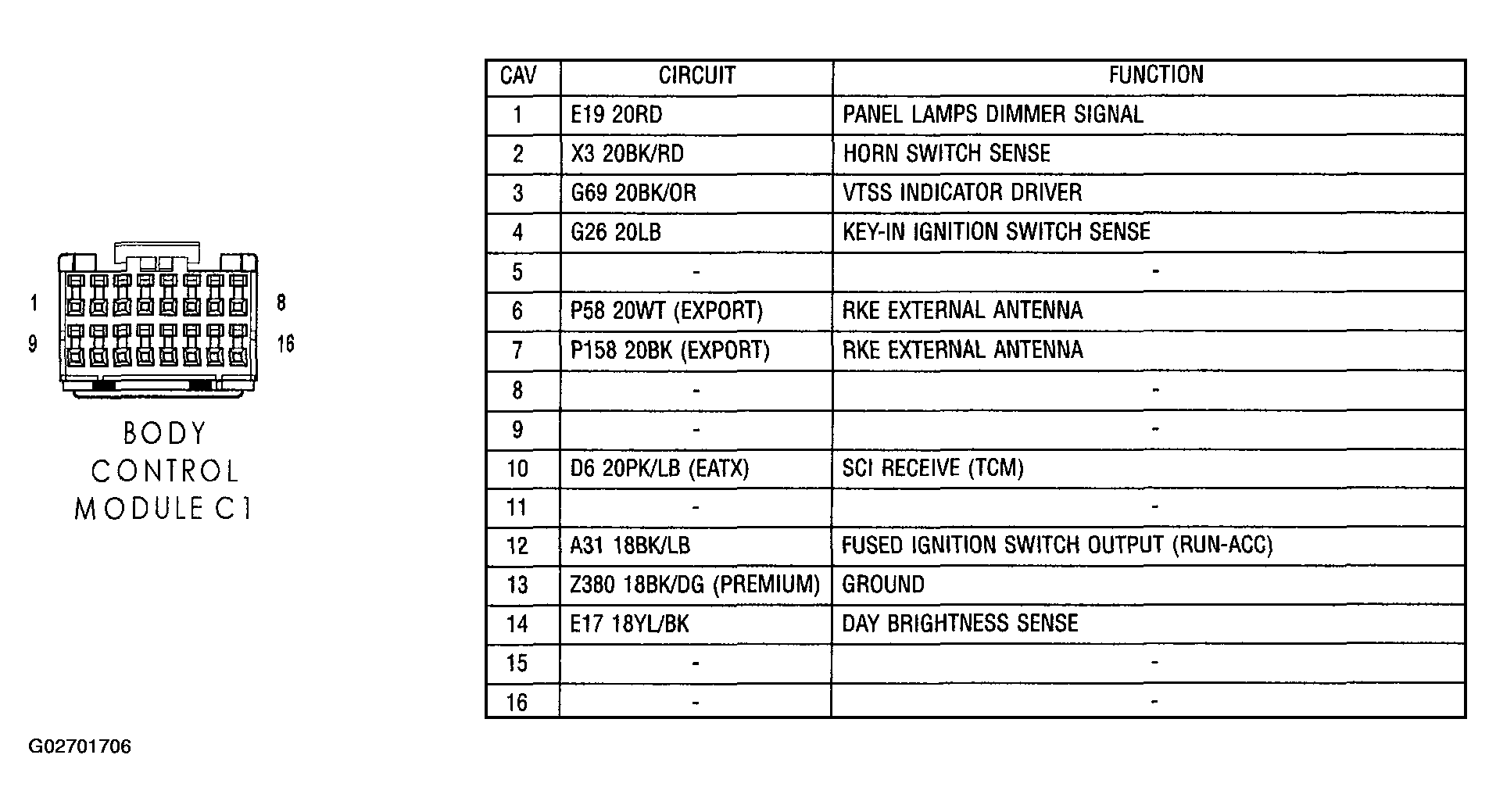

Fig 11: Identifying Body Control Module C1 Connector Pinouts And Circuits

G02701706

Courtesy of DAIMLERCHRYSLER CORP.

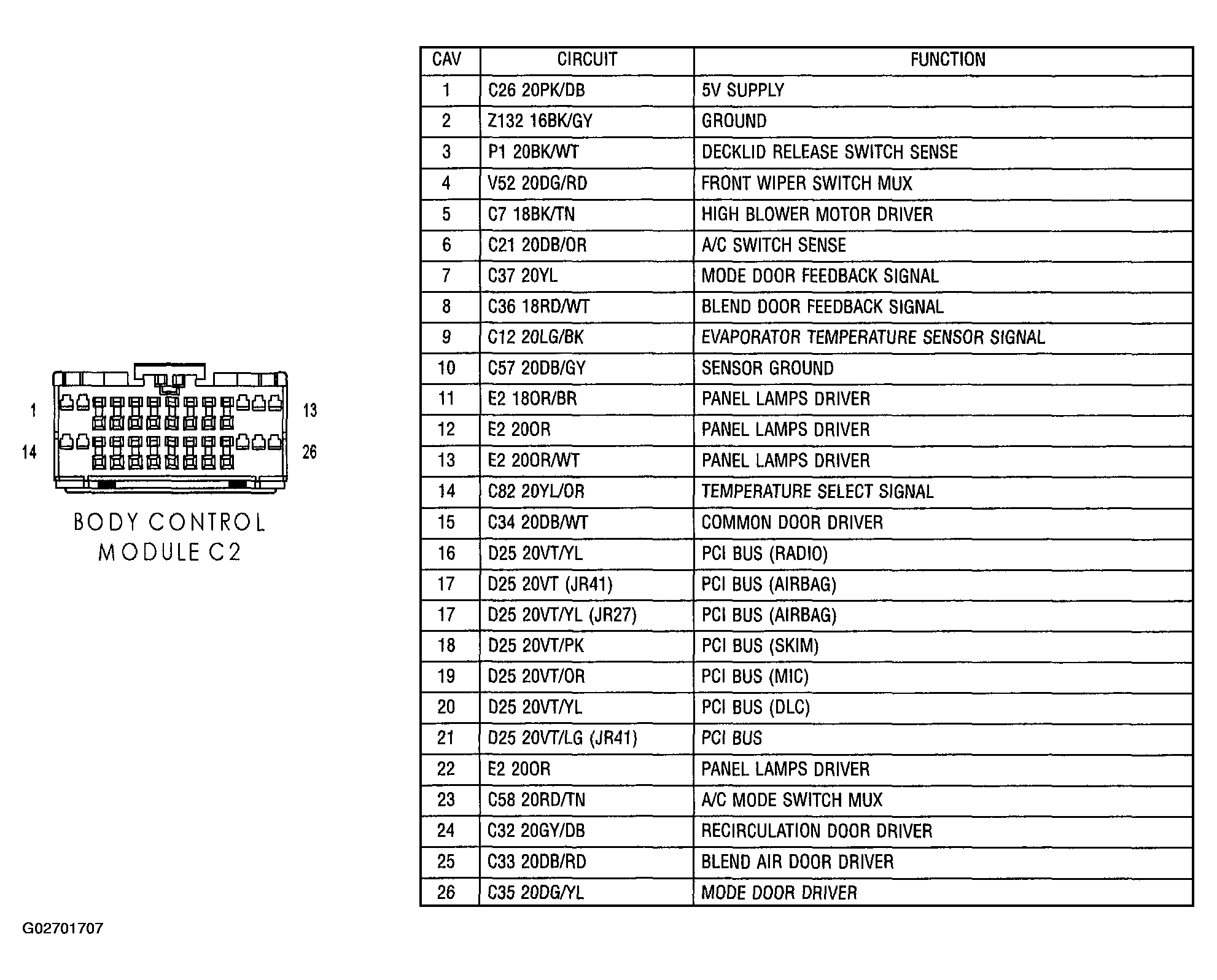

Fig 12: Identifying Body Control Module C2 Connector Pinouts And Circuits

G02701707

Courtesy of DAIMLERCHRYSLER CORP.

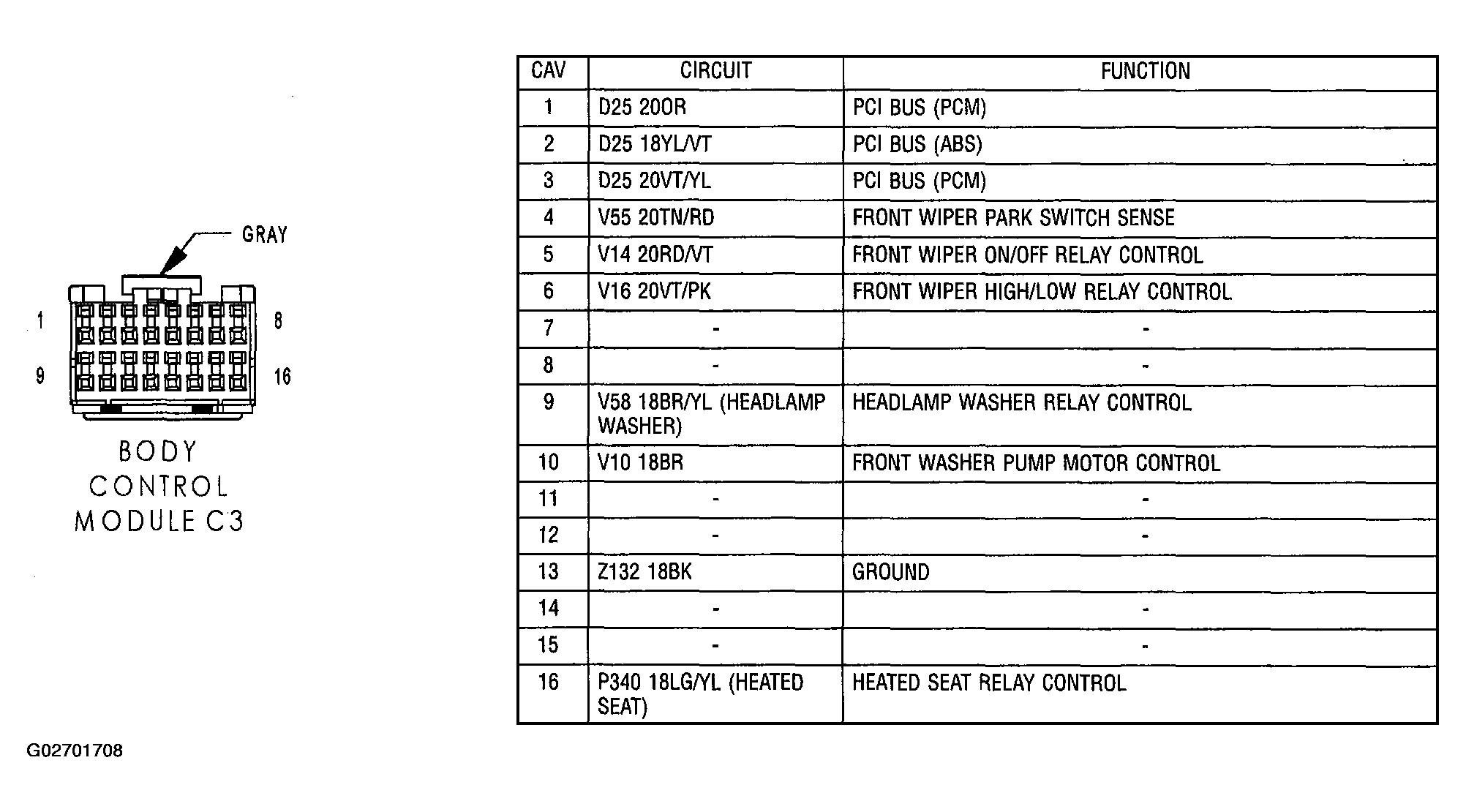

Fig 13: Identifying Body Control Module C3 Connector Pinouts And Circuits

G02701708

Courtesy of DAIMLERCHRYSLER CORP.

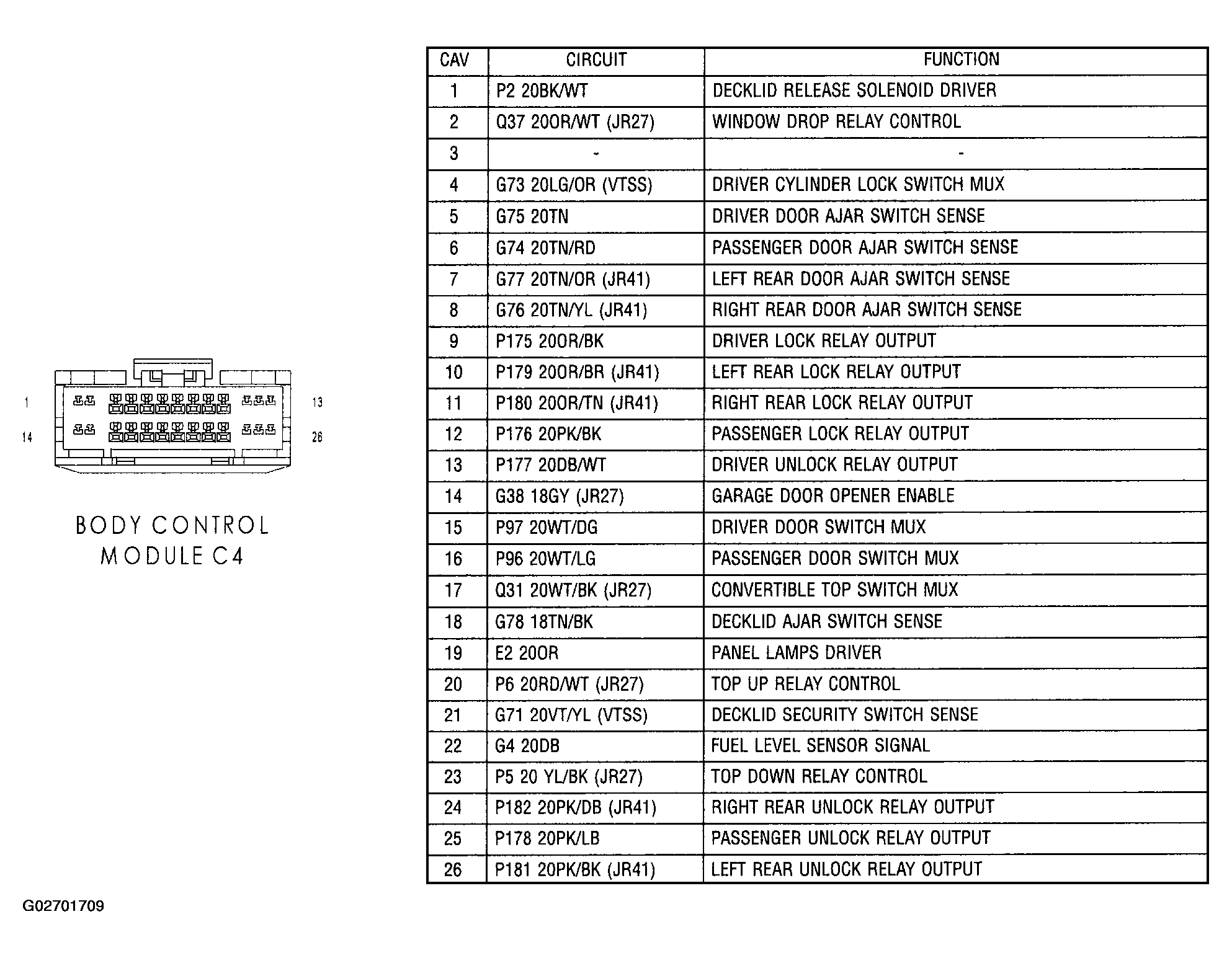

Fig 14: Identifying Body Control Module C4 Connector Pinouts And Circuits

G02701709

Courtesy of DAIMLERCHRYSLER CORP.

Fig 15: Identifying Brake Fluid Level Switch Connector Pinouts And Circuits

G02701710

Courtesy of DAIMLERCHRYSLER CORP.

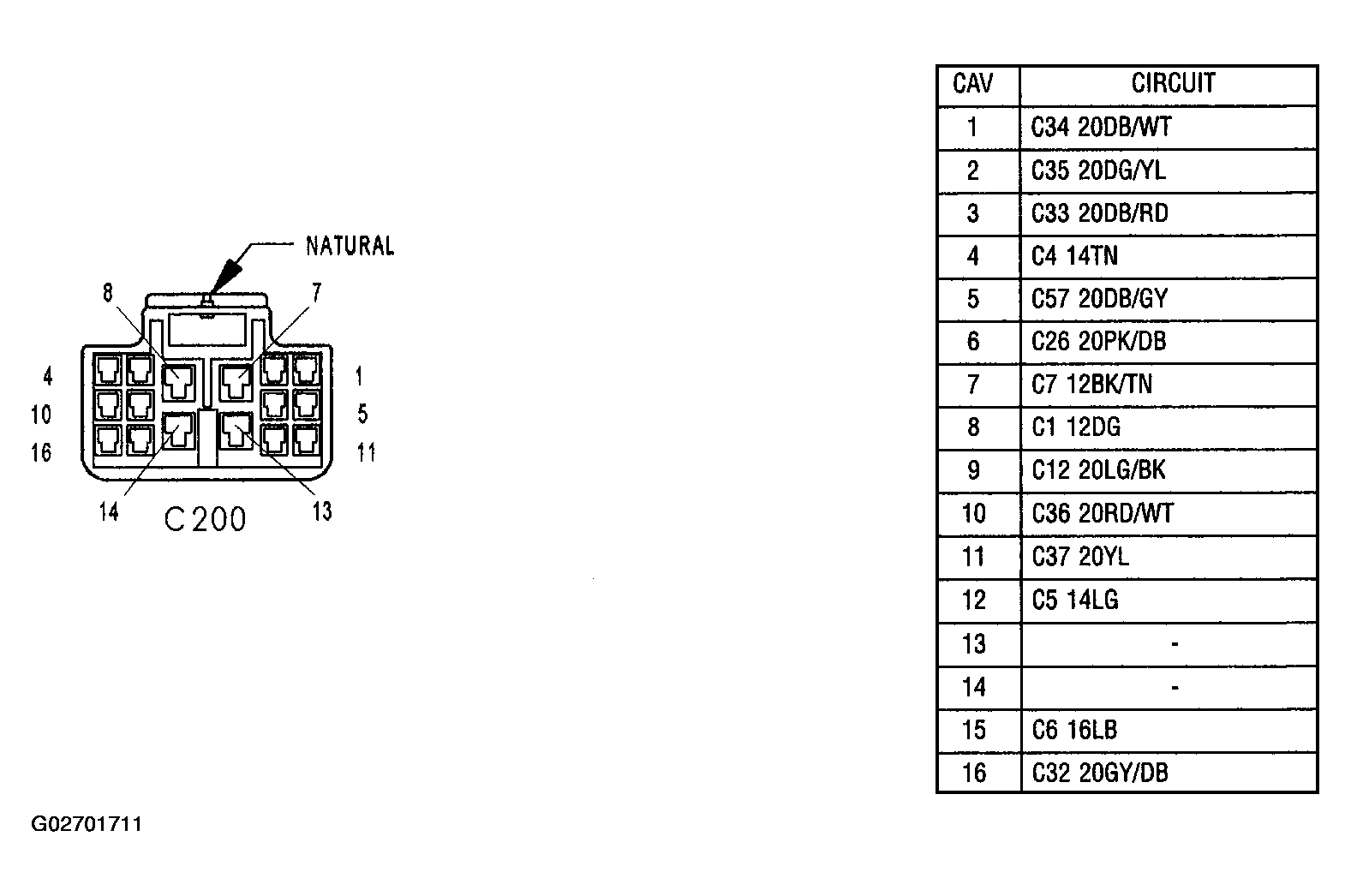

Fig 16: Identifying C200 Connector Pinouts And Circuits

G02701711

Courtesy of DAIMLERCHRYSLER CORP.

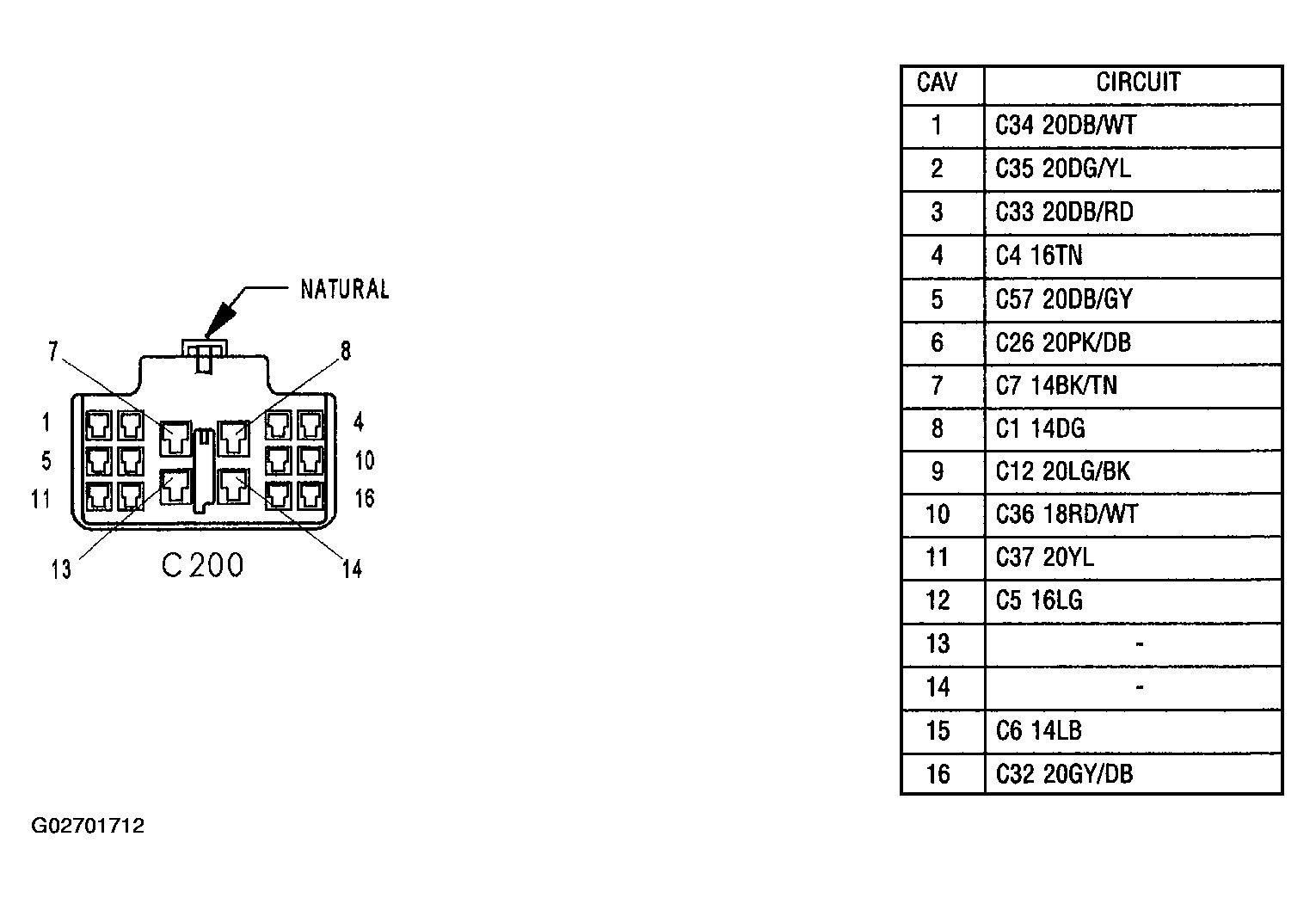

Fig 17: Identifying C200 Connector Pinouts And Circuits

G02701712

Courtesy of DAIMLERCHRYSLER CORP.

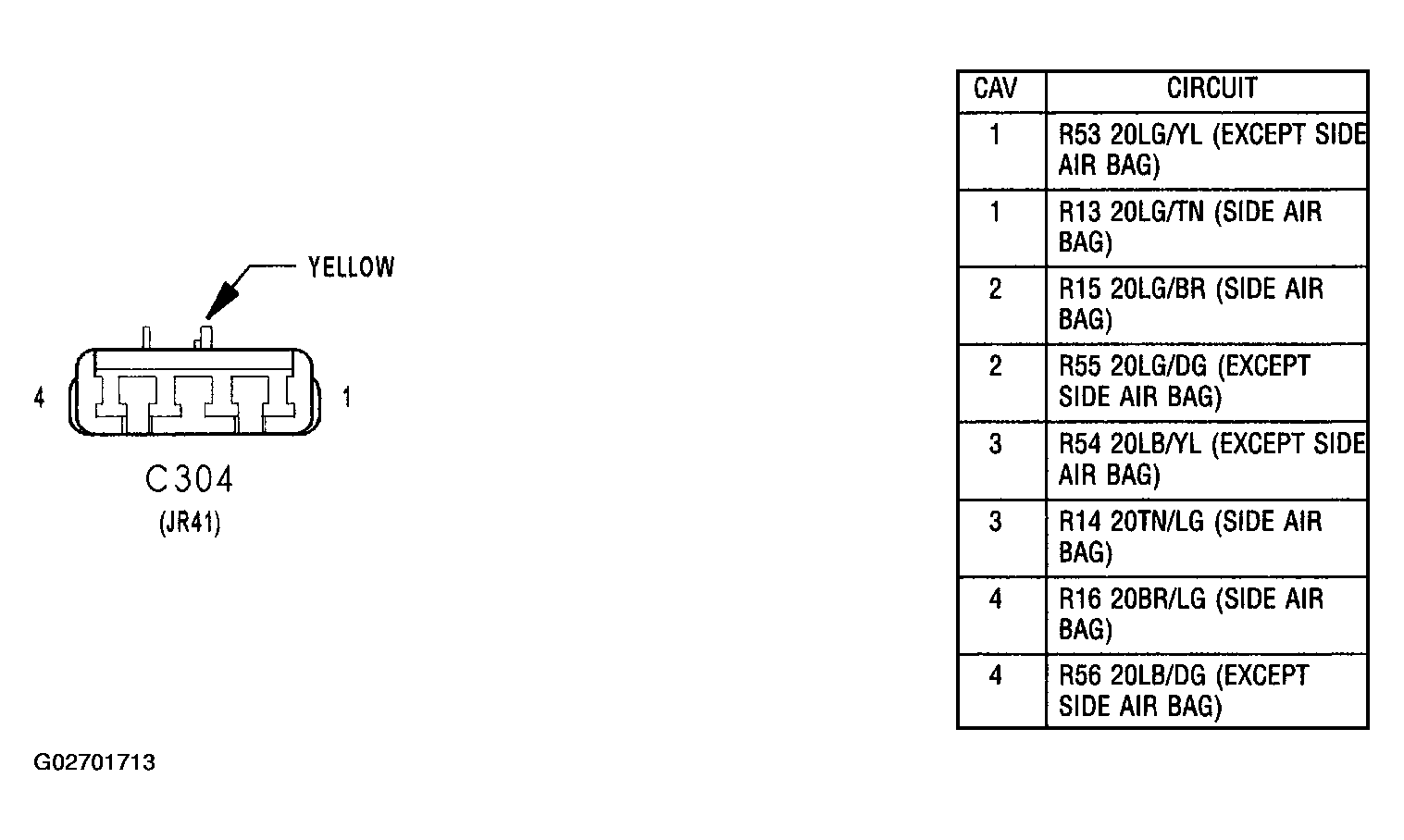

Fig 18: Identifying C304 (JR41) Connector Pinouts And Circuits

G02701713

Courtesy of DAIMLERCHRYSLER CORP.

Fig 19: Identifying C310 Connector Pinouts And Circuits

G02701714

Courtesy of DAIMLERCHRYSLER CORP.

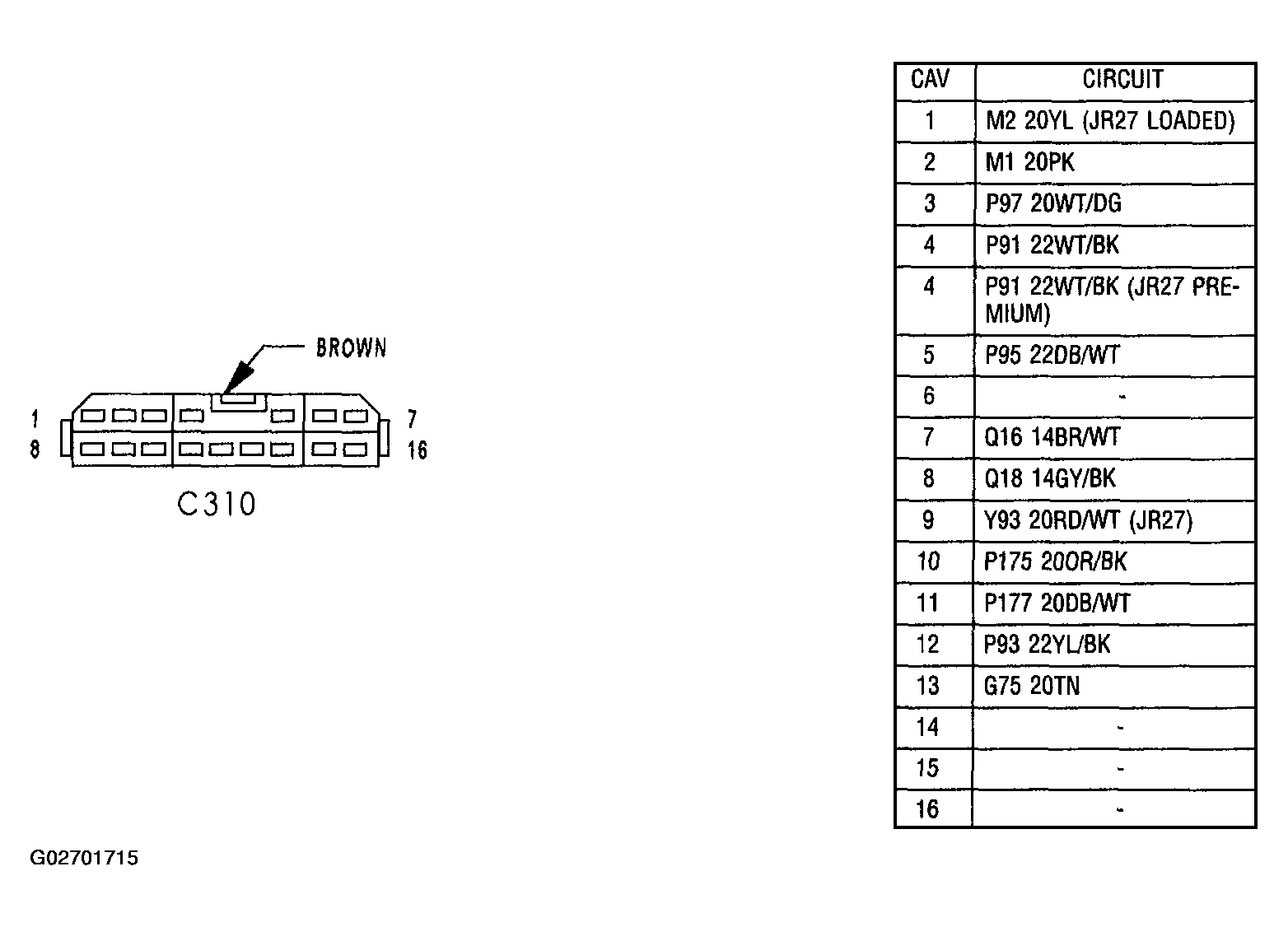

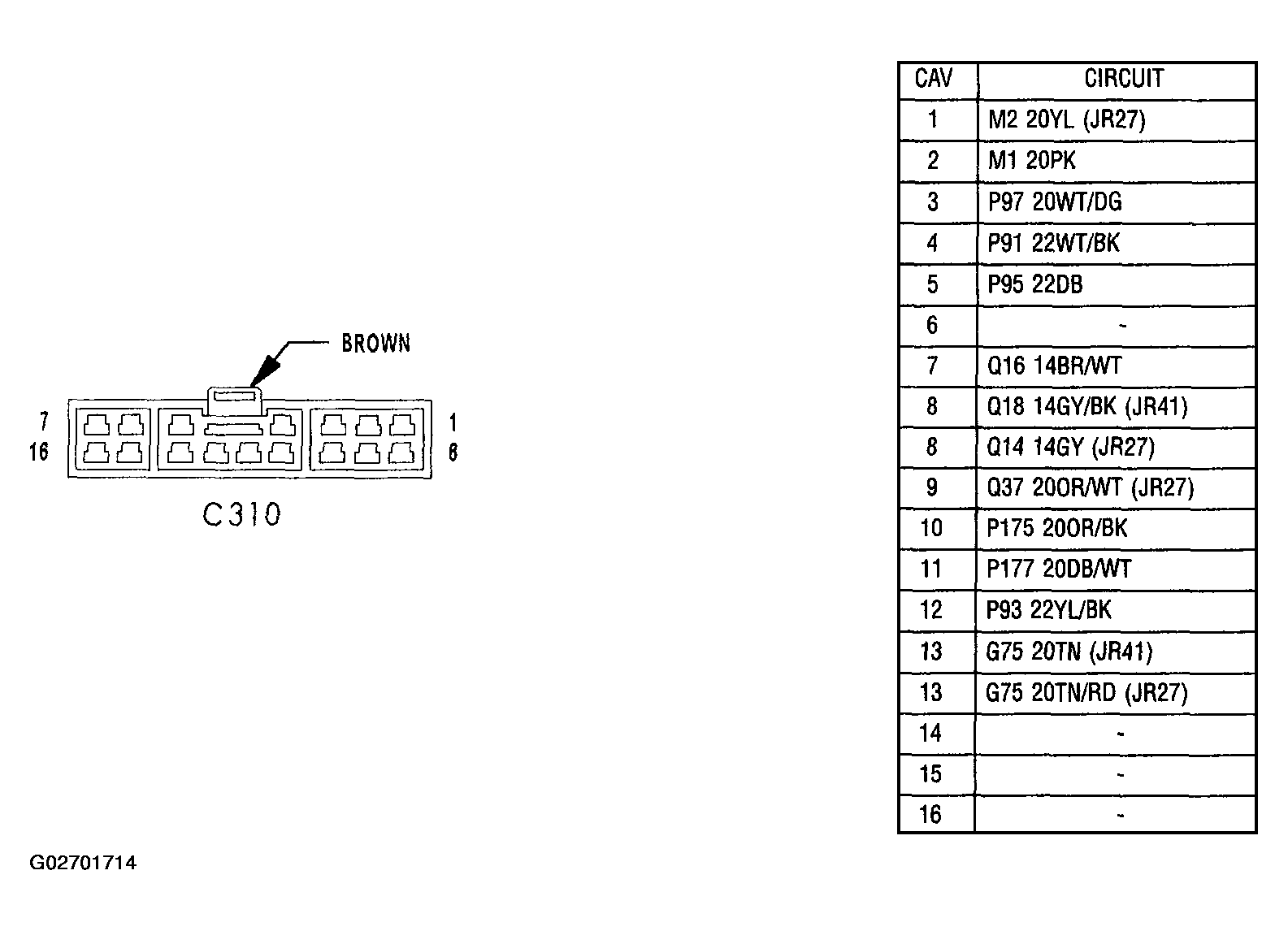

Fig 20: Identifying C310 Connector Pinouts And Circuits

G02701715

Courtesy of DAIMLERCHRYSLER CORP.

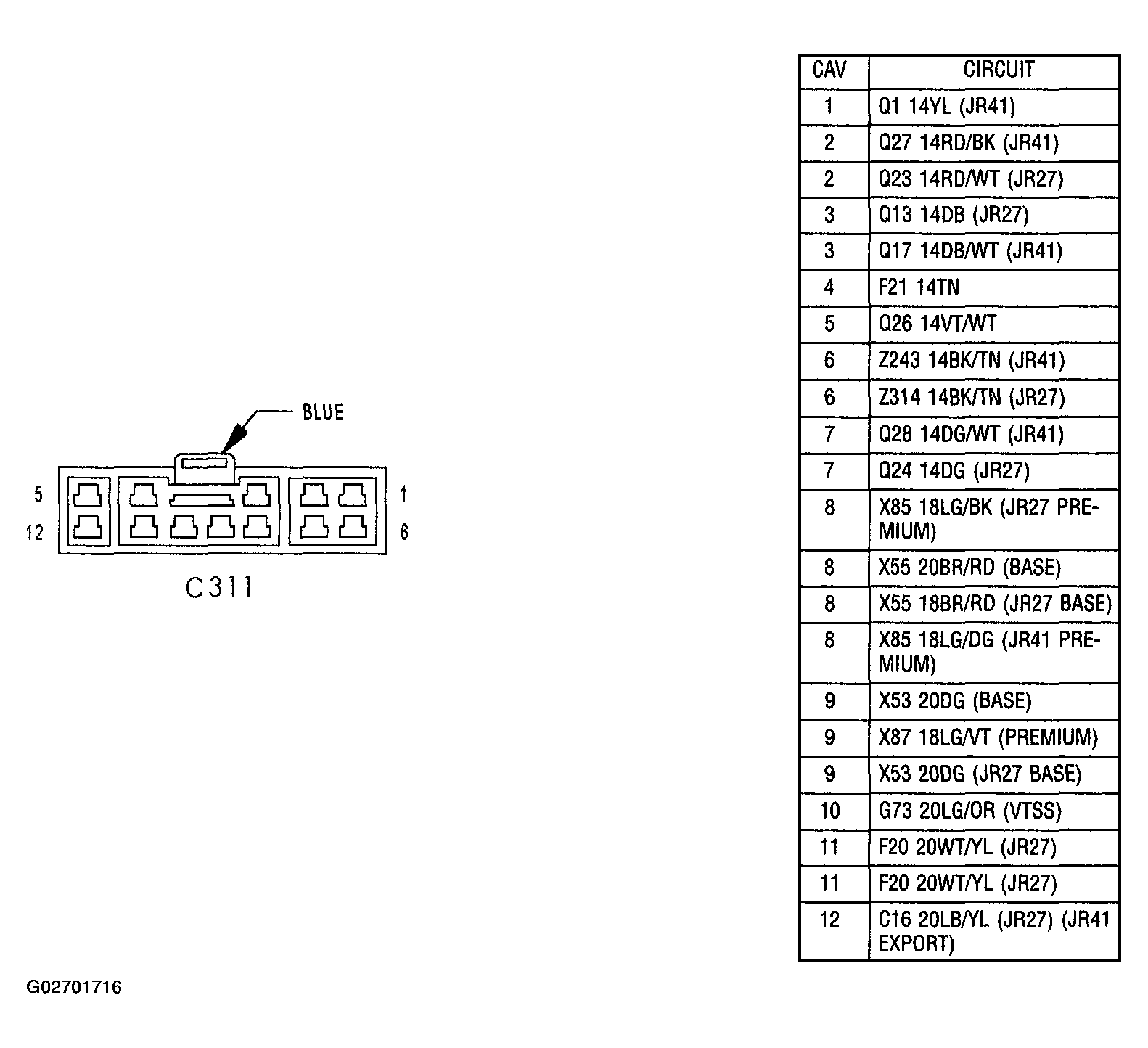

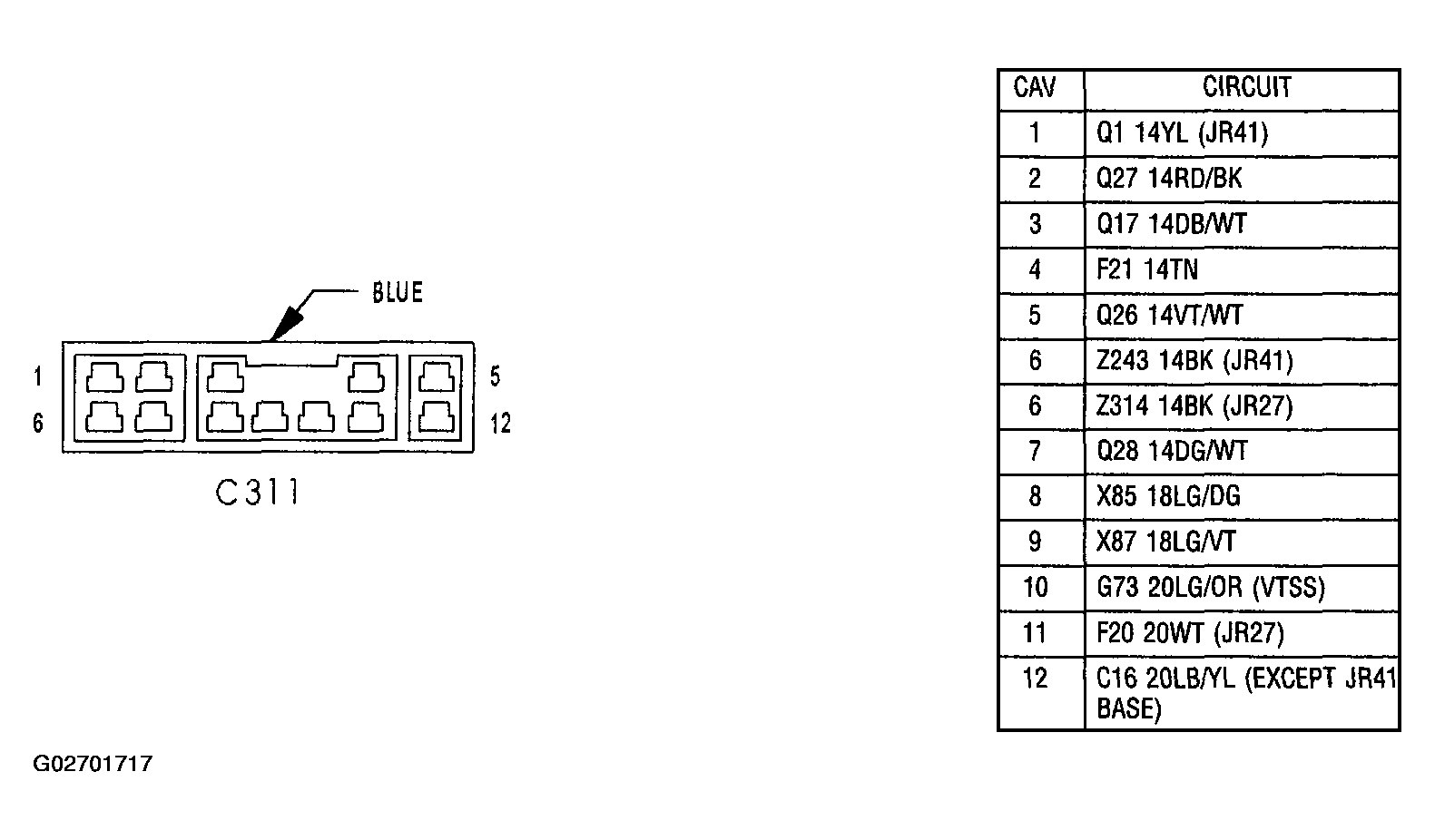

Fig 21: Identifying C311 Connector Pinouts And Circuits

G02701716

Courtesy of DAIMLERCHRYSLER CORP.

Fig 22: Identifying C311 Connector Pinouts And Circuits

G02701717

Courtesy of DAIMLERCHRYSLER CORP.

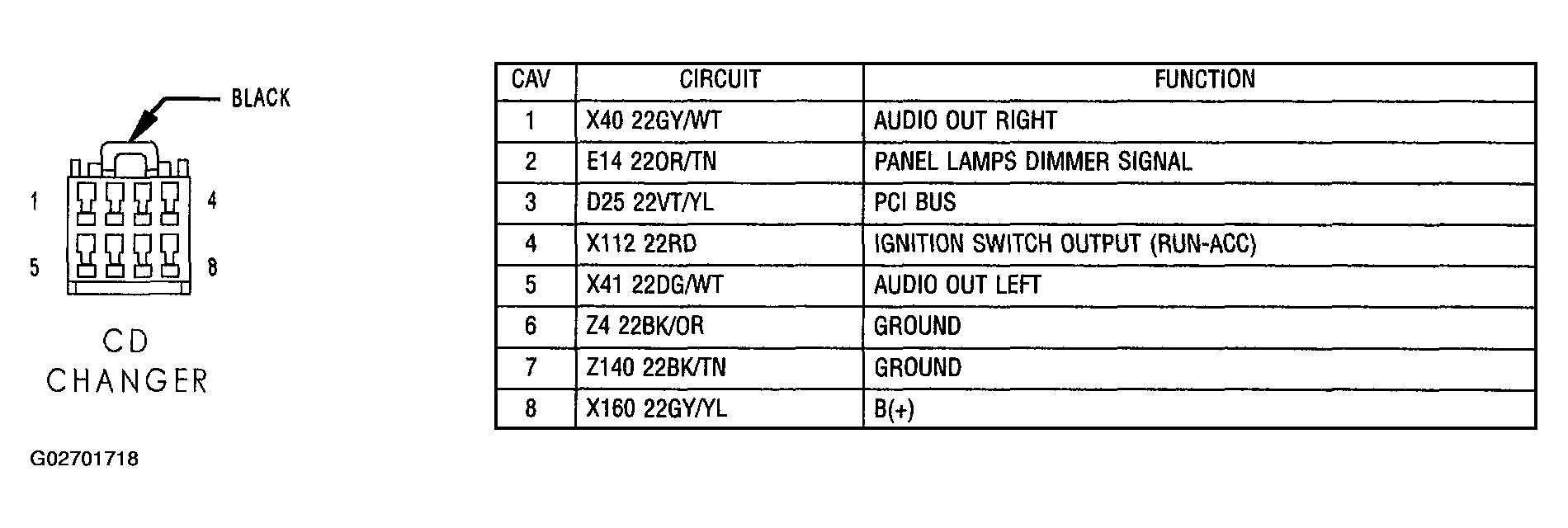

Fig 23: Identifying CD Changer Connector Pinouts And Circuits

G02701718

Courtesy of DAIMLERCHRYSLER CORP.

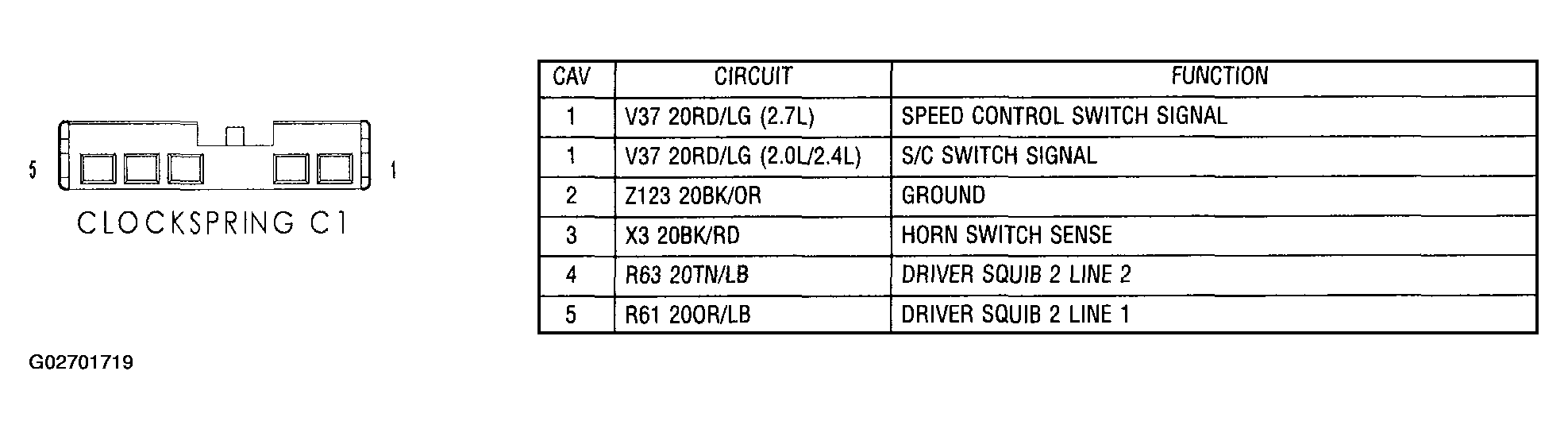

Fig 24: Identifying Clockspring C1 Connector Pinouts And Circuits

G02701719

Courtesy of DAIMLERCHRYSLER CORP.

Fig 25: Identifying Clockspring C2 Connector Pinouts And Circuits

G02701720

Courtesy of DAIMLERCHRYSLER CORP.

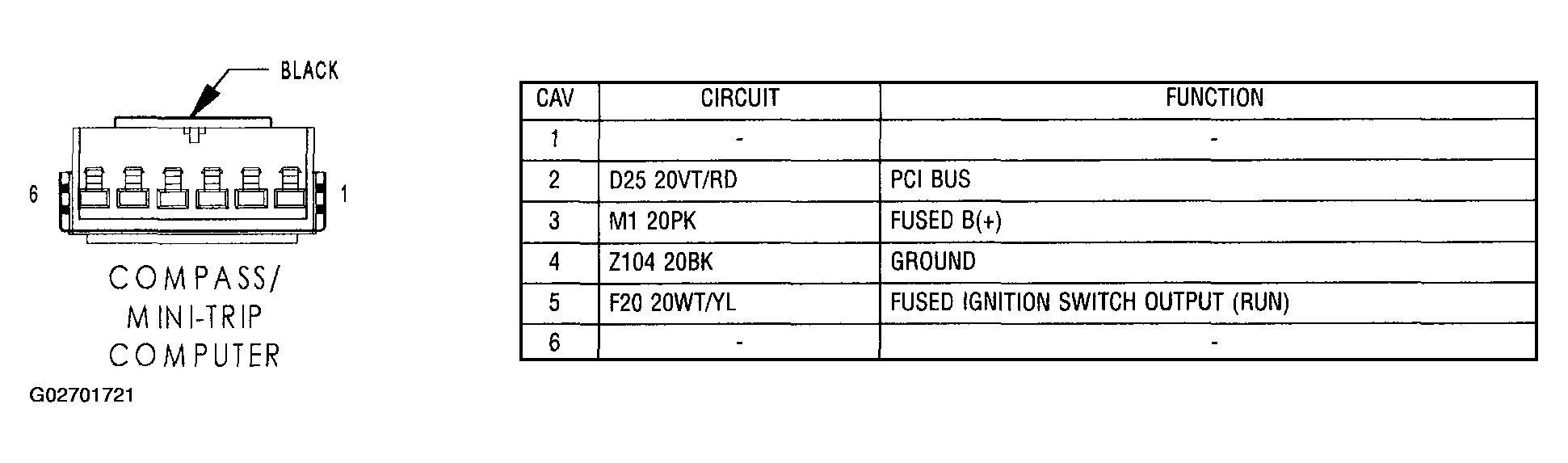

Fig 26: Identifying Compass/ Mini-Trip Computer Connector Pinouts And Circuits

G02701721

Courtesy of DAIMLERCHRYSLER CORP.

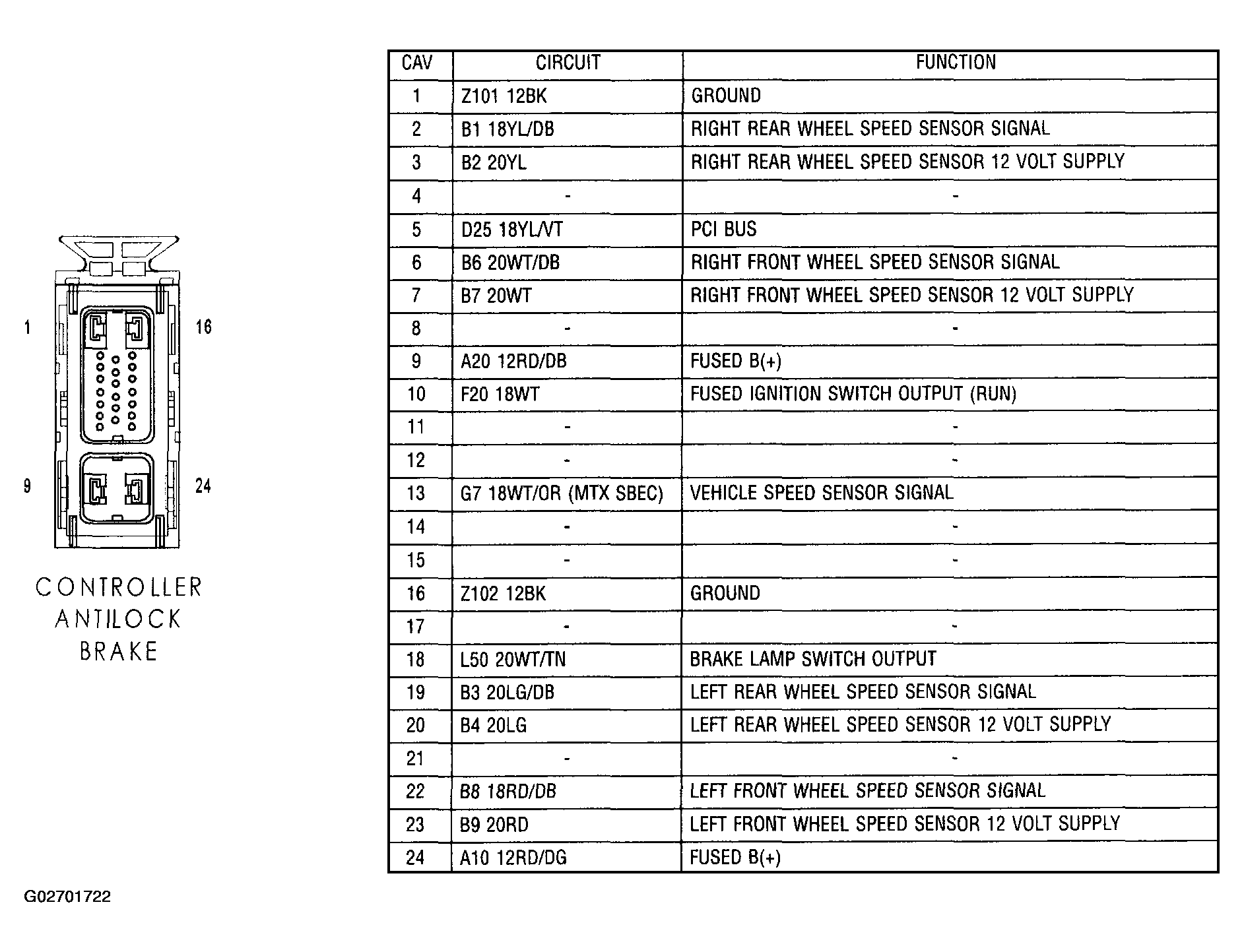

Fig 27: Identifying Controller Antilock Brake Connector Pinouts And Circuits

G02701722

Courtesy of DAIMLERCHRYSLER CORP.

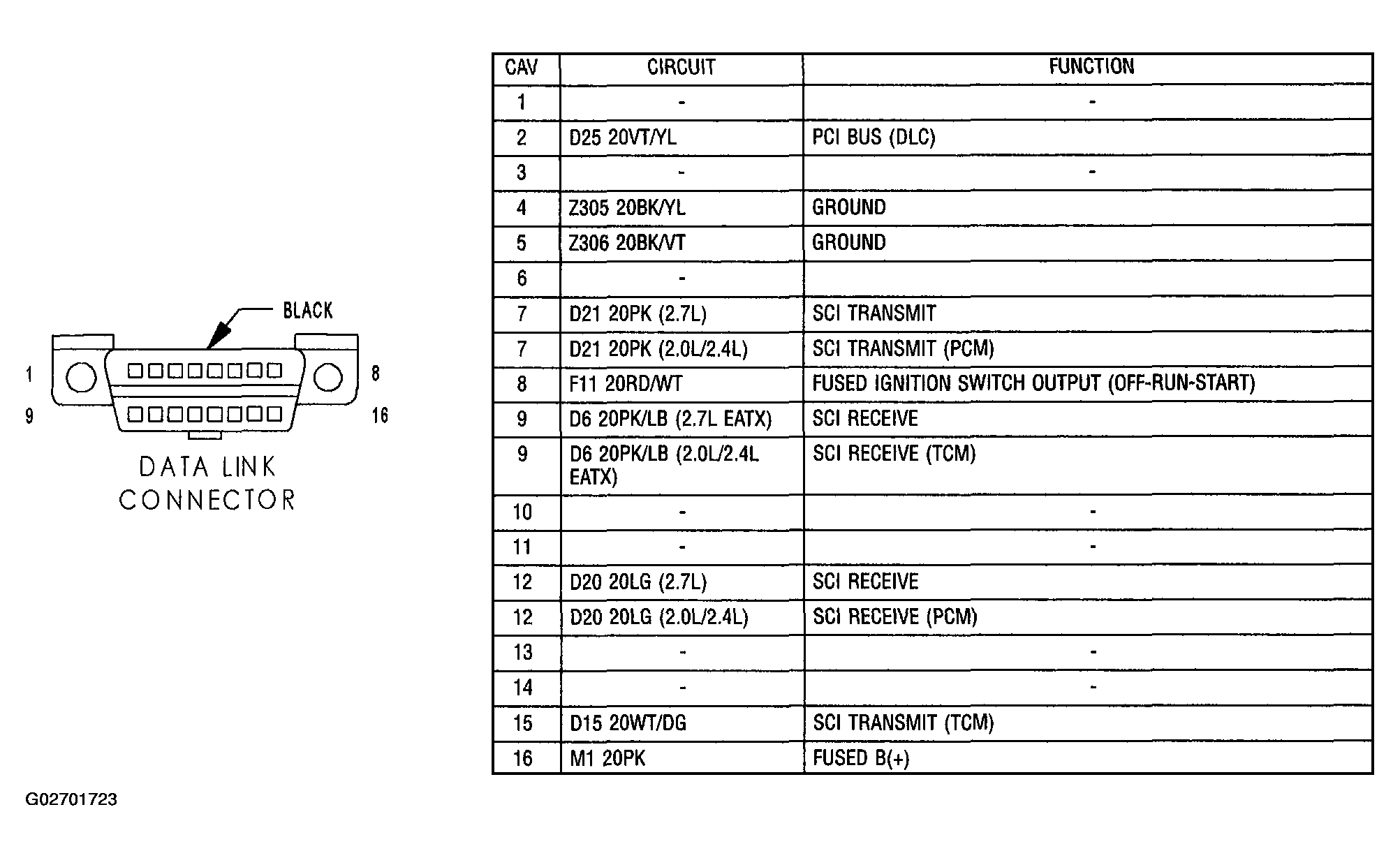

Fig 28: Identifying Data Link Connector Pinouts And Circuits

G02701723

Courtesy of DAIMLERCHRYSLER CORP.

Fig 29: Identifying Decklid Cylinder Lock Switch (VTSS) Connector Pinouts And Circuits

G02701724

Courtesy of DAIMLERCHRYSLER CORP.

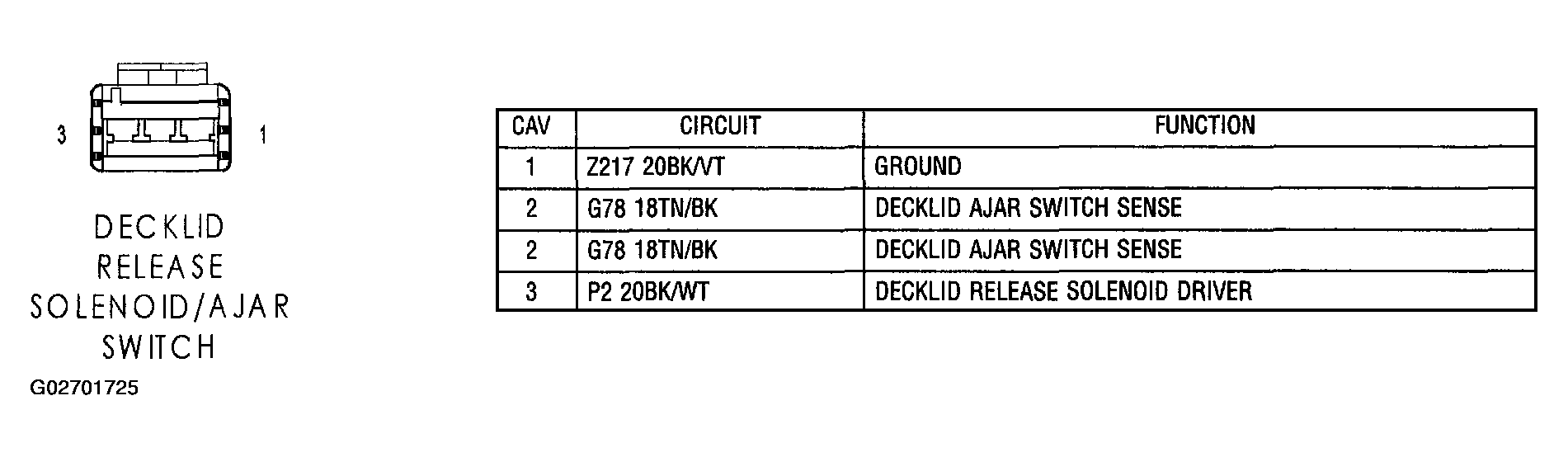

Fig 30: Identifying Decklid Release Solenoid/Ajar Switch Connector Pinouts And Circuits

G02701725

Courtesy of DAIMLERCHRYSLER CORP.

Fig 31: Identifying Decklid Release Switch Connector Pinouts And Circuits

G02701726

Courtesy of DAIMLERCHRYSLER CORP.

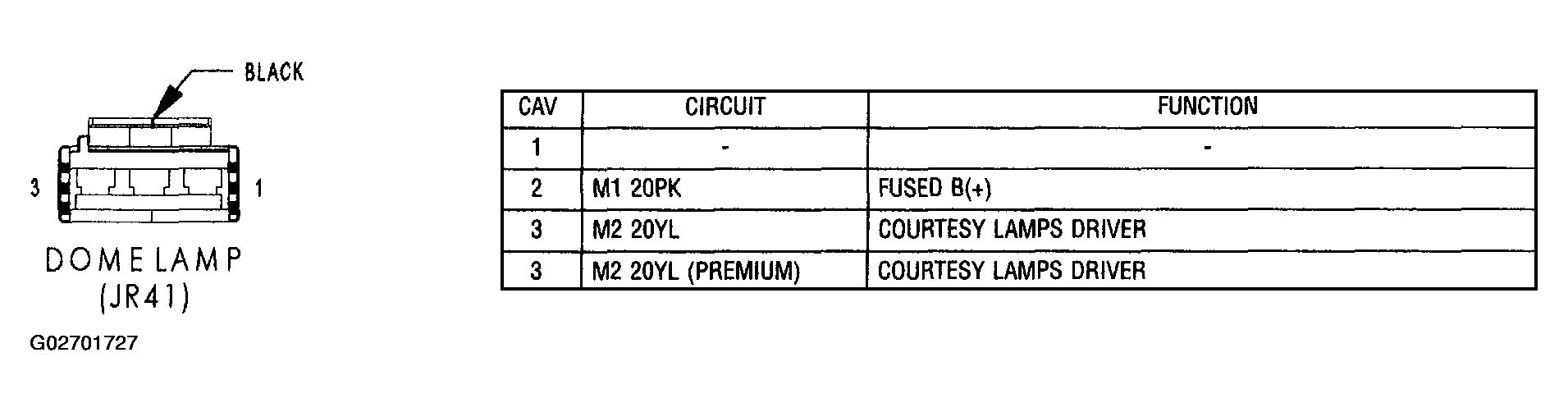

Fig 32: Identifying Dome Lamp (JR41) Connector Pinouts And Circuits

G02701727

Courtesy of DAIMLERCHRYSLER CORP.

Fig 33: Identifying Driver Airbag Squib 1 Connector Pinouts And Circuits

G02701728

Courtesy of DAIMLERCHRYSLER CORP.

Fig 34: Identifying Driver Airbag Squib 2 Connector Pinouts And Circuits

G02701729

Courtesy of DAIMLERCHRYSLER CORP.

Fig 35: Identifying Driver Cylinder Lock Switch (VTSS) Connector Pinouts And Circuits

G02701730

Courtesy of DAIMLERCHRYSLER CORP.

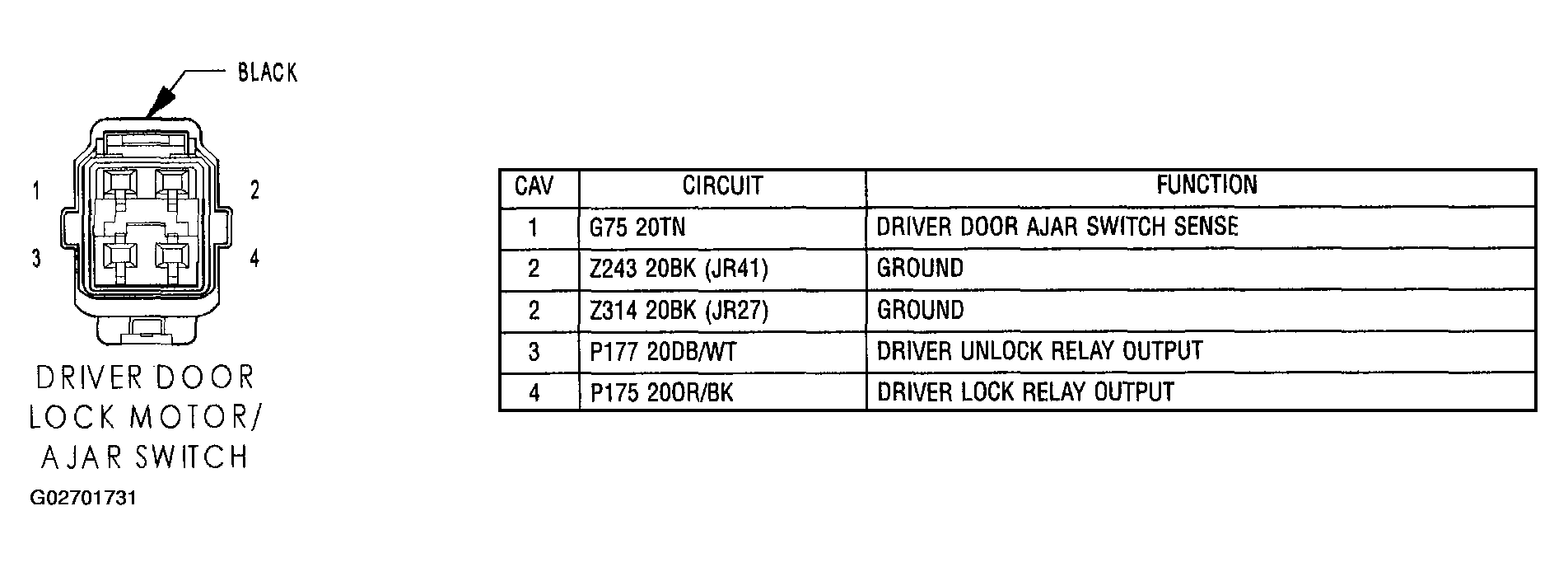

Fig 36: Identifying Driver Door Lock Motor/Ajar Switch Connector Pinouts And Circuits

G02701731

Courtesy of DAIMLERCHRYSLER CORP.

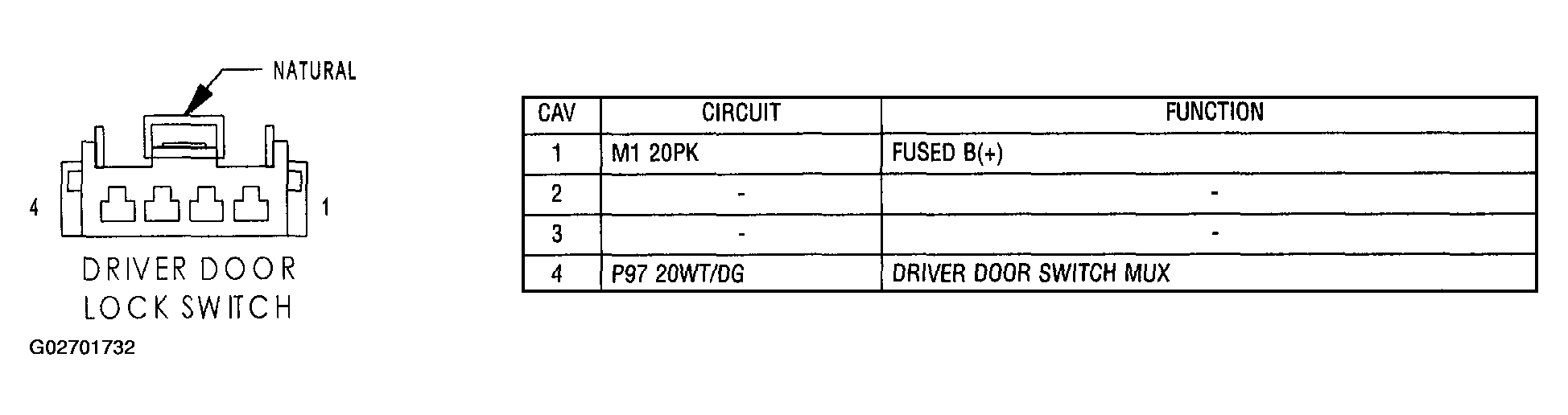

Fig 37: Identifying Driver Door Lock Switch Connector Pinouts And Circuits

G02701732

Courtesy of DAIMLERCHRYSLER CORP.

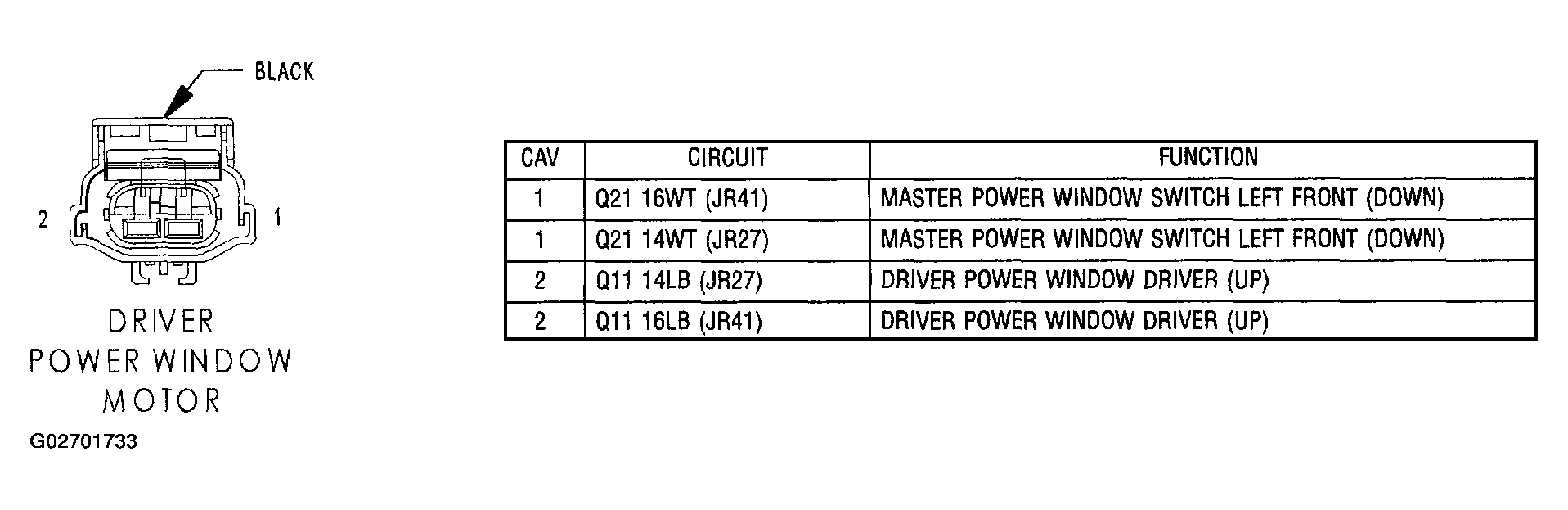

Fig 38: Identifying Driver Power Window Motor Connector Pinouts And Circuits

G02701733

Courtesy of DAIMLERCHRYSLER CORP.

Fig 39: Identifying Driver Seat Belt Switch (JR41 Except Export) Connector Pinouts And Circuits

G02701734

Courtesy of DAIMLERCHRYSLER CORP.

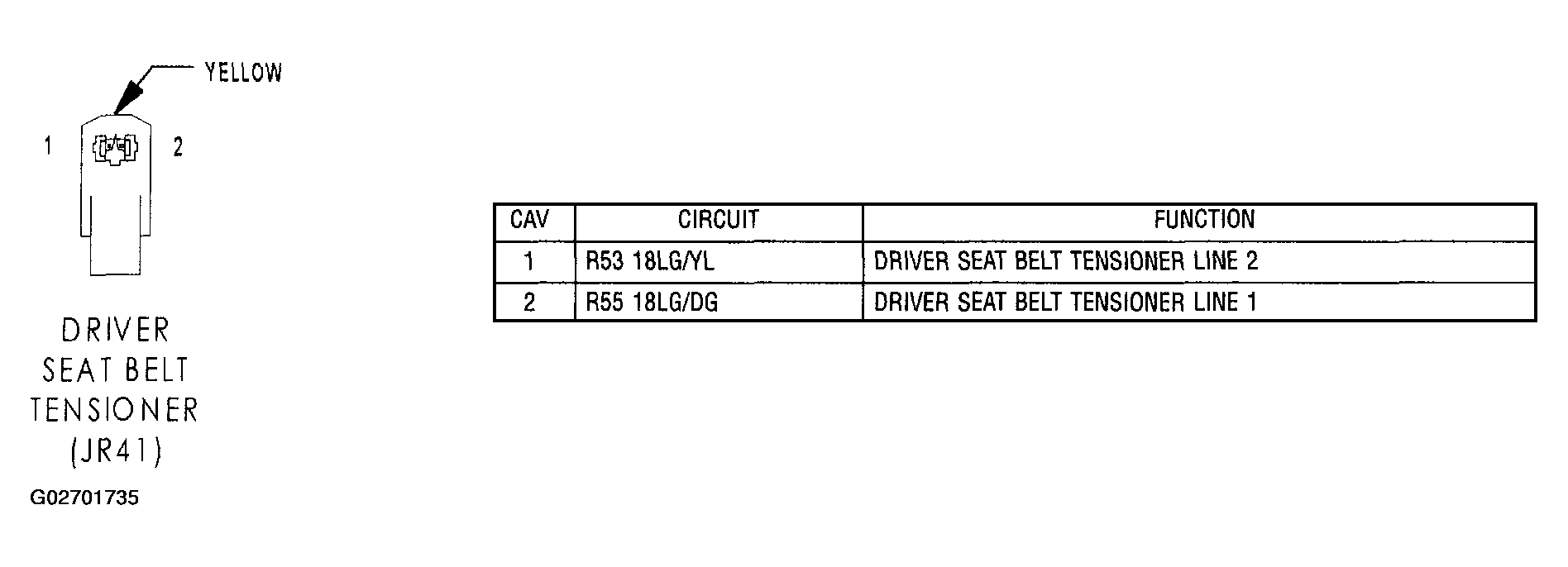

Fig 40: Identifying Driver Seat Belt Tensioner (JR41) Connector Pinouts And Circuits

G02701735

Courtesy of DAIMLERCHRYSLER CORP.

Fig 41: Identifying Front Washer Pump Motor Connector Pinouts And Circuits

G02701736

Courtesy of DAIMLERCHRYSLER CORP.

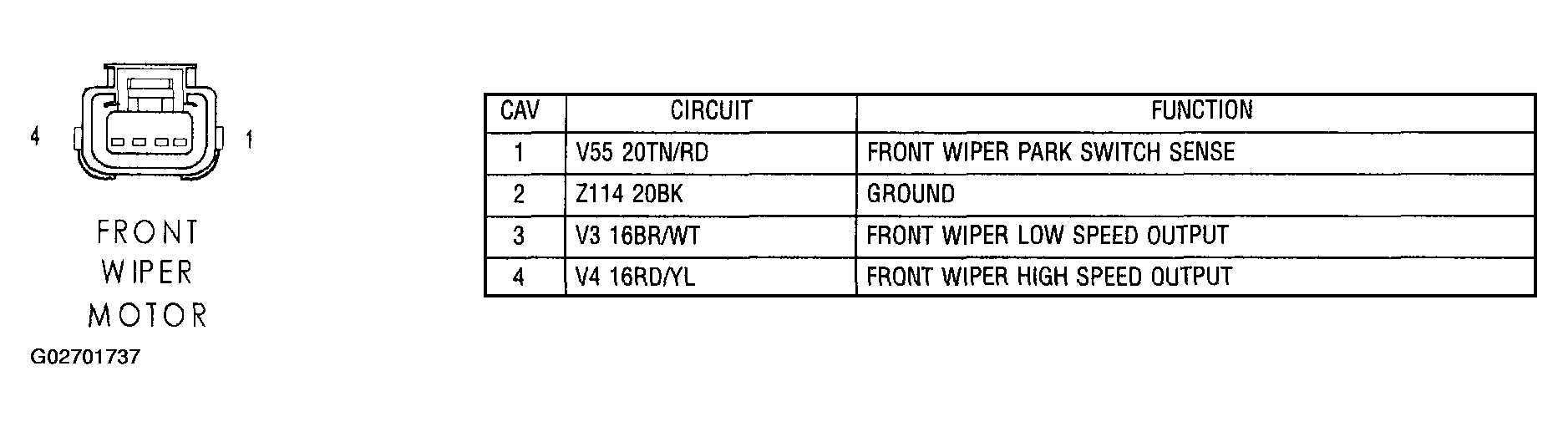

Fig 42: Identifying Front Wiper Motor Connector Pinouts And Circuits

G02701737

Courtesy of DAIMLERCHRYSLER CORP.

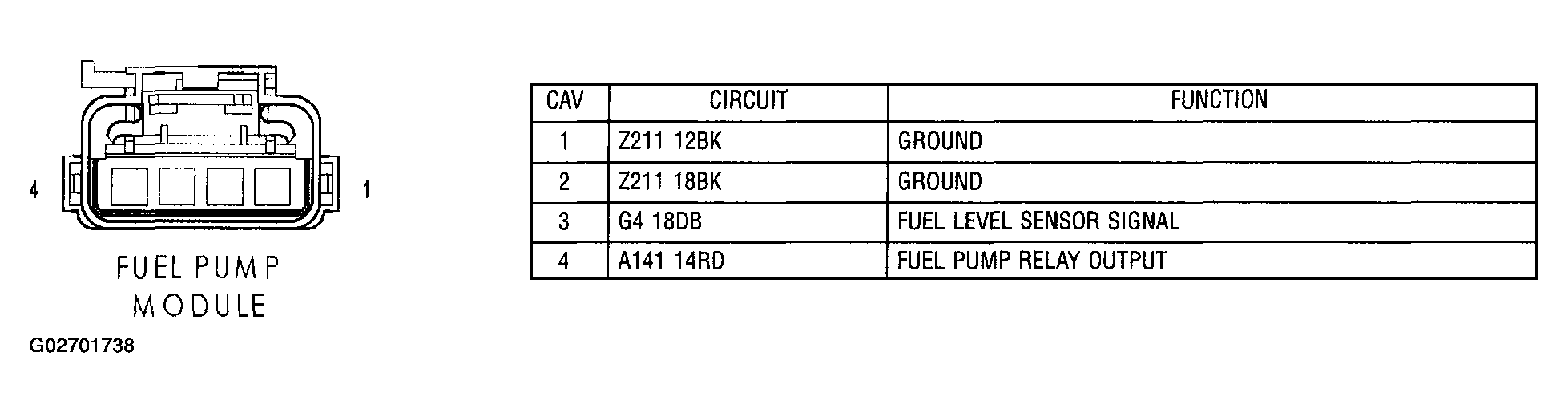

Fig 43: Identifying Fuel Pump Module Connector Pinouts And Circuits

G02701738

Courtesy of DAIMLERCHRYSLER CORP.

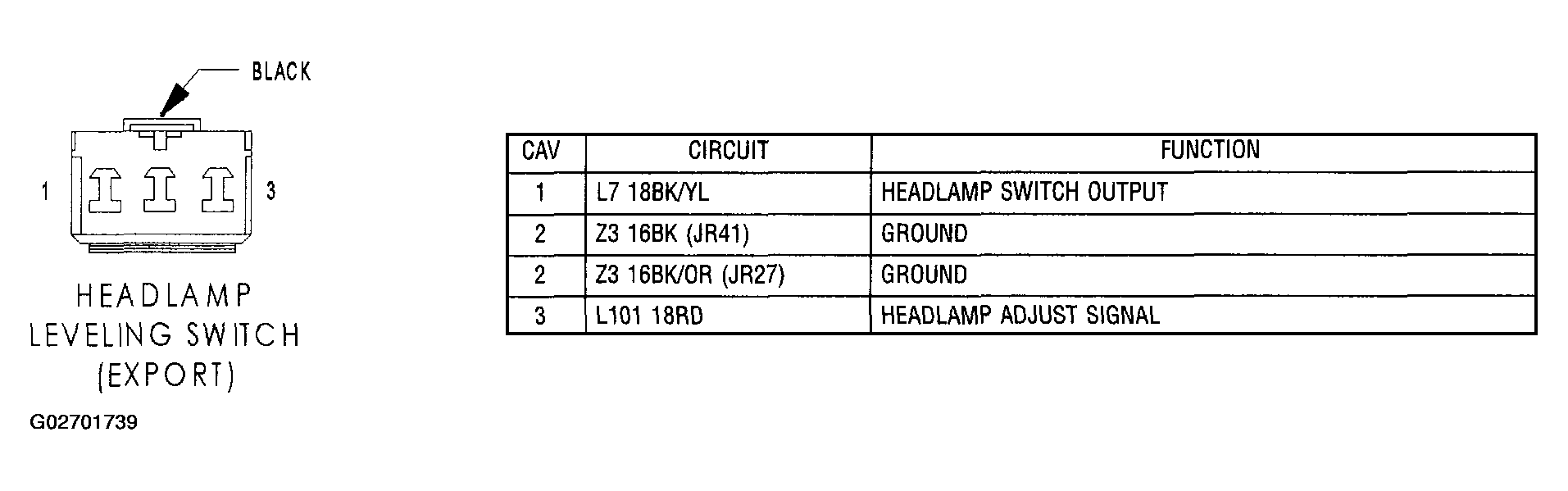

Fig 44: Identifying Headlamp Leveling Switch (Export) Connector Pinouts And Circuits

G02701739

Courtesy of DAIMLERCHRYSLER CORP.

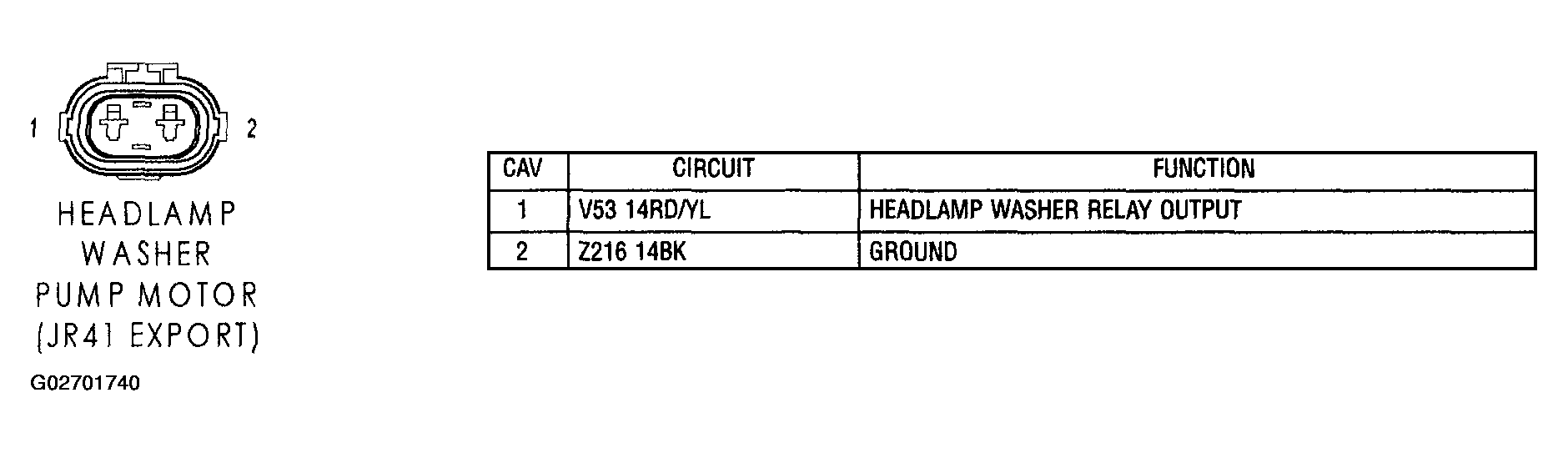

Fig 45: Identifying Headlamp Washer Pump Motor (JR41 Export) Connector Pinouts And Circuits

G02701740

Courtesy of DAIMLERCHRYSLER CORP.

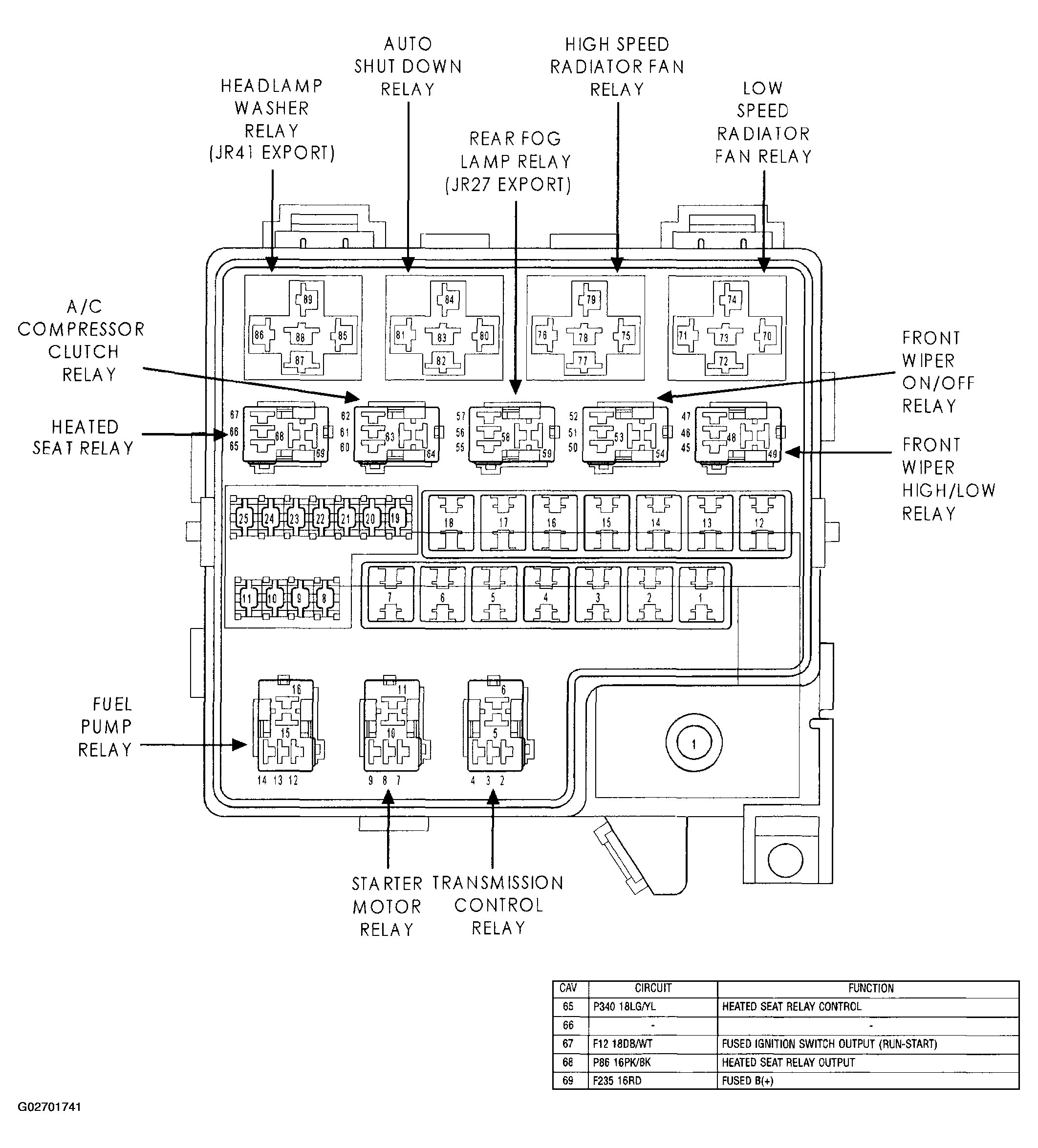

Fig 46: Identifying Power Distribution Center Connector Pinouts And Circuits

G02701741

Courtesy of DAIMLERCHRYSLER CORP.

Fig 47: Identifying Horn Connector Pinouts And Circuits

G02701742

Courtesy of DAIMLERCHRYSLER CORP.

Fig 48: Identifying Ignition Switch C1 Connector Pinouts And Circuits

G02701743

Courtesy of DAIMLERCHRYSLER CORP.

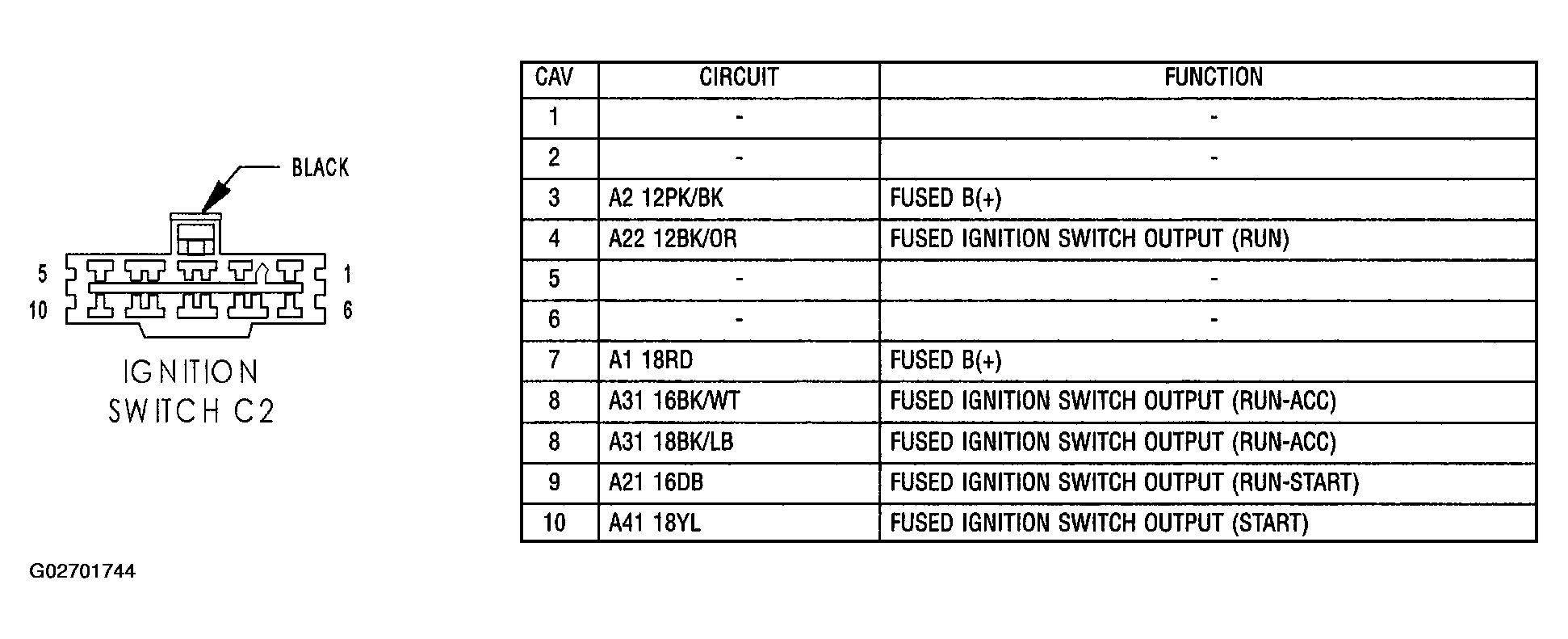

Fig 49: Identifying Ignition Switch C2 Connector Pinouts And Circuits

G02701744

Courtesy of DAIMLERCHRYSLER CORP.

Fig 50: Identifying Ignition Switch C3 Connector Pinouts And Circuits

G02701745

Courtesy of DAIMLERCHRYSLER CORP.

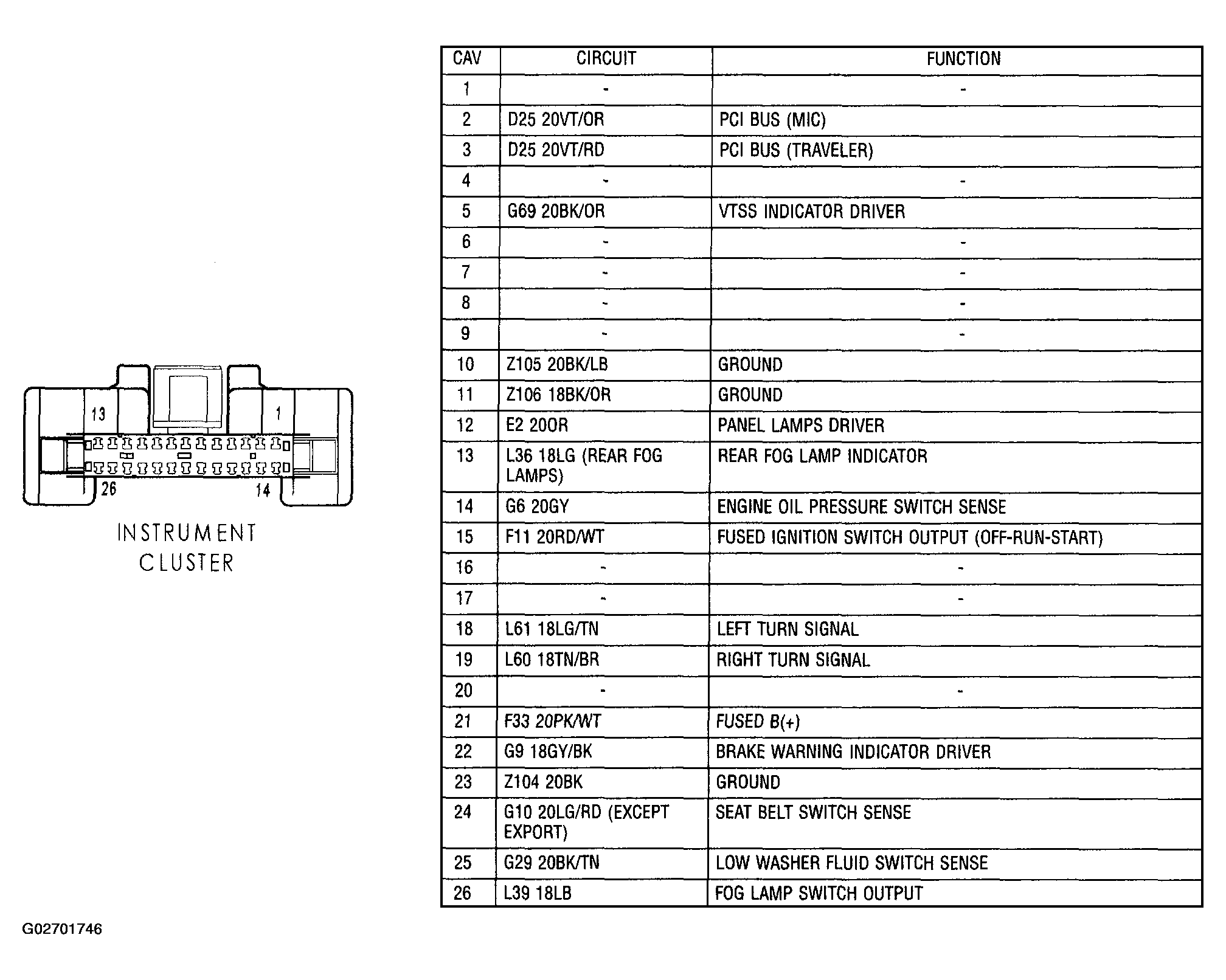

Fig 51: Identifying Instrument Cluster Connector Pinouts And Circuits

G02701746

Courtesy of DAIMLERCHRYSLER CORP.

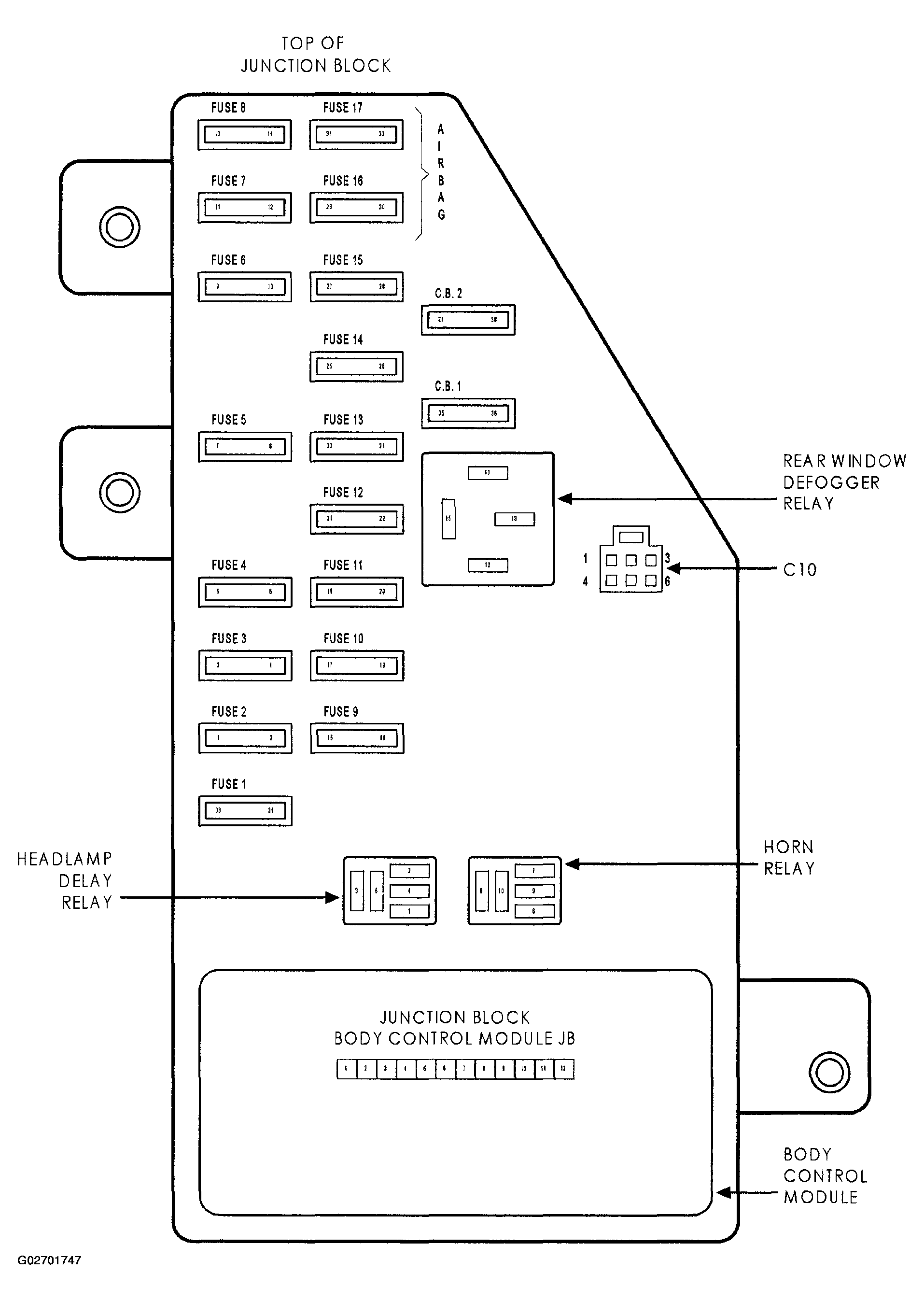

Fig 52: Identifying Top Of Junction Block Connector Pinouts And Circuits

G02701747

Courtesy of DAIMLERCHRYSLER CORP.

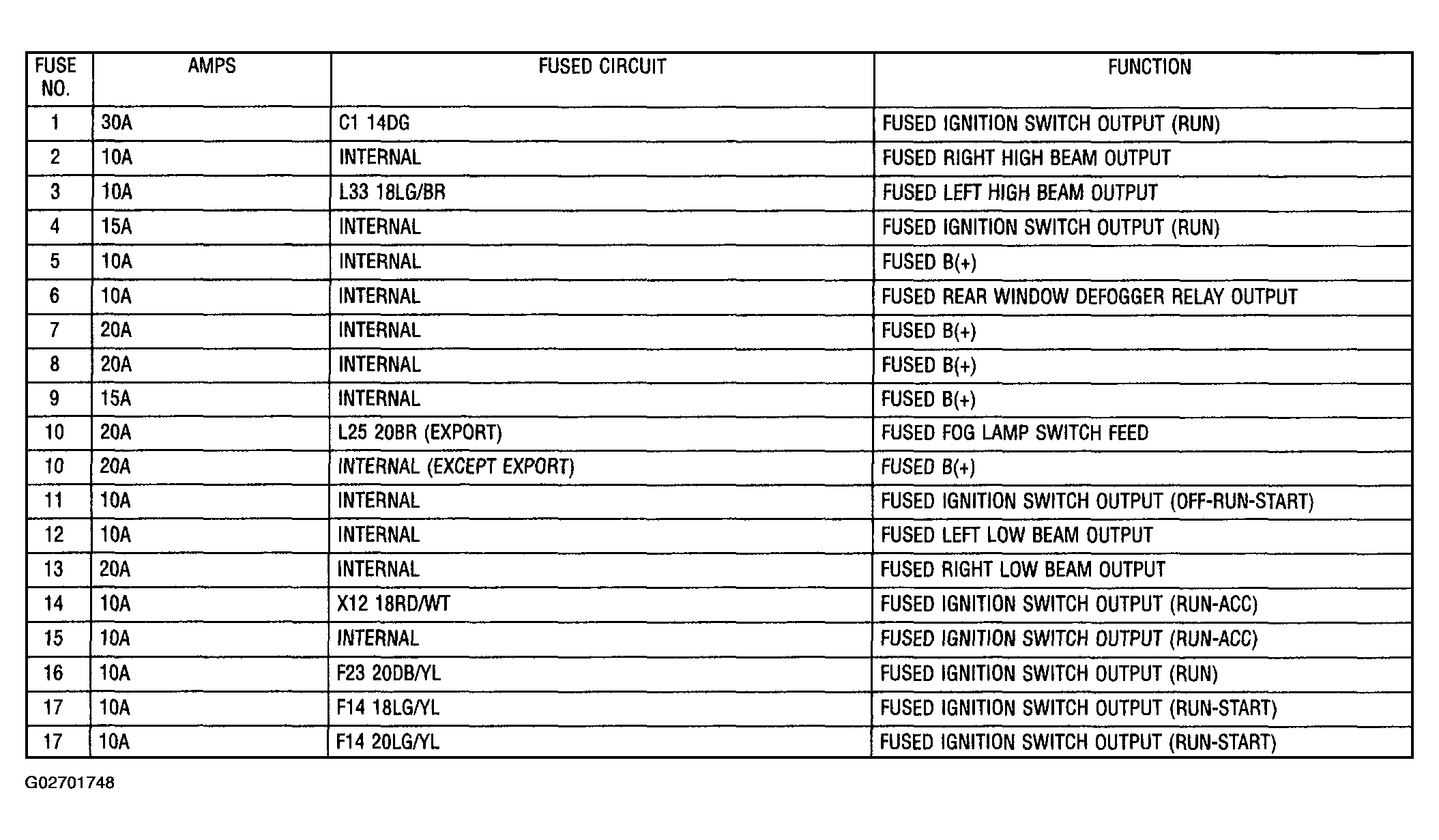

Fig 53: Identifying Fuse (JB) Connector Pinouts And Circuits

G02701748

Courtesy of DAIMLERCHRYSLER CORP.

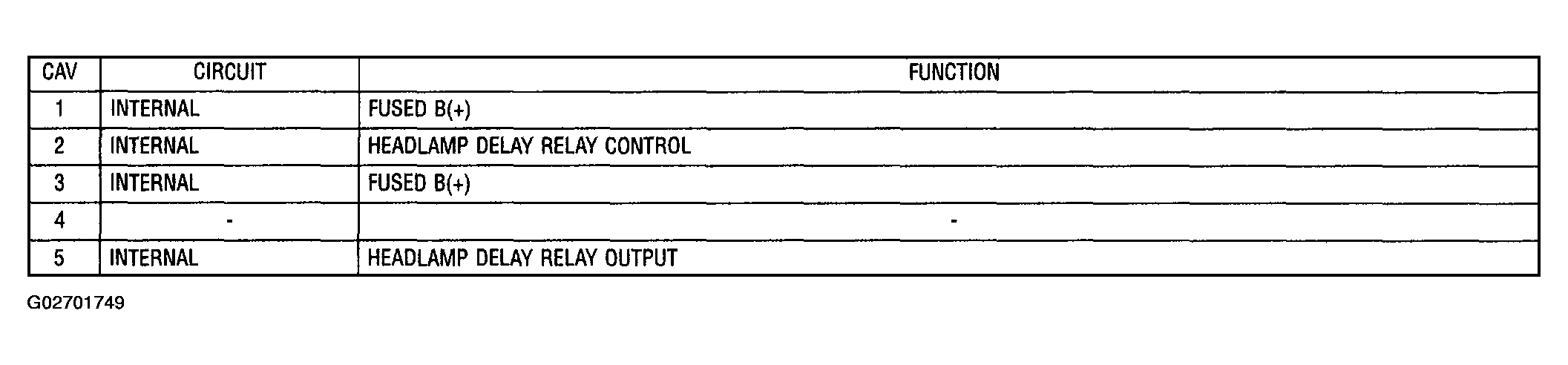

Fig 54: Identifying Headlamp Delay Relay Connector Pinouts And Circuits

G02701749

Courtesy of DAIMLERCHRYSLER CORP.

Fig 55: Identifying Horn Relay Connector Pinouts And Circuits

G02701750

Courtesy of DAIMLERCHRYSLER CORP.

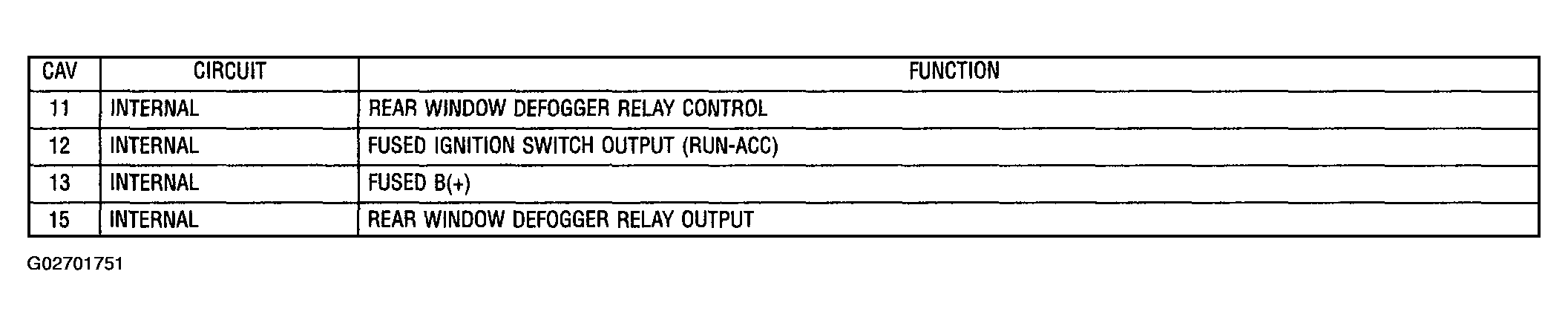

Fig 56: Identifying Rear Window Defogger Relay Connector Pinouts And Circuits

G02701751

Courtesy of DAIMLERCHRYSLER CORP.

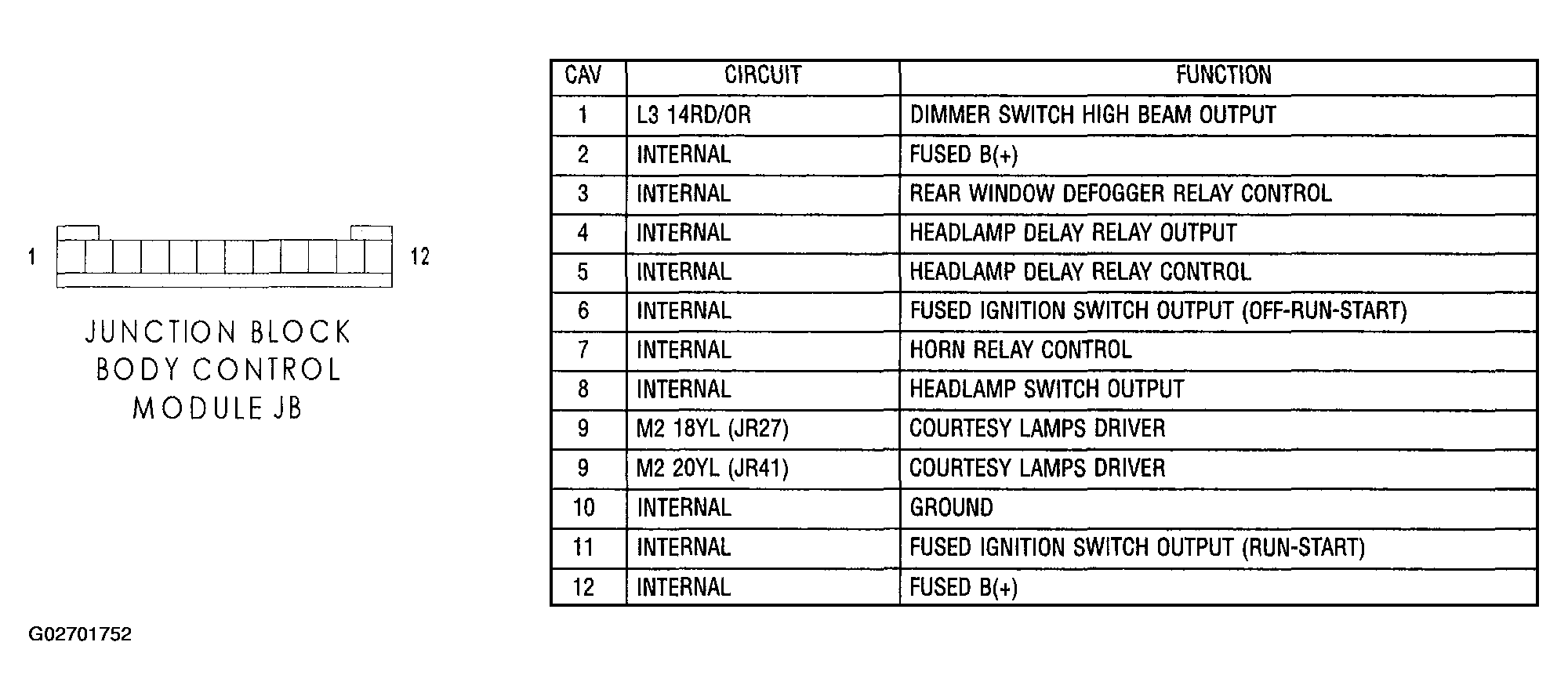

Fig 57: Identifying Junction Block Body Control Module JB Connector Pinouts And Circuits

G02701752

Courtesy of DAIMLERCHRYSLER CORP.

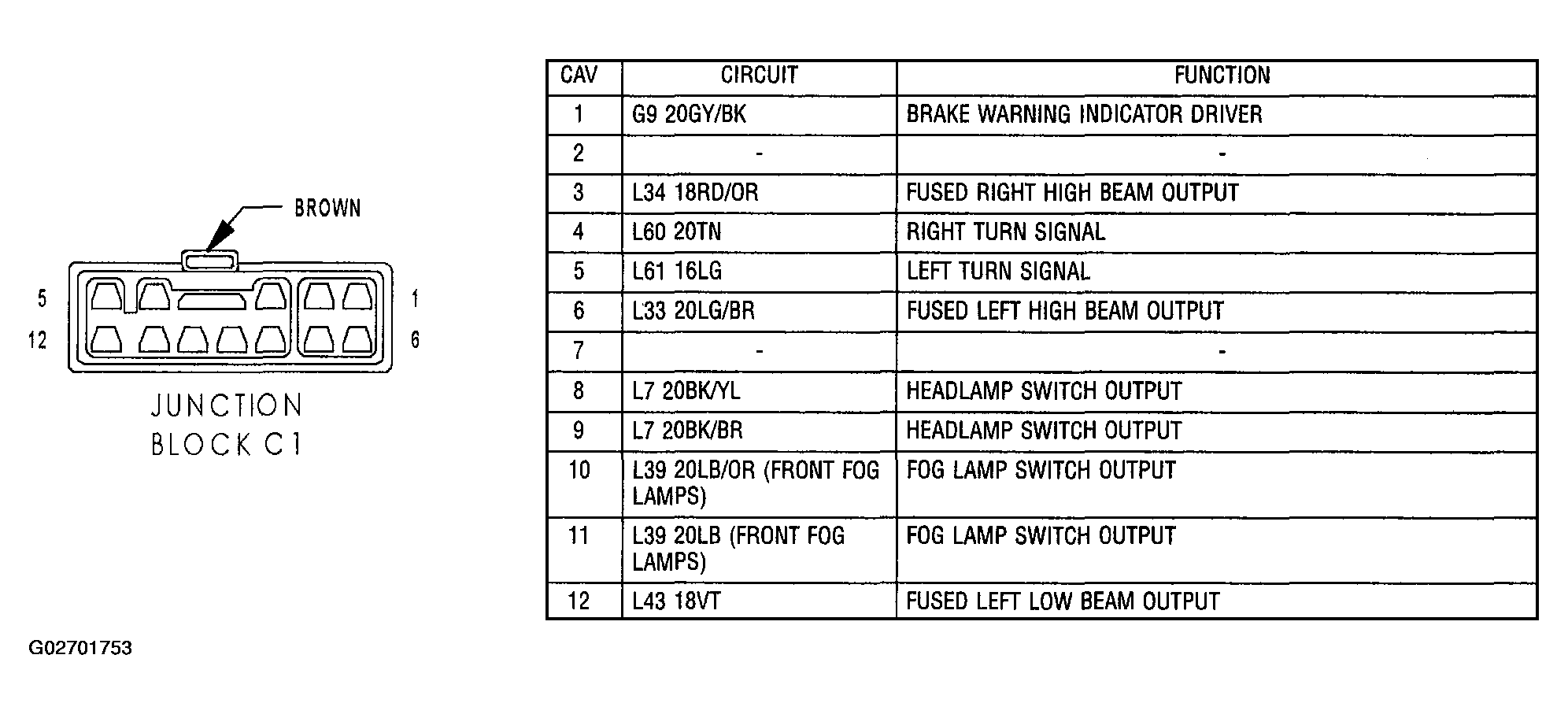

Fig 58: Identifying Junction Block C1 Connector Pinouts And Circuits

G02701753

Courtesy of DAIMLERCHRYSLER CORP.

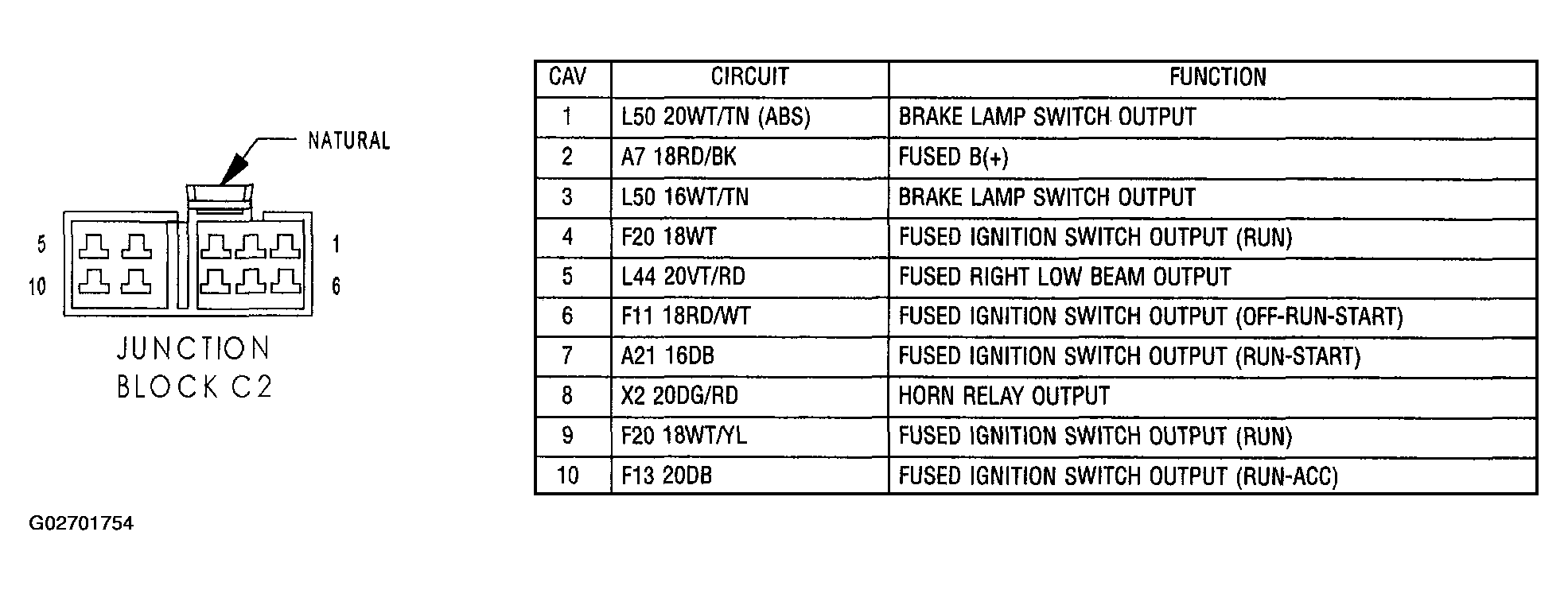

Fig 59: Identifying Junction Block C2 Connector Pinouts And Circuits

G02701754

Courtesy of DAIMLERCHRYSLER CORP.

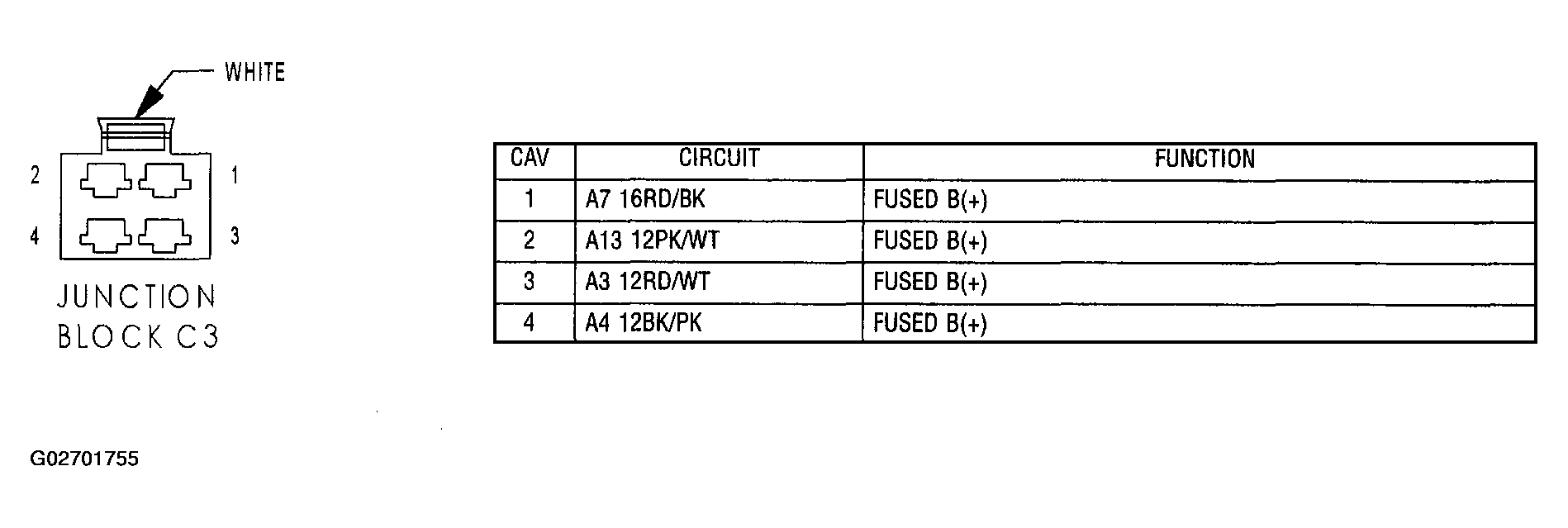

Fig 60: Identifying Junction Block C3 Connector Pinouts And Circuits

G02701755

Courtesy of DAIMLERCHRYSLER CORP.

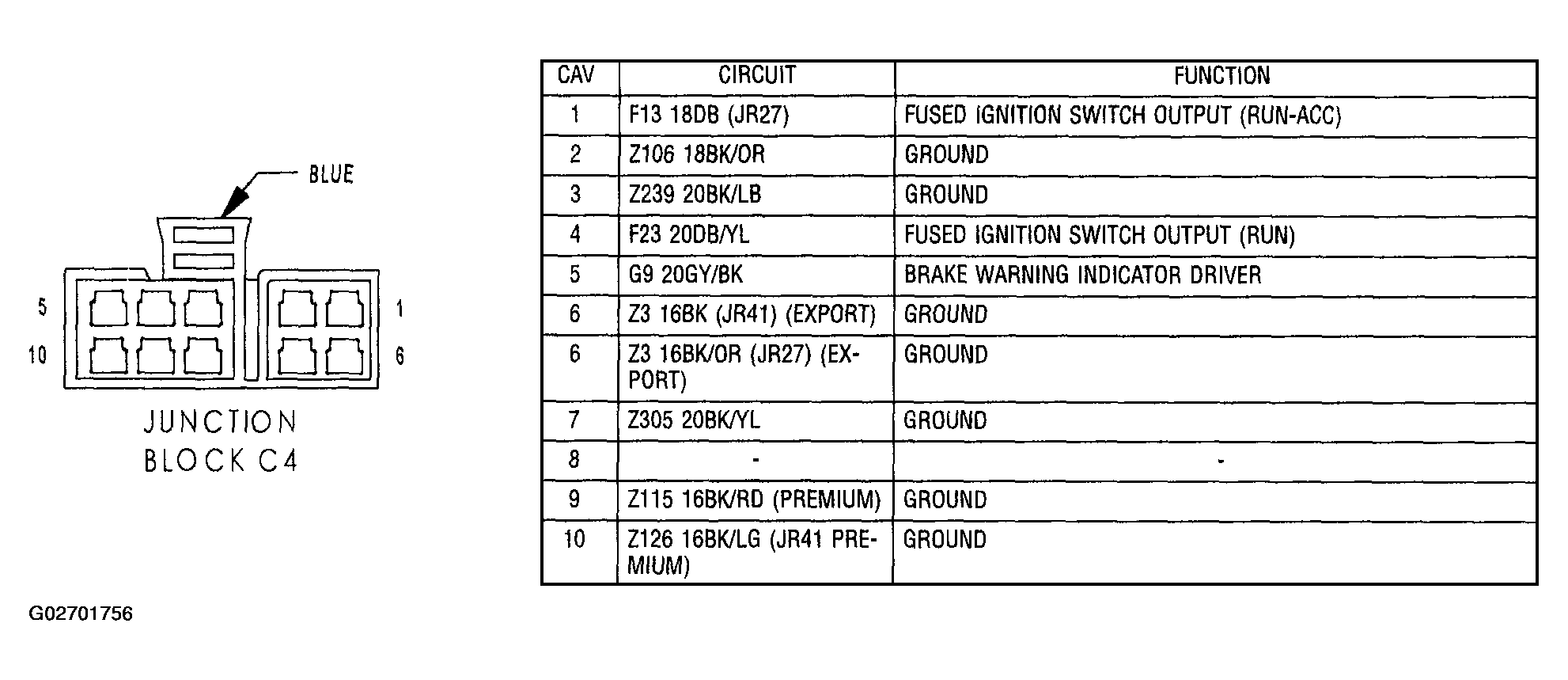

Fig 61: Identifying Junction Block C4 Connector Pinouts And Circuits

G02701756

Courtesy of DAIMLERCHRYSLER CORP.

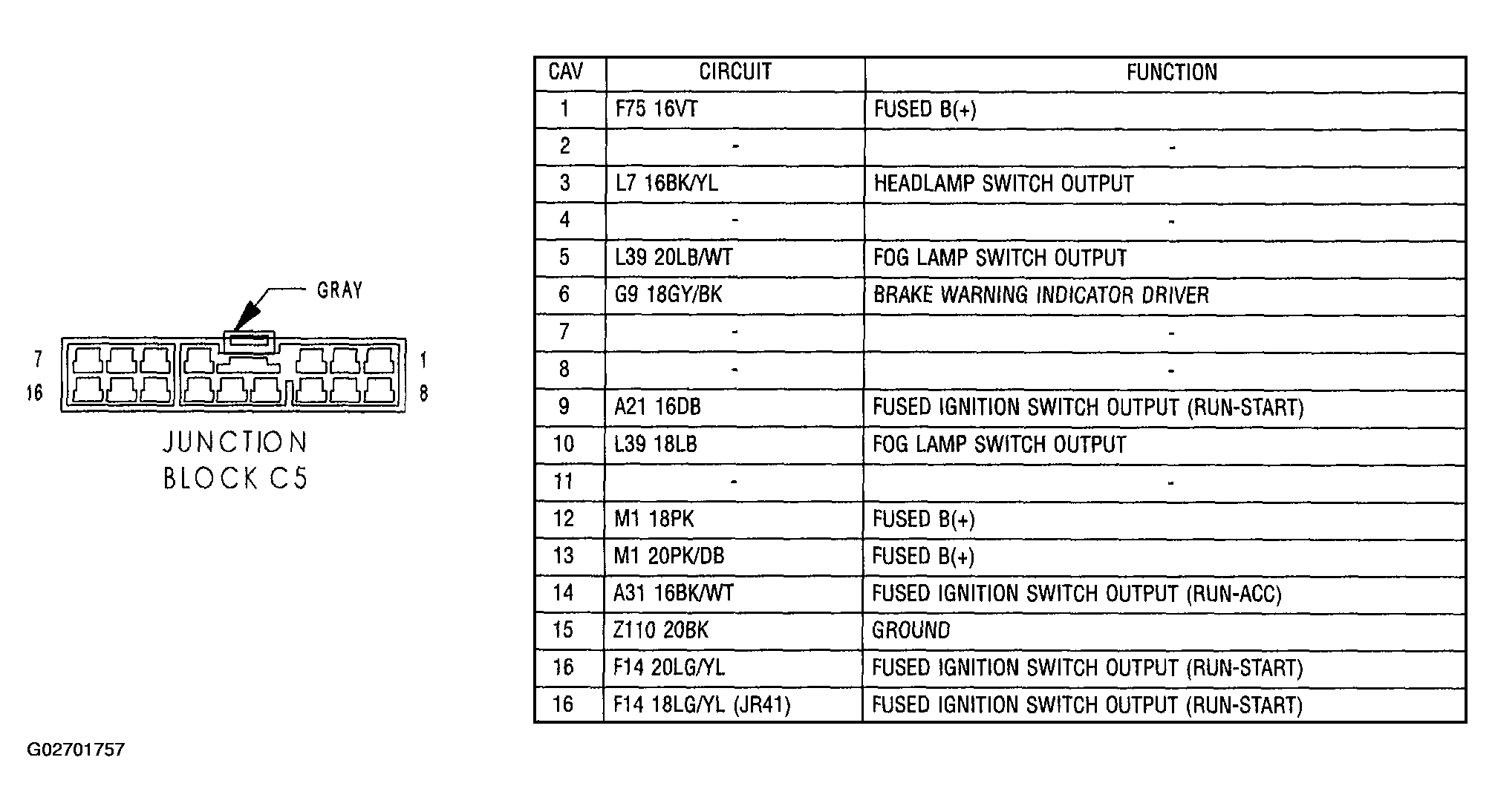

Fig 62: Identifying Junction Block C5 Connector Pinouts And Circuits

G02701757

Courtesy of DAIMLERCHRYSLER CORP.

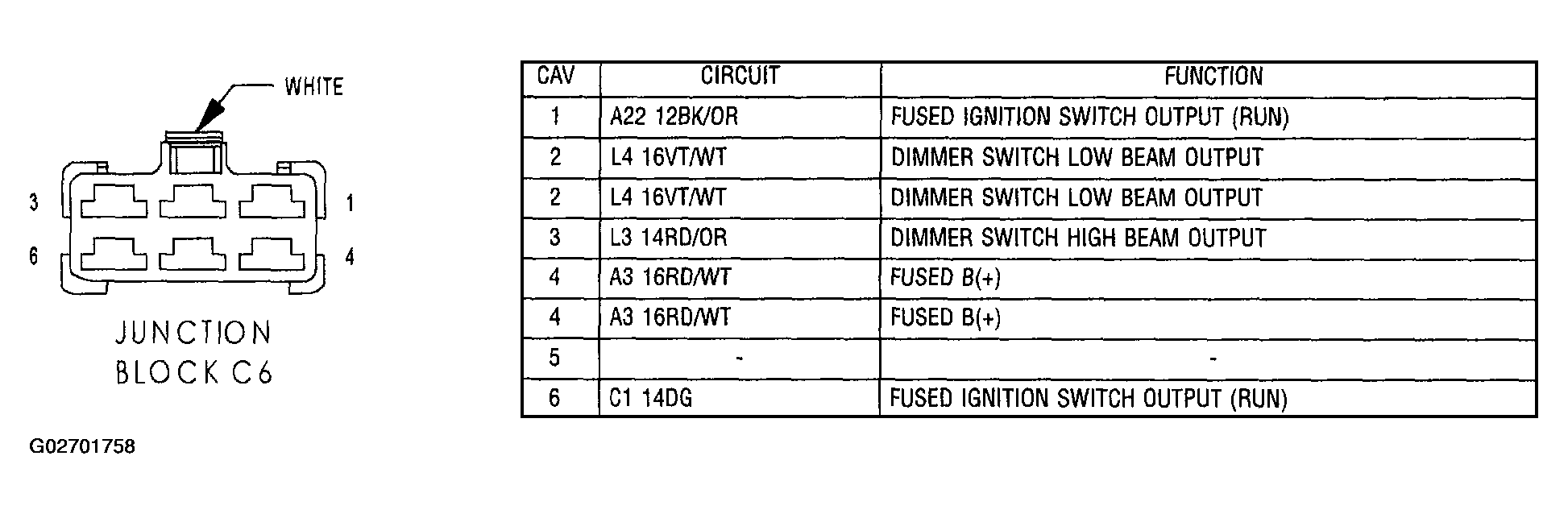

Fig 63: Identifying Junction Block C6 Connector Pinouts And Circuits

G02701758

Courtesy of DAIMLERCHRYSLER CORP.

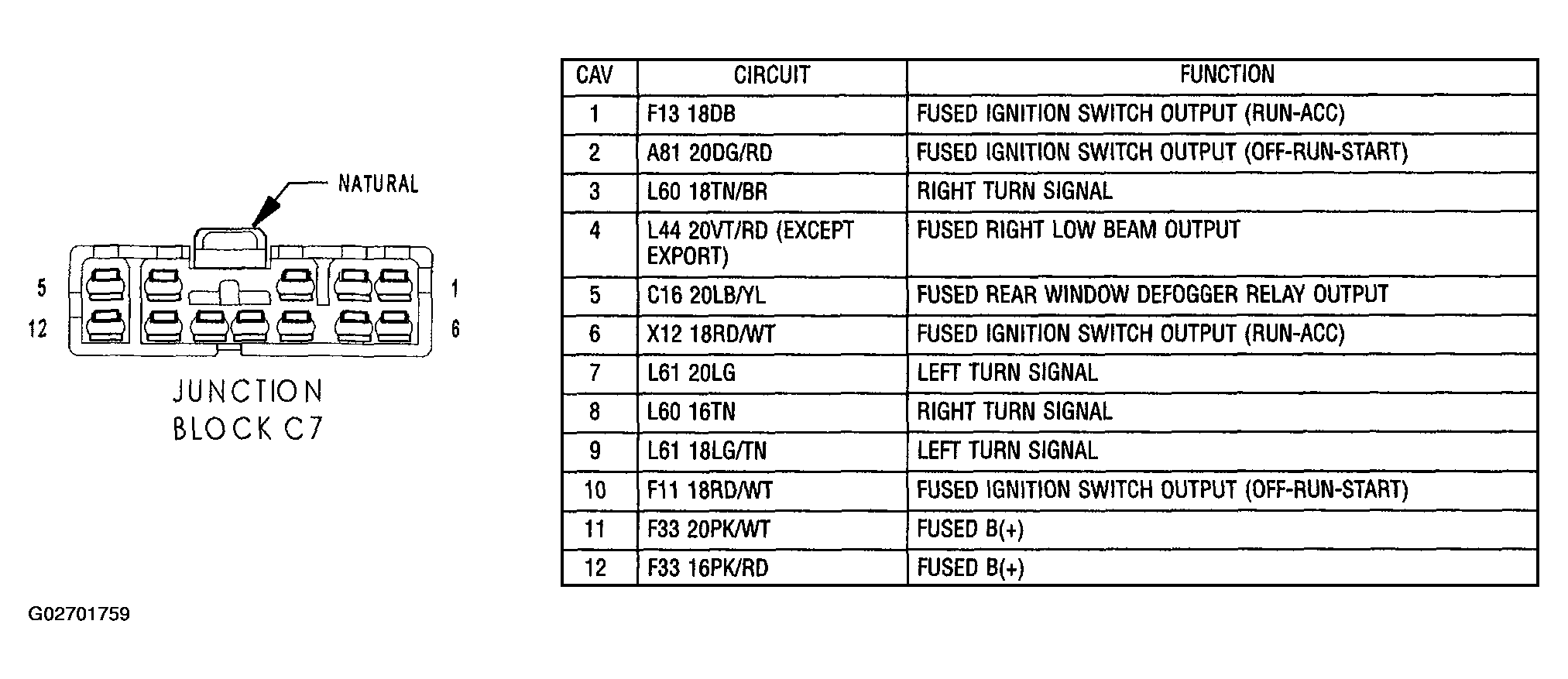

Fig 64: Identifying Junction Block C7 Connector Pinouts And Circuits

G02701759

Courtesy of DAIMLERCHRYSLER CORP.

Fig 65: Identifying Junction Block C8 Connector Pinouts And Circuits

G02701760

Courtesy of DAIMLERCHRYSLER CORP.

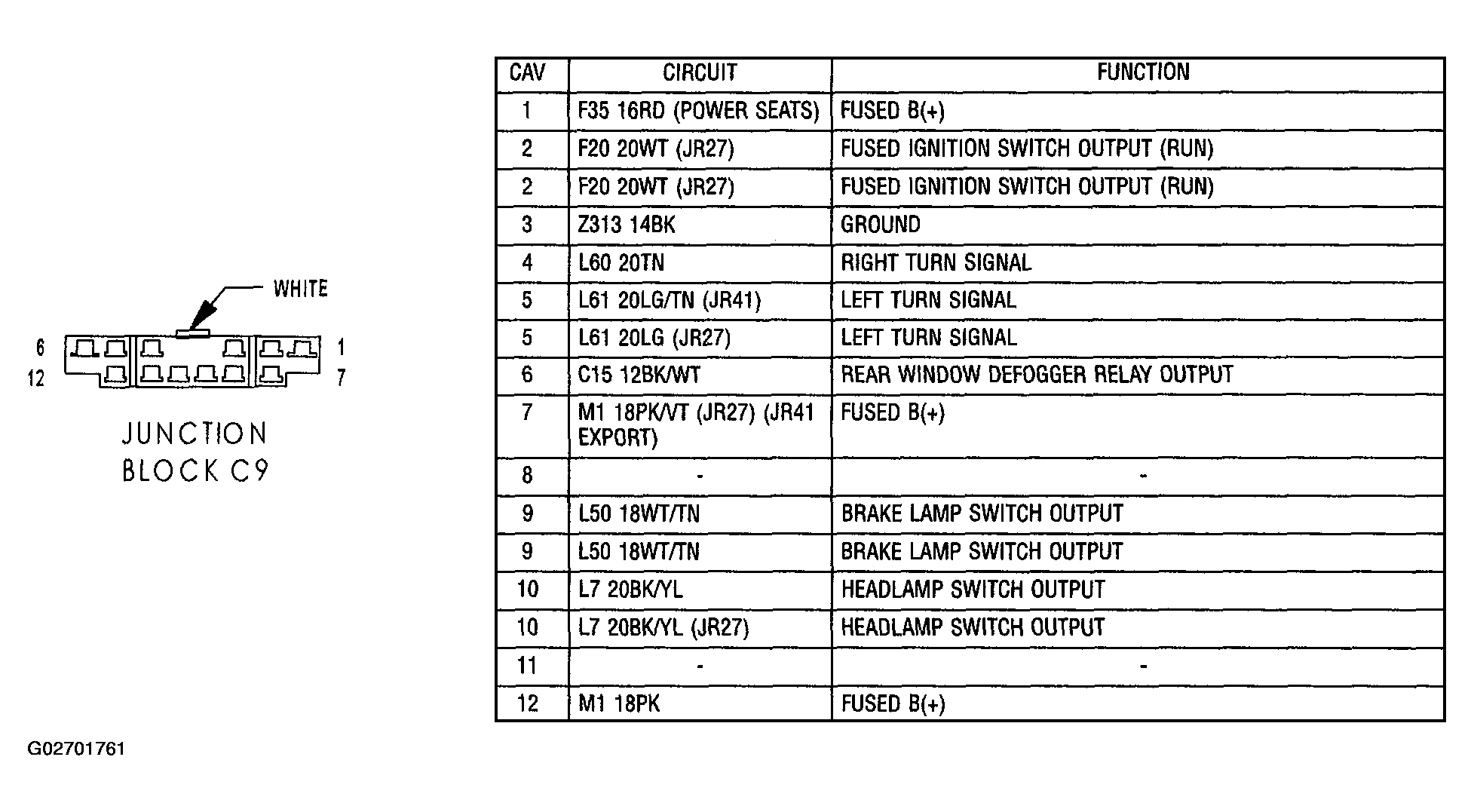

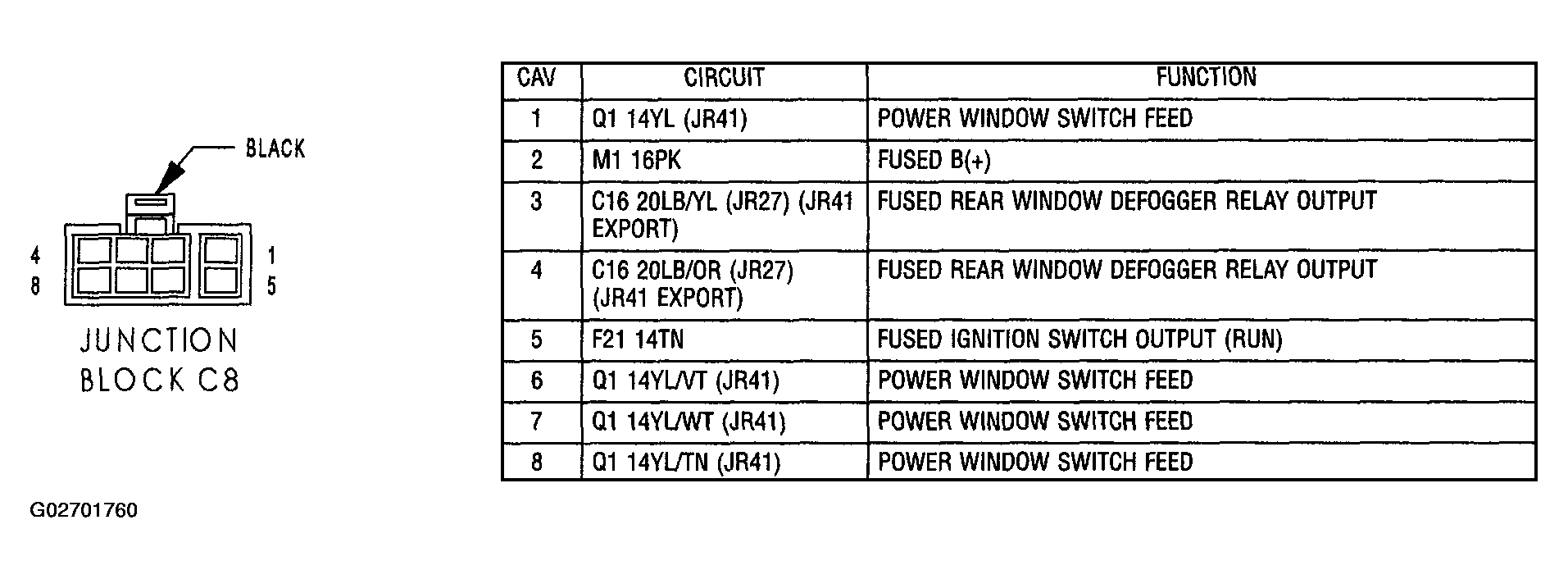

Fig 66: Identifying Junction Block C9 Connector Pinouts And Circuits

G02701761

Courtesy of DAIMLERCHRYSLER CORP.

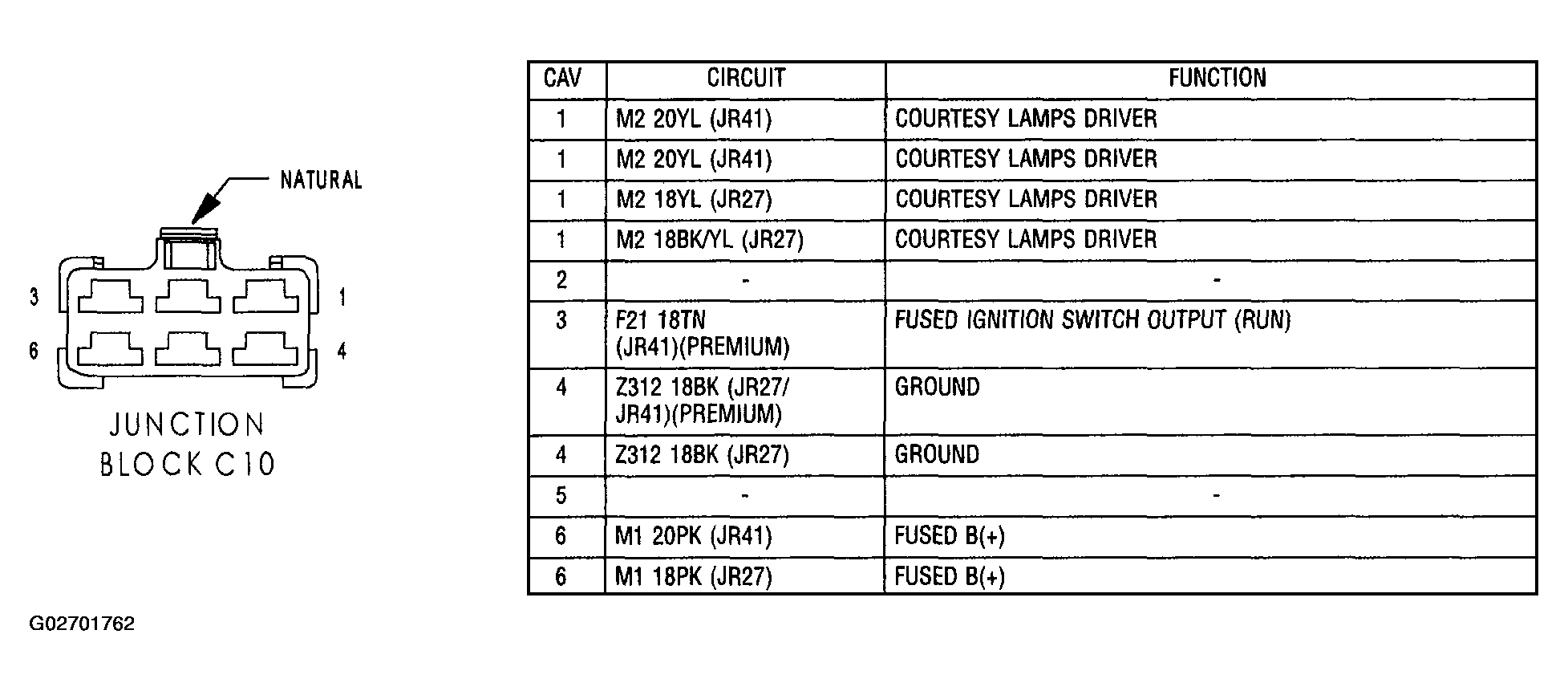

Fig 67: Identifying Junction Block C10 Connector Pinouts And Circuits

G02701762

Courtesy of DAIMLERCHRYSLER CORP.

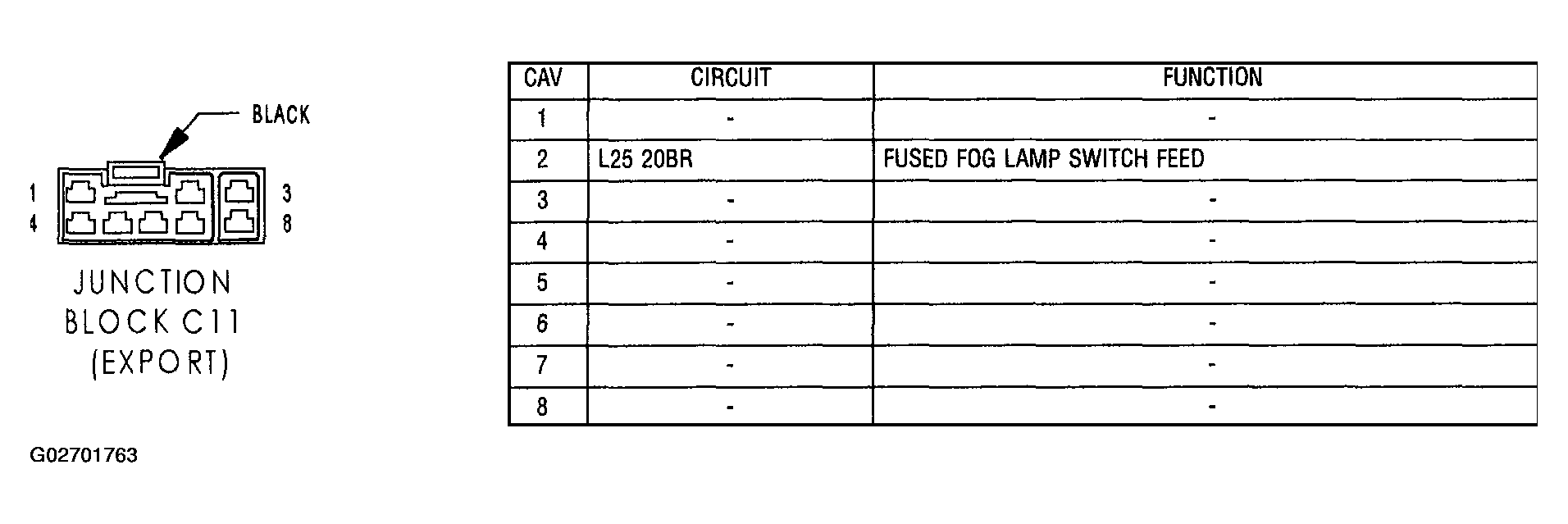

Fig 68: Identifying Junction Block C11 (Export) Connector Pinouts And Circuits

G02701763

Courtesy of DAIMLERCHRYSLER CORP.

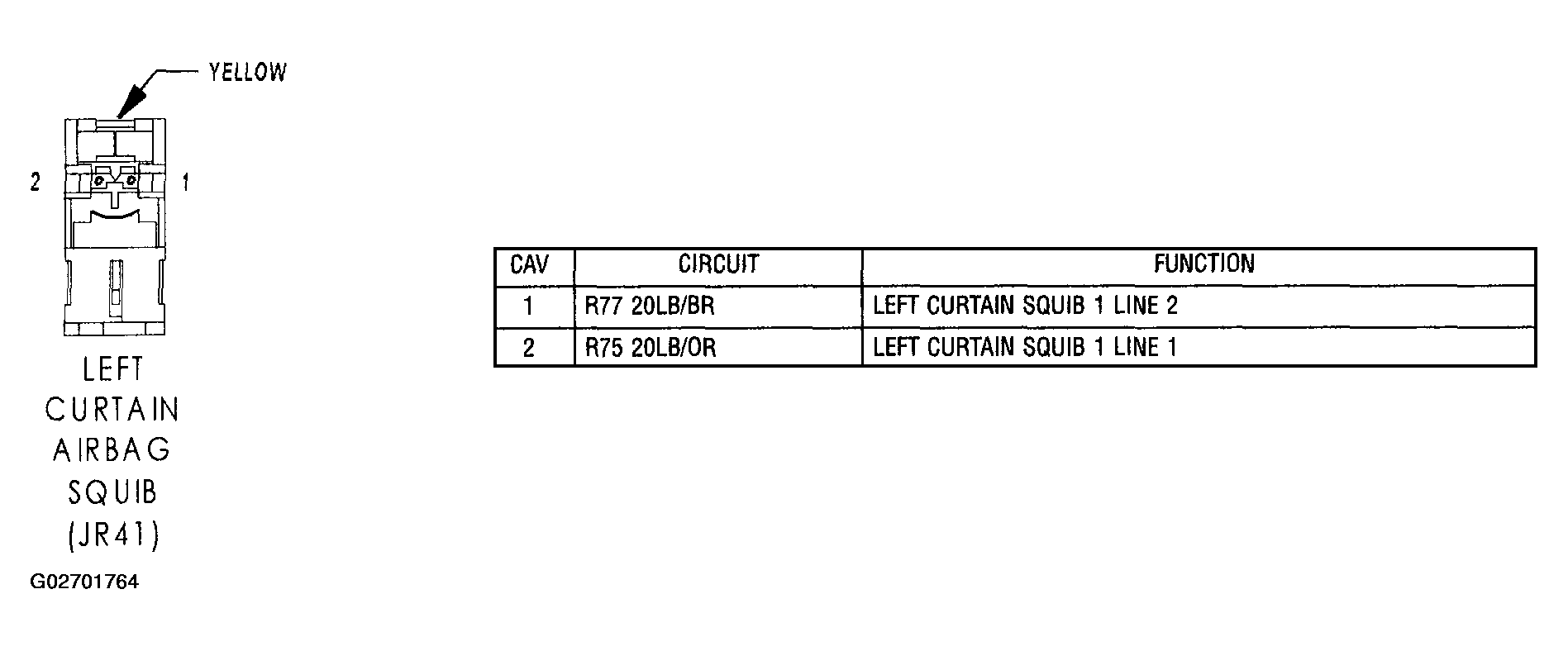

Fig 69: Identifying Left Curtain Airbag Squib (JR41) Connector Pinouts And Circuits

G02701764

Courtesy of DAIMLERCHRYSLER CORP.

Fig 70: Identifying Left Fog Lamp (JR41) Connector Pinouts And Circuits

G02701765

Courtesy of DAIMLERCHRYSLER CORP.

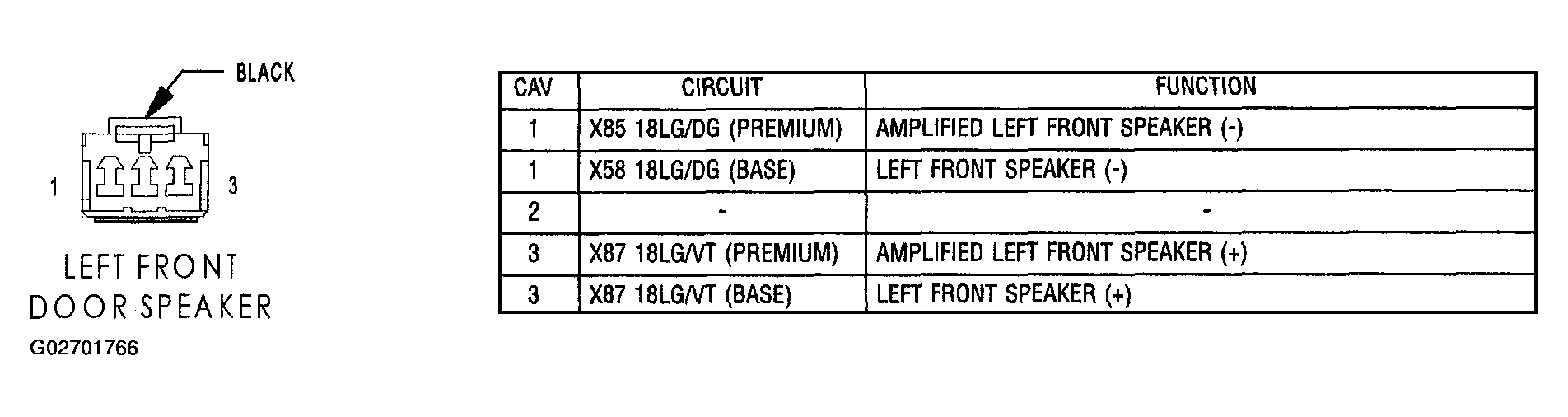

Fig 71: Identifying Left Front Door Speaker Connector Pinouts And Circuits

G02701766

Courtesy of DAIMLERCHRYSLER CORP.

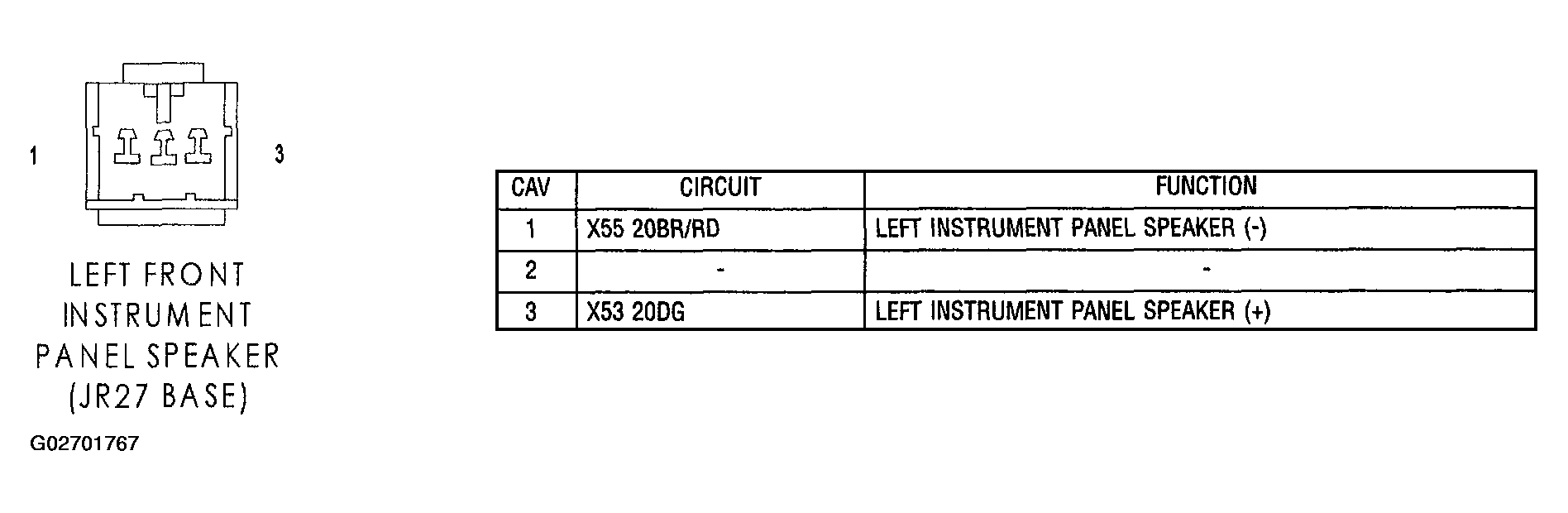

Fig 72: Identifying Left Front Instrument Panel Speaker (JR27 Base) Connector Pinouts And Circuits

G02701767

Courtesy of DAIMLERCHRYSLER CORP.

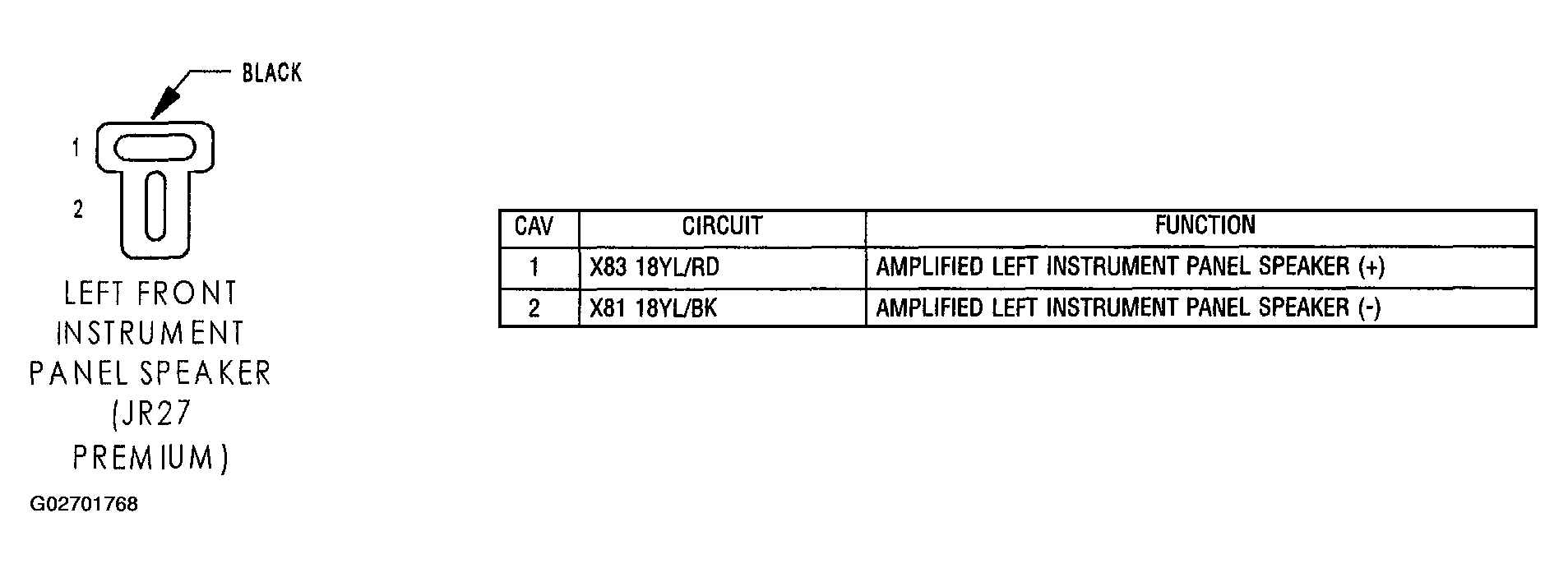

Fig 73: Identifying Left Front Instrument Panel Speaker (JR27 Premium) Connector Pinouts And Circuits

G02701768

Courtesy of DAIMLERCHRYSLER CORP.

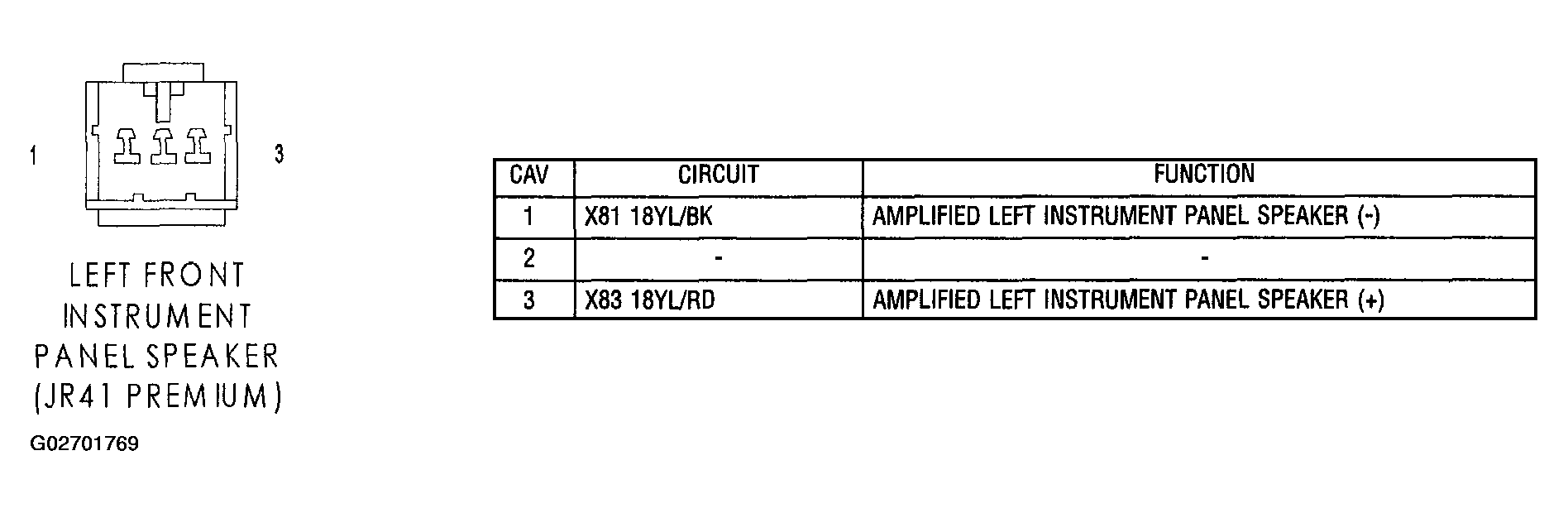

Fig 74: Identifying Left Front Instrument Panel Speaker (JR41 Premium) Connector Pinouts And Circuits

G02701769

Courtesy of DAIMLERCHRYSLER CORP.

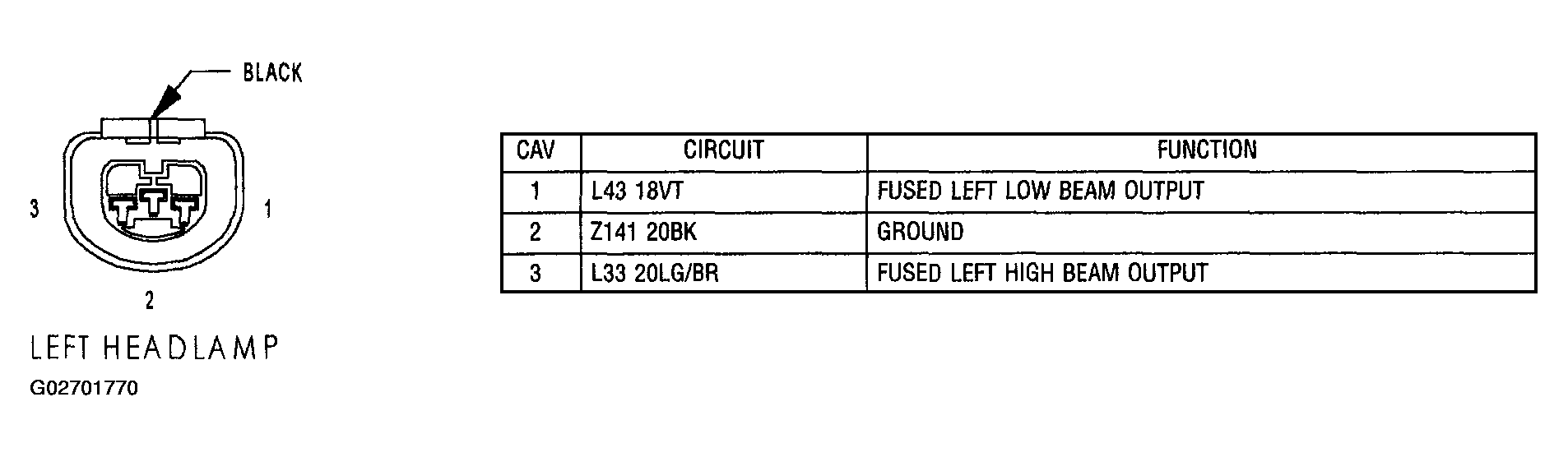

Fig 75: Identifying Left Headlamp Connector Pinouts And Circuits

G02701770

Courtesy of DAIMLERCHRYSLER CORP.

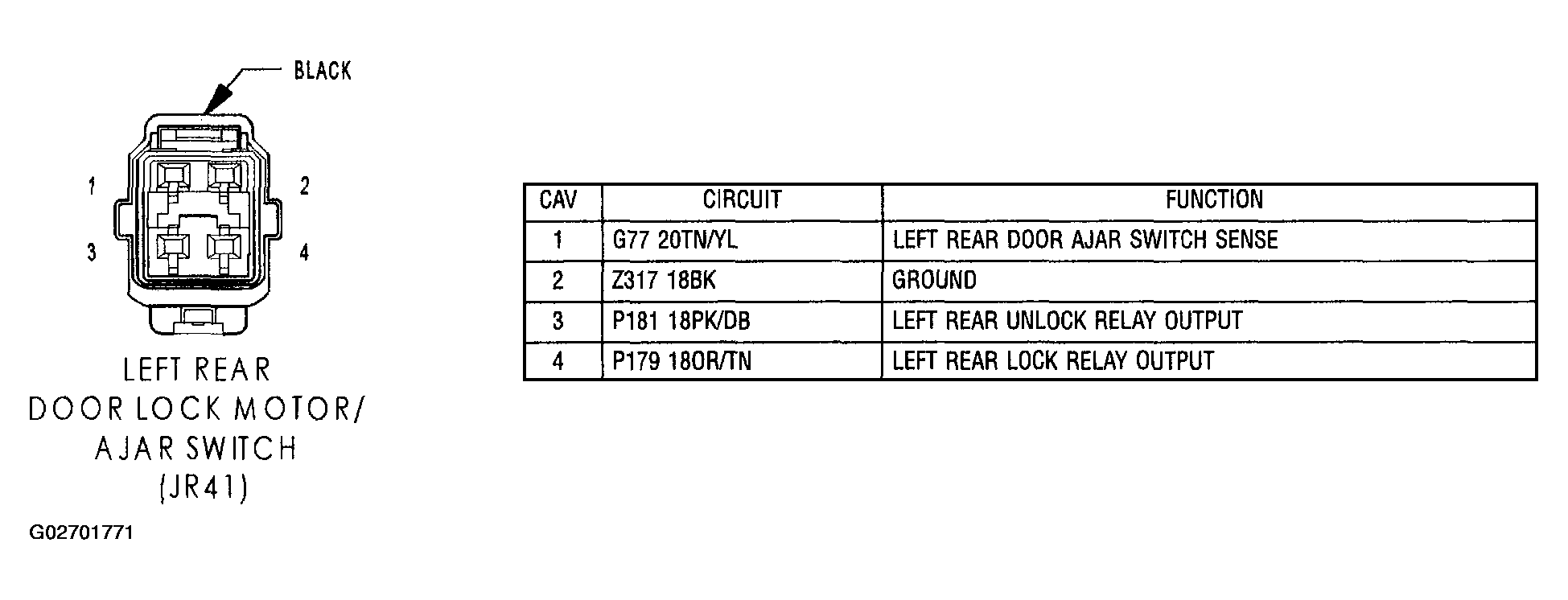

Fig 76: Identifying Left Rear Door Lock Motor/Ajar Switch (JR41) Connector Pinouts And Circuits

G02701771

Courtesy of DAIMLERCHRYSLER CORP.

Fig 77: Identifying Left Rear Power Window Motor Connector Pinouts And Circuits

G02701772

Courtesy of DAIMLERCHRYSLER CORP.

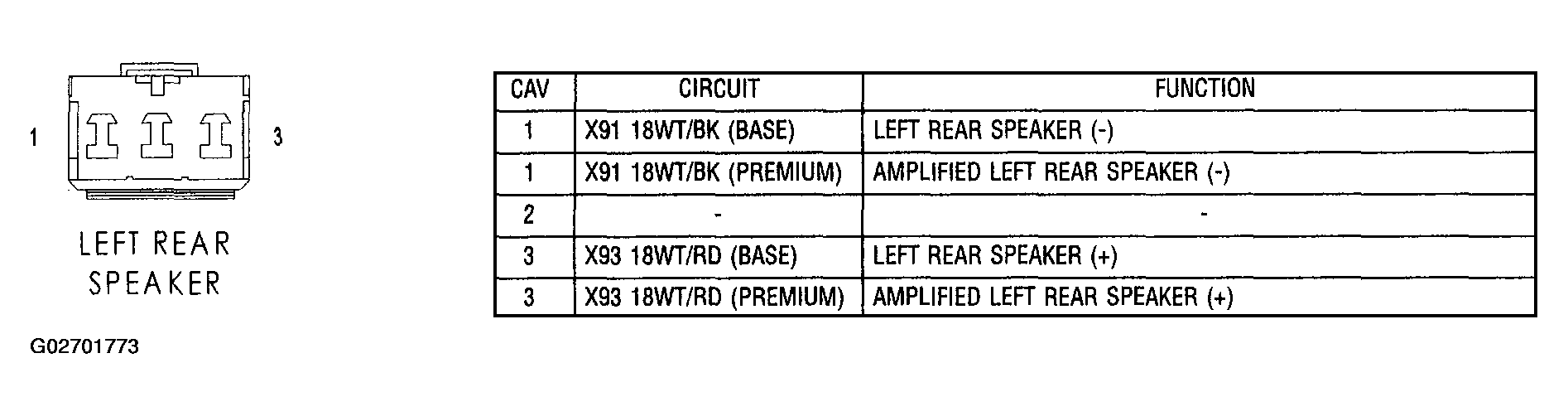

Fig 78: Identifying Left Rear Speaker Connector Pinouts And Circuits

G02701773

Courtesy of DAIMLERCHRYSLER CORP.

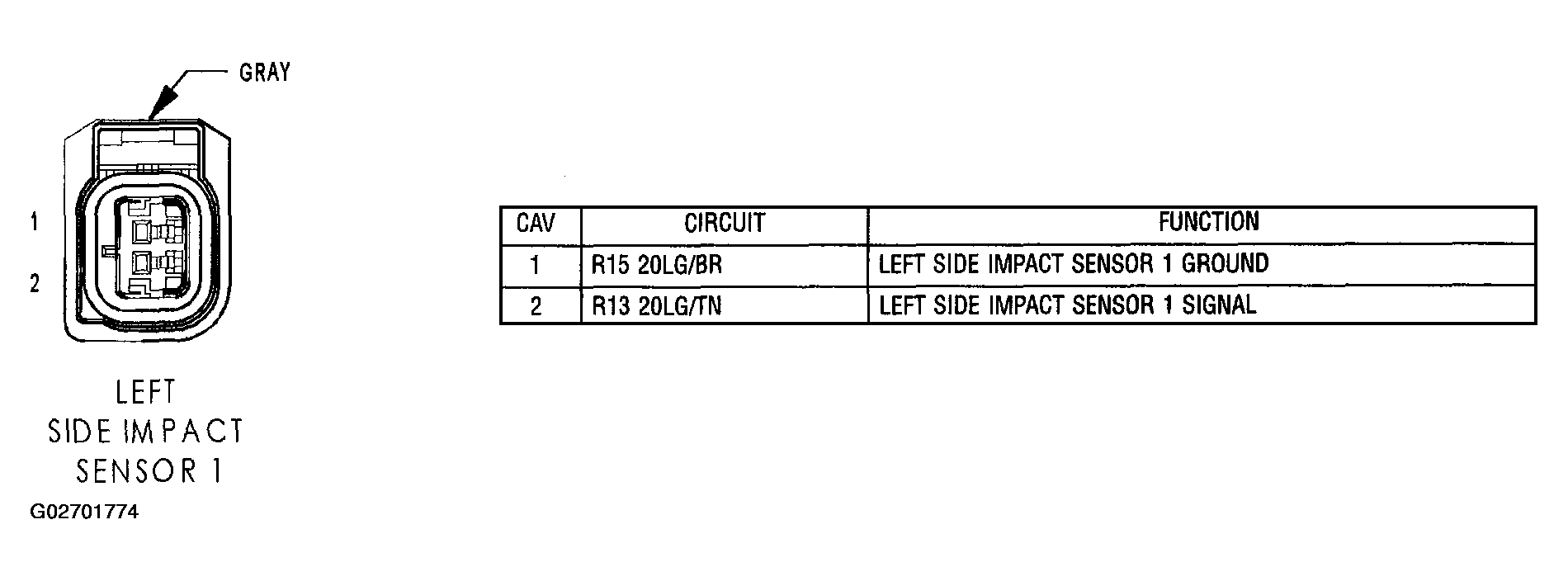

Fig 79: Identifying Left Side Impact Sensor 1 Connector Pinouts And Circuits

G02701774

Courtesy of DAIMLERCHRYSLER CORP.

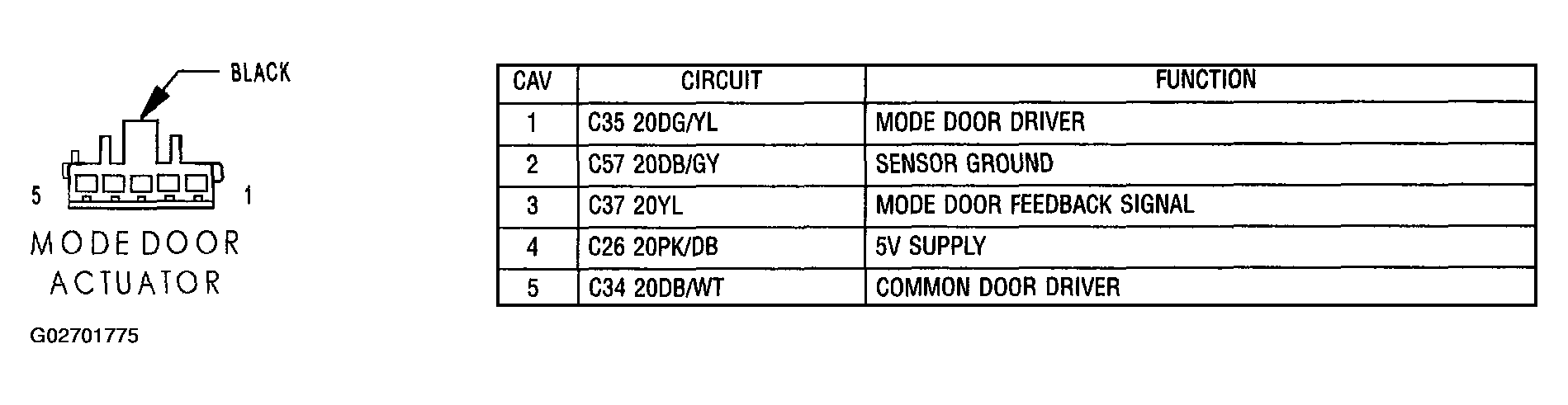

Fig 80: Identifying Mode Door Actuator Connector Pinouts And Circuits

G02701775

Courtesy of DAIMLERCHRYSLER CORP.

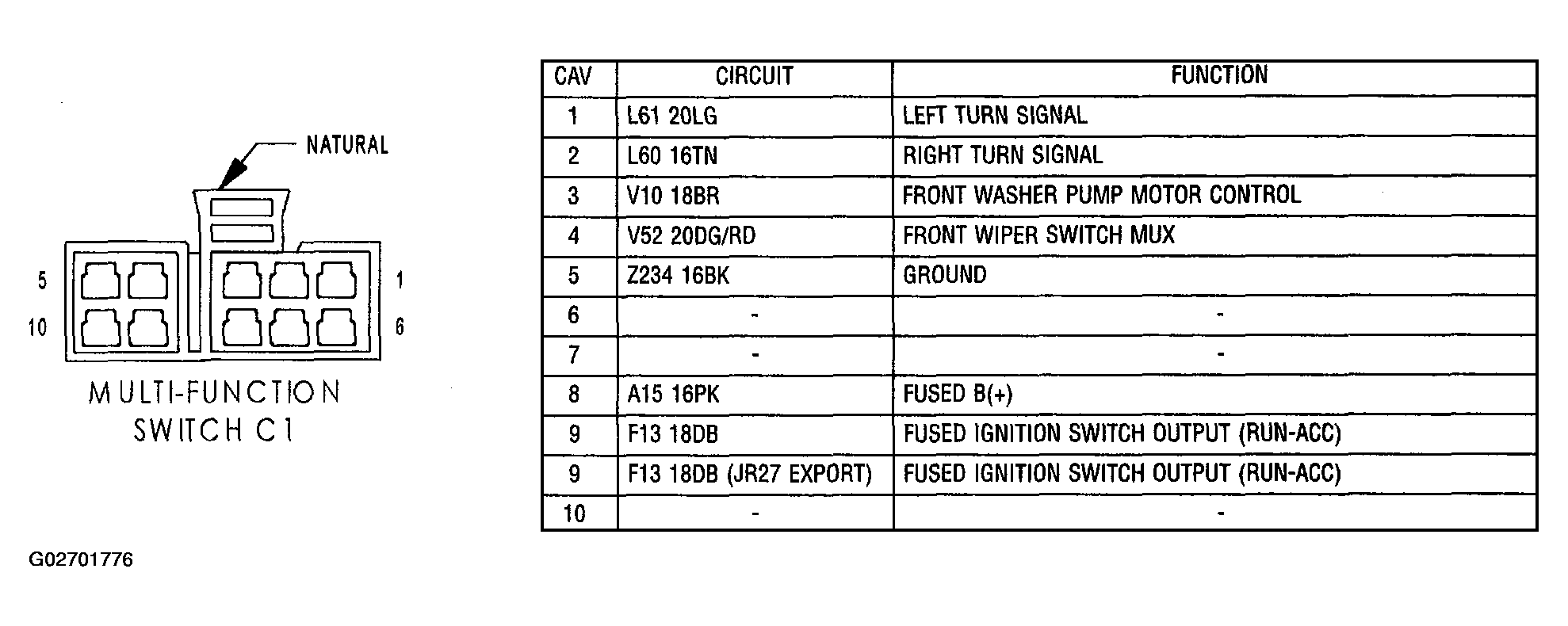

Fig 81: Identifying Multi-Function Switch C1 Connector Pinouts And Circuits

G02701776

Courtesy of DAIMLERCHRYSLER CORP.

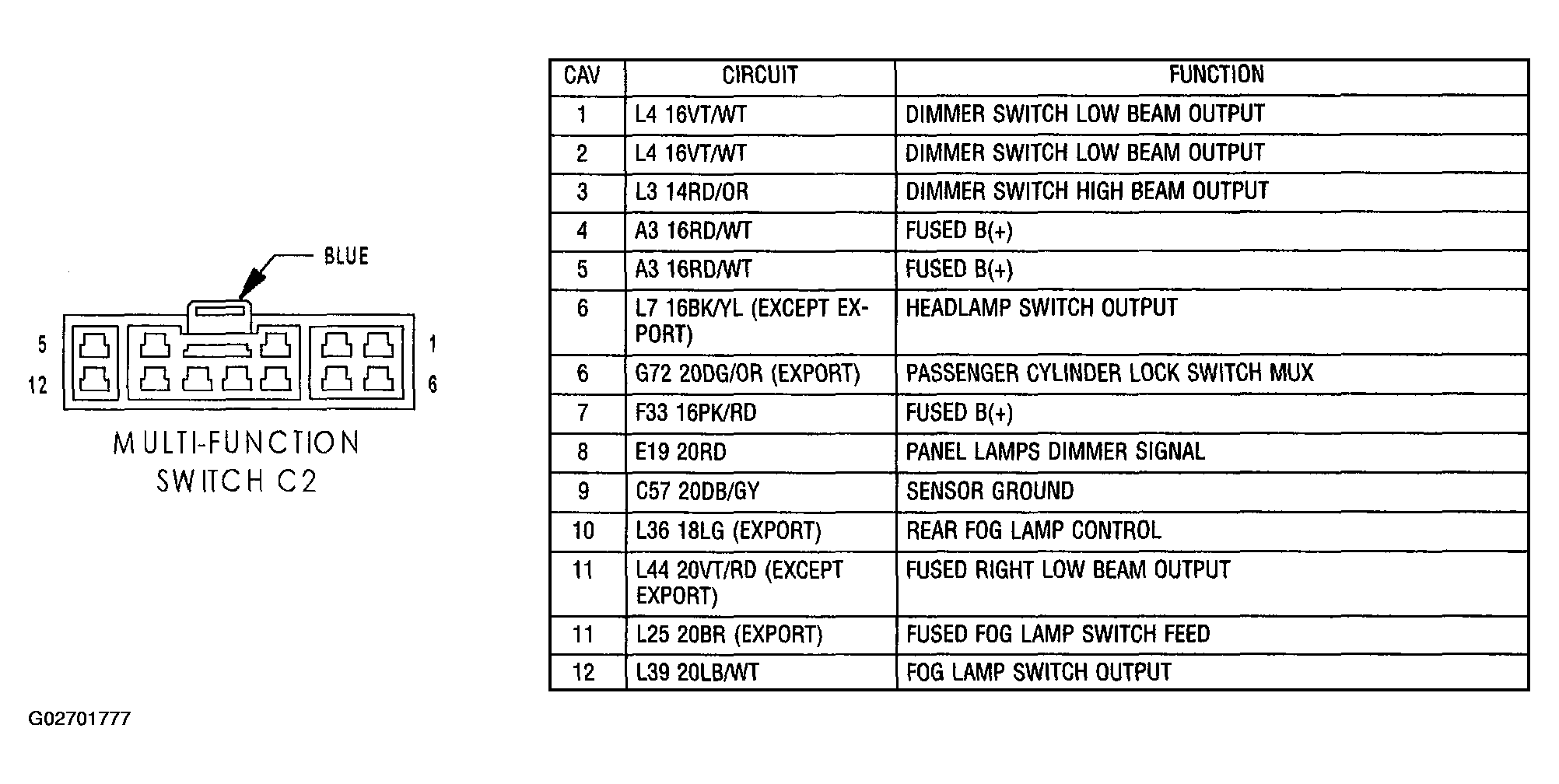

Fig 82: Identifying Multi-Function Switch C2 Connector Pinouts And Circuits

G02701777

Courtesy of DAIMLERCHRYSLER CORP.

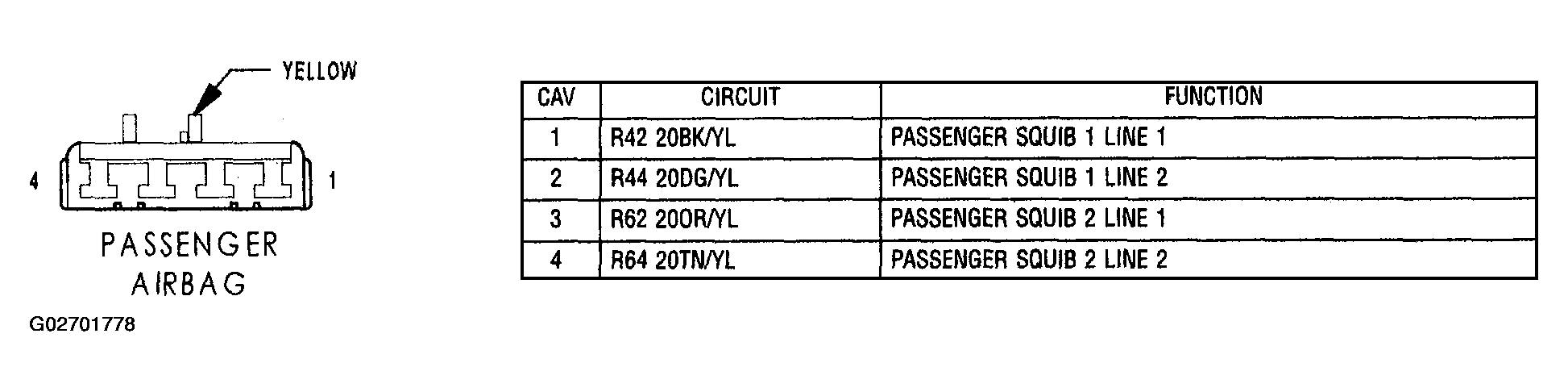

Fig 83: Identifying Passenger Airbag Connector Pinouts And Circuits

G02701778

Courtesy of DAIMLERCHRYSLER CORP.

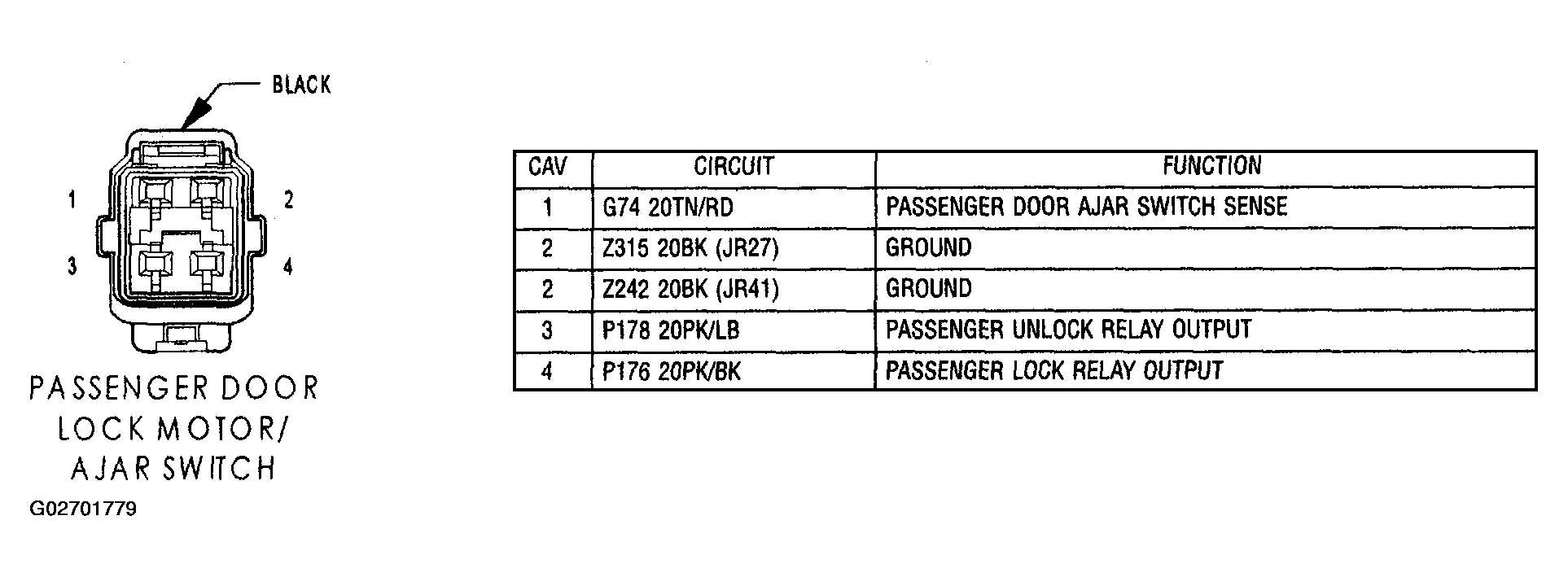

Fig 84: Identifying Passenger Door Lock Motor/Ajar Switch Connector Pinouts And Circuits

G02701779

Courtesy of DAIMLERCHRYSLER CORP.

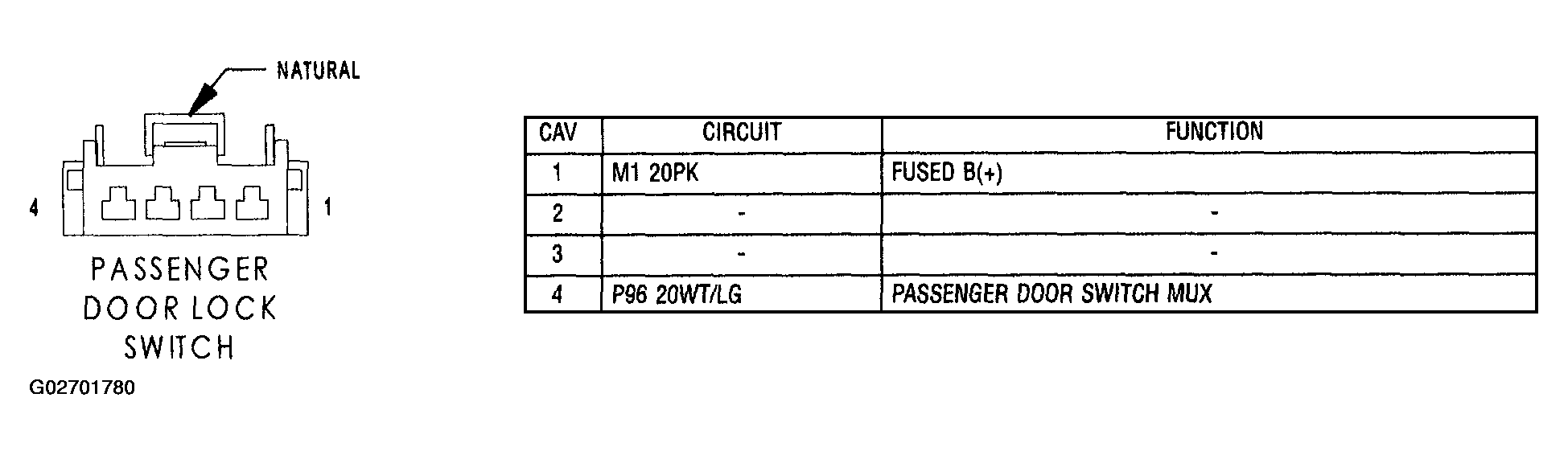

Fig 85: Identifying Passenger Door Lock Switch Connector Pinouts And Circuits

G02701780

Courtesy of DAIMLERCHRYSLER CORP.

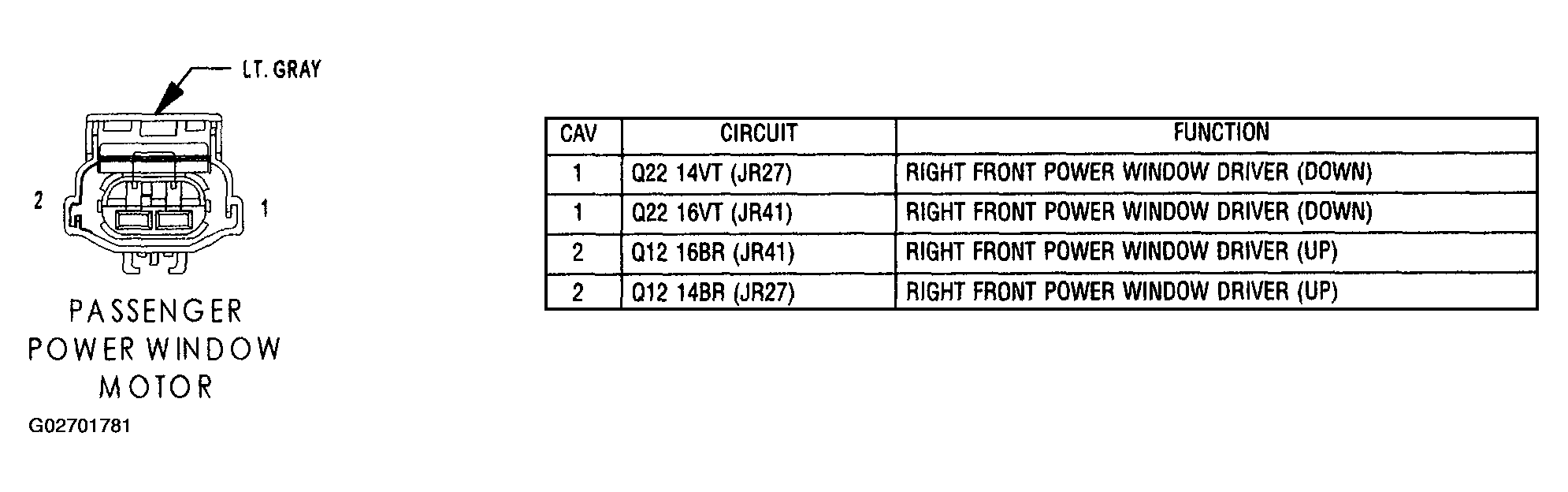

Fig 86: Identifying Passenger Power Window Motor Connector Pinouts

G02701781

Courtesy of DAIMLERCHRYSLER CORP.

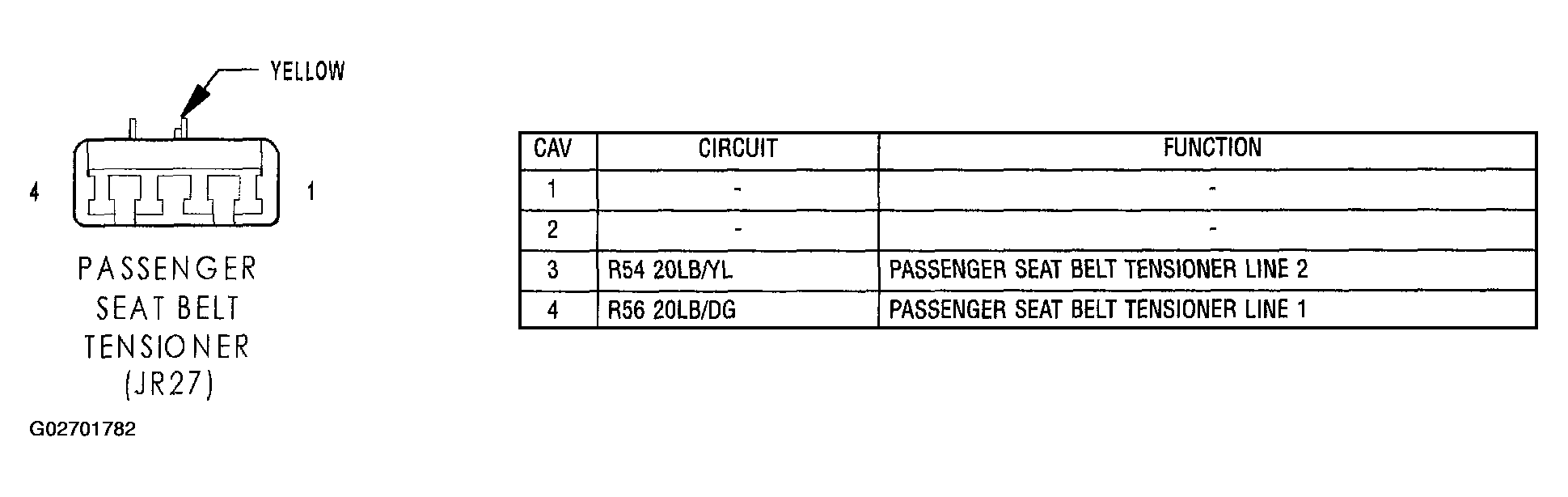

Fig 87: Identifying Passenger Seat Belt Tensioner (JR27) Connector Pinouts And Circuits

G02701782

Courtesy of DAIMLERCHRYSLER CORP.

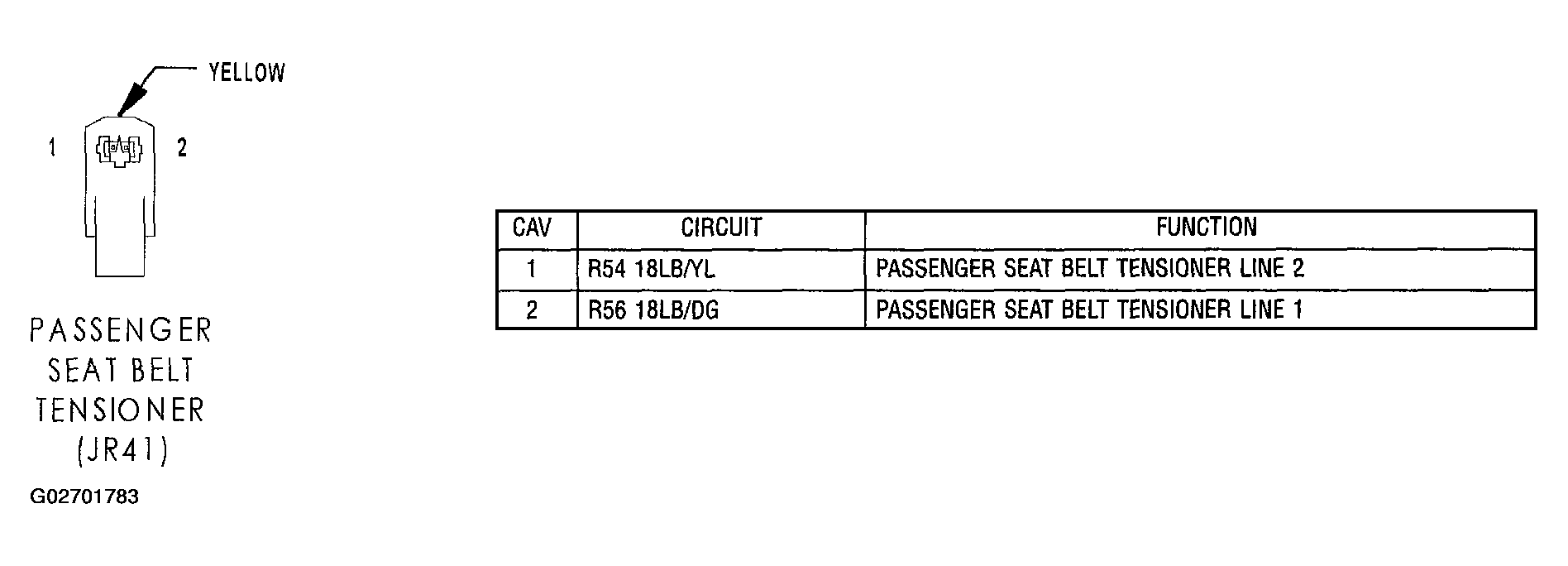

Fig 88: Identifying Passenger Seat Belt Tensioner (JR41) Connector Pinouts And Circuits

G02701783

Courtesy of DAIMLERCHRYSLER CORP.

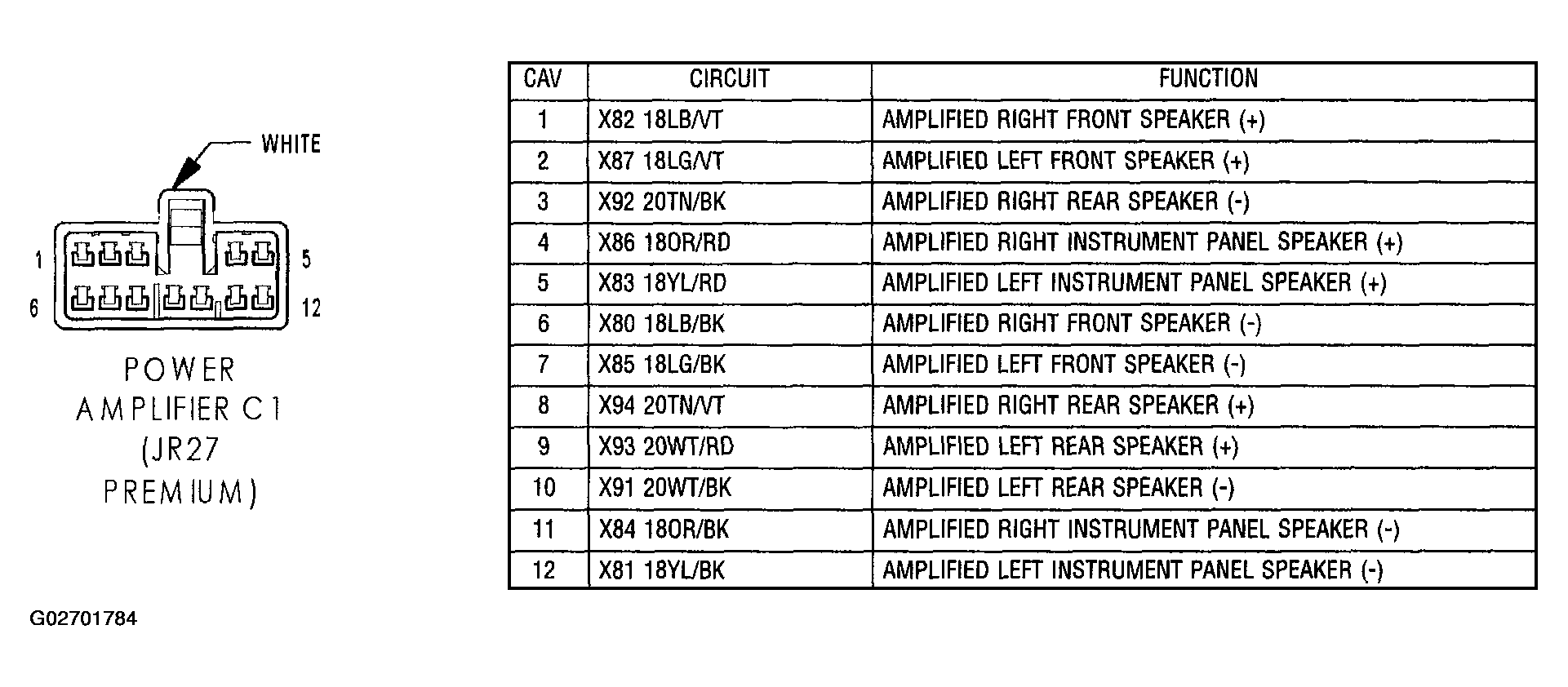

Fig 89: Identifying Power Amplifier C1 (JR27 Premium) Connector Pinouts And Circuits

G02701784

Courtesy of DAIMLERCHRYSLER CORP.

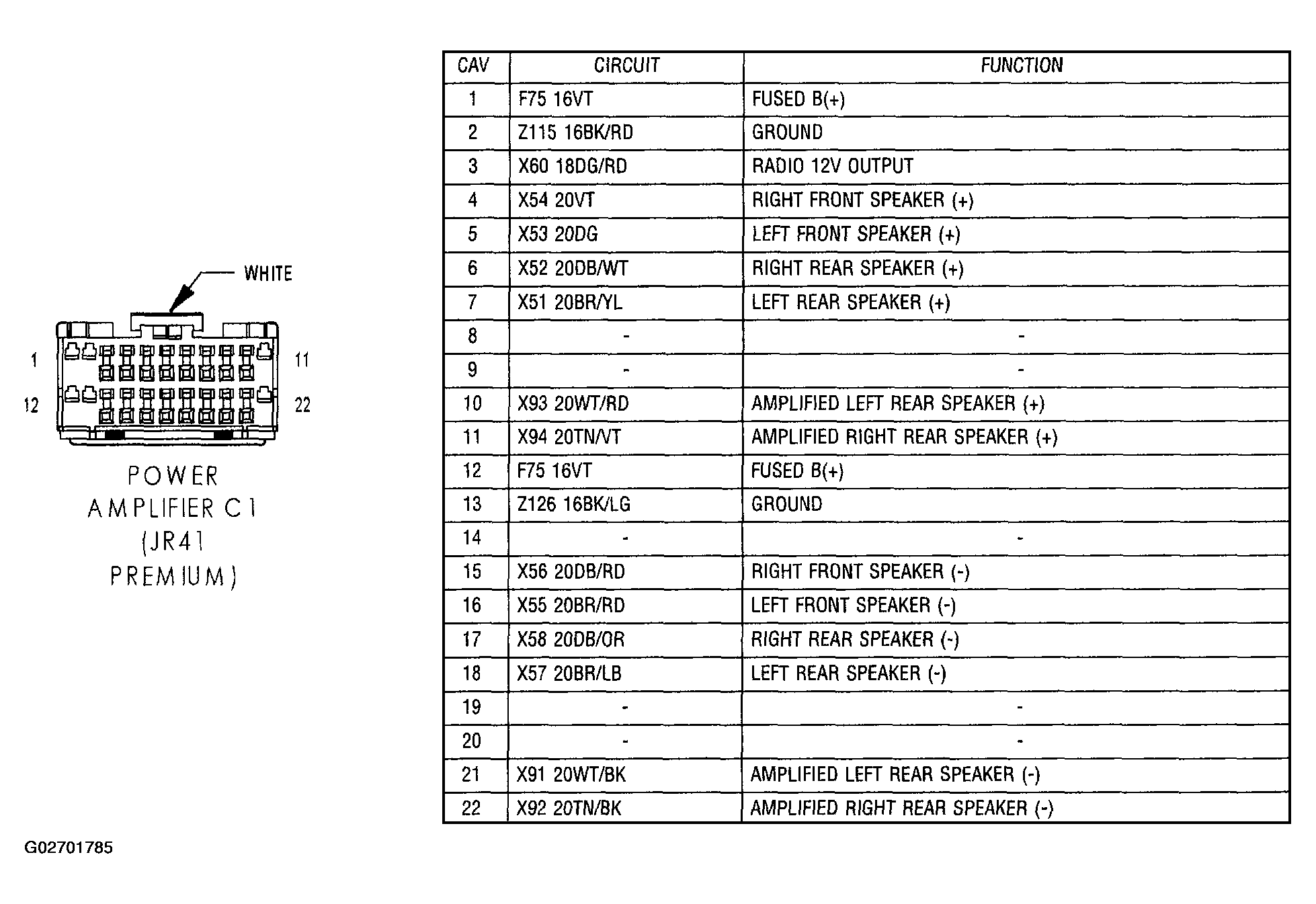

Fig 90: Identifying Power Amplifier C1 (JR41 Premium) Connector Pinouts And Circuits

G02701785

Courtesy of DAIMLERCHRYSLER CORP.

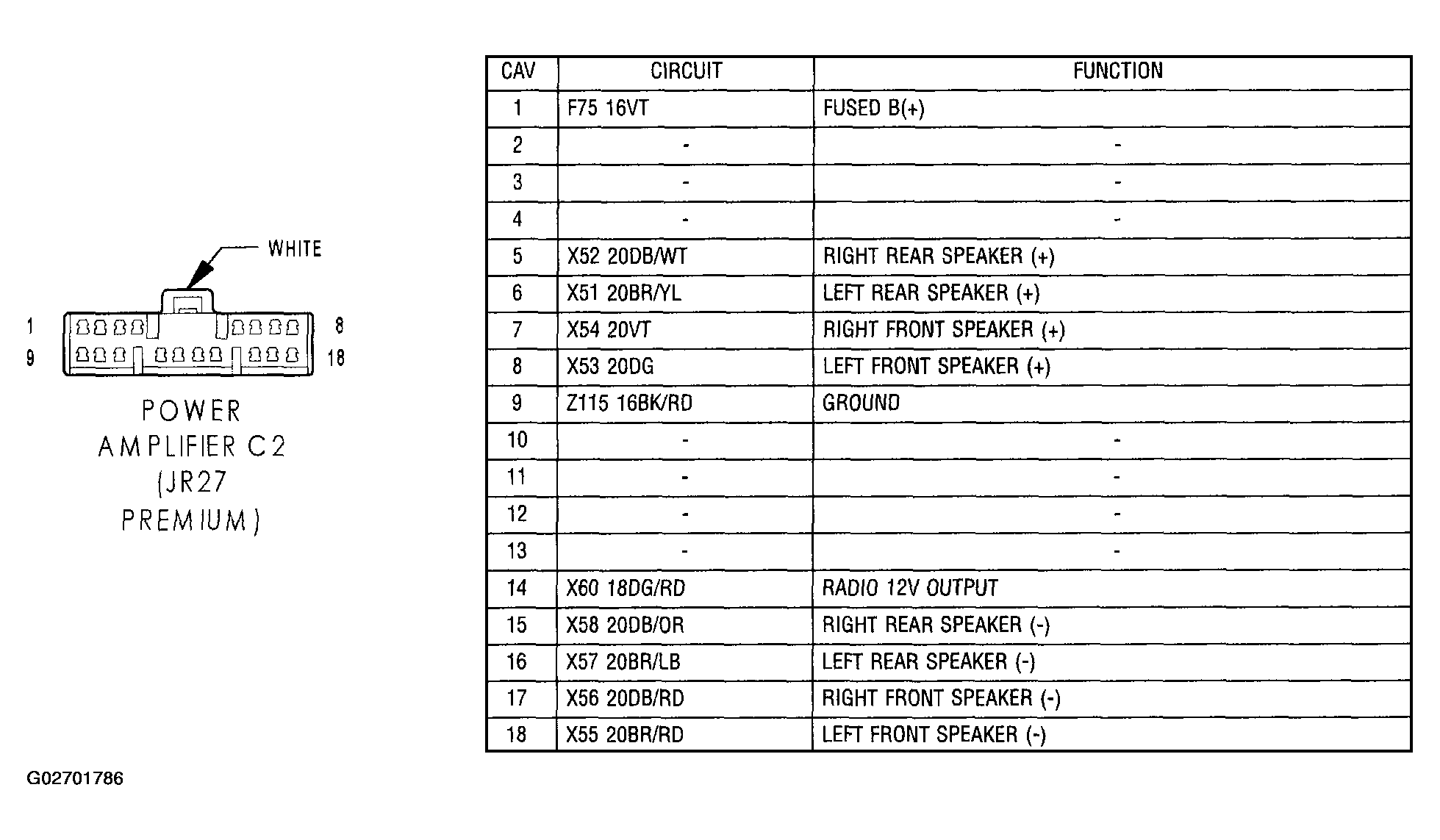

Fig 91: Identifying Power Amplifier C2 (JR27 Premium) Connector Pinouts And Circuits

G02701786

Courtesy of DAIMLERCHRYSLER CORP.

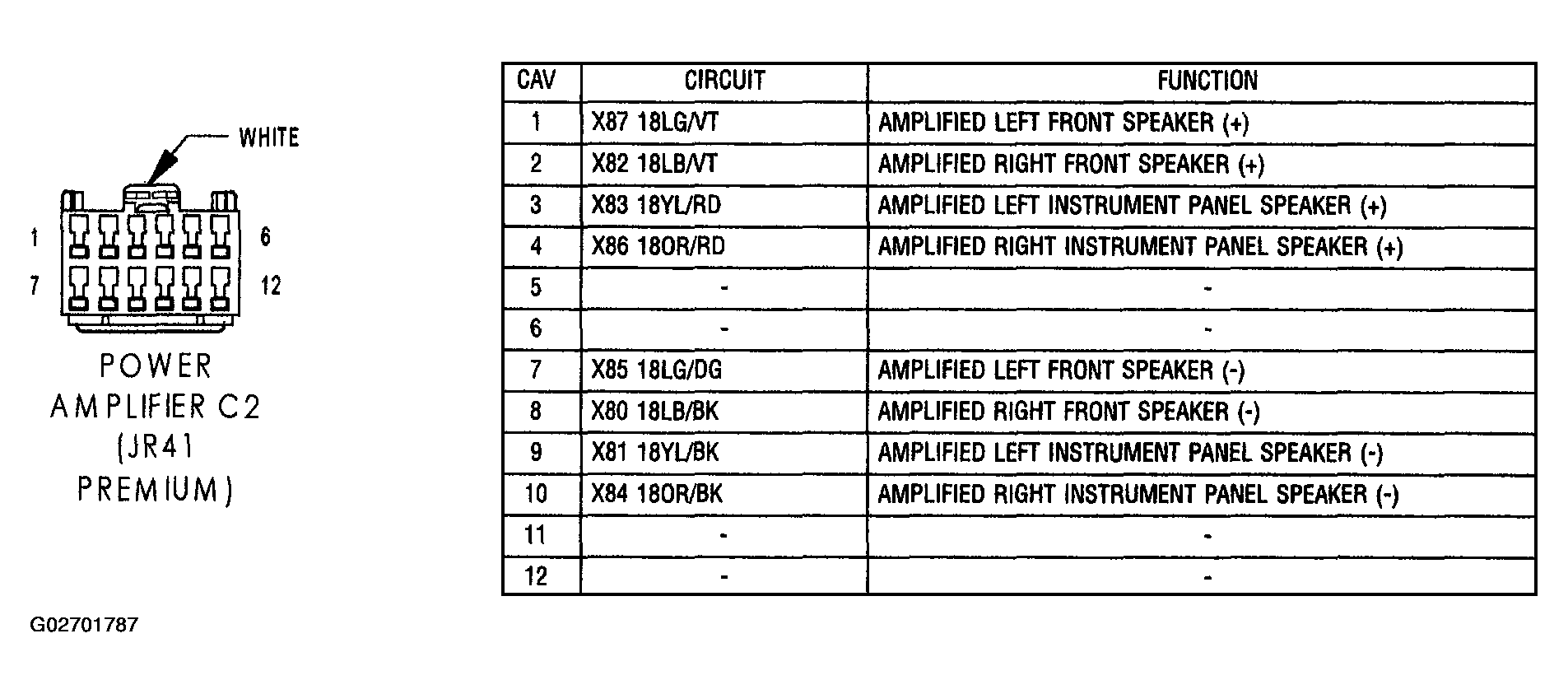

Fig 92: Identifying Power Amplifier C2 (JR41 Premium) Connector Pinouts And Circuits

G02701787

Courtesy of DAIMLERCHRYSLER CORP.

Fig 93: Identifying Power Antenna (Export) Connector Pinouts And Circuits

G02701788

Courtesy of DAIMLERCHRYSLER CORP.

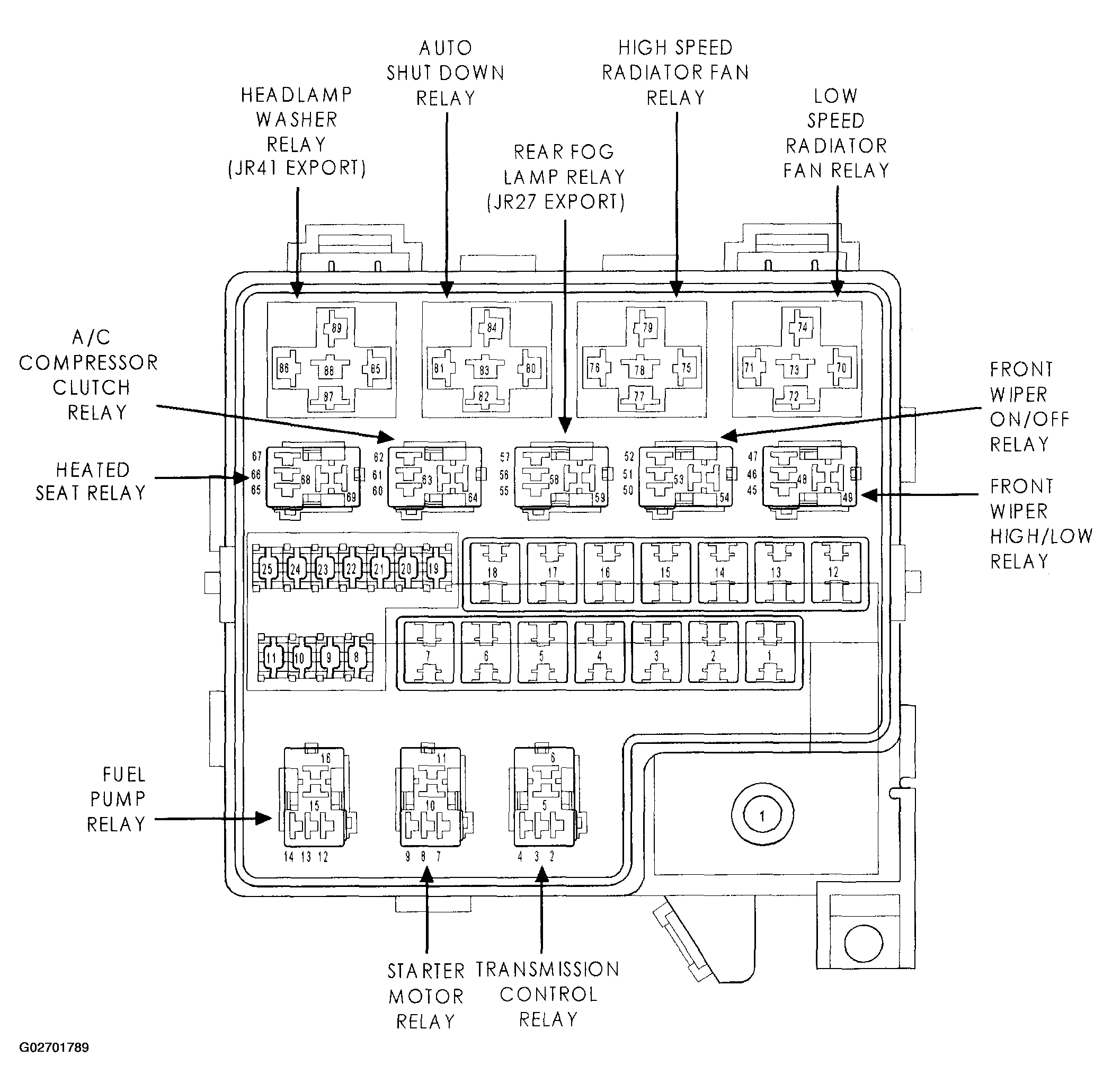

Fig 94: Identifying Power Distribution Center Connector Pinouts And Circuits

G02701789

Courtesy of DAIMLERCHRYSLER CORP.

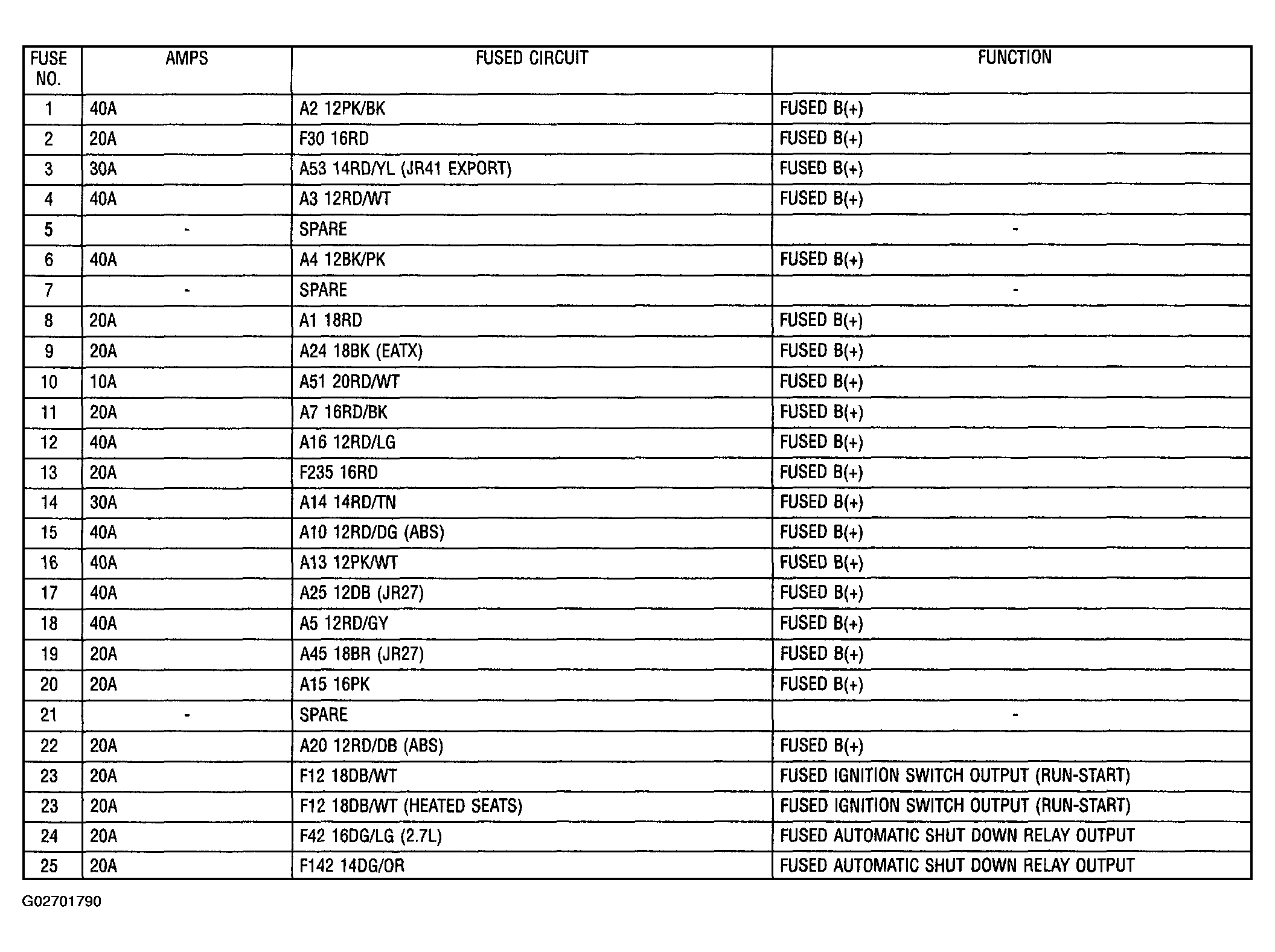

Fig 95: Identifying Fuses (PDC) Connector Pinouts And Circuits

G02701790

Courtesy of DAIMLERCHRYSLER CORP.

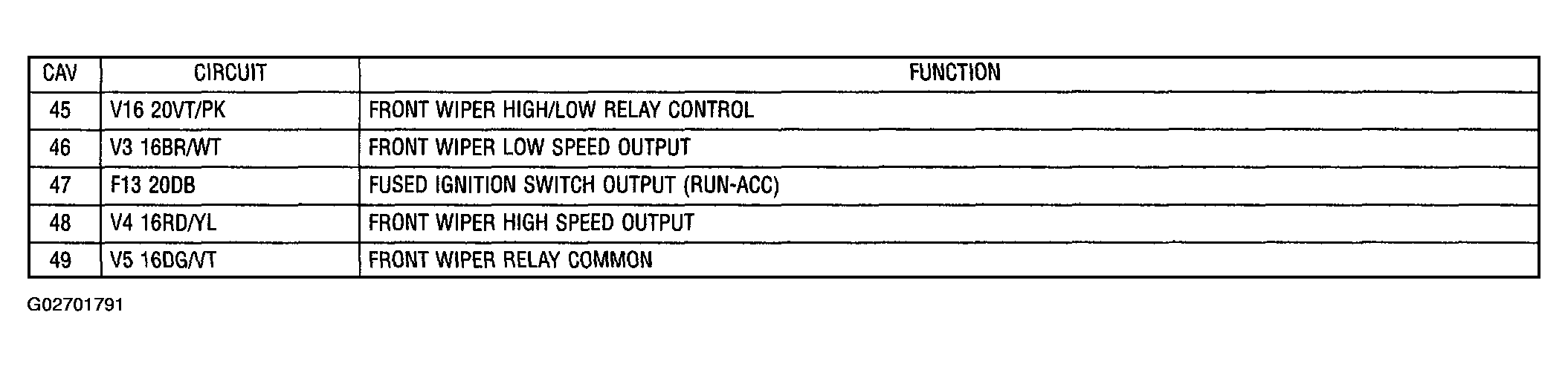

Fig 96: Identifying Front Wiper High/Low Relay Connector Pinouts And Circuits

G02701791

Courtesy of DAIMLERCHRYSLER CORP.

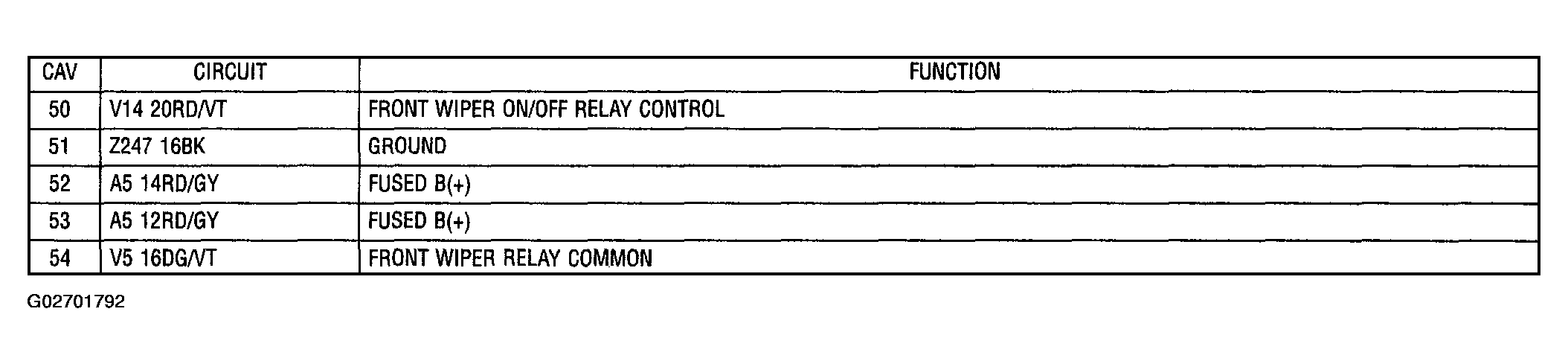

Fig 97: Identifying Front Wiper On/Off Relay Connector Pinouts And Circuits

G02701792

Courtesy of DAIMLERCHRYSLER CORP.

Fig 98: Identifying Power Top Pump Motor (JR27) Connector Pinouts And Circuits

G02701793

Courtesy of DAIMLERCHRYSLER CORP.

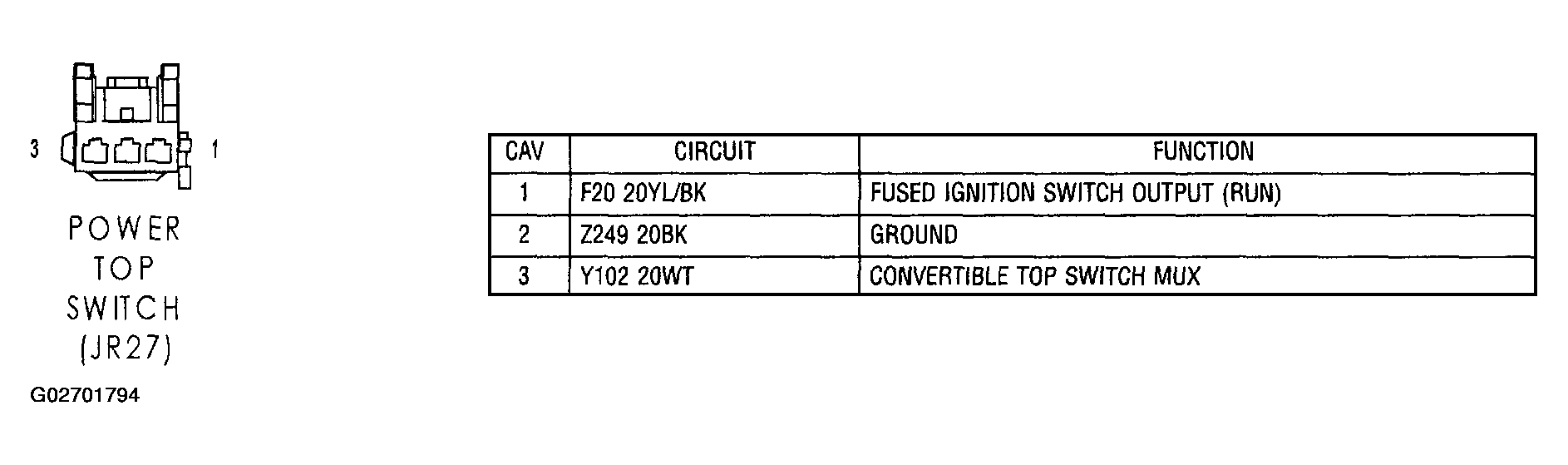

Fig 99: Identifying Power Top Switch (JR27) Connector Pinouts And Circuits

G02701794

Courtesy of DAIMLERCHRYSLER CORP.

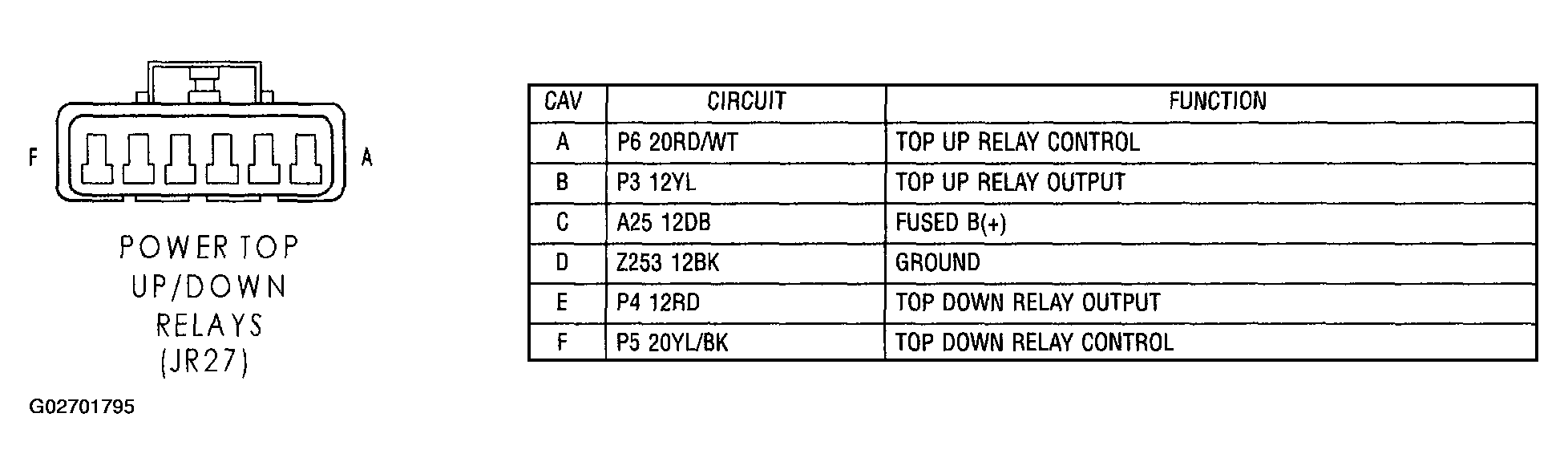

Fig 100: Identifying Power Top Up/Down Relays (JR27) Connector Pinouts And Circuits

G02701795

Courtesy of DAIMLERCHRYSLER CORP.

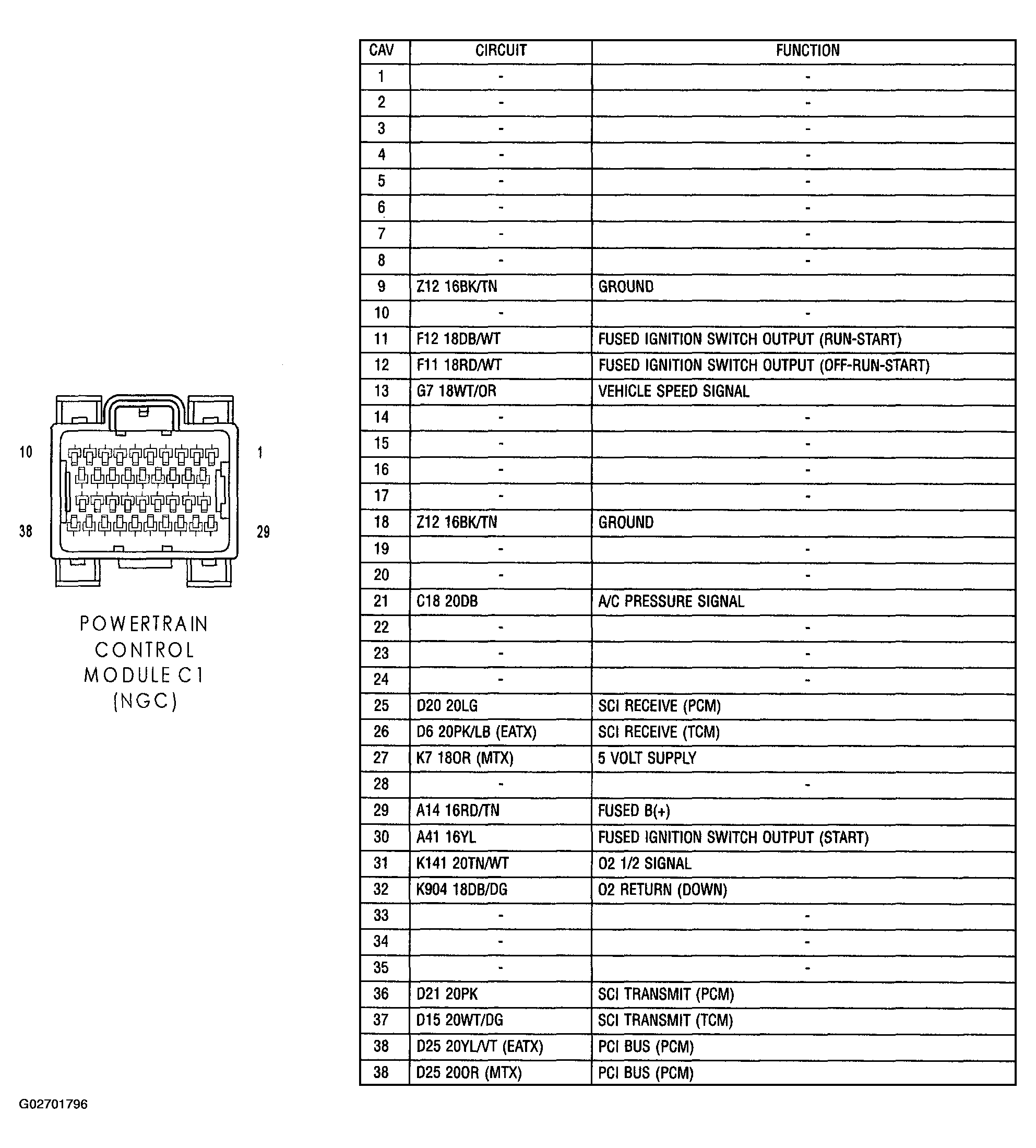

Fig 101: Identifying Powertrain Control Module C1 (NGC) Connector Pinouts And Circuits

G02701796

Courtesy of DAIMLERCHRYSLER CORP.

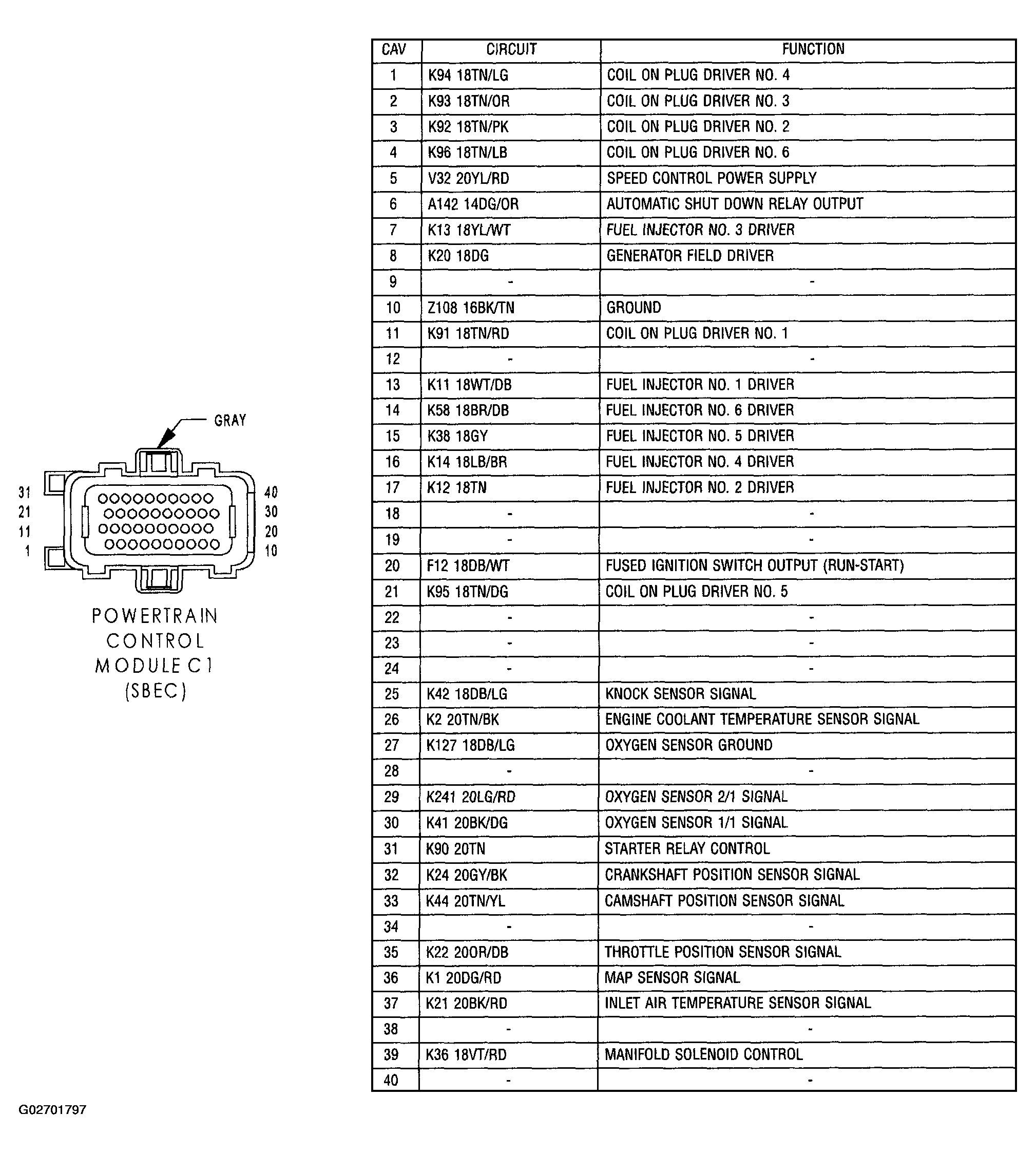

Fig 102: Identifying Powertrain Control Module C1 (SBEC) Connector Pinouts And Circuits

G02701797

Courtesy of DAIMLERCHRYSLER CORP.

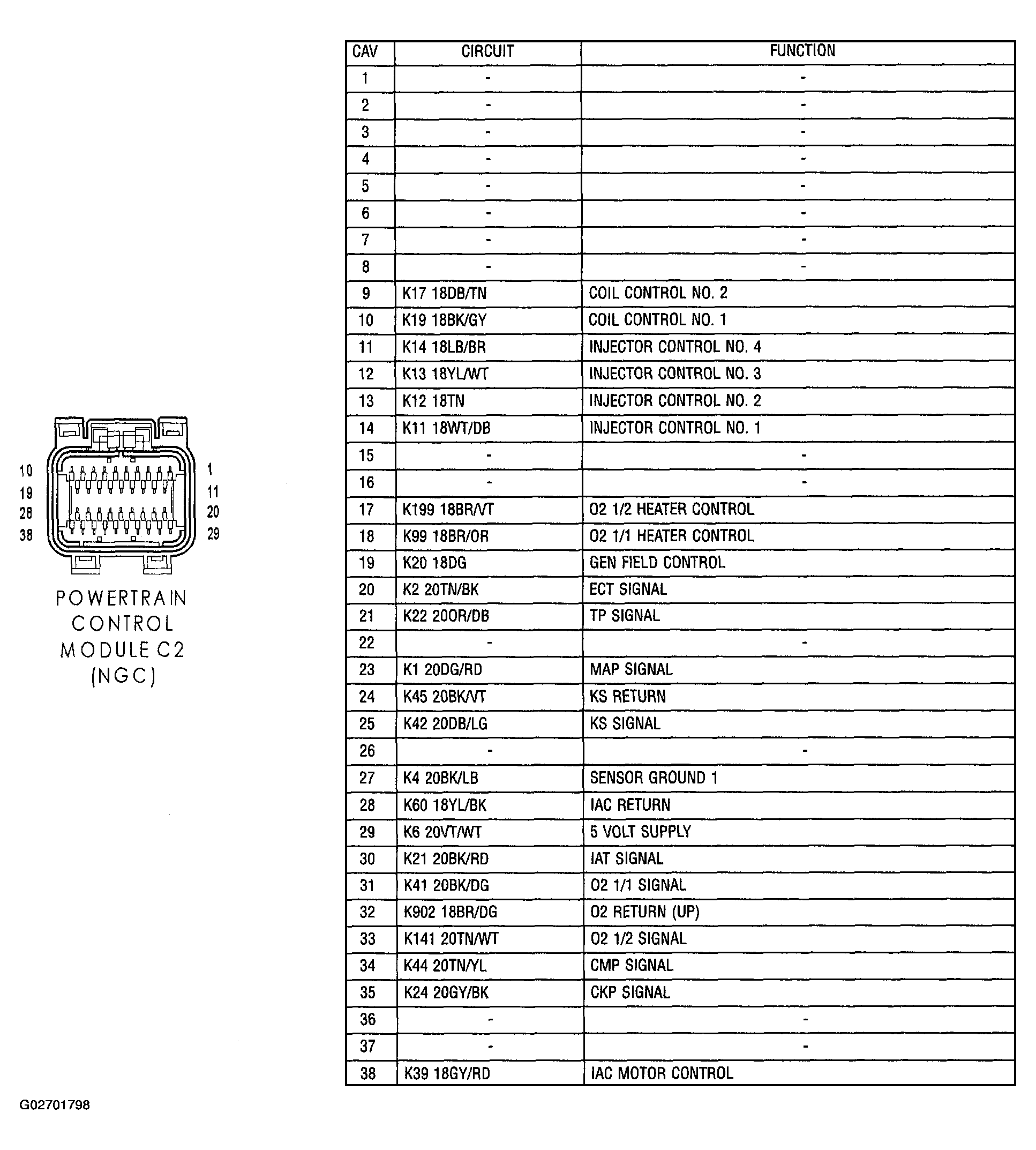

Fig 103: Identifying Powertrain Control Module C2 (NGC) Connector Pinouts And Circuits

G02701798

Courtesy of DAIMLERCHRYSLER CORP.

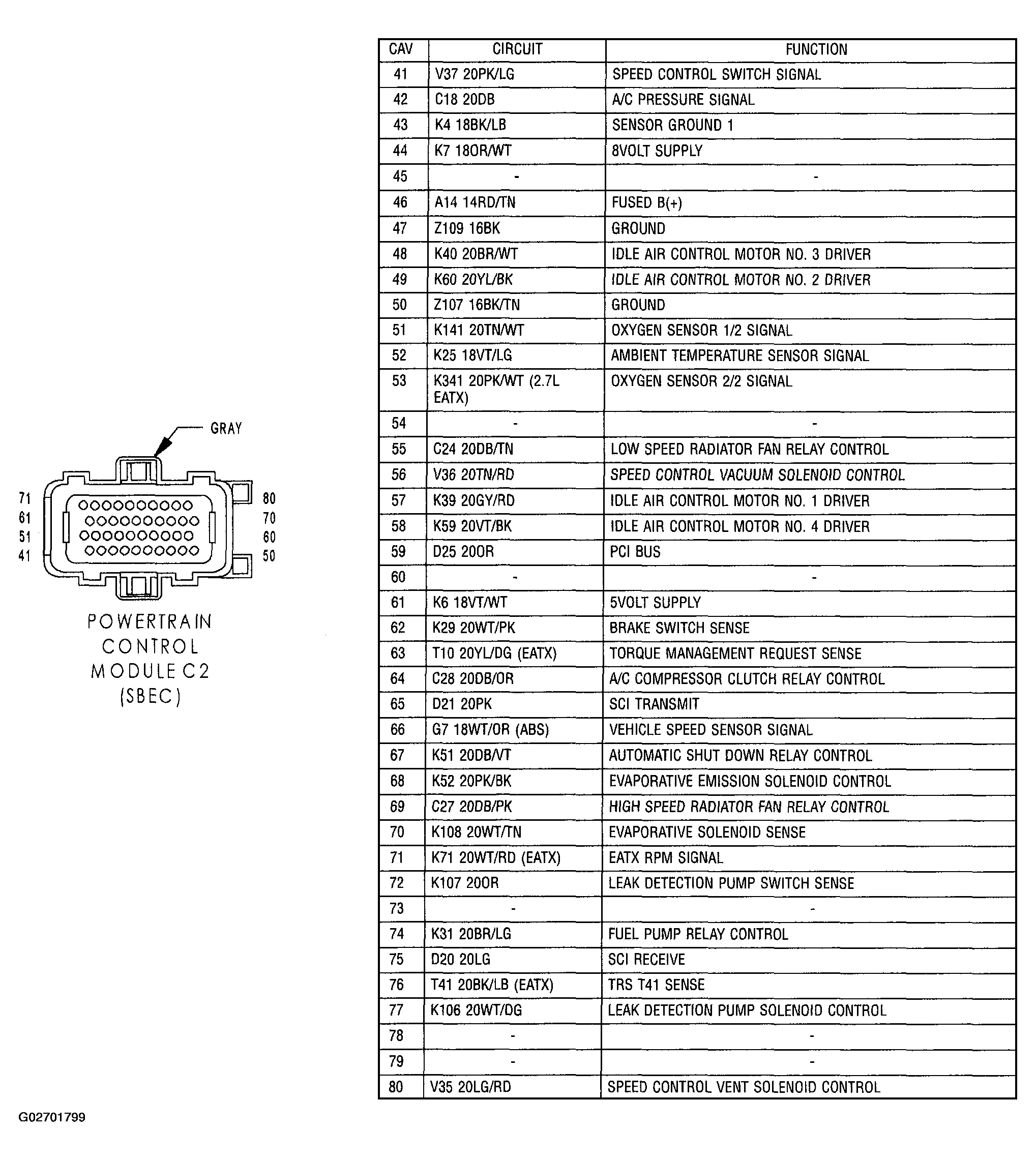

Fig 104: Identifying Powertrain Control Module C2 (SBEC) Connector Pinouts And Circuits

G02701799

Courtesy of DAIMLERCHRYSLER CORP.

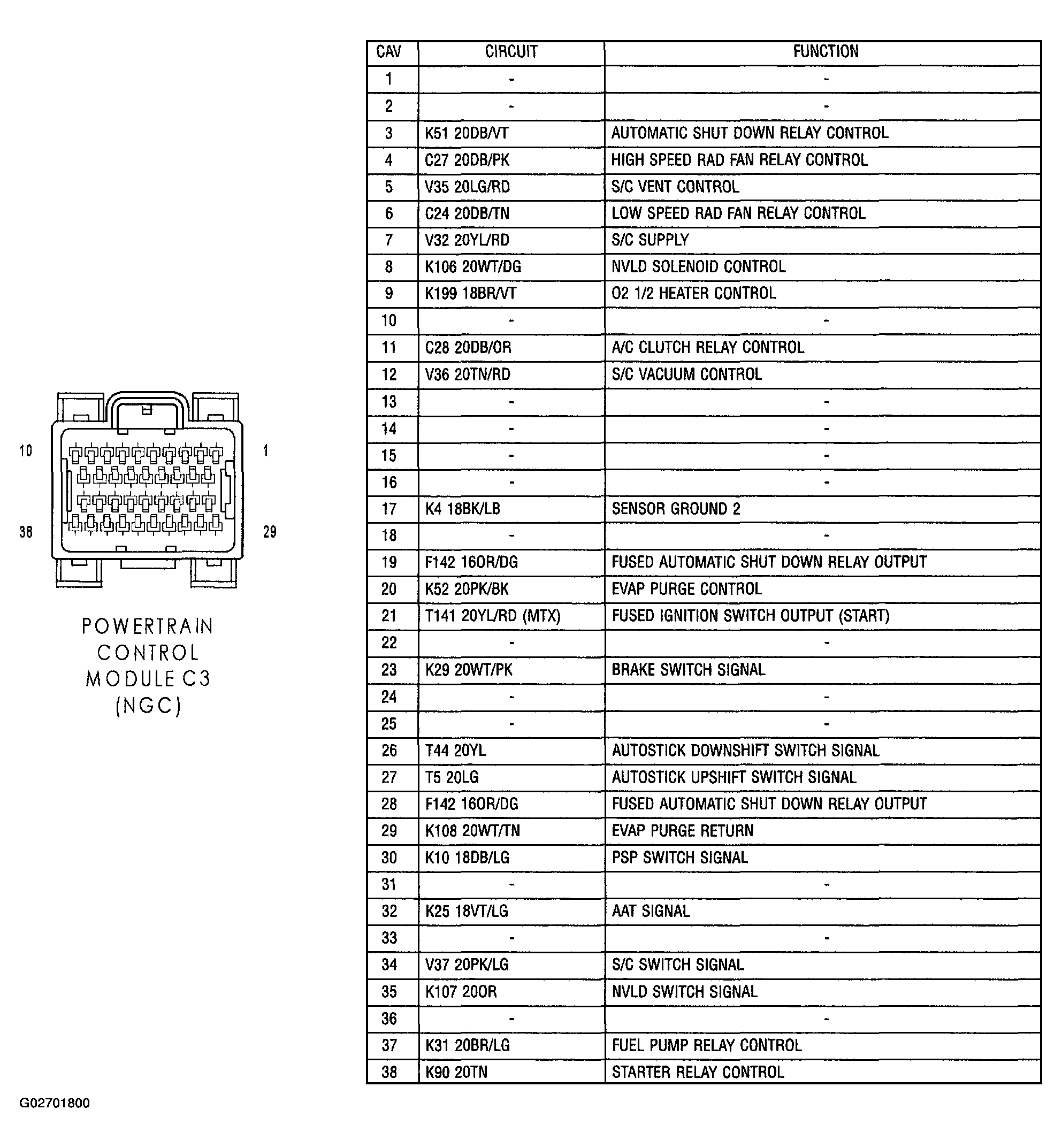

Fig 105: Identifying Powertrain Control Module C3 (NGC) Connector Pinouts And Circuits

G02701800

Courtesy of DAIMLERCHRYSLER CORP.

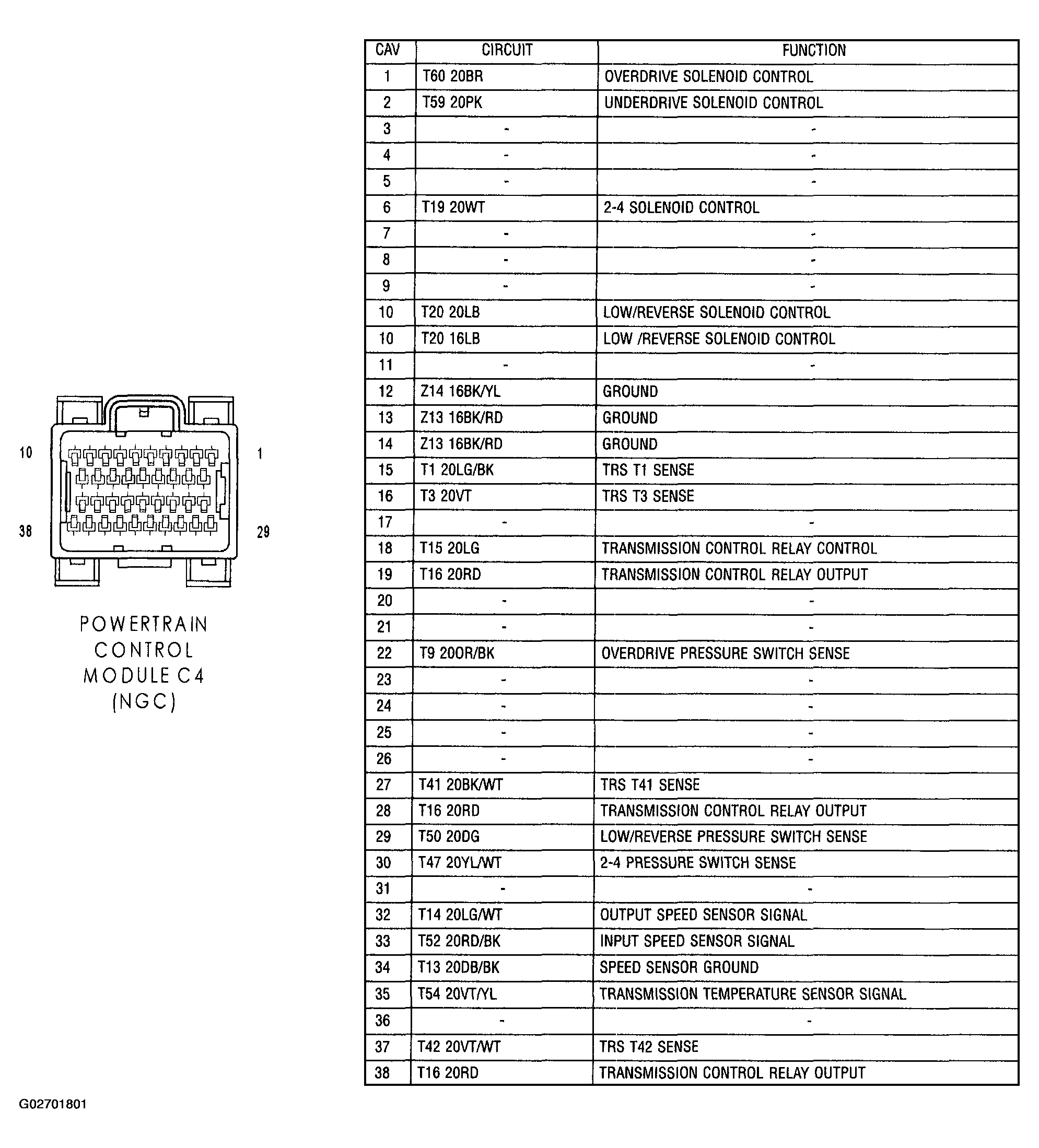

Fig 106: Identifying Powertrain Control Module C4 (NGC) Connector Pinouts And Circuits

G02701801

Courtesy of DAIMLERCHRYSLER CORP.

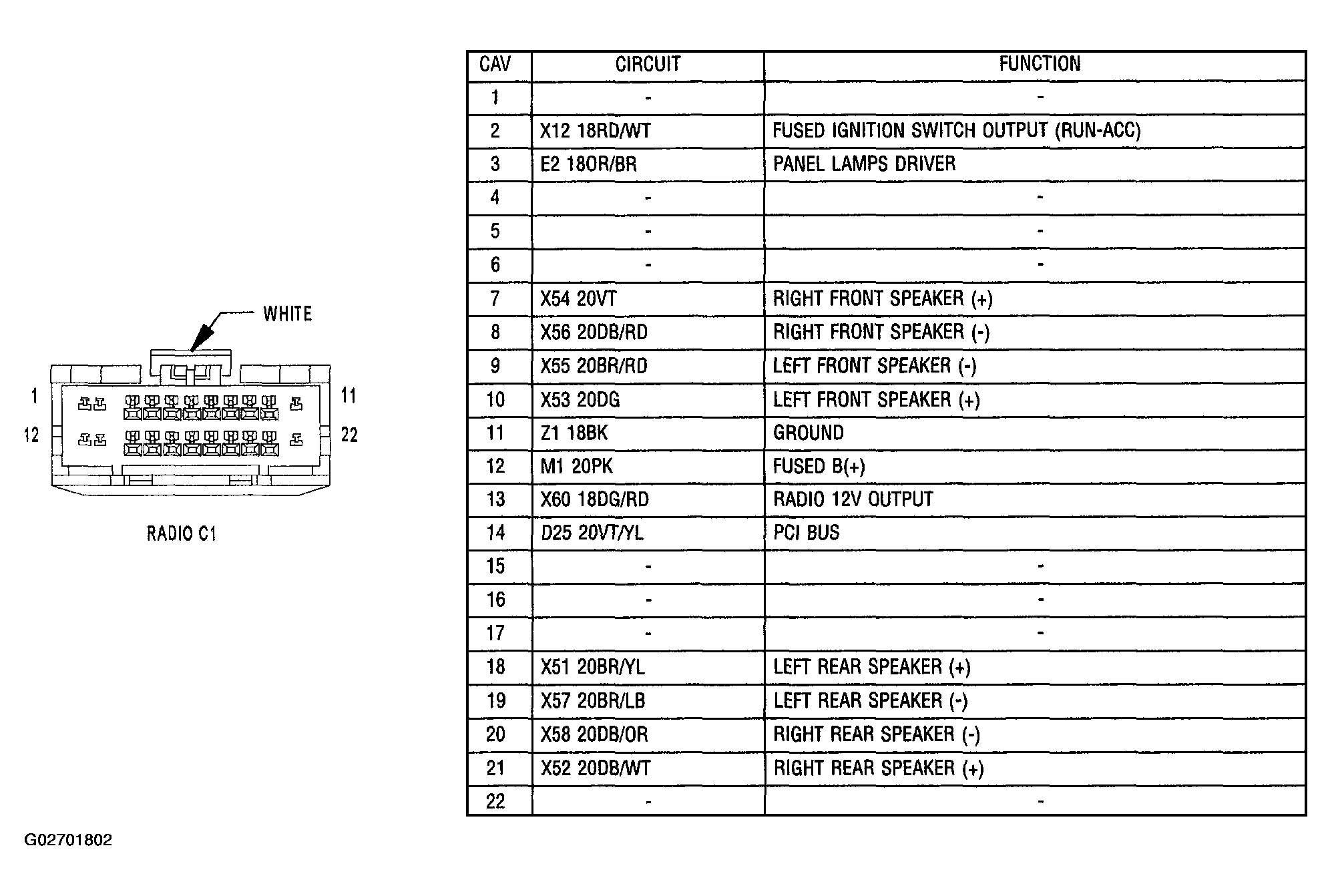

Fig 107: Identifying Radio C1 Connector Pinouts And Circuits

G02701802

Courtesy of DAIMLERCHRYSLER CORP.

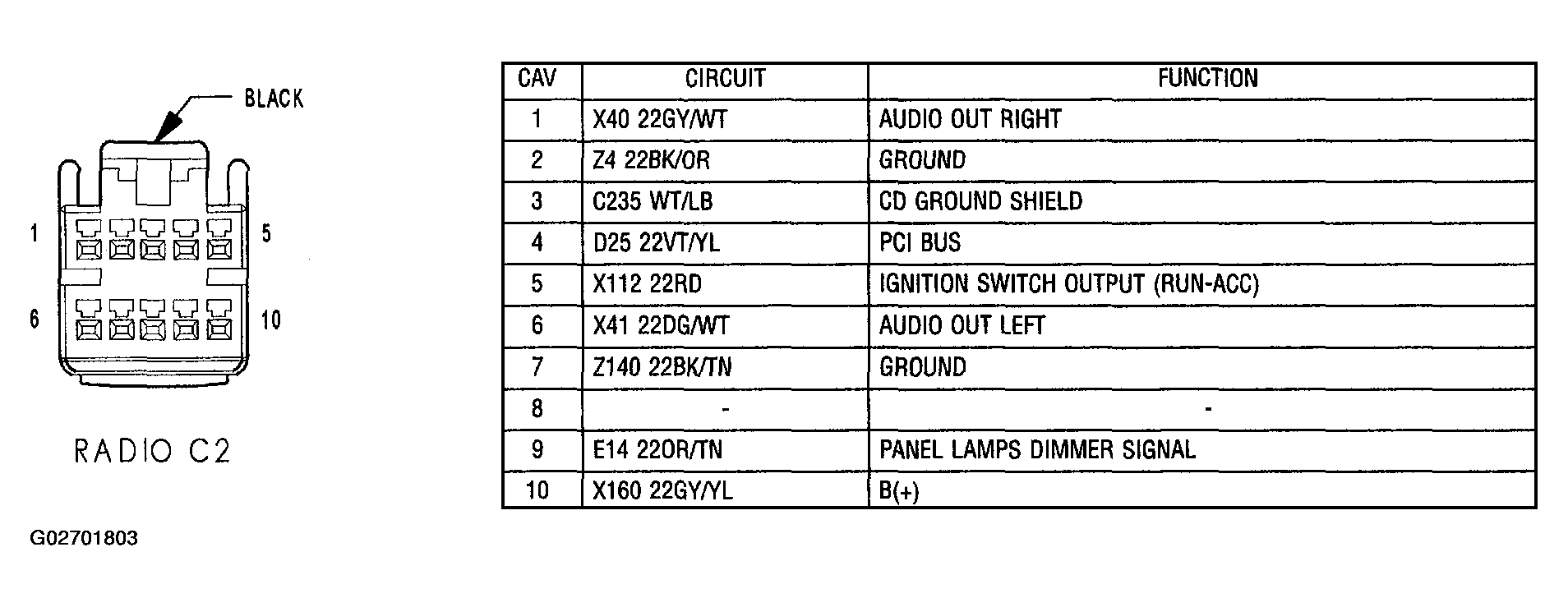

Fig 108: Identifying Radio C2 Connector Pinouts And Circuits

G02701803

Courtesy of DAIMLERCHRYSLER CORP.

Fig 109: Identifying Recirculation Door Actuator Connector Pinouts And Circuits

G02701804

Courtesy of DAIMLERCHRYSLER CORP.

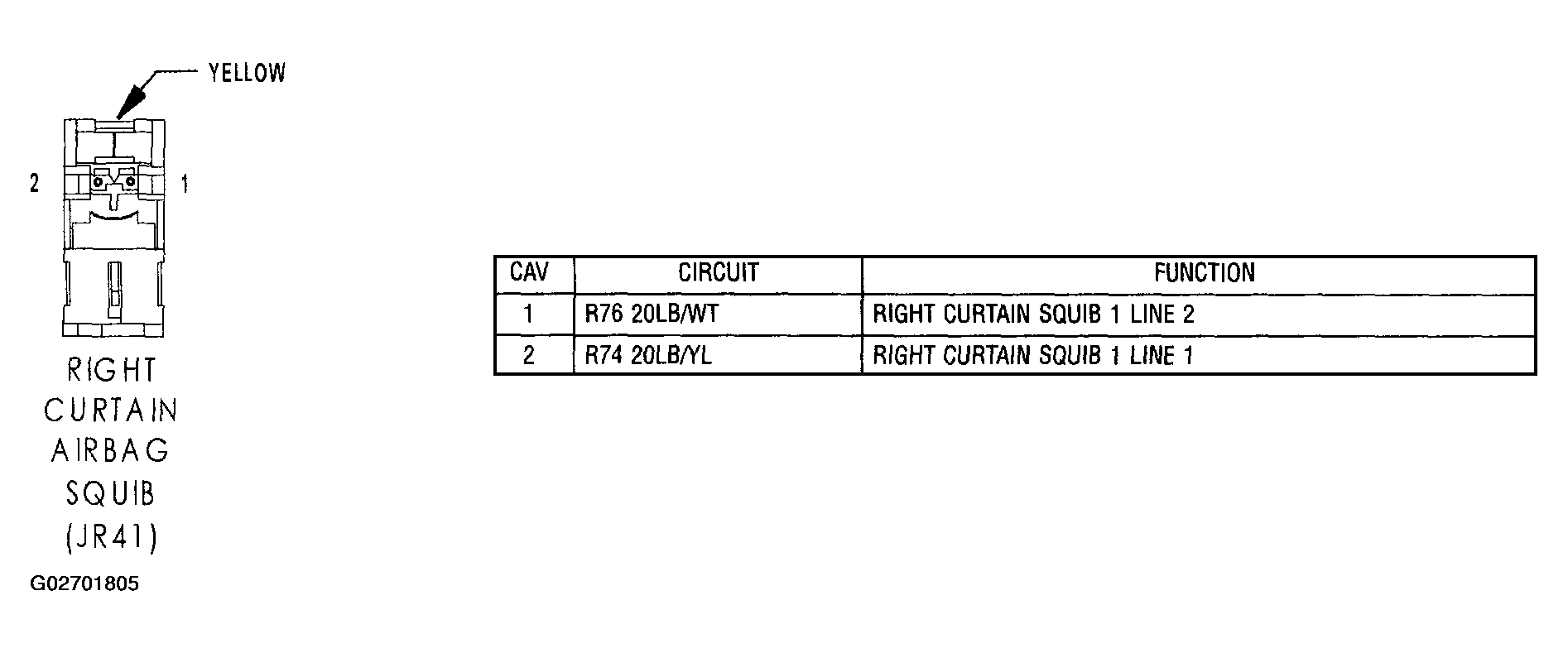

Fig 110: Identifying Right Curtain Airbag Squib (JR41) Connector Pinouts And Circuits

G02701805

Courtesy of DAIMLERCHRYSLER CORP.

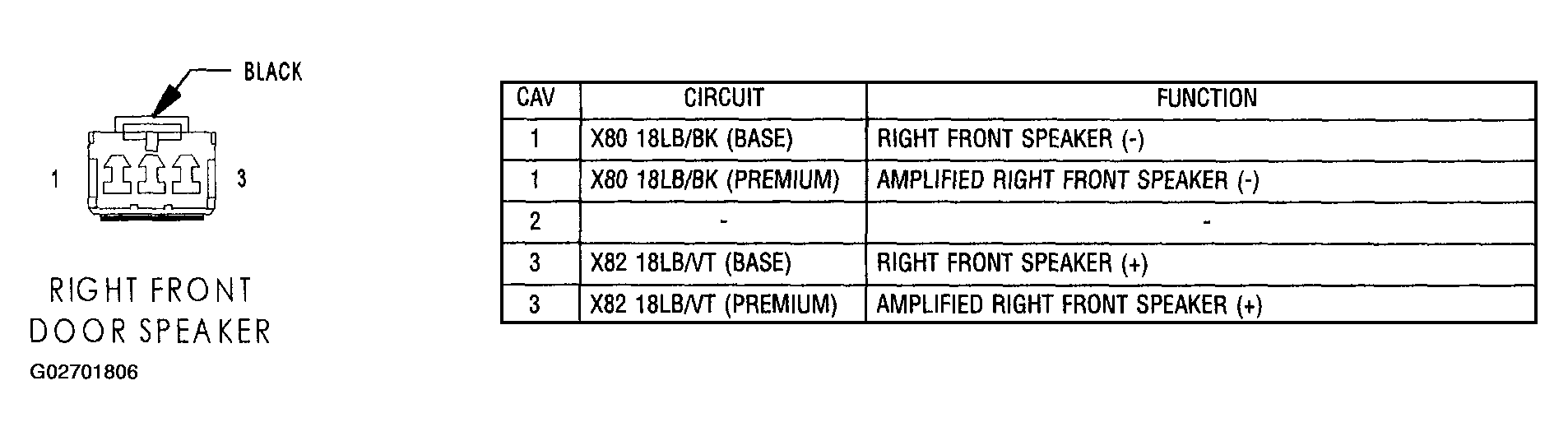

Fig 111: Identifying Right Front Door Speaker Connector Pinouts And Circuits

G02701806

Courtesy of DAIMLERCHRYSLER CORP.

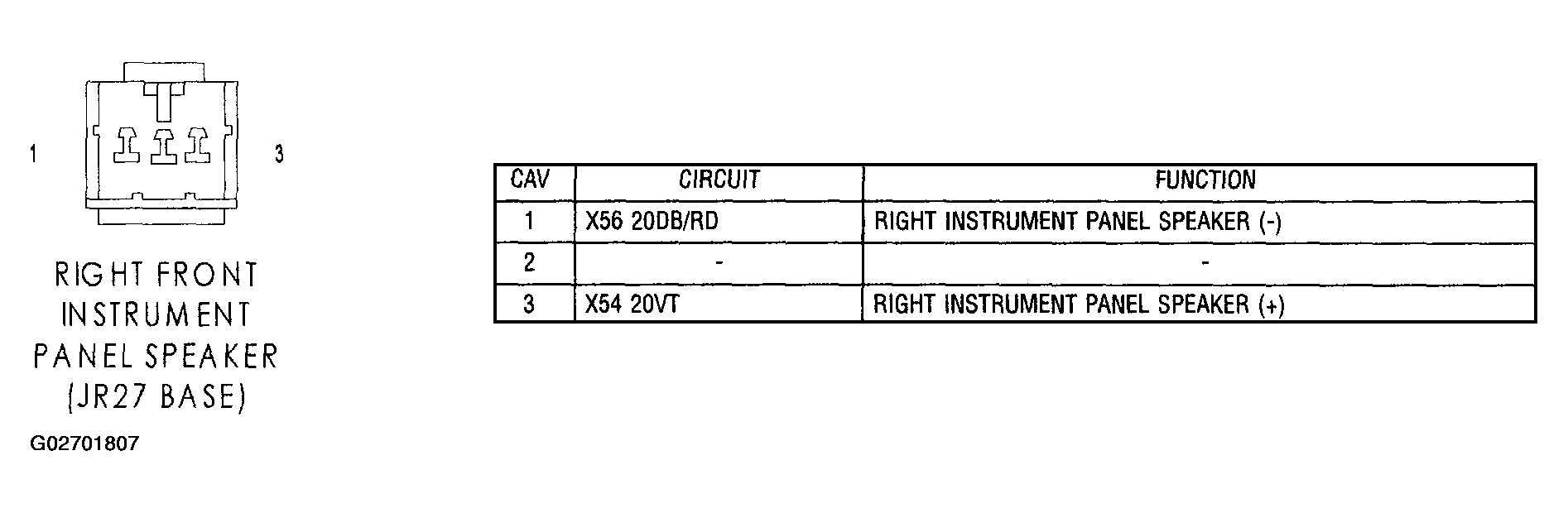

Fig 112: Identifying Right Front Instrument Panel Speaker (JR27 Base) Connector Pinouts And Circuits

G02701807

Courtesy of DAIMLERCHRYSLER CORP.

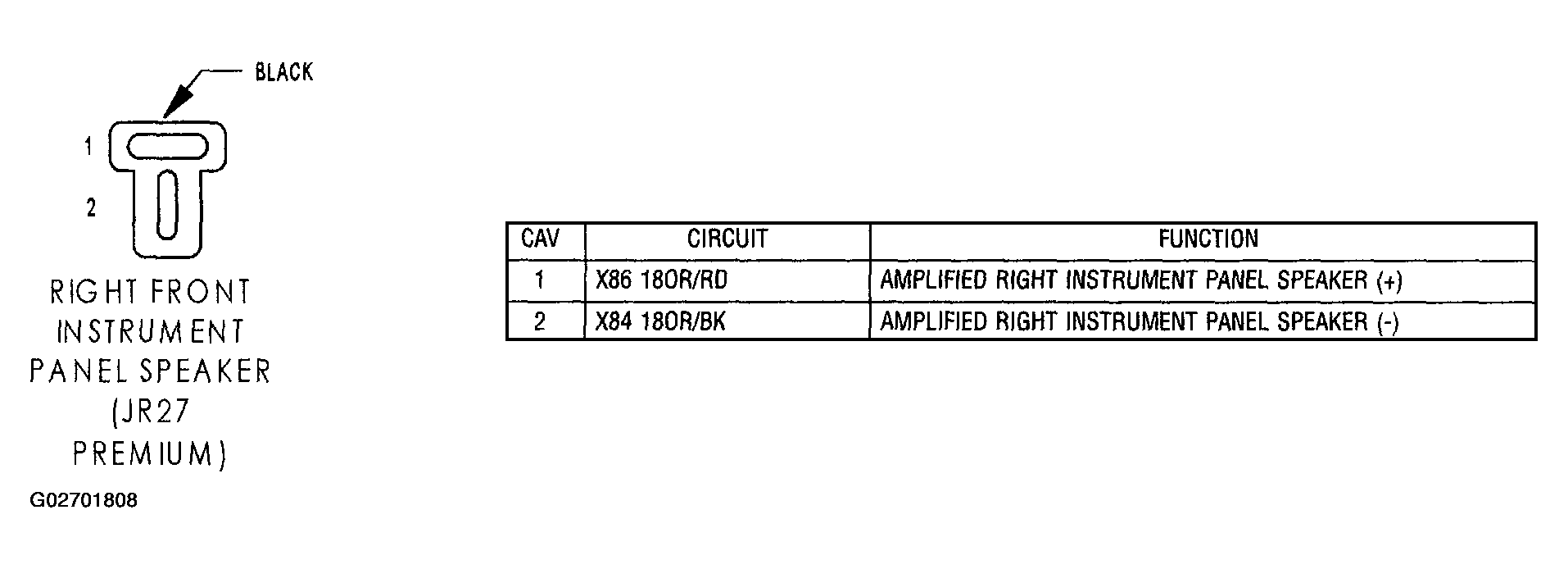

Fig 113: Identifying Right Front Instrument Panel Speaker (JR27 Premium) Connector Pinouts And Circuits

G02701808

Courtesy of DAIMLERCHRYSLER CORP.

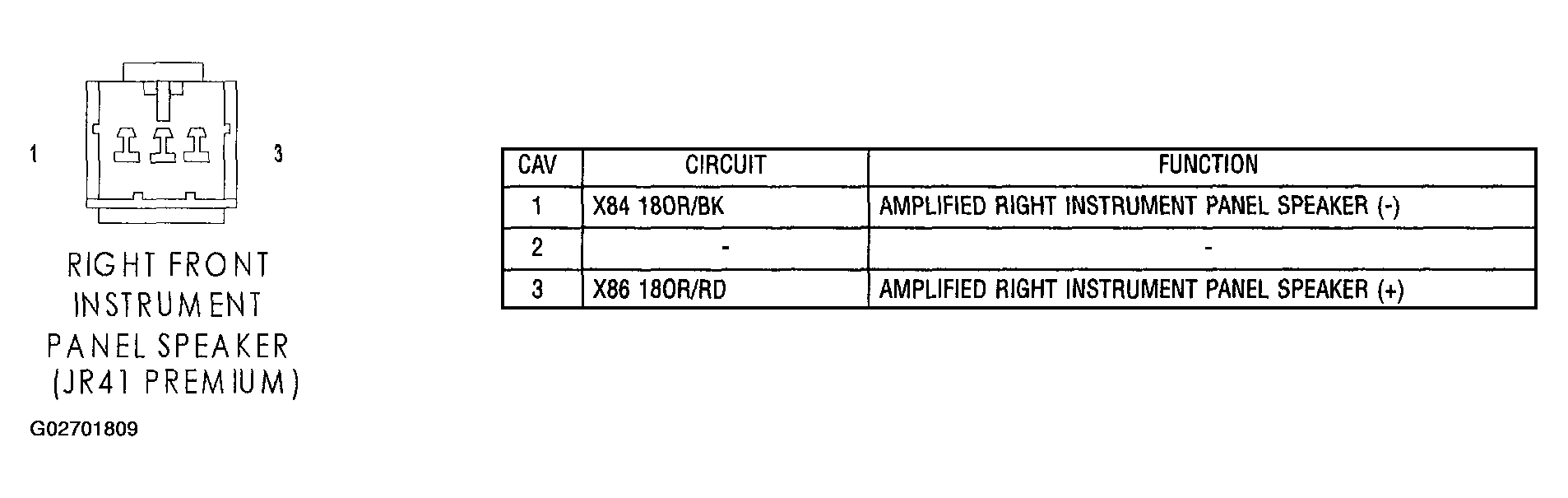

Fig 114: Identifying Right Front Instrument Panel Speaker (JR41 Premium) Connector Pinouts And Circuits

G02701809

Courtesy of DAIMLERCHRYSLER CORP.

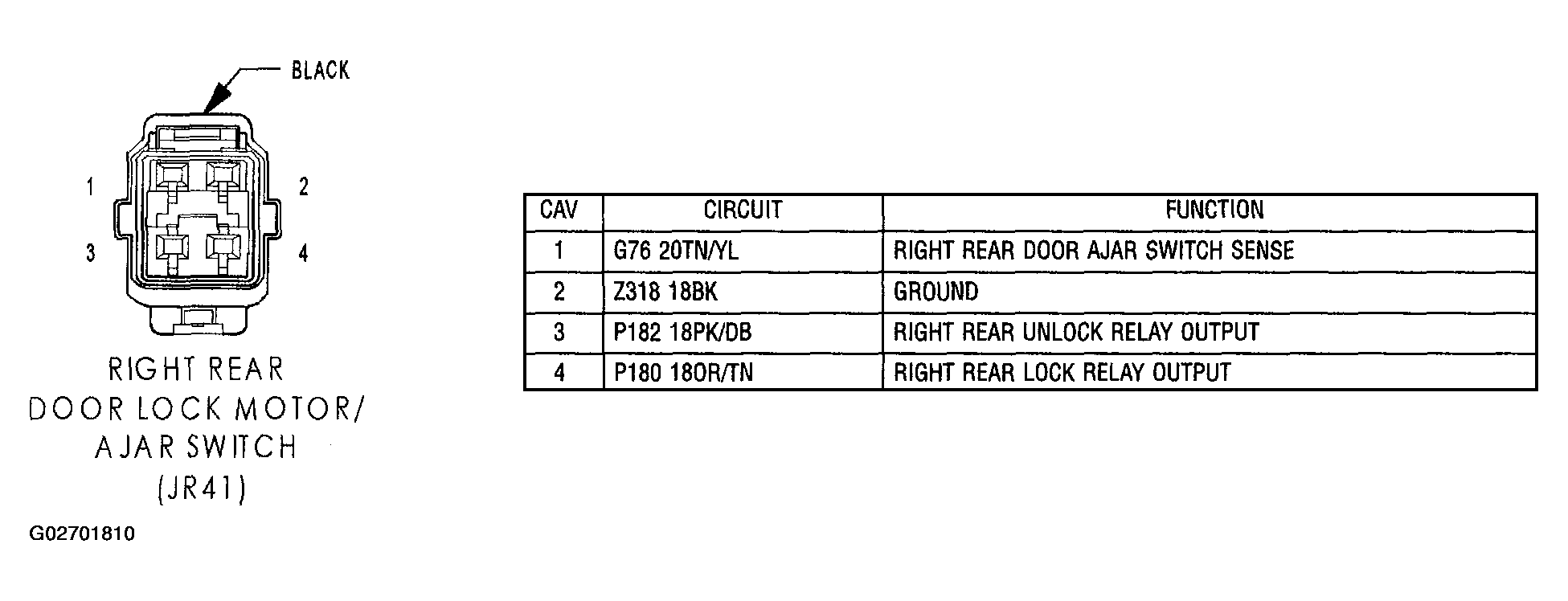

Fig 115: Identifying Right Rear Door Lock Motor/Ajar Switch (JR41) Connector Pinouts And Circuits

G02701810

Courtesy of DAIMLERCHRYSLER CORP.

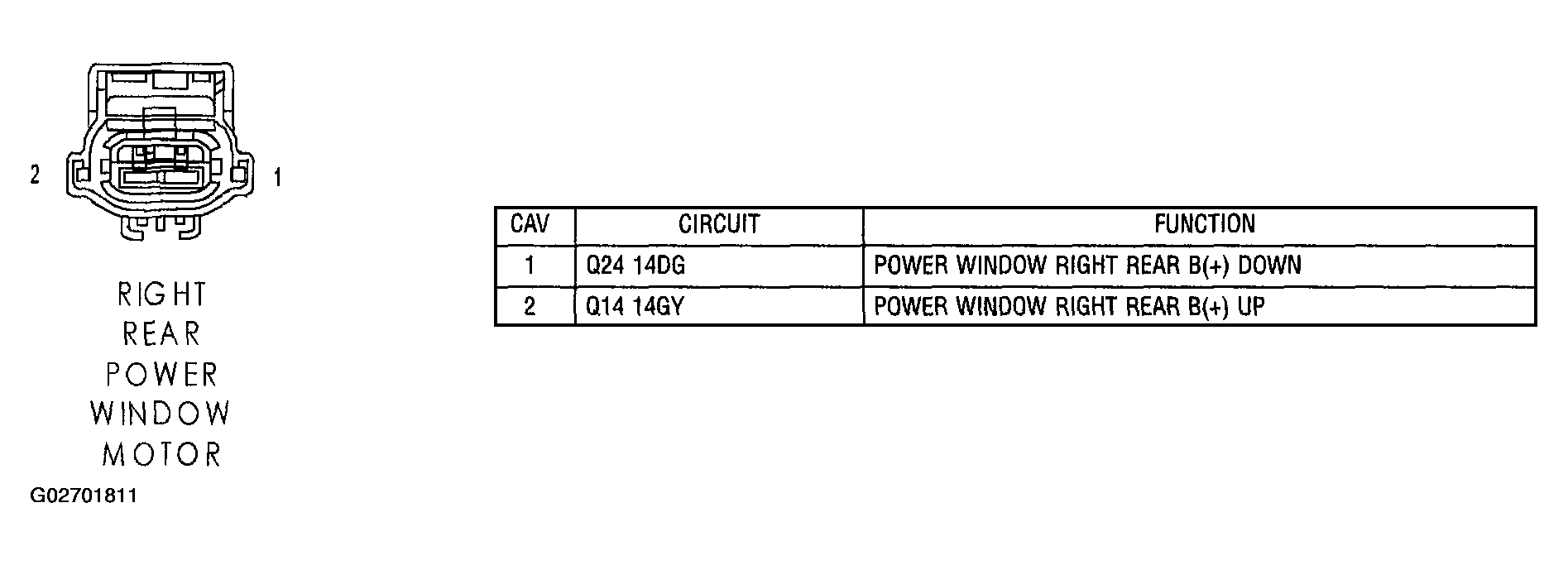

Fig 116: Identifying Right Rear Power Window Motor Connector Pinouts And Circuits

G02701811

Courtesy of DAIMLERCHRYSLER CORP.

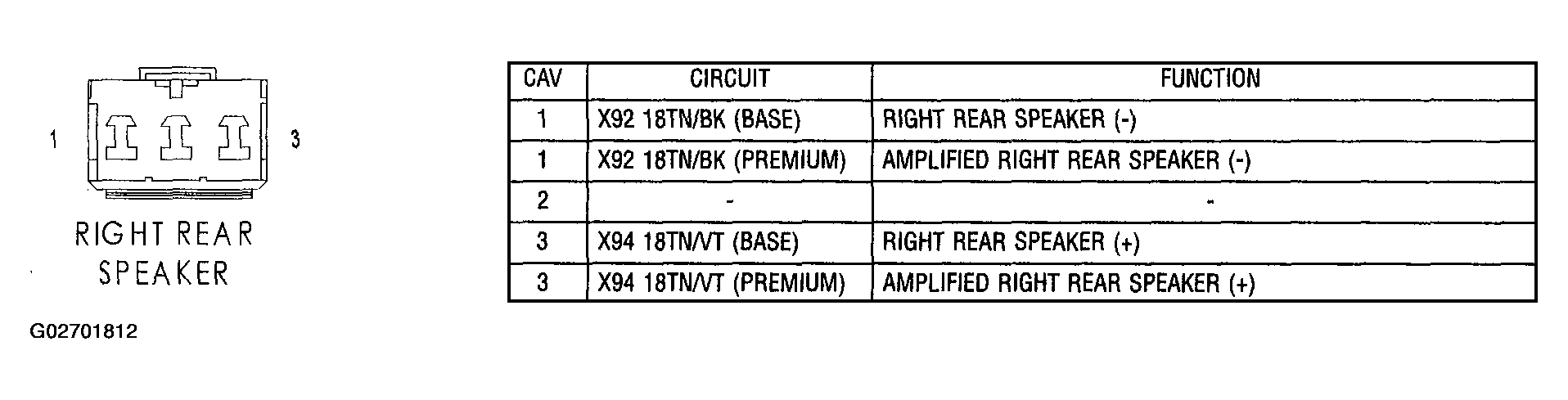

Fig 117: Identifying Right Rear Speaker Connector Pinouts And Circuits

G02701812

Courtesy of DAIMLERCHRYSLER CORP.

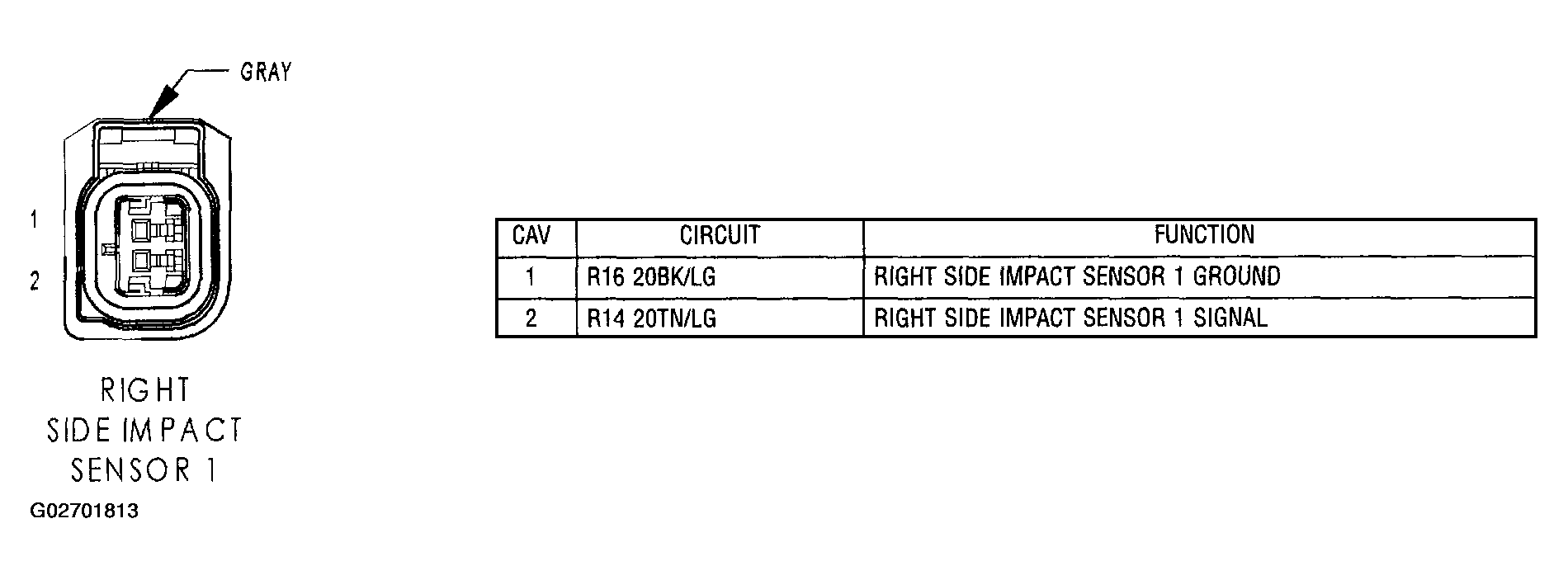

Fig 118: Identifying Right Side Impact Sensor 1 Connector Pinouts And Circuits

G02701813

Courtesy of DAIMLERCHRYSLER CORP.

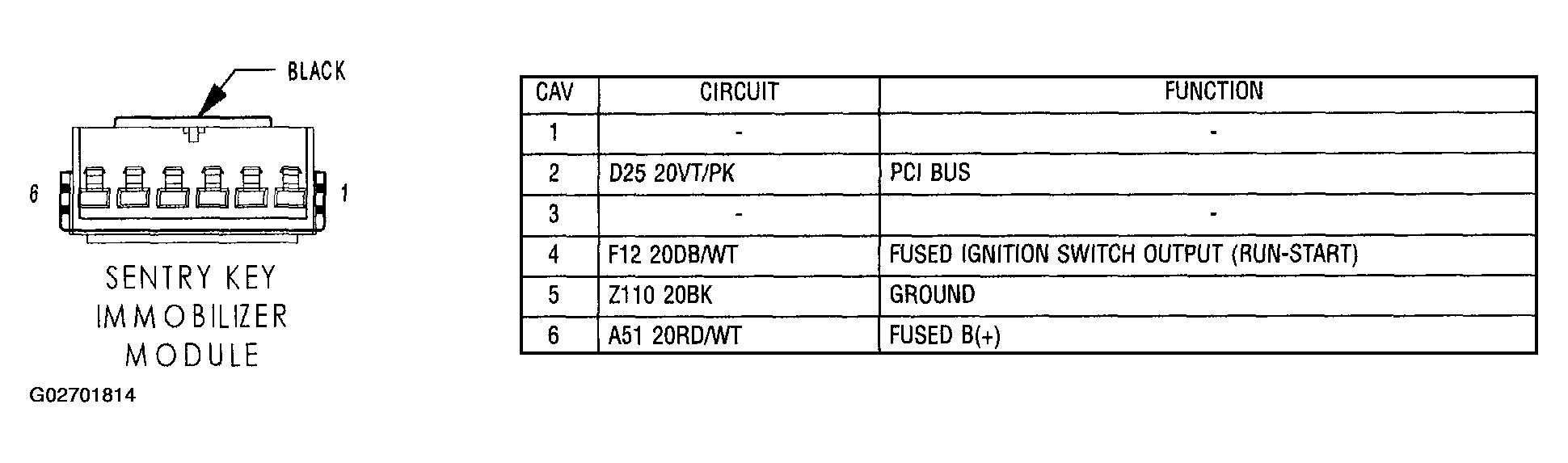

Fig 119: Identifying Sentry Key Immobilizer Module Connector Pinouts And Circuits

G02701814

Courtesy of DAIMLERCHRYSLER CORP.

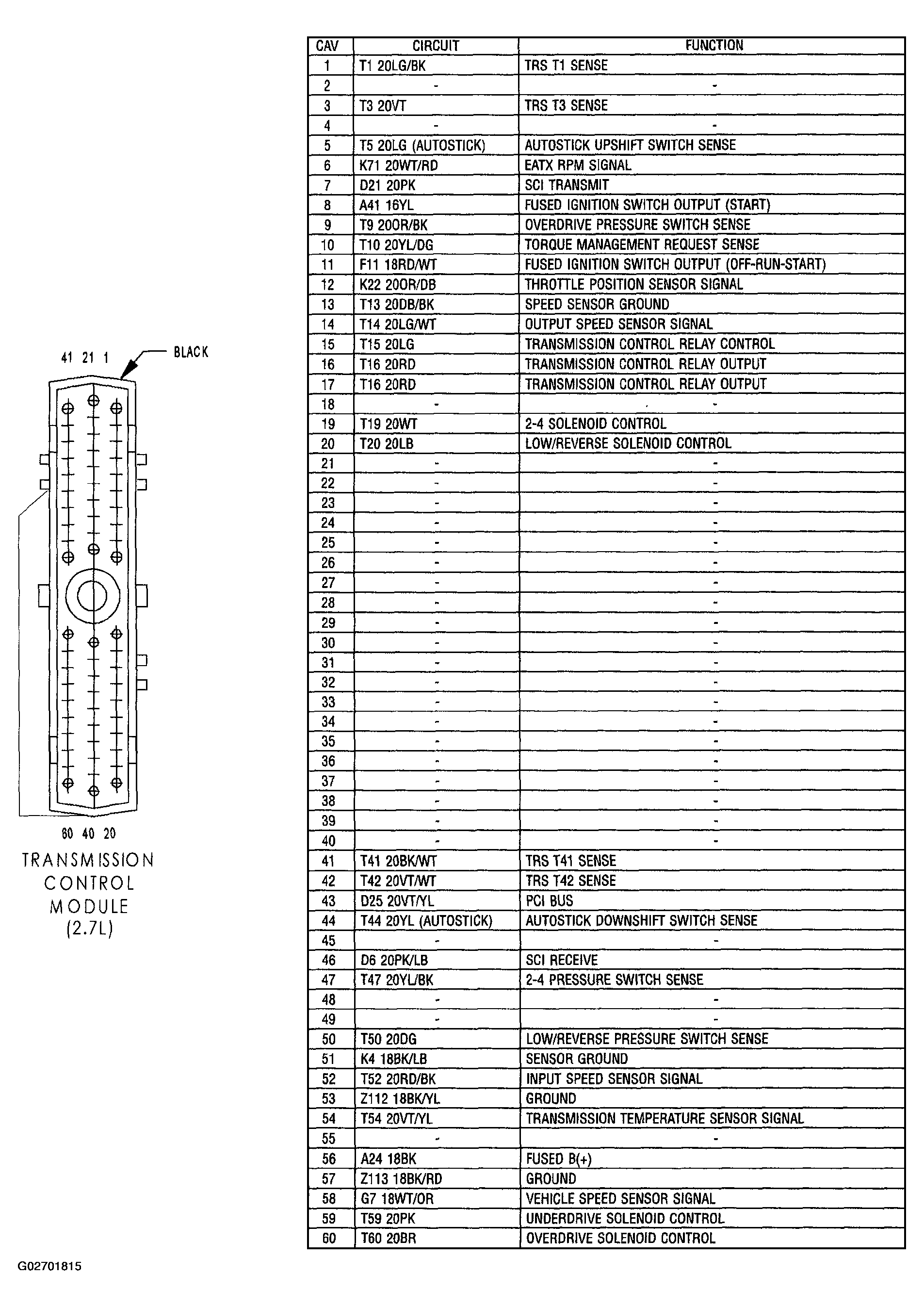

Fig 120: Identifying Transmission Control Module (2.7L) Connector Pinouts And Circuits

G02701815

Courtesy of DAIMLERCHRYSLER CORP.

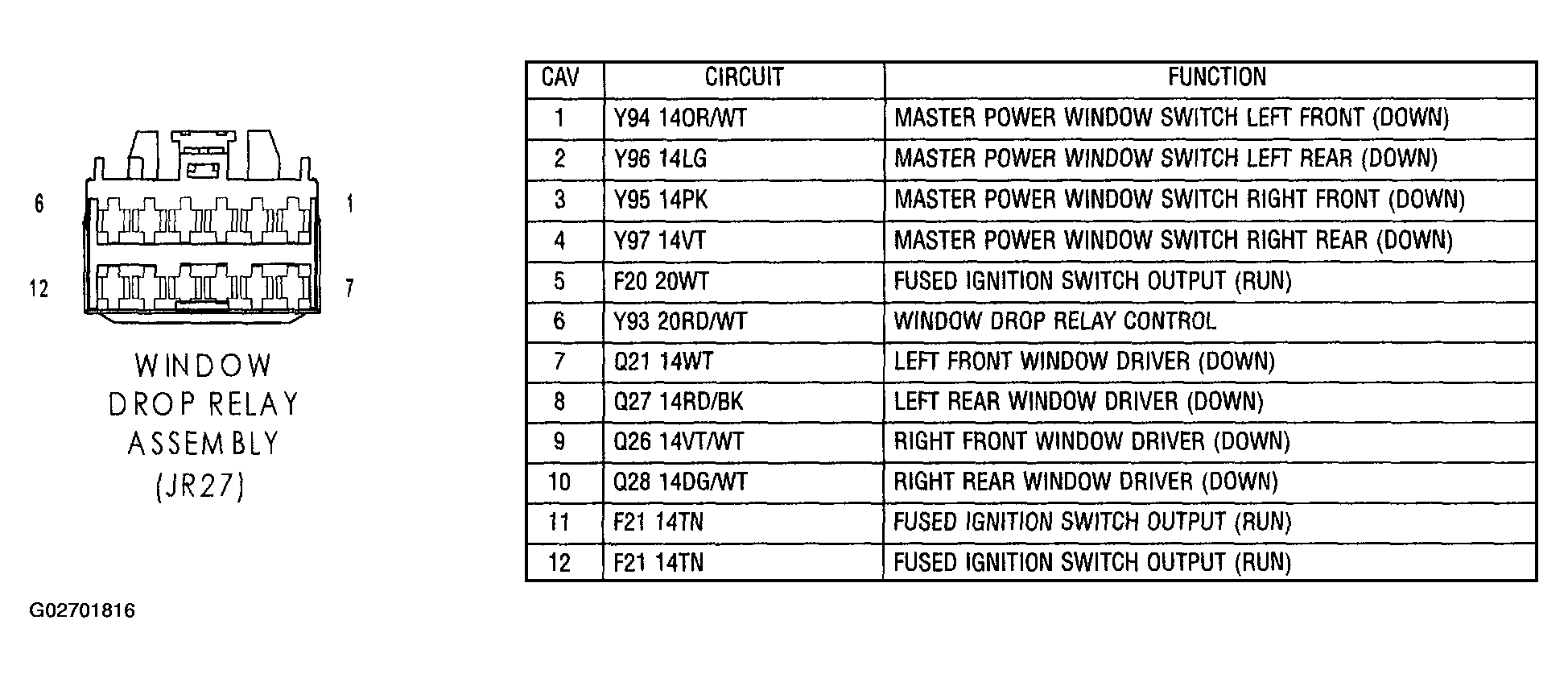

Fig 121: Identifying Window Drop Relay Assembly (JR27) Connector Pinouts And Circuits

G02701816

Courtesy of DAIMLERCHRYSLER CORP.
