PCI Bus Communication

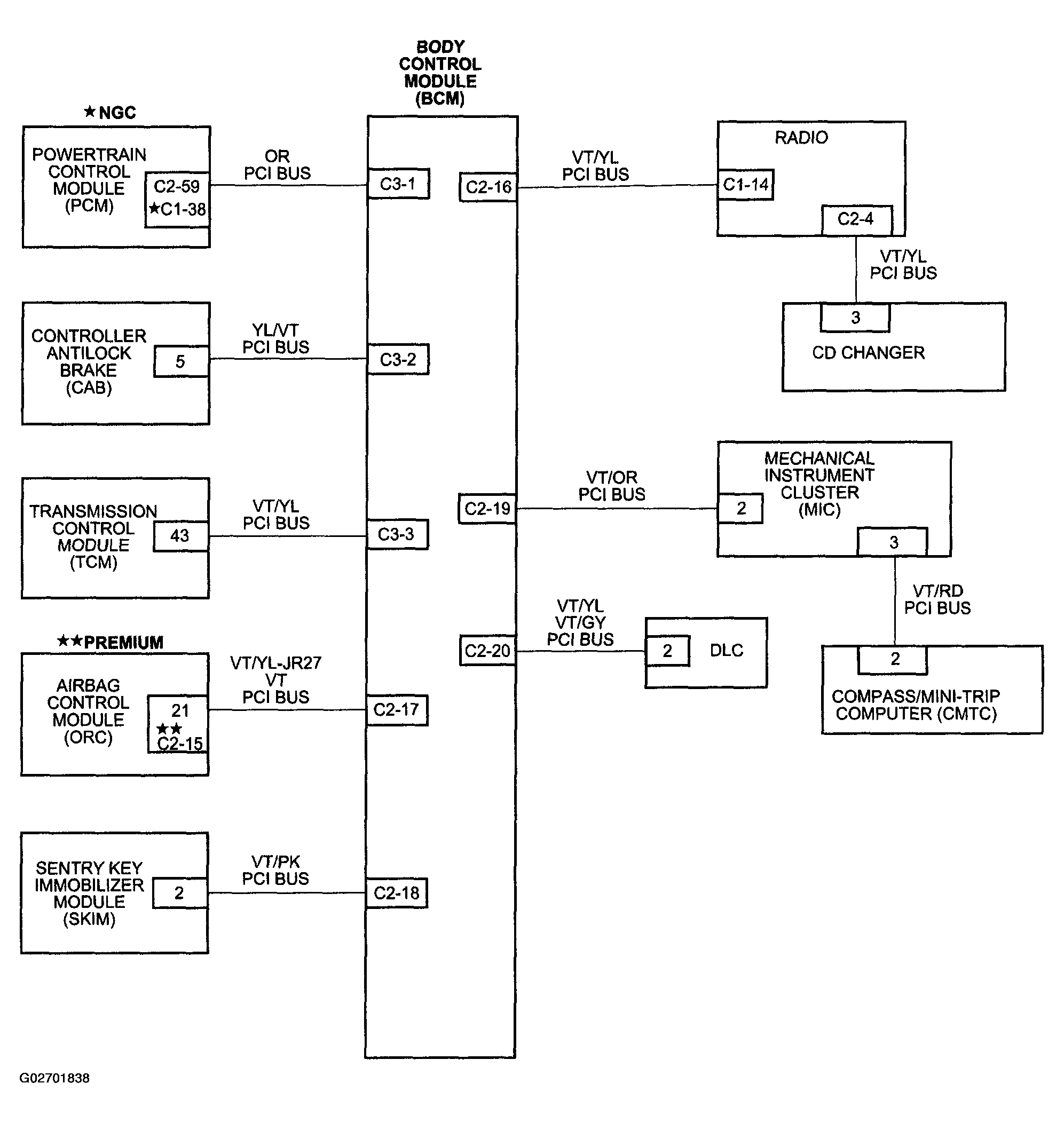

Fig 1: PCI Bus Communication Schematic Diagram
G02701838Courtesy of DAIMLERCHRYSLER CORP.
