HVAC Actuators & EVAP Temperature Sensor

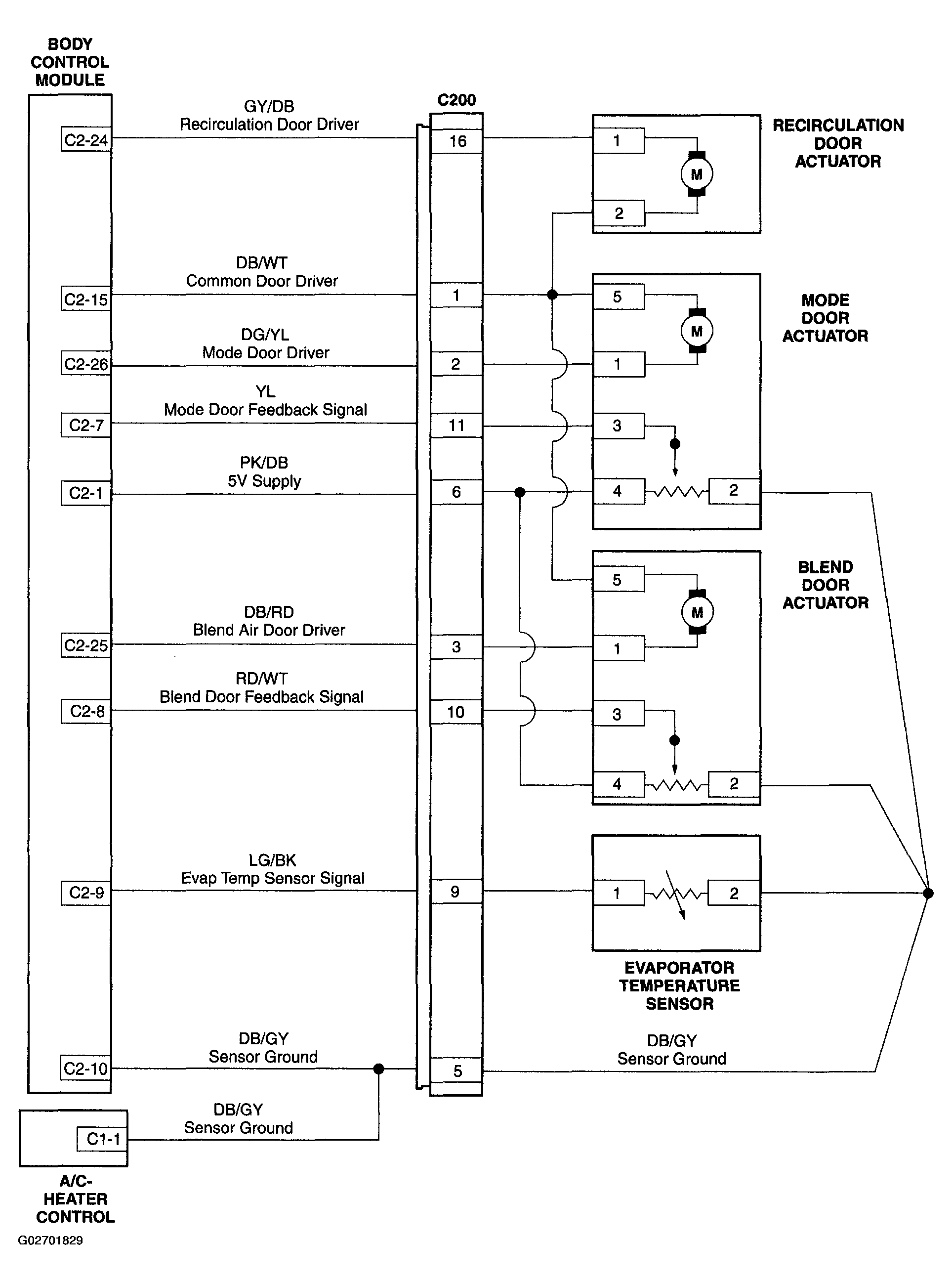

Fig 1: HVAC Actuators & EVAP Temperature Sensor Schematic Diagram

G02701829

Courtesy of DAIMLERCHRYSLER CORP.
