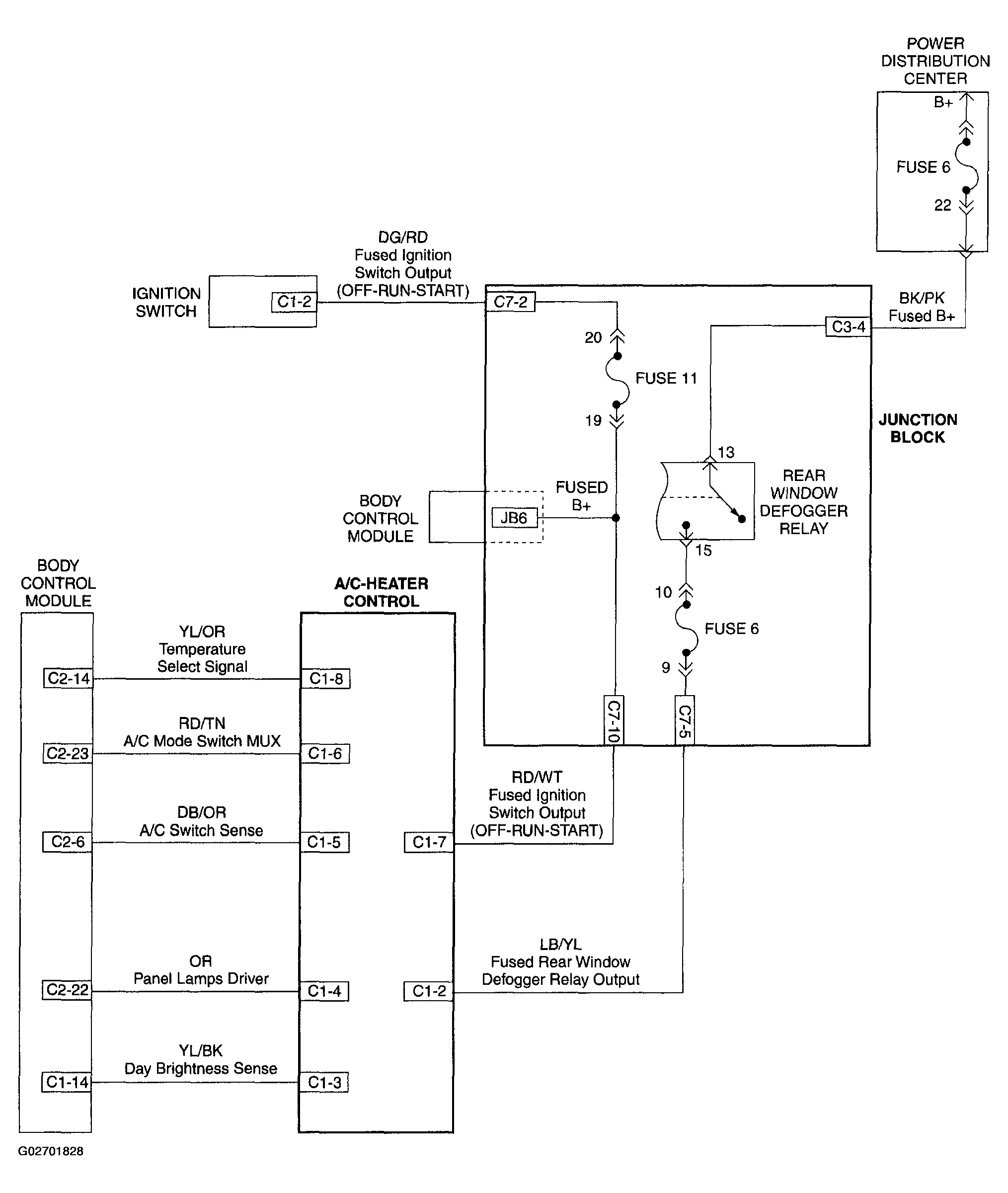

Home >> Chrysler >> 2003 >> Sebring LXi, 2D Convertible >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Diagnostic Procedures - Except Coupe >> Schematic Diagrams >> Heating And A/C >> A/C Heater Control
