Premium System-Jr41
Premium System-Jr41

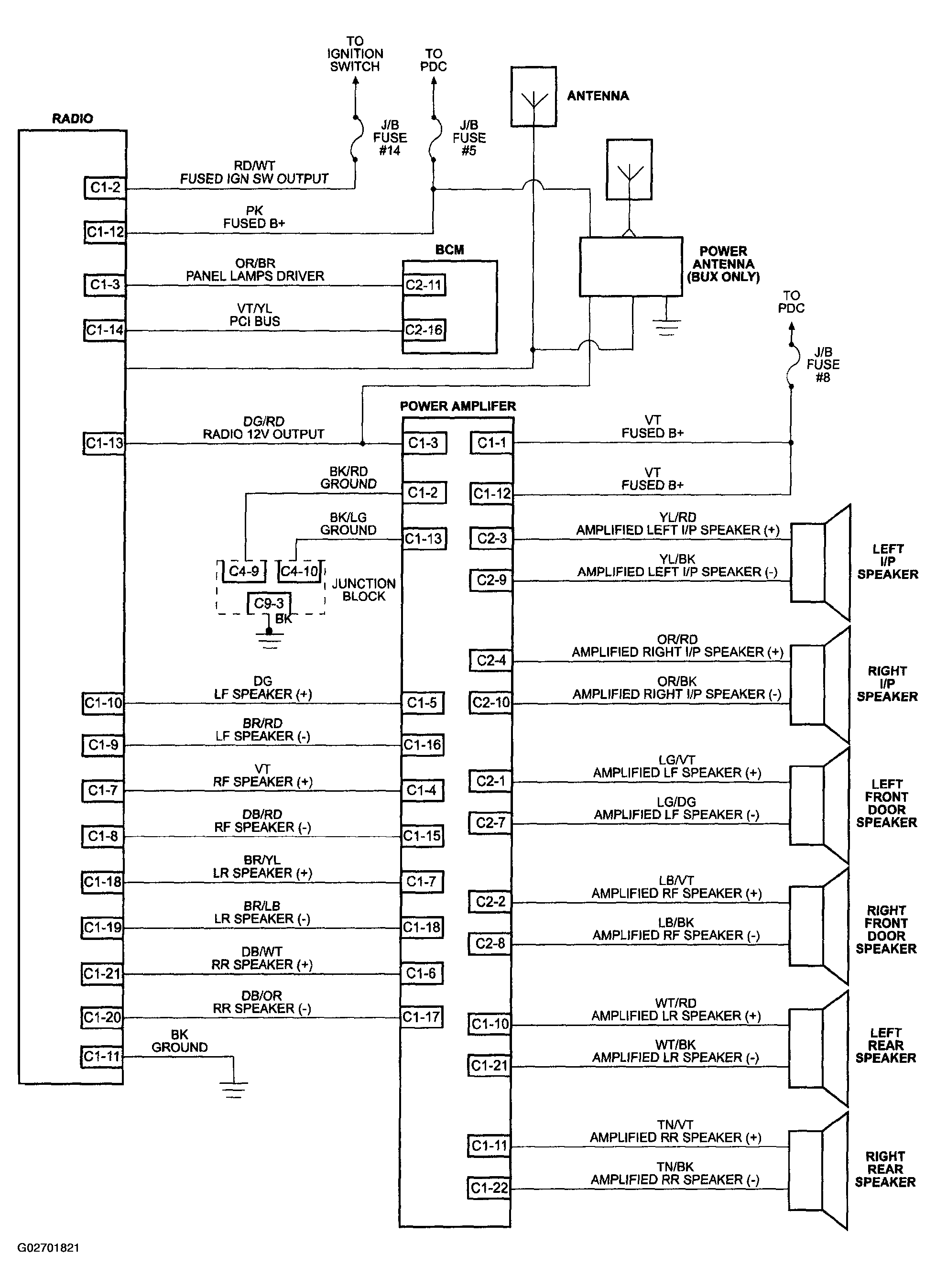

Fig 1: Premium System-JR41 Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
