Wiper Park Switch Shorted To Ground - Diagnostic Procedure

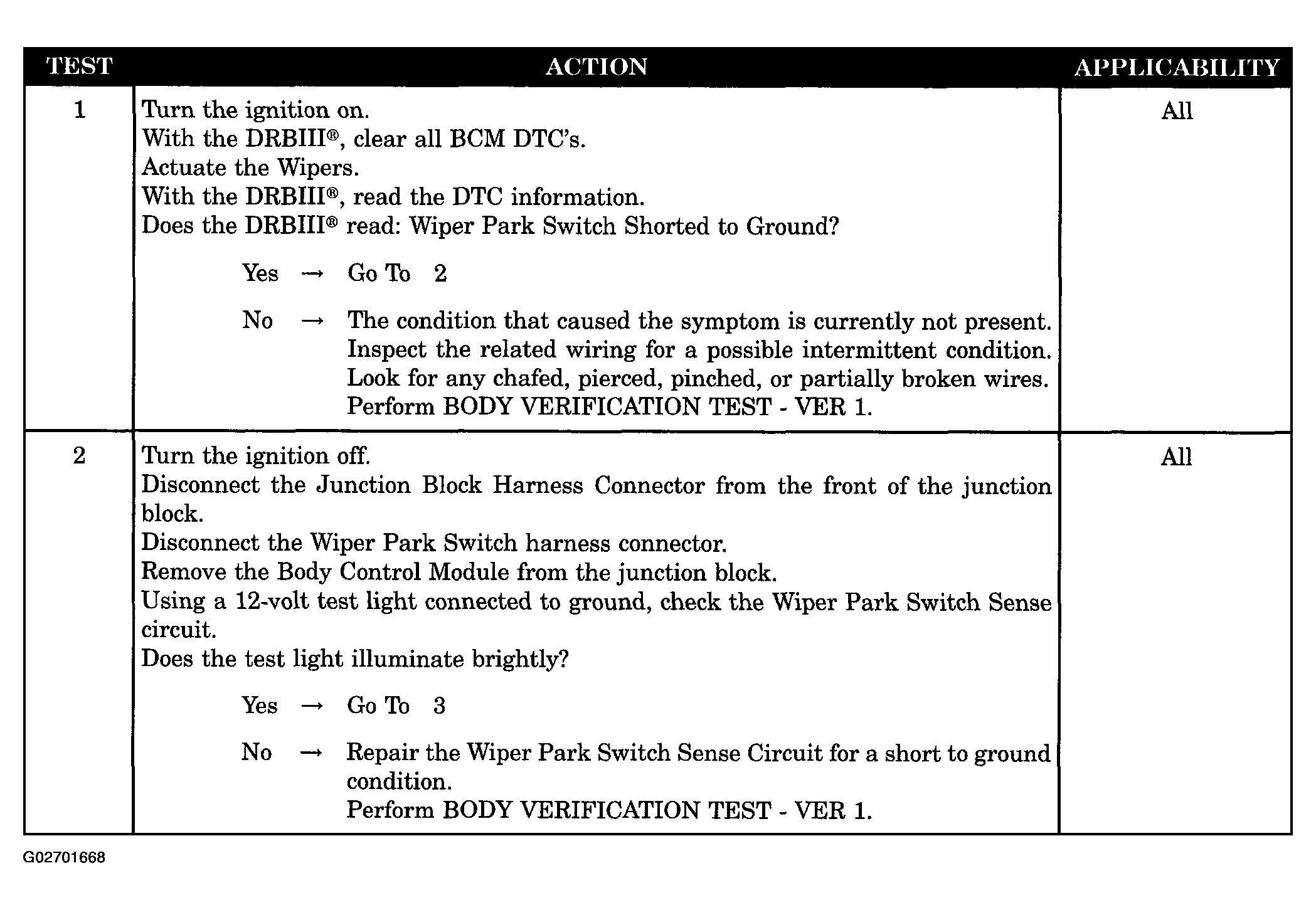

Fig 1: Wiper Park Switch Shorted To Ground - Diagnostic Procedure (1 Of 2)
G02701668Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Wiper Park Switch Shorted To Ground - Diagnostic Procedure (2 Of 2)
G02701669Courtesy of DAIMLERCHRYSLER CORP.
