Wiper Park Switch Open Circuit - Diagnostic Procedure

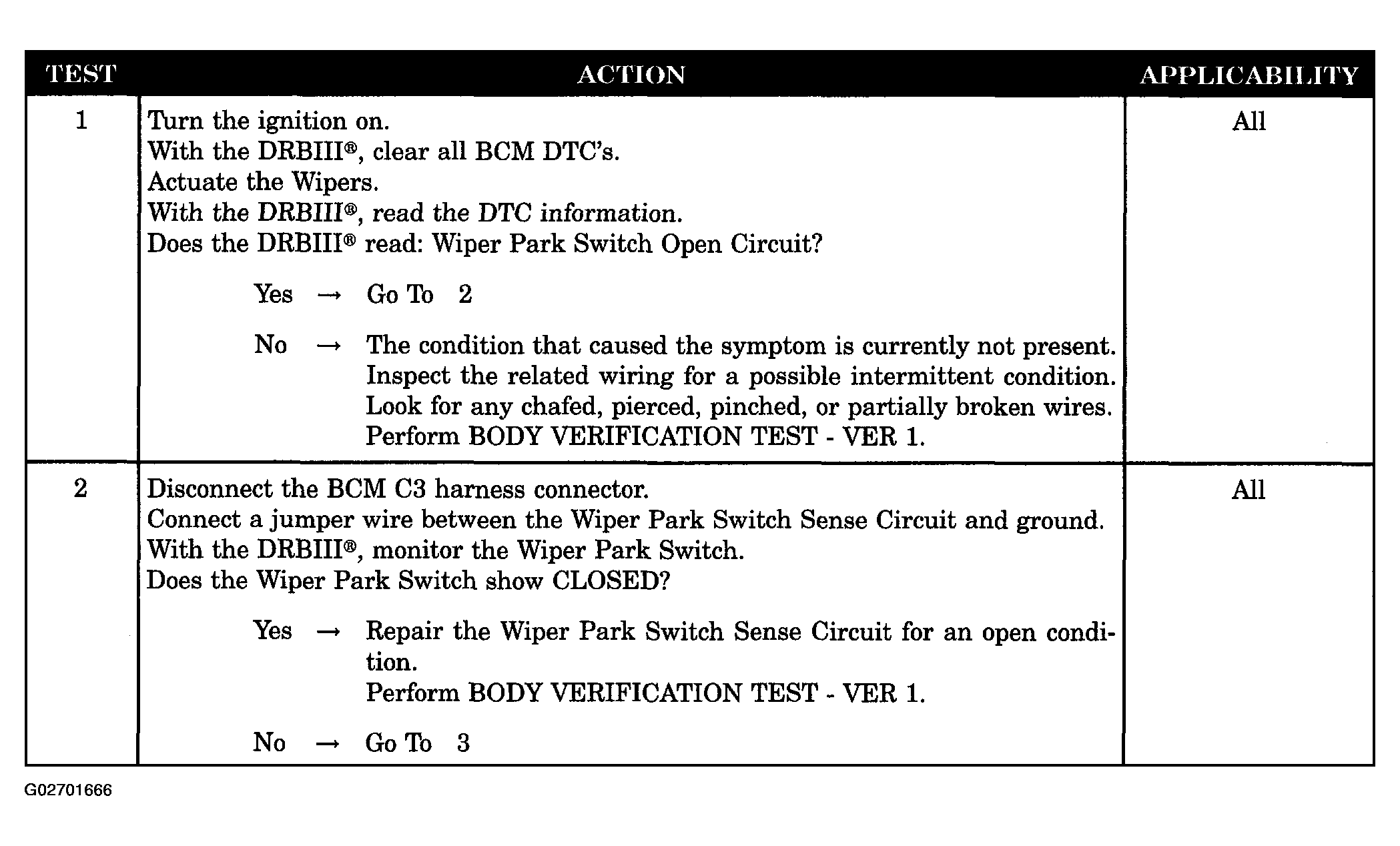

Fig 1: Wiper Park Switch Open Circuit - Diagnostic Procedure (1 Of 2)
G02701666Courtesy of DAIMLERCHRYSLER CORP.

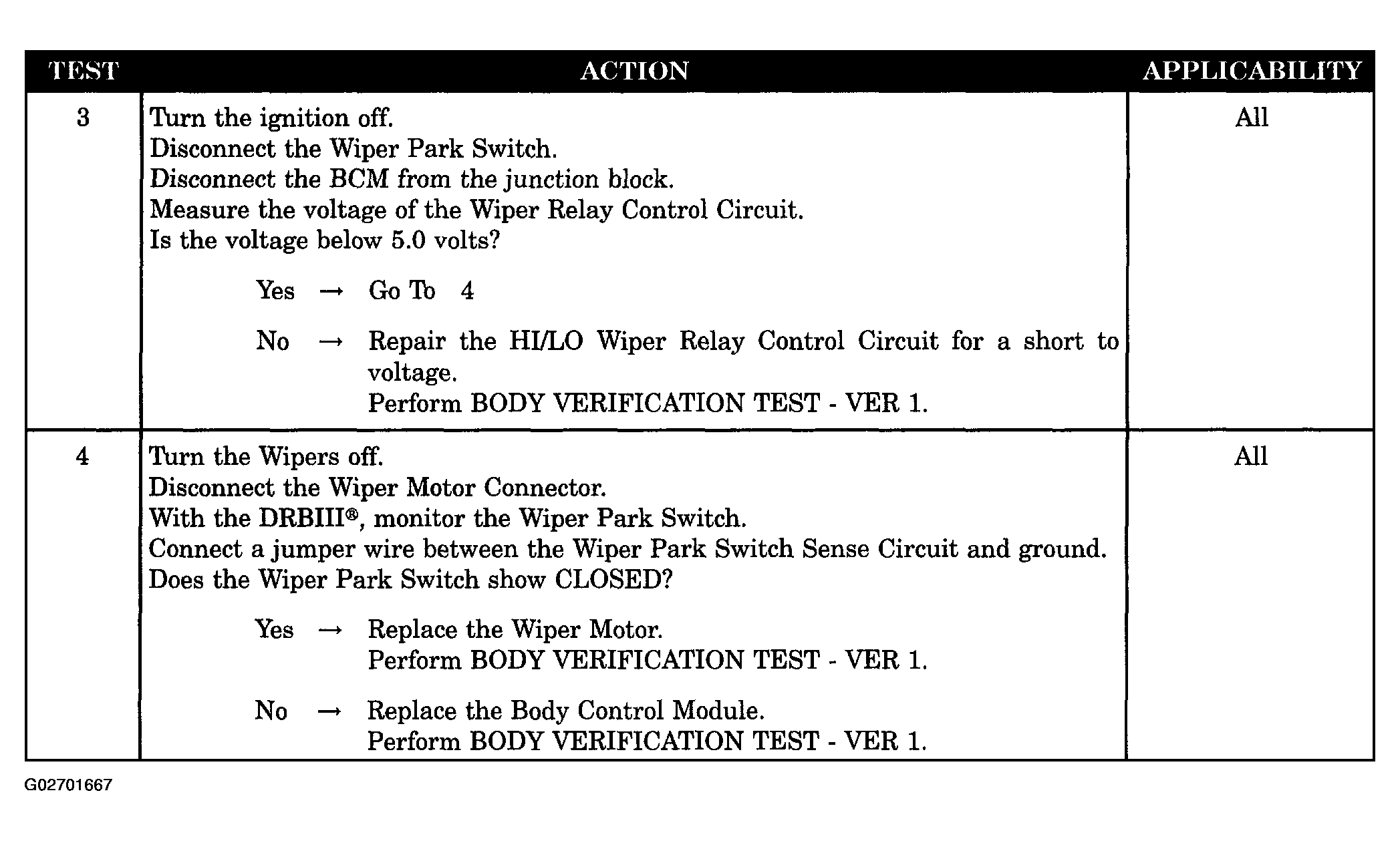

Fig 2: Wiper Park Switch Open Circuit - Diagnostic Procedure (2 Of 2)
G02701667Courtesy of DAIMLERCHRYSLER CORP.
