Wiper On/Off Relay Output Shorted Low - Diagnostic Procedure

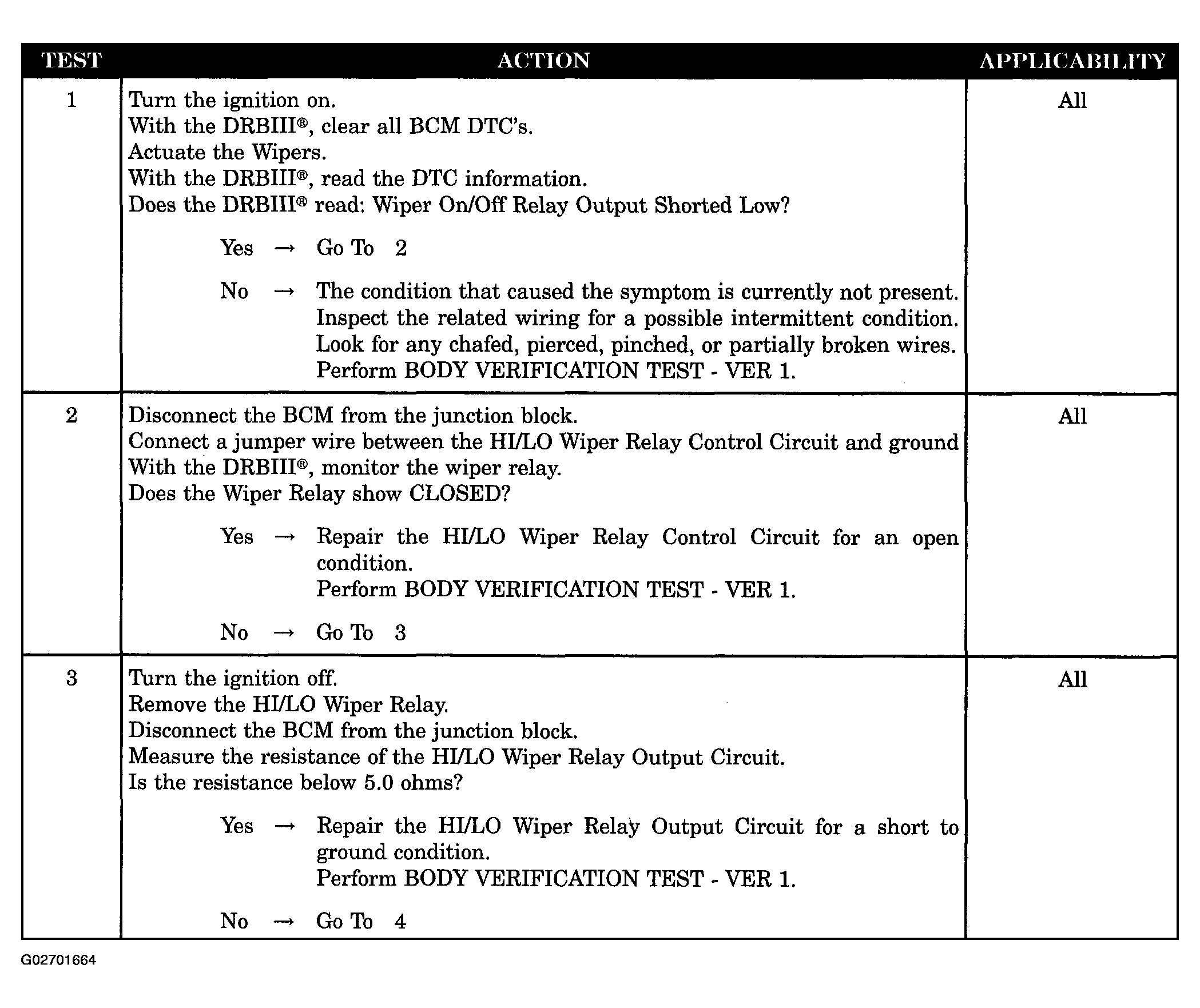

Fig 1: Wiper On/Off Relay Output Shorted Low - Diagnostic Procedure (1 Of 2)
G02701664Courtesy of DAIMLERCHRYSLER CORP.

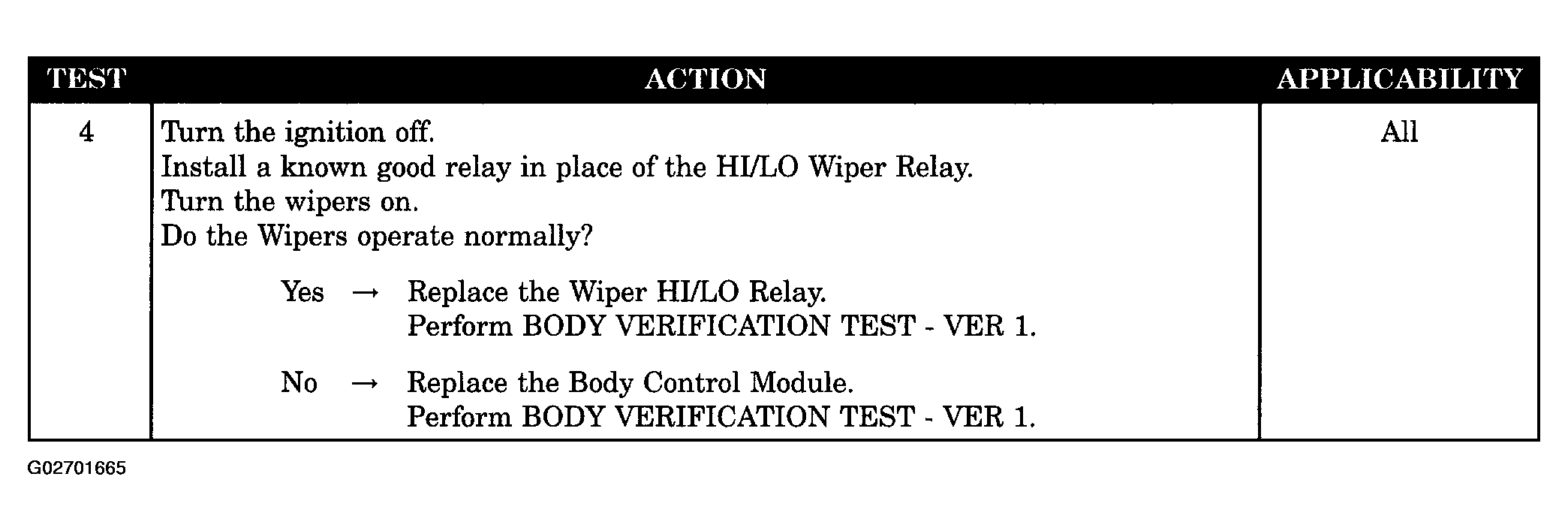

Fig 2: Wiper On/Off Relay Output Shorted Low - Diagnostic Procedure (2 Of 2)
G02701665Courtesy of DAIMLERCHRYSLER CORP.
