Wiper On/Off Relay Output Shorted High - Diagnostic Procedure

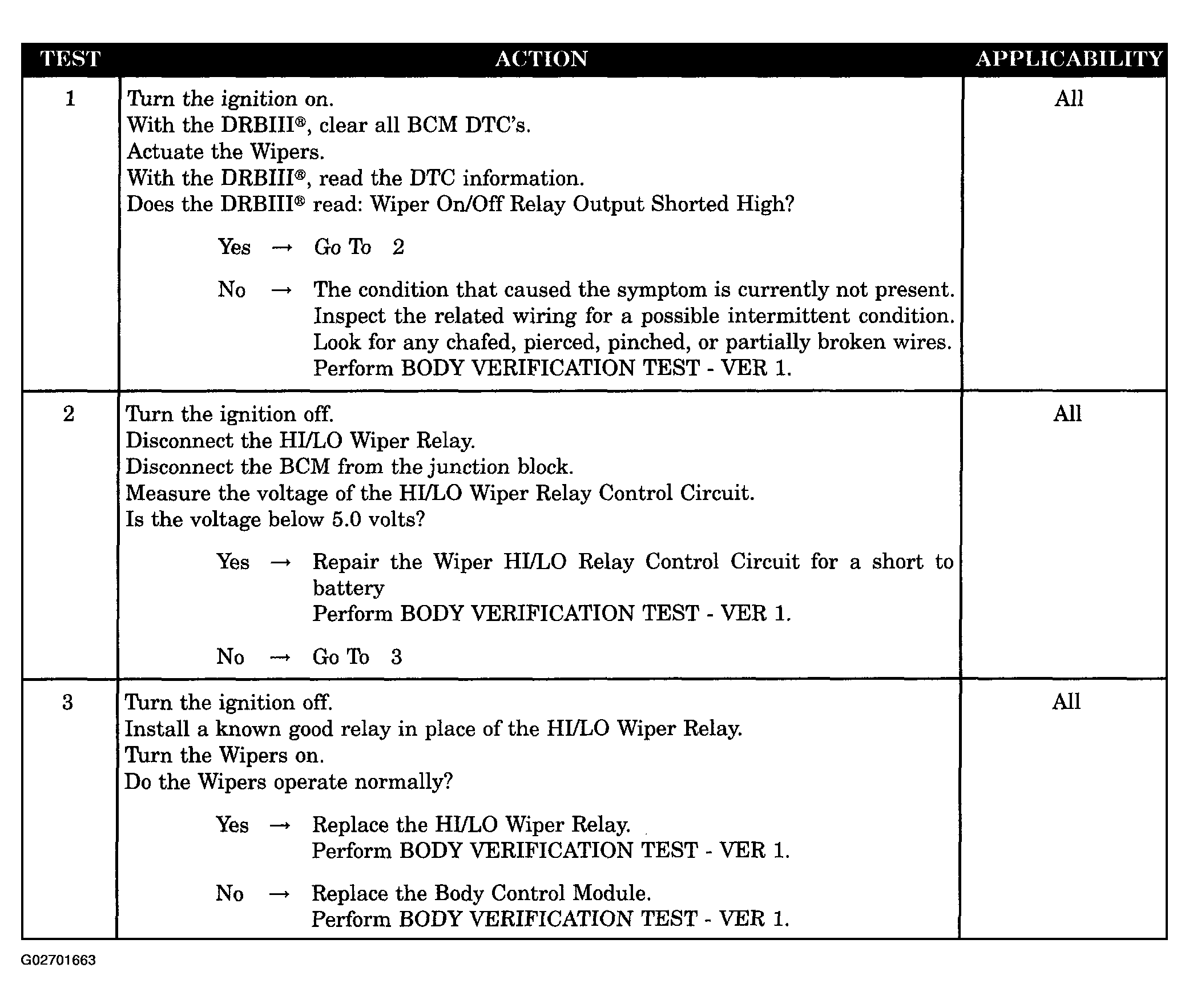

Fig 1: Wiper On/Off Relay Output Shorted High - Diagnostic Procedure

G02701663

Courtesy of DAIMLERCHRYSLER CORP.
