DECKLID Switch Disarm Failure - Diagnostic Procedure

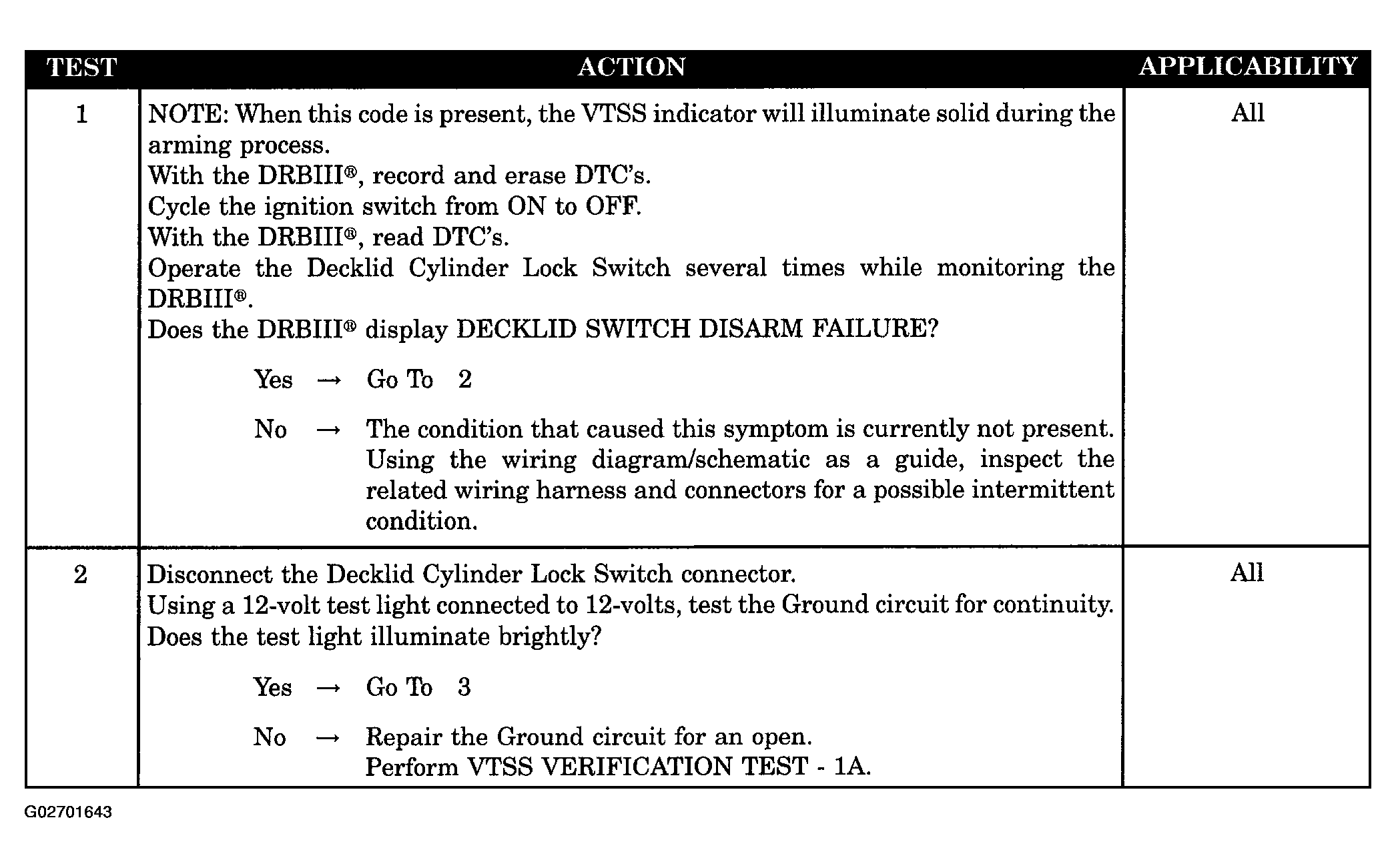

Fig 1: Decklid Switch Disarm Failure - Diagnostic Procedure (1 Of 2)
G02701643Courtesy of DAIMLERCHRYSLER CORP.

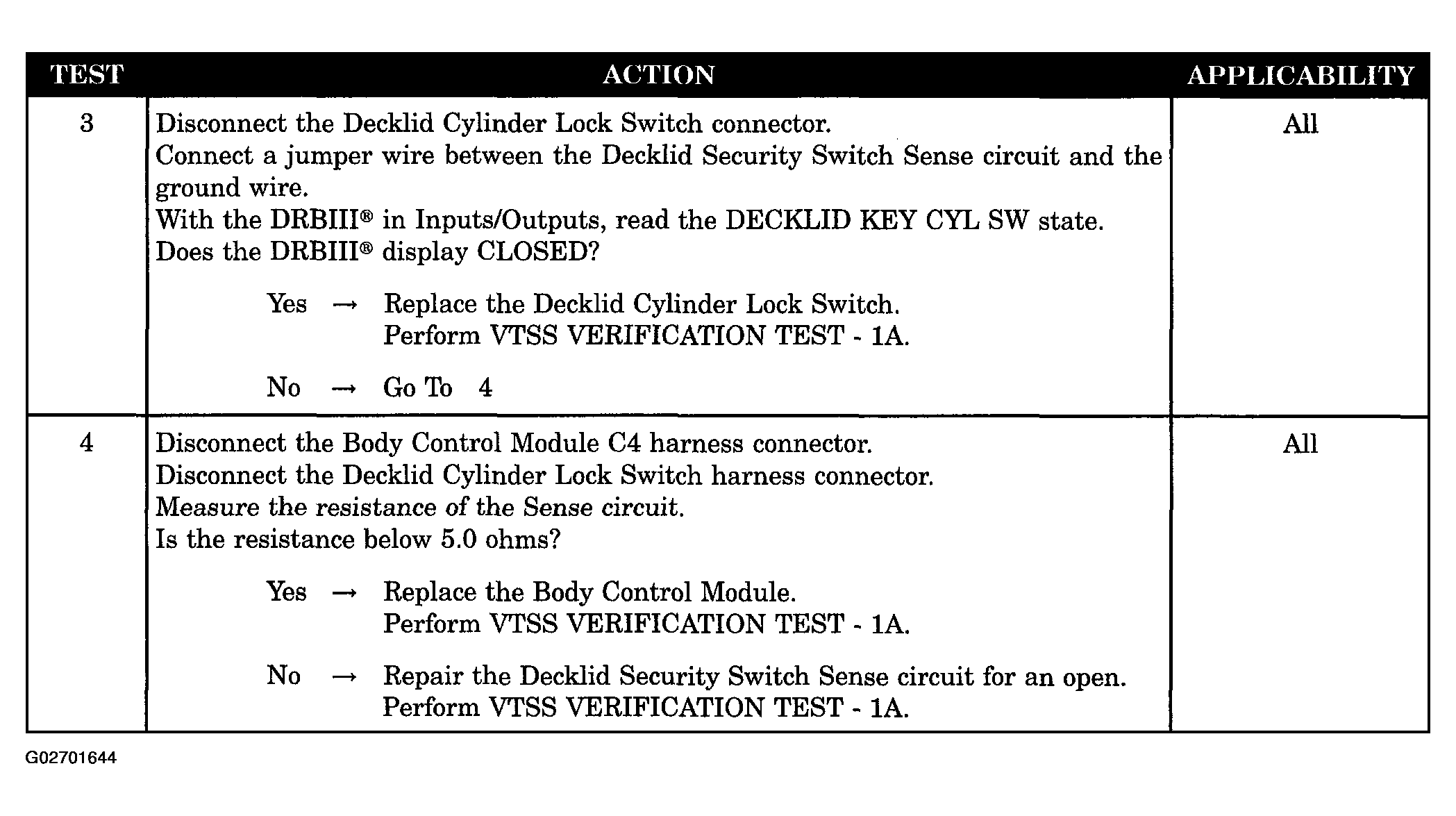

Fig 2: Decklid Switch Disarm Failure - Diagnostic Procedure (2 Of 2)
G02701644Courtesy of DAIMLERCHRYSLER CORP.
